Quick Answer: How to Sharpen Chainsaw by Hand
Before you begin sharpening your chainsaw by hand, you must gather the proper equipment. Using incorrect tools will compromise both the sharpening results and your safety during the process.
Pros
- Cuts hard construction materials without sparks, which is useful in renovation and demolition settings.
- Integrated water delivery helps reduce dust and can extend blade life.
- Deep cutting capacity is suitable for doors, windows, grooves, and wall openings.
Cons
- At 13 kg to 14 kg, it is relatively heavy for a handheld cutting tool.
- It requires a power outlet and water setup, so it is less portable than battery-powered tools.
- The product data does not include full accessory details, so buyers may need to confirm what is included before purchase.
Overview & Design: The Generic 5800W 6500W Electric Concrete Chainsaw is a corded concrete wall cutter designed for demanding cutting jobs on hard building materials. It uses a diamond chain, an ergonomic handle, and a water-supply system to support controlled, cleaner cutting in renovation and construction work.
Performance & Key Features: Based on the listed specifications, this tool is built for cutting concrete, brick, granite, ceramics, and reinforced concrete with less spark output and reduced dust. The advertised power, deep cutting capacity, and automatic water supply make it suitable for wall grooving, door and window openings, and both horizontal and vertical cuts.
Drawbacks & Considerations: The tool is relatively heavy at 13 kg to 14 kg, which may increase fatigue during longer jobs. It also depends on a 110V power source and a water connection, so it is not as flexible as cordless tools and may require more setup on site.
Verdict: This concrete chainsaw is best for contractors, remodelers, and serious DIY users who need a deep-cutting wall saw with water-cooled dust control. It offers strong capability for structural cutting tasks, but buyers should be comfortable with the weight and corded operation.
Pros
- Strong 71cc, 3.9KW engine for heavy-duty cutting
- Large 28-inch bar is suitable for bigger wood pieces
- Safety-focused design includes dual switches and chain brake
- Automatic chain lubrication helps maintain performance
Cons
- Gas-powered operation requires fuel mixing and more upkeep than electric options
- The 28-inch bar is more suitable for heavy-duty jobs than light trimming
- Pull-start operation may be less convenient than battery-powered chainsaws
Overview & Design: The GOSHET 28-Inch Gas Chainsaw is a 2-stroke, 71CC gasoline-powered saw designed for wood cutting in forest, farm, and garden settings. Its build combines a nylon shell, aluminum handle, and Mn steel guide bar and chain for a rugged, work-focused feel.
Performance & Key Features: With 3.9KW output and a claimed 10000rpm top speed, this chainsaw is built for fast cutting and larger-diameter wood. The automatic lubrication system and upgraded carburetor are intended to support smoother chain movement, lower friction, and better fuel and oil efficiency.
Drawbacks & Considerations: As a gas-powered tool, it will require fuel preparation and routine maintenance, which may not suit users who want a low-maintenance option. The 28-inch bar also makes it better for demanding cutting jobs than for small pruning tasks or casual homeowner use.
Verdict: This model is best suited to users who need strong cutting power and a long bar for heavier outdoor work. If you want a capable gasoline chainsaw for logs, farm tasks, or forestry-style cutting, the GOSHET 71CC is positioned as a practical high-output option.
Pros
- Very lightweight and one-handed friendly for pruning and trimming
- Battery and quick charger are included in the box
- Compatible with WORX Power Share batteries and tools
- Safety-focused design includes guards plus a lock-out switch
Cons
- The 5-inch bar is best for small branches and pruning, not larger cutting jobs
- Included 2.0Ah battery may be better suited to quick tasks than all-day heavy use
- Compact design means it is not intended to replace a full-size chainsaw
Overview: The WORX WG324 is a compact 20V cordless pruning saw built for light yard maintenance. Its 3.9 lb weight with battery and slim body make it easy to handle in tighter spaces and more comfortable for one-handed use.
Performance: With a 5-inch bar and chain speed rated at 22 ft/s, this mini chainsaw is aimed at trimming branches, bushes, and small pieces of wood rather than heavy cutting. The included Power Share battery platform is a practical advantage for users already invested in WORX tools.
- Useful for: pruning, trimming, and small cleanup jobs
- Convenient features: onboard chain tensioning tool and included sheath
- Safety hardware: upper chain guard, hand guard, and lock-out switch
Considerations: The compact cutting size is the main limitation, since this model is not meant for larger logs or demanding property clearing. The included battery is suitable for routine tasks, but frequent or extended use may require charging breaks.
Verdict: For homeowners who want a lightweight cordless pruning saw with simple controls and included accessories, the WORX WG324 is a strong fit. It offers a balanced mix of portability, safety features, and everyday convenience for small outdoor jobs.
Pros
- Brushless motor, per manufacturer
- 16-inch high-carbon steel guide bar, per listing
- Dual batteries listed for up to 200 cuts per charge
- Knob-based chain tension adjustment
- Listing says gloves and goggles are provided
Cons
- Listing does not clearly state whether batteries are included
Round File Selection
The round file is the primary sharpening tool for chainsaw teeth. The file size must match your chain’s pitch, the distance between drive links. Common pitch sizes include 0.325 inches, 0.404 inches, and 3/8 inches. Each pitch requires a specific file diameter:
- 0.325-inch pitch: 4.0 mm or 5/32-inch round file
- 3/8-inch pitch: 5.5 mm or 7/32-inch round file
- 0.404-inch pitch: 6.0 mm or 1/4-inch round file
Using an oversized or undersized file will either fail to sharpen the tooth properly or create incorrect angles that reduce cutting performance. You can find your chain pitch in your chainsaw’s manual or by measuring the distance between three consecutive rivets and dividing by two.
File Guide and Depth Gauge
A file guide is a metal or plastic holder that positions the round file at the correct angle (typically 25-35 degrees) relative to the chainsaw tooth. This device prevents inconsistent angling that results from freehand filing. File guides are inexpensive and essential for achieving uniform sharpness across all teeth.
A depth gauge (also called a raker gauge) is a flat metal tool that measures and maintains the height of depth-setting teeth (rakers) positioned in front of each cutting tooth. These rakers control how deep the tooth bites into the wood. Without proper depth maintenance, even well-sharpened teeth will not cut efficiently.

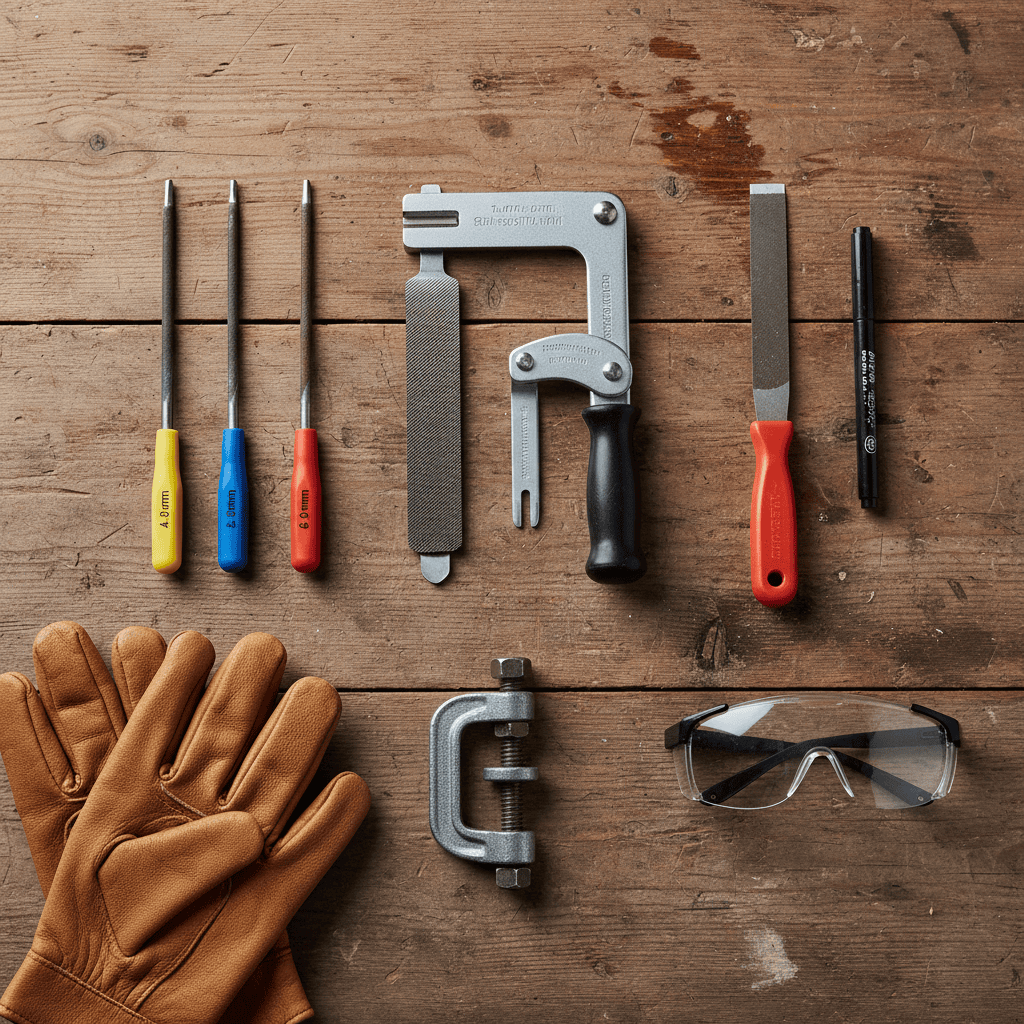

Additional Equipment
- Chainsaw vise or clamp: Secures the chainsaw bar firmly during sharpening
- Work gloves: Protects your hands from the sharp chain
- Safety glasses: Shields eyes from file debris
- Flat mill file: Used to level raker (depth) teeth
- Marker or chalk: Helps identify starting point on chain
Preparing Your Chainsaw for Sharpening
Securing the Chainsaw
Never attempt to hand-sharpen a chainsaw while it is running. Always ensure the engine is completely cold and off before beginning work. Place the chainsaw in a sturdy vise that clamps the bar securely, preventing any movement or vibration during filing. The bar should be positioned at a comfortable working height, typically waist-level, so you can maintain proper posture and apply consistent downward pressure.
Checking Chain Tension
Before sharpening, verify that the chain has appropriate tension. A loose chain is difficult to sharpen effectively because it will move during filing. Pull the chain away from the bar at the midpoint, it should move slightly but not hang loosely. If tension is incorrect, adjust it using your chainsaw’s adjustment mechanism, then recheck after filing several teeth, as the sharpening process may affect tension slightly.
Identifying Tooth Direction and Starting Point
Chainsaw chains have teeth pointing in alternating directions (left and right). Before beginning, identify which teeth point toward the left side of the bar and which point toward the right. Using a marker, make a small dot on the first tooth you will sharpen so you can track your progress around the chain without accidentally re-filing already-sharpened teeth.
Understanding Tooth Angle and File Positioning
The Critical Filing Angle
The angle at which you hold the round file relative to the chainsaw tooth determines sharpening effectiveness. Most chainsaw teeth require a filing angle between 25 and 35 degrees. This angle is measured as the deviation from perpendicular (90 degrees) to the chainsaw bar. A file guide helps establish and maintain this angle consistently.
Different chain types have slightly different optimal angles: To evaluate matched hardware tolerances, consult our detailed overview of marshall stanmore iii vs harman kardon onyx studio 8.
- Standard chains: 30-35 degrees
- Semi-chisel chains: 25-30 degrees
- Full-chisel chains: 30-35 degrees
Consult your chainsaw manual or check the specifications on your chain to determine the exact angle recommended for your equipment. Filing at an incorrect angle results in teeth that do not cut efficiently and may cause the saw to pull to one side during operation.
Positioning the File Correctly
Position the round file inside the tooth gullet (the curved space between teeth). The file should make contact with the tooth from the inside surface, angling slightly downward and outward. The file guide, if used, should rest on top of the tooth and the adjacent raker tooth to maintain consistent height and angle. The file should enter the tooth gullet at the correct angle without tilting forward or backward. When planning workspace deployment, consider the engineering criteria outlined in our dyson v8 cyclone vs bissell featherweight stick guide.
Step-by-Step Hand Sharpening Process
Step 1: Position the File
Holding the file guide steady with one hand, position the round file inside the first tooth gullet. Ensure the file is at the correct angle (guided by the file guide) and makes full contact with the tooth’s curved surface. The file should touch the entire tooth surface without gaps.
Step 2: Apply Consistent Pressure
Apply gentle but firm downward pressure as you draw the file outward (away from the center of the saw). Use smooth, controlled strokes rather than aggressive pressure. Each tooth typically requires 3-5 file strokes, depending on how dull the chain is. Consistency in pressure is critical, variable pressure creates uneven sharpness. For additional operational safety benchmarks, see our published testing notes on bissell crosswave hydrosteam vs shark stainforce.
Step 3: File in One Direction
Always file in one direction: from the inside of the tooth outward. Do not use a push-pull motion. Apply pressure only on the outward stroke; lift the file on the return stroke without dragging it backward across the tooth. This directional consistency prevents chattering and ensures proper metal removal.
Step 4: Progress Around the Chain
After sharpening the first tooth pointing in one direction (e.g., left-facing teeth), move to the next tooth pointing the same direction, skipping the opposite-facing teeth. File all left-facing teeth first, then rotate the chainsaw (or reposition your setup) and file all right-facing teeth using the same technique. This systematic approach prevents confusion and ensures no teeth are missed.
Step 5: Maintain Consistent Stroke Count
Use the same number of file strokes on each tooth. If you use 4 strokes on the first tooth, use 4 strokes on every tooth. This ensures uniform sharpness across the entire chain. Inconsistent stroke counts result in some teeth being duller than others, causing uneven cutting and the saw pulling to one side.
Maintaining Proper Depth and Balance
Understanding Raker Teeth
Raker (depth-setting) teeth are located in front of each cutting tooth. These rounded-top teeth do not cut; instead, they control how deep the cutting tooth penetrates into the wood. If rakers are too high, cutting teeth cannot engage the wood effectively. If rakers are too low, cutting teeth bite too aggressively, causing kickback and excessive vibration.
Using the Depth Gauge
Place the depth gauge over each raker tooth and the cutting tooth behind it. The gauge should rest flat on the raker tooth. If a gap appears between the raker tooth and the gauge, that raker is too low and requires raising. Using a flat mill file, file the top of the raker until the depth gauge sits flush without gaps. Remove only the minimum material necessary.
Proper Depth Settings
Most chains require a depth setting of 0.025 to 0.035 inches. Check your chainsaw manual for the exact specification for your chain type. Verify depth settings every few sharpenings or whenever you notice reduced cutting performance or increased vibration.
Common Mistakes to Avoid When Hand Sharpening
- Inconsistent filing angle: Deviating from the proper angle during strokes results in teeth shaped incorrectly, reducing cutting efficiency and causing poor performance.
- Unequal stroke count: Varying the number of strokes per tooth creates unevenly sharp teeth, causing the saw to pull and cut poorly.
- Ignoring raker height: Neglecting to file raker teeth leaves depth settings too high, preventing cutting teeth from engaging wood effectively.
- Using the wrong file size: An oversized or undersized file will not sharpen teeth properly or may damage the tooth shape.
- Excessive pressure: Forcing the file too hard removes excess metal, damaging tooth geometry and shortening chain life.
- Freehand filing without a guide: Attempting to maintain angle by hand alone almost always results in inconsistent results and wasted effort.
- Filing a loose chain: A chain that moves during sharpening cannot be sharpened effectively and may slip, causing injury.
Safety Precautions During Hand Sharpening
Engine Safety
Never sharpen a chainsaw while the engine is running or warm. Always allow the engine to cool completely, and remove the spark plug wire to prevent accidental starting. Even hands-free sharpening can be dangerous if the engine unexpectedly starts.
Hand and Finger Protection
Wear heavy work gloves to protect your hands from the sharp chain. Even though the chain is not moving, its teeth are extremely sharp and can cause deep cuts if you slip or lose grip. Position your hands carefully so they cannot contact the chain during filing.
Eye and Respiratory Protection
Wear safety glasses to protect your eyes from file debris and small metal particles. Consider wearing a dust mask if filing for extended periods, as metal dust can irritate respiratory passages.
Stable Work Environment
Ensure the chainsaw is clamped securely in a vise and will not shift during sharpening. A sliding chainsaw can cause the file to slip and result in hand injuries. Work on a stable, level surface at a comfortable height to maintain proper posture and control.
How Often Should You Sharpen a Chainsaw by Hand?
Recognizing a Dull Chain
The chainsaw will exhibit several signs when the chain requires sharpening:
- Pulling to one side: The saw veers left or right during cutting instead of moving straight through the wood.
- Producing fine sawdust: Instead of wood chips, the saw creates powder-like dust, indicating teeth are not cutting properly.
- Requiring excessive pressure: You must push harder than normal to make cutting progress.
- Producing a high-pitched or struggling sound: The engine strains rather than running at normal RPM.
- Bouncing or chattering: The bar vibrates during cutting instead of moving smoothly.
Sharpening Frequency
Sharpening frequency depends on chainsaw usage and wood type. Light, occasional users may sharpen once or twice per season. Regular users should sharpen every 3-5 hours of cutting time. Cutting through sandy, dirty, or pitch-laden wood dulls chains much faster than cutting dry, clean wood. Inspect your chain weekly during active cutting season and sharpen whenever you notice reduced performance.
Common Questions on How To Sharpen A Chainsaw By Hand Answered
Can I sharpen a chainsaw chain with just any round file?
No. The round file diameter must match your chain pitch precisely. Using an incorrect file size will either fail to sharpen the tooth properly or damage tooth geometry. Verify your chain pitch from your manual or by measuring, then select the corresponding file size. Using the wrong file wastes time and effort while potentially damaging the chain.
What should I do if I file one tooth too short?
If you over-file one tooth significantly shorter than others, it will not cut efficiently and may cause the saw to pull toward that side. Unfortunately, there is no way to lengthen a tooth. You must either file all other teeth shorter to match (which shortens overall chain life) or replace the chain. To prevent this, maintain consistent, moderate stroke counts and pressure on every tooth.
Is a file guide absolutely necessary for hand sharpening?
While experienced users may sharpen without a file guide, it is strongly recommended for most users. A file guide maintains the correct angle consistently, which is difficult to achieve freehand. The guide ensures uniform sharpness across all teeth, resulting in better cutting performance and straight-line operation. The small cost of a file guide is worthwhile compared to the frustration and poor results of freehand filing.
How do I know when my chain is too damaged to sharpen by hand?
If the chain has broken links, cracked or bent teeth, or severely worn rollers, hand sharpening cannot restore it. If after sharpening the saw still pulls significantly or cuts poorly, damage beyond dull teeth may be present. In these cases, chain replacement is more cost-effective than attempting further sharpening. Most chains last several sharpenings before replacement becomes necessary.
