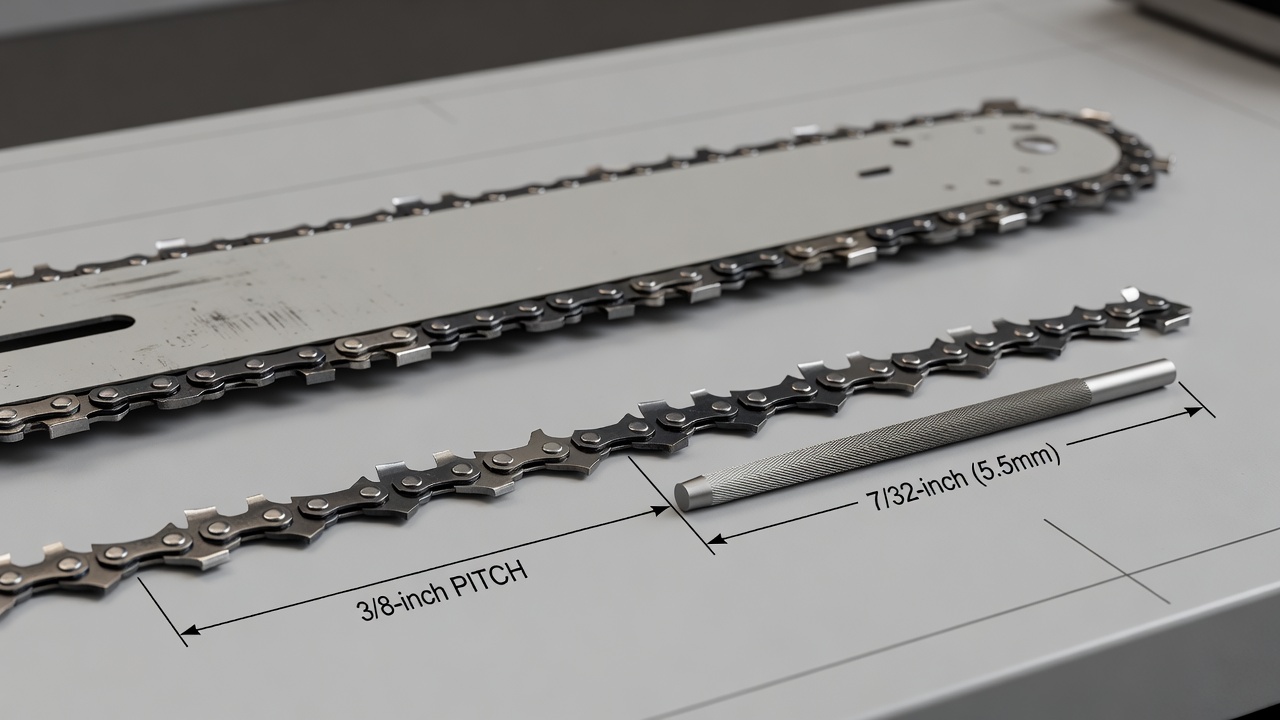

What Size File Does a 3/8-Inch Chain Need?
A 3/8-inch pitch chainsaw chain typically requires a 7/32-inch (5.5mm) round file for sharpening. Always confirm the file size against the manufacturer’s specifications for your specific chain, since chain type (full chisel, semi-chisel, low-profile) can affect the recommended file.
In the context of chainsaw maintenance, ‘file size’ refers to the physical diameter of the sharpening file used to maintain the chain’s cutting edges, not a digital file or document size. The 7/32-inch measurement is the standard for most 3/8-inch pitch chains, though variations may exist based on specific chain designs.
Why 7/32-Inch (5.5mm) Is the Standard for 3/8 Pitch
The 7/32-inch (5.5mm) round file has become the industry standard for 3/8-inch pitch chains due to its compatibility with the most common chain configurations. This size provides the optimal balance between cutting efficiency and durability for standard cutting applications.
When using the correct file size, the sharpening process produces consistent tooth angles and maintains the proper tooth geometry. Using a file that is too large can damage the chain’s tooth profile and reduce cutting performance, while a file that is too small may not effectively sharpen the teeth.
Key Factors to Consider: Chain Type and Pitch Variations
While 7/32-inch is the standard for most 3/8-inch pitch chains, it’s important to consider the specific chain type as this can influence file selection:
- Full Chisel Chains: These chains typically use the standard 7/32-inch file size as they have a more aggressive cutting edge.
- Semi-Chisel Chains: These chains may sometimes require slightly different file dimensions depending on the manufacturer’s design.
- Low-Profile Chains: These chains often use specialized file sizes to maintain the reduced tooth height and profile.
Always check the manufacturer’s specifications or the chain’s identification plate for the exact file size recommendation. The chain pitch (3/8-inch in this case) is the primary determinant, but the specific tooth design can affect the optimal file diameter.
How to Sharpen a 3/8-Inch Chain: Step-by-Step
Proper sharpening of a 3/8-inch chain requires attention to detail and consistent technique. Follow these general guidelines for effective chain maintenance:
- Preparation: Ensure the chainsaw is off and the chain is completely stopped. Use a chain wrench to secure the guide bar and chain, then remove the chain from the bar.
- File Preparation: Select the appropriate 7/32-inch (5.5mm) round file. Ensure the file is in good condition with no nicks or damage.
- Positioning: Place the file at the correct angle (typically 30-35 degrees) against the chain tooth. The file should be positioned perpendicular to the chain’s plane.
- Sharpening Technique: Use smooth, even strokes moving away from your body. Apply consistent pressure and maintain the proper angle throughout the sharpening process.
- Stroke Count: For each cutter tooth, apply approximately 10-15 strokes with the file. The number of strokes may vary based on the tooth’s condition and the desired sharpness.
- Raker Adjustment: After sharpening all cutting teeth, check and adjust the raker (depth gauge) teeth if necessary to maintain proper chain depth in the bar groove.
- Checking Sharpness: Test the chain’s sharpness by running it through a piece of wood – it should cut cleanly without burning or binding.
When sharpening, be cautious of the chain’s moving parts and ensure the guide bar is properly secured to prevent accidental chain movement.
Common Questions About Chainsaw File Sizes
Here are answers to some frequently asked questions about chainsaw file sizes and sharpening:
- Can I use a 5.5mm file instead of a 7/32-inch file? While 5.5mm is numerically close to 7/32-inch (which is approximately 5.56mm), using a file that is slightly smaller may result in less aggressive sharpening. The manufacturer’s specifications should be followed for optimal performance.
- How often should I sharpen a 3/8-inch chainsaw chain? The frequency depends on usage, but typically chains should be sharpened after every 1-2 hours of cutting or when the chain shows signs of dullness.
- What does ‘pitch’ mean in chainsaw chain sizing? Chain pitch refers to the distance between the centers of adjacent chain rivets, measured in inches or millimeters. For a 3/8-inch pitch chain, this distance is 3/8 inch (approximately 9.525mm).
- How do I know if my file is the right size? Check the file’s markings or consult the manufacturer’s specifications. The file should be labeled with its diameter in both inches and millimeters.
- What happens if I use the wrong file size? Using an incorrect file size can damage the chain’s tooth geometry, reduce cutting efficiency, and potentially cause the chain to bind or burn the wood.
For professional or high-value chainsaw work, consider consulting the manufacturer’s service manual or seeking assistance from a qualified chainsaw technician to ensure proper maintenance and safety.
