Why Z890 Stability Issues Occur on Arrow Lake
Intel’s Core Ultra 200 series, codenamed Arrow Lake, marks a fundamental departure from every mainstream desktop processor that preceded it. The architecture abandons the monolithic die in favor of a disaggregated multi-tile design, moves the memory controller and integrated graphics onto separate tiles, and shifts voltage regulation responsibilities onto the motherboard’s VRM subsystem. These architectural changes mean that the BIOS configuration playbook that worked flawlessly for Raptor Lake simply does not translate to Z890 boards.
When reviewers and early adopters began stress-testing the Core Ultra 9 285K, a pattern of instability emerged that was not the fault of defective silicon. The overwhelming majority of crashes, WHEA errors, and freezes traced back to three root causes: aggressive motherboard vendor default settings that exceeded Intel’s recommended power limits, overly aggressive Load-Line Calibration (LLC) curves that produced dangerous voltage spikes, and memory subtimings that were pushed beyond what the integrated memory controller could reliably sustain. Understanding these failure modes is the first step toward a stable configuration.
The critical insight is that board partners ship Z890 motherboards with “performance optimized” defaults that deliberately ignore Intel’s baseline guidance. These settings are designed to win benchmark comparisons out of the box, but they sacrifice long-term stability and component longevity in the process. Reclaiming control over your own system means deliberately overriding those vendor defaults and restoring the parameters that Intel validated in its own engineering labs. For complementary field maintenance guidelines, examine our breakdown of what power supply wattage for gaming pc.
The Diagnostic Baseline: What a Stable Arrow Lake System Must Hold
Before you change a single setting, you need a repeatable way to measure whether your configuration is actually stable. Stability is not a feeling; it is a measurable property that you can verify with structured stress testing. The table below summarizes the key electrical and thermal parameters you should be tracking, along with the ranges that indicate a healthy, stable Core Ultra 200 system.
| Parameter | Core Ultra 9 285K | Core Ultra 7 265K | Core Ultra 5 245K | Stability Warning Threshold |
|---|---|---|---|---|
| Intel Default PL1 (Power Limit 1) | 250W | 250W | 250W | Sustained draw above 250W for 60s+ |
| Intel Default PL2 (Power Limit 2) | 250W | 250W | 250W | Peak bursts well above 250W |
| Max Vcore (Auto / Default) | ~1.35–1.40V | ~1.30–1.35V | ~1.25–1.30V | Sustained Vcore above 1.40V |
| Max VDram (DDR5-6400) | 1.20–1.35V | 1.20–1.35V | 1.20–1.35V | Above 1.45V without extreme cooling |
| IA VR Voltage (VCC) | 1.15–1.30V | 1.10–1.25V | 1.05–1.20V | Spikes above 1.45V under load |
| Max Package Temperature | 95°C | 95°C | 95°C | Sustained thermal throttling |
| Load-Line Calibration (LLC) | Level 3 | Level 3 | Level 3 | Level 5+ causes Vdroop overshoot |
| Memory Gear / Mode | Gear 2 / 1:2 | Gear 2 / 1:2 | Gear 2 / 1:2 | Forced Gear 1 instability |
| Cinebench R23 Multi | >42,000 | >38,000 | >24,000 | Score regression >10% from baseline |
These numbers represent the validated engineering envelope that Intel uses internally. If your system holds these parameters during a 30-minute all-core stress test without WHEA errors, thermal throttling, or random application crashes, your configuration is stable by any reasonable definition. If it does not, you have a configuration problem, not a silicon problem. To evaluate matched hardware tolerances, consult our detailed overview of how to safely connect 12v 2×6 gpu power cable.
Step 1: Reset to Intel Default Profile

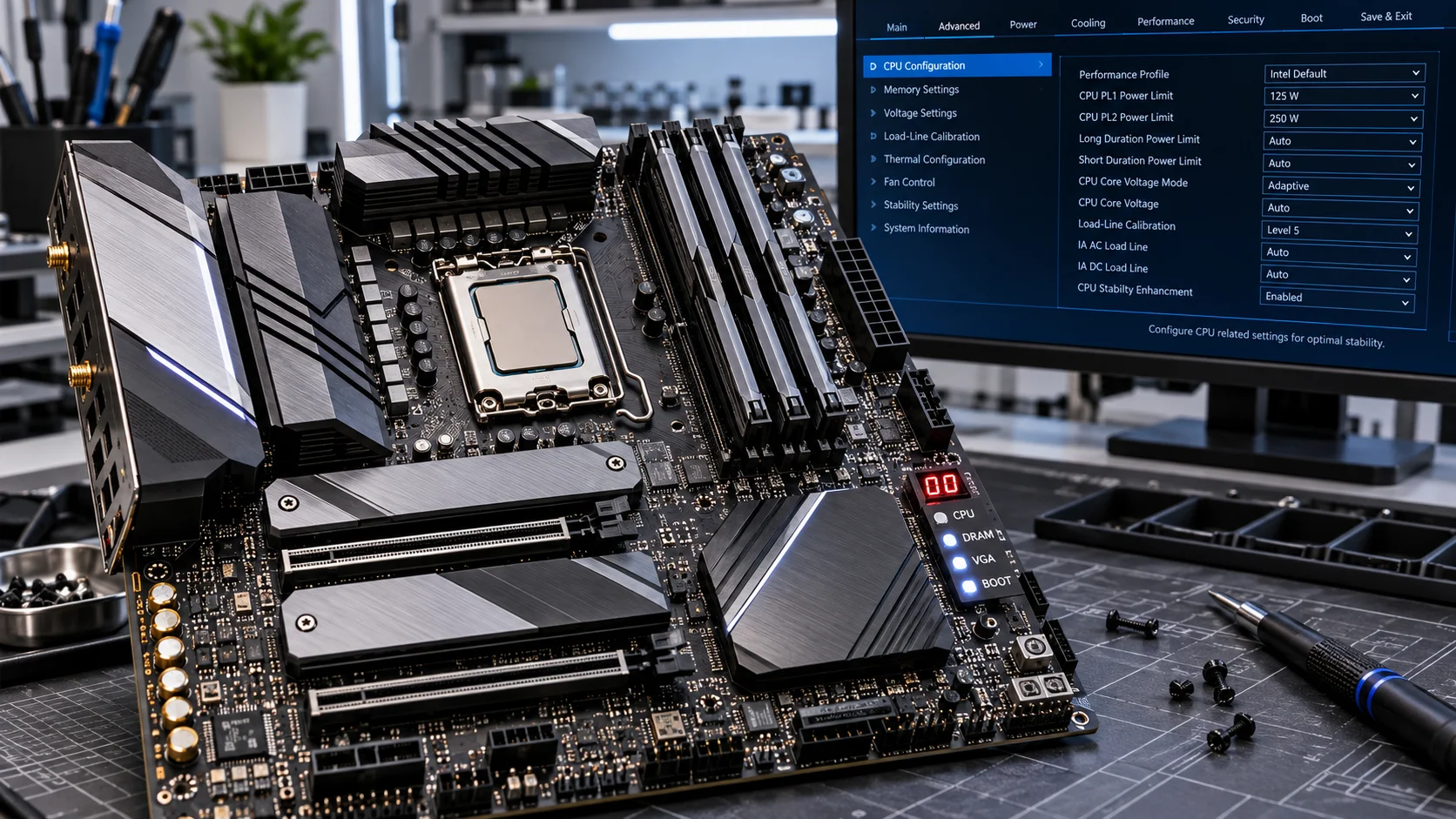

Every Z890 motherboard ships with a BIOS selection screen that offers multiple power profiles. The most common options are “Intel Default Settings,” “Intel Defaults with Extreme Power,” and vendor-specific “Optimized” or “Performance” profiles. Your first action should be to select Intel Default Settings as your baseline. This profile locks in Intel’s officially validated power limits, voltage curves, and current limits, and it is the only configuration that Intel will honor for warranty and support purposes.
The “Extreme Power” variant is worth a brief mention because it appears on many enthusiast boards. It raises the power limits beyond Intel’s baseline and is intended for extreme cooling scenarios with custom water loops or sub-ambient setups. Unless you are running a custom loop with a 360mm radiator or better, do not select this profile. The standard Intel Default Settings profile is sufficient for the vast majority of air-cooled and AIO-cooled systems. When planning workspace deployment, consider the engineering criteria outlined in our motherboard post codes q leds diagnostics guide.
If you have already been running a vendor profile and experienced crashes, perform a full CMOS clear after switching to Intel Defaults. Pull the power cord, remove the round CMOS battery for thirty seconds, and reseat it. This ensures that no residual vendor overclocking values linger in the memory of the Super I/O chip. A dirty reset is a common cause of persistent instability that survives a profile change.
Step 2: Configure Arrow Lake Power Limits (PL1 and PL2)
Power limits are the single most consequential stability control on any modern desktop platform, and Arrow Lake is no exception. Power Limit 1 (PL1) defines the sustained power draw that the CPU may maintain indefinitely, while Power Limit 2 (PL2) defines the short-term burst ceiling that the CPU may hit before settling back down to PL1. When motherboard vendors ship boards with unlimited or absurdly high PL2 values, the CPU can draw far more current than the silicon and motherboard were designed to handle, producing voltage droop, thermal throttling, and intermittent crashes. For additional operational safety benchmarks, see our published testing notes on how to update bios without cpu flashback.
For the Core Ultra 9 285K, Intel’s official guidance is 250W for both PL1 and PL2. This is an unusually tight PL1/PL2 window compared to Raptor Lake, where the two limits diverged significantly. Intel made this deliberate choice because Arrow Lake’s disaggregated design is more sensitive to sustained high current draw across the multiple tiles. Setting both limits to 250W gives you the full performance envelope while keeping the package within its validated electrical specification.
Locate the power limit fields in your BIOS. They are typically found under an “Advanced / CPU Configuration / Power Management” or “Overclocking / Advanced CPU Configuration” menu. Set PL1 to 250W and PL2 to 250W for the 285K, or use the lower 125W/250W split for the 265K and 245K if you prefer a more conservative thermal profile. Also verify that the “Current Limit” (IccMax) is set to Intel’s recommended value rather than “Unlimited,” as an unrestricted current limit can produce the same instability as an unrestricted power limit. To compare alternative configurations, check our hands-on review of what is pcie bifurcation lane sharing.
After setting power limits, confirm that the “Turbo Boost Power Max” and “Long Duration Power Limit” fields match your PL2 and PL1 values respectively. Different BIOS vendors use different naming conventions for these fields, and it is common for a single board to expose the same limit under two or three different names. If you only change one of the aliased fields, the other will override your setting and reintroduce instability.
Step 3: Stabilize Voltage with Load-Line Calibration
Load-Line Calibration (LLC) is the mechanism that compensates for Vdroop, the natural drop in core voltage that occurs when the CPU transitions from idle to heavy load. A motherboard with the correct LLC level delivers a flat, stable voltage under load. An LLC level that is too low produces excessive Vdroop, which can cause the CPU to crash because it momentarily runs out of voltage. An LLC level that is too high produces voltage overshoot, where the CPU receives more voltage than requested, generating excess heat and stressing the silicon.
Z890 boards ship with LLC levels that range from Level 1 (minimum compensation) to Level 8 (maximum compensation), though the exact numbering varies by vendor. The validated sweet spot for Arrow Lake is Level 3, which provides enough compensation to hold Vcore steady under all-core loads without producing the overshoot spikes that plague levels 5 and above. Start at Level 3 and only deviate if you observe instability in one specific direction.
If you crash at Level 3 with a flat Vcore, move to Level 4. If you observe voltage overshoot above 1.40V under load, move to Level 2. The goal is the flattest possible Vcore curve, and the correct LLC level is the one that produces a nearly horizontal line on your monitoring software when you transition from idle to a full all-core load. Monitor Vcore with HWInfo64 during a stress test and watch for both excessive droop and excessive overshoot.
Leave the actual Vcore voltage on Auto. Arrow Lake’s firmware is remarkably good at selecting the correct operating voltage when power limits and LLC are configured correctly, and manual Vcore overrides are the leading cause of both crashes and premature silicon degradation. Only consider a manual fixed Vcore if you are pursuing a specific overclocking goal, and even then, never exceed the silicon’s validated maximum operating voltage.
Step 4: Configure Memory for the Arrow Lake Memory Controller
Arrow Lake’s integrated memory controller lives on a separate tile from the compute cores, and it has specific requirements for reliable DDR5 operation. The platform officially supports DDR5-6400 in Gear 2 mode, where the memory clock runs at half the memory controller clock. Attempting to run the memory controller in Gear 1, or 1:1 ratio, at high speeds is a common source of instability because the memory controller on the I/O tile cannot sustain that ratio reliably.
Start by enabling the motherboard’s XMP or EXPO profile to load your memory kit’s validated timings, but then verify that the memory ratio is set to 1:2 (Gear 2). Some boards default to 1:1 in an attempt to wring out extra memory bandwidth, and this produces spontaneous crashes and data corruption that are notoriously difficult to diagnose. Confirm the memory clock and memory controller clock separately in your monitoring software, and understand that the effective data rate is double the memory clock, as explained in our guide to DDR5 memory clock speeds.
If your kit is rated for DDR5-7200 or higher, do not assume that the rated speed will work out of the box on every Z890 board. The rated speed assumes ideal motherboard layout and memory controller quality, and your specific silicon may not sustain it. If you experience crashes at the rated speed, drop to the next JEDEC step (for example, from 7200 to 6800) and retest. A stable 6800MT/s configuration is worth far more than an unstable 7200MT/s one.
Keep the memory voltage (VDram) within the 1.20–1.35V range unless your kit explicitly requires more. High-end kits rated above DDR5-7200 often specify VDram above 1.40V, and while this is safe for the memory chips themselves, it places additional stress on the memory controller tile and the motherboard’s memory VRM. If your kit demands high voltage, ensure your motherboard has adequate memory VRM cooling before relying on it.
Step 5: Verify Core, Cache, and Thermal Management
Arrow Lake introduces a new voltage domain structure that separates the compute tile, graphics tile, and I/O tile into distinct power domains. This means that the traditional single “CPU Core Voltage” setting no longer controls everything. On Z890 boards, you will encounter separate settings for IA (Intel Architecture) core voltage, SA (System Agent) voltage, and the graphics tile voltage. For a stable default configuration, leave all of these on Auto and focus your manual attention on the power limits and LLC described above.
Thermal management is equally important because Arrow Lake’s multiple tiles concentrate heat in a smaller effective die area than monolithic designs. The package temperature limit should remain at the stock 95°C, and you should not raise it unless you are running extreme cooling. A CPU that is consistently pinned at 100°C will throttle and crash even with perfect voltage settings. If your temperatures are high, first verify your CPU operating temperatures are within the validated range, then check your cooler mounting and your thermal interface application before touching any voltage settings.
Enable any Intel-provided boost technologies that your board exposes, particularly Intel Adaptive Boost Technology (ABT) and Thermal Velocity Boost (TVB), as these are validated to work within the power and thermal envelope you have configured. Disable any vendor-specific “AI overclocking” or “auto-OC” features, as these typically modify power limits and voltage curves in ways that reintroduce the instability you are trying to eliminate.
Step 6: PCIe and I/O Configuration for Stability
The Z890 platform provides PCIe 5.0 lanes for the primary graphics slot and a selection of PCIe 4.0 and 5.0 lanes for storage and expansion. A common stability error is attempting to run multiple PCIe 5.0 devices simultaneously, which strains the chipset and CPU lane allocation. If you are experiencing random GPU-related crashes or NVMe drive disconnects, review your PCIe 5.0 slot allocation and ensure that your GPU is in the primary x16 slot with the secondary slots running at reduced link widths.
For the initial stability validation, set your PCIe link speed to Auto or explicitly to PCIe 5.0 for the primary slot only. Do not enable “Resizable BAR” or “Above 4G Decoding” until the system passes a full stress test at default settings, as these features can mask or contribute to memory mapping instability when combined with aggressive memory timings. Enable them one at a time and retest after each change so you can isolate the source of any new instability.
Verify that your board’s chipset and M.2 heatsinks are properly installed, as PCIe 5.0 NVMe drives generate substantial heat that can cause thermal shutdowns. If you are running a high-end PCIe 5.0 drive, ensure it has adequate airflow and consider whether the drive’s performance benefit justifies the added thermal load in your specific chassis configuration.
Step 7: Update BIOS Firmware and Drivers
Z890 is a first-generation platform, and Intel and its board partners have shipped numerous firmware revisions since launch to address stability issues in the initial microcode. Before you spend hours debugging a stability problem, verify that you are running the latest BIOS release for your specific motherboard model. The initial launch BIOS revisions for many Z890 boards contained known voltage and power-limit bugs that were corrected in subsequent releases.
Update the BIOS using the board’s built-in flash tool with a FAT32-formatted USB drive, and prefer a wired network connection or direct USB flash over any wireless update mechanism for reliability. After flashing, the BIOS will reset to defaults, so you will need to reapply the Intel Defaults profile, power limits, and LLC settings described in the previous steps. Document your settings before flashing so you can restore them quickly.
Beyond the BIOS, install the latest chipset drivers and Intel Management Engine firmware from your motherboard vendor’s support page. Outdated chipset drivers can cause intermittent device and power-management errors that are easy to mistake for CPU instability. If you have recently reinstalled your operating system or upgraded your GPU, follow a proper driver clean install guide to eliminate driver-level conflicts before you blame the silicon.
Step 8: Stress Test and Validate Stability
Validation is the final and most important step, because a configuration that looks correct in the BIOS can still be unstable under real load. Begin with a 30-minute run of Cinebench R23 or R24 in multi-core mode, monitoring package power, Vcore, and temperature throughout. The system should hold 250W at PL1, keep Vcore flat near 1.30V, and stay below 95°C without a single WHEA error or crash.
Follow the CPU test with a memory stability test such as TestMem5 with the extreme configuration, run for at least three full passes. Memory instability is the most common cause of intermittent application crashes and corrupted data, and it will not always produce an immediate system failure. A system that passes both CPU and memory validation is dramatically more likely to remain stable under day-to-day use.
Finally, run a mixed workload that exercises the CPU, memory, and storage simultaneously, such as a long video encode while gaming or compiling a large project. Mixed loads expose power-delivery and thermal interactions that single-component tests miss. Only after the system passes all three validation phases should you consider your configuration stable and begin any further tuning.
For reference on the underlying architecture and Intel’s official power and baseline specifications, consult the Intel Core Ultra Power & Baseline Technical Whitepaper, which documents the exact PL1, PL2, and current limits that Intel validates for each Arrow Lake SKU.
Troubleshooting Common Z890 Instability Scenarios
If you have followed all of the above and still experience instability, work through the most common remaining causes in order of likelihood. First, verify that your power supply is adequate and that the 12V EPS cable for the CPU is fully seated, as a loose or undersized EPS connection produces intermittent crashes that mimic CPU failure. Second, confirm that your CPU cooler is mounted with even pressure, since an uneven mount produces hot spots that trigger localised throttling.
Third, test your memory with a single stick installed in the correct slot for a one-stick configuration. This isolates whether your instability is caused by the memory controller’s dual-channel operation, a marginal memory module, or a motherboard DIMM slot issue. If the system is stable with one stick but not two, the problem is either the second module or the memory controller’s support for that specific configuration.
Fourth, monitor your motherboard’s VRM temperatures during a stress test. A board with inadequate VRM cooling will throttle or shut down when the power delivery stages overheat, and this produces symptoms identical to CPU instability. If your VRM temperatures exceed 90°C under load, improve chassis airflow or add VRM heatsinks before pursuing any further tuning.
Finally, if instability persists after exhausting every software and configuration option, consider whether your specific CPU silicon is defective. Run Intel’s official diagnostic tool and, if it reports a failure, contact your retailer or Intel for a warranty replacement. Arrow Lake CPUs have an extremely low defect rate, but a small percentage of units do fail, and there is no amount of BIOS tuning that can compensate for defective silicon.
