Hand-sharpening a chainsaw chain requires selecting the correct round file size (based on chain pitch), setting the file at the manufacturer’s recommended angle (usually 25–35°), and filing each cutter with smooth, even strokes from the inside out. After sharpening all cutters, lower the depth gauges (rakers) with a flat file to the correct height to maintain cutting efficiency.
Selecting the Correct File and Guide
The round file diameter must match your chain’s pitch to ensure proper contact with the cutter’s curved surface. Chain pitch—the distance between drive links—determines the correct file size. A .325-inch pitch chain typically requires a 5/32-inch round file, while .404-inch pitch chains often need a 7/32-inch file. Consult your chainsaw manual or the markings on your chain to confirm the pitch and corresponding file size.
A filing guide is optional but highly recommended for consistent results, especially if you’re new to hand-sharpening. Filing guides attach to the bar and hold the file at the correct angle automatically, reducing the skill required to maintain consistency across all cutters. Many guides include depth-gauge tools as well, making them multi-functional. Freehand filing is possible with practice but demands steady hands, good angle awareness, and considerable experience to maintain uniform results.
Invest in a quality round file with a smooth handle and appropriate taper. Files dull over time, so budget for replacement after every few chains or when the file no longer removes metal efficiently. A new file makes the job noticeably easier and faster.
Setting the Sharpening Angle
The filing angle is critical to chainsaw chain performance. Most modern chains use a 30-degree angle, which represents the angle between the file and the bar. Semi-chisel chains may use 25 degrees, while some full-chisel chains require 35 degrees or steeper. Your chain manufacturer’s documentation specifies the correct angle—typically stamped on the chain itself or listed in your chainsaw’s manual.
To set the angle, hold the file perpendicular to the bar while standing behind the chain, then rotate the file handle downward until it aligns with the manufacturer’s angle. If using a filing guide, adjust the guide’s angle mechanism to match your chain’s specification. Without a guide, marking the angle on your file handle with a marker can help you visualize and maintain consistency through muscle memory.
Filing at an incorrect angle dulls cutters faster and produces a ragged cut. Too shallow an angle (less than 25 degrees) removes insufficient metal and leaves cutters dull. Too steep an angle (more than 35 degrees) removes excessive metal and shortens the chain’s usable life. Take time to verify your angle before beginning the actual filing work.
Step-by-Step Hand-Filing Technique

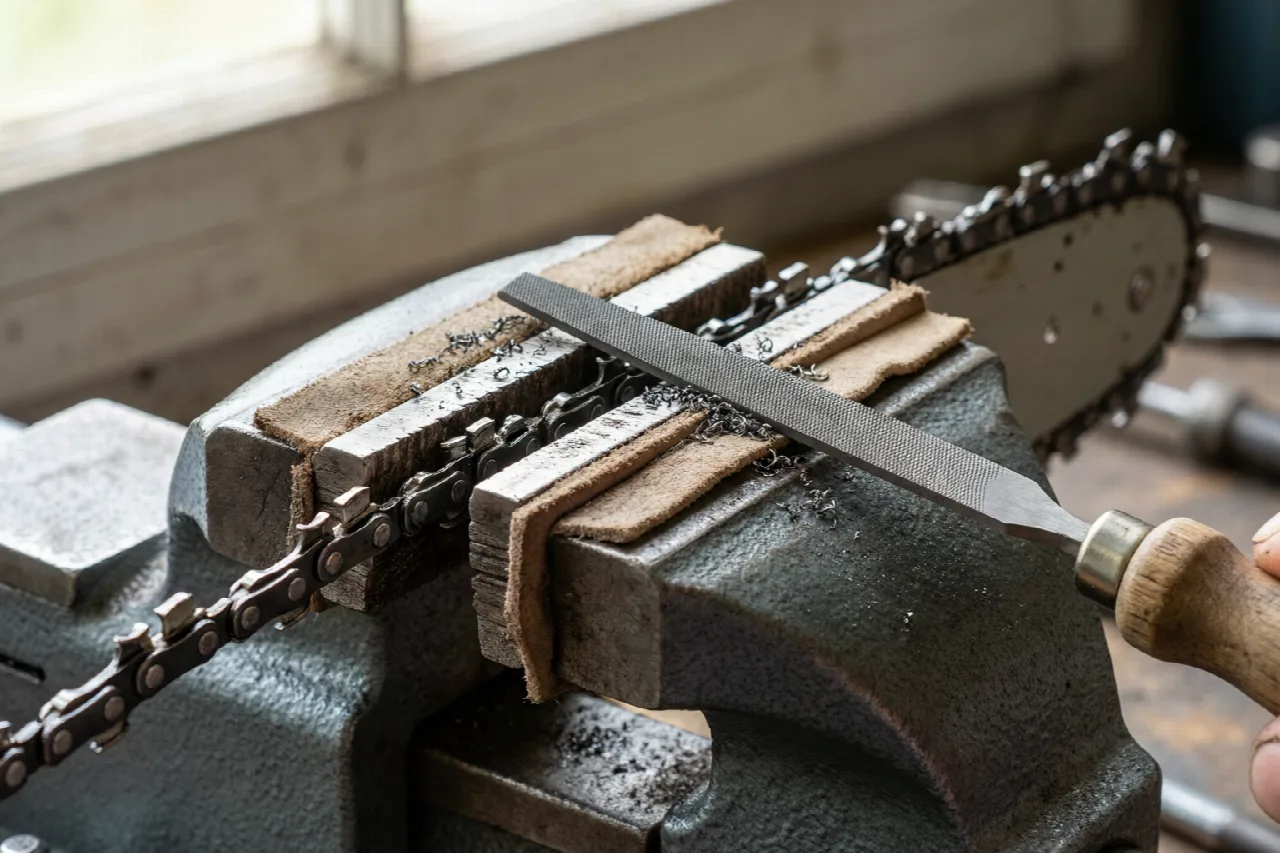

Mount the chain firmly in a vise with soft jaws or on a stable filing stand. The chain should not rotate or shift during filing. Begin at one cutter and file with smooth, deliberate strokes from the inside edge of the cutter toward the outside edge. Use light to moderate pressure—let the file’s teeth cut the metal rather than forcing it. Typically, three to five strokes per cutter remove dullness without over-filing.
Maintain consistent pressure and stroke count across all cutters. After completing one side of the chain, rotate the bar and file the cutters on the opposite side using the same technique and stroke count. This ensures that both cutting surfaces remain balanced, which is essential for straight cuts and balanced performance.
Work methodically around the chain, moving from one cutter to the next without skipping any. Mark your starting point so you know when you’ve filed all teeth. As you work, the file may develop a burr or glazed surface; clean it occasionally with a file brush or soft cloth to maintain sharp cutting edges on the file itself.
Adjusting Depth Gauges (Rakers)
Depth gauges, also called rakers, control how aggressively the chain cuts. They sit just ahead of each cutter and prevent the tooth from biting too deeply into the wood. After sharpening all cutters, the depth gauges must be checked and lowered if necessary. Use a depth-gauge tool (often included with filing guides) that matches your chain type and size.
Place the tool over each cutter so the gauge notch aligns with the top of the cutter. If the depth gauge protrudes above the tool’s reference surface, it’s too high and must be filed down. Use a flat file to carefully lower the raker, working from the rear of the cutter forward. Standard raker height is approximately 0.025 to 0.030 inches below the top plate for most chains, though your manufacturer may specify different measurements.
Lowering the depth gauges too much makes the chain cut too aggressively and can cause the saw to buck or pull to one side. Filing them too little leaves the chain dull and inefficient. Check your chain documentation for the exact specifications and measure multiple rakers with your depth-gauge tool to ensure uniformity across the chain.
Verifying Sharpness and Testing
Before returning the chain to your saw, inspect it for visual signs of sharpness. Fresh metal edges on the cutters should appear bright or silver. Run your thumb lightly along the edge to feel for a sharp corner—be cautious to avoid cuts. A dull chain will feel rounded, while a sharp one will feel distinctly angular.
Mount the chain on your saw and test it on a cut log held securely in a vise or sawhorses. A properly sharpened hand-filed chain cuts with minimal pressure, producing large wood chips rather than fine sawdust. The saw should pull itself into the wood smoothly without binding or producing excessive noise. If cutting performance is poor, return to hand-filing and make an additional pass or two on cutters that still feel dull.
Hand-sharpening typically takes 30 to 60 minutes depending on chain length and condition. The investment in time pays off through improved cutting performance and extended chain life compared to allowing a chain to become severely dull.
