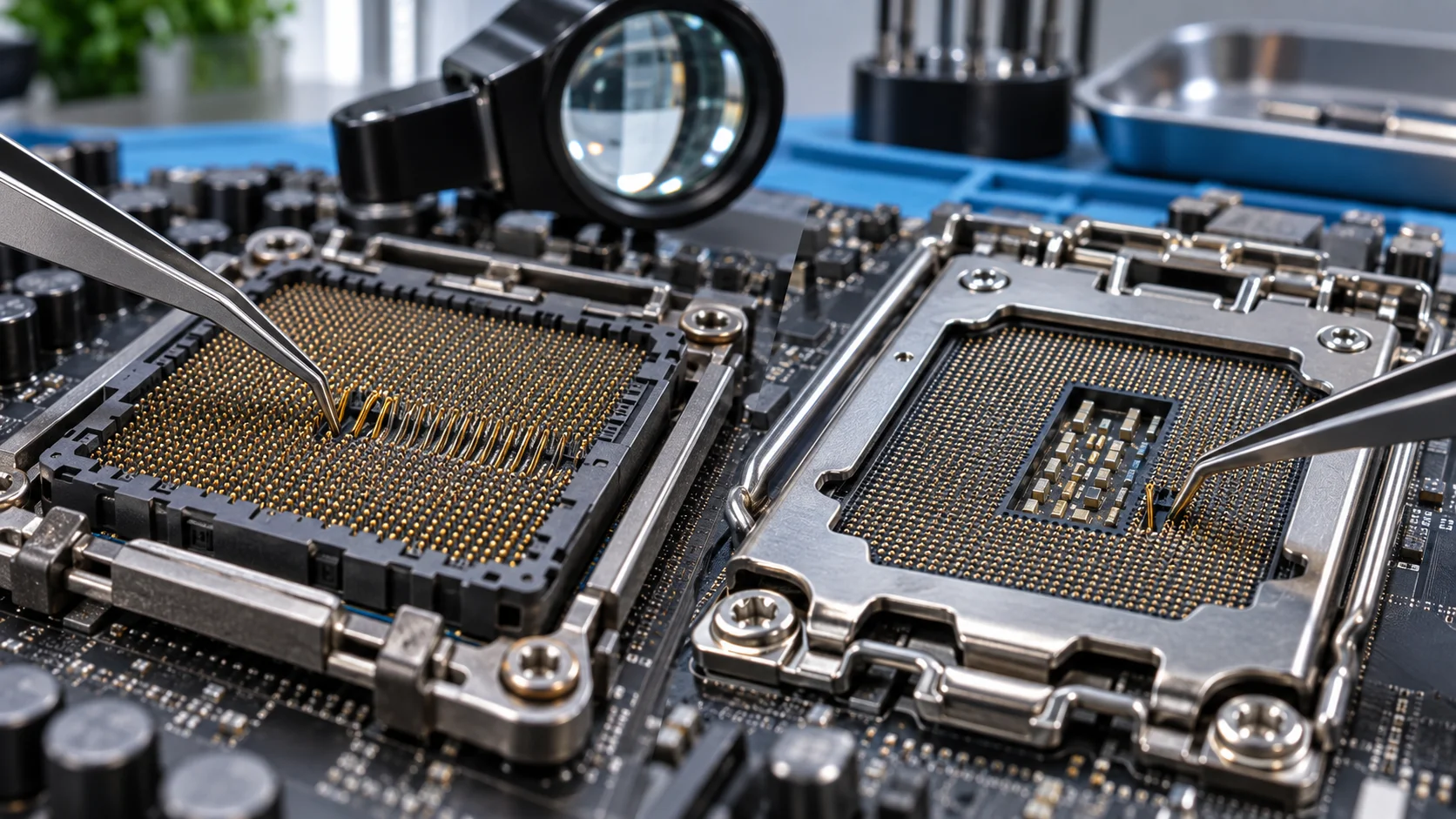

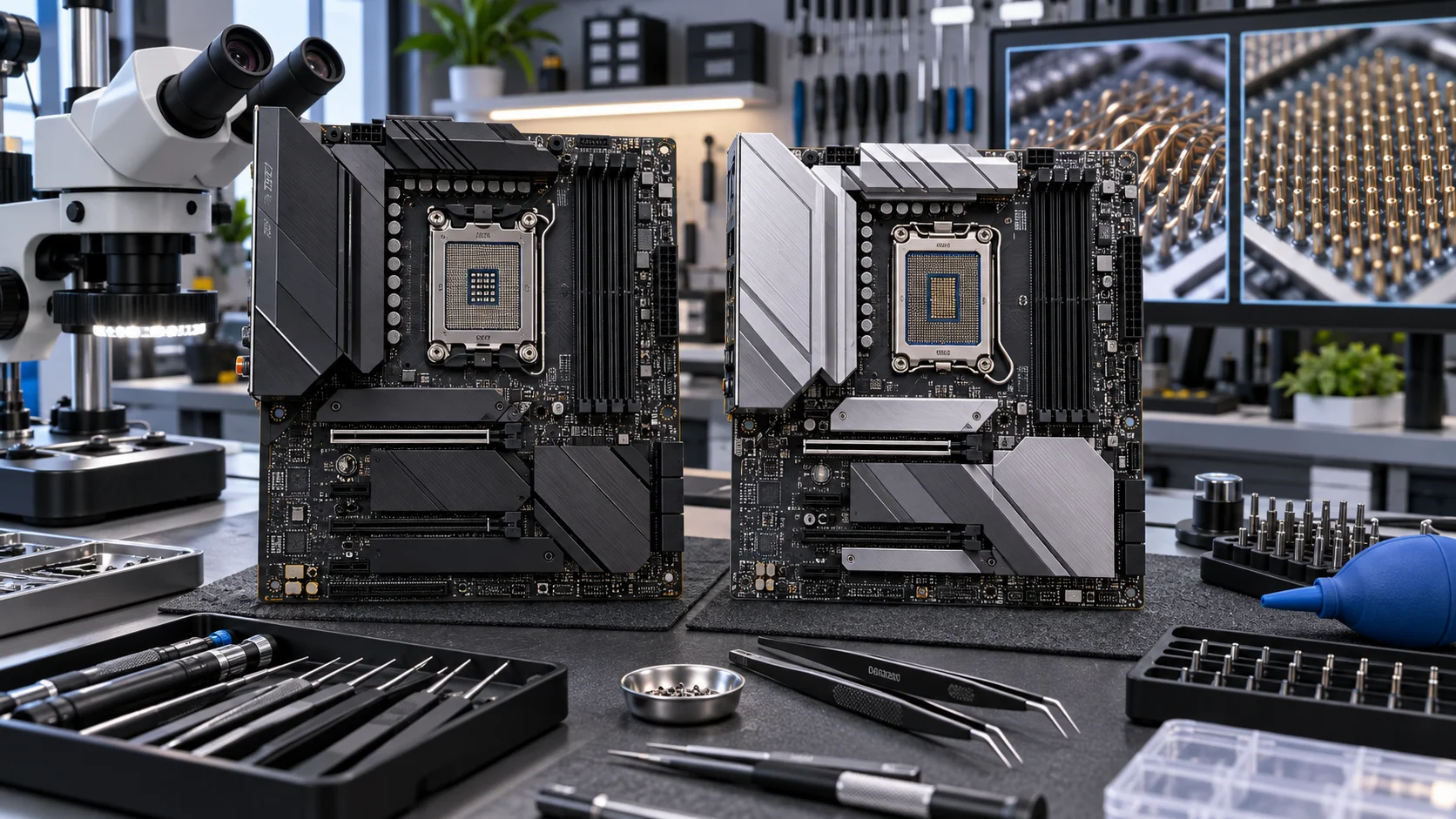

Understanding the Socket Architecture: AM5 vs. LGA 1851
Before touching anything, understanding which component carries the pins determines your entire repair strategy. AMD’s AM5 (LGA 1718) platform and Intel’s LGA 1851 platform both use Land Grid Array designs, but they differ critically in where those pins are located.
On AM5 motherboards, the contact pins are embedded in the motherboard socket itself. The CPU sits flat against those pins with exposed copper pads. This mirrors AMD’s LGA 1718 specification adopted with Ryzen 7000 series, representing a significant departure from the previous AM4 PGA (Pin Grid Array) design where pins were on the CPU. The good news: motherboard sockets are more serviceable than CPUs. You can replace a motherboard far more cost-effectively than an entire processor.
On LGA 1851 platforms (Intel Core Ultra 200S series, Meteor Lake-S desktop), the pin array sits on the CPU package itself, 1,851 contact points made from thin phosphor bronze or beryllium copper alloy. When those pins bend, you are dealing with a processor that retails for $300-$600+. The motherboard socket on LGA 1851 uses pads, not pins. This makes CPU-side damage significantly higher stakes. Intel’s own socket specification documentation confirms that contact pins on LGA processors are rated for a finite number of insertion cycles and are explicitly flagged as sensitive components. See Intel’s official LGA socket handling guidelines at Intel Processor Technical Resources.
| Attribute | AMD AM5 (LGA 1718) | Intel LGA 1851 |
|---|---|---|
| Pin Location | Motherboard socket | CPU package |
| Total Contacts | 1,718 pins | 1,851 pins |
| Pin Material | Phosphor bronze, gold-plated | Phosphor bronze / beryllium copper, gold-plated |
| Bend Risk Source | Misaligned CPU drop, IHS contact, cooler slip | Misaligned CPU insertion, socket latch force, contamination |
| Repairability | High, socket is on the board, accessible | Moderate to Low, pins are on expensive CPU |
| Replacement Cost if Irreparable | $100-$400 (motherboard) | $300-$600+ (CPU) |
| Repair Tools Required | Mechanical pencil (0.5mm), needle, magnification | Fine sewing needle, dental pick, loupe/microscope |
| Warranty Impact | Voids AMD/board manufacturer warranty | Voids Intel warranty |
| Professional Repair Available | Yes, board-level repair shops, micro-soldering facilities | Rare, most shops decline CPU-side LGA pin repair |
| Preventable With | Correct CPU alignment, ZIF lever discipline | Slow insertion, socket cover retention until last moment |
Diagnosing Bent Pins: What to Look For
Symptoms alone cannot confirm bent pins , the diagnosis requires physical inspection. A system that fails to POST, throws DRAM or CPU debug LEDs, or produces no signal at all after a CPU installation or re-seat is a candidate for socket inspection. However, these symptoms overlap with dead CPUs, bad PSUs, and unseated RAM, so rule those out first. Before finalizing equipment decisions, refer to our comprehensive what power supply wattage for gaming pc comparison.
Step-by-Step Visual Inspection Protocol
- Power down fully and disconnect the PSU. Press the power button once after disconnecting to discharge capacitors.
- Remove the CPU (AM5: release ZIF lever, lift CPU straight up; LGA 1851: release retention arm, remove CPU by gripping edges).
- Use a bright flashlight at a low angle (raking light technique). Hold the light nearly parallel to the socket surface and observe pin tips. Any deviation from a uniform grid pattern indicates bending.
- Use magnification. A 10x loupe, USB digital microscope ($20-$60 on Amazon), or even a macro lens phone attachment reveals what the naked eye misses. This step is non-negotiable for LGA 1851 with its denser 1,851-pin array.
- Compare to reference images. AMD and motherboard OEMs publish socket reference photography. A healthy AM5 socket looks like a perfectly uniform silver grid with all tips at identical height.
- Document the damage. Photograph every affected zone before touching anything. This protects you during any RMA or warranty discussion and provides a repair roadmap.
Bent pins fall into categories by severity. A lean (5 to 15° off vertical) is the easiest to correct. A fold (45°+) requires more deliberate pressure but remains repairable. A crease or break, where the pin has kinked at its base or snapped, is generally beyond DIY repair and requires professional micro-soldering or component replacement.
Tools You Need for Bent Pin Repair
Using the wrong tool causes more damage than the original bend. The pin array on both AM5 and LGA 1851 consists of extremely fine, gold-plated contacts measuring under 0.4mm in diameter. Household tools like toothpicks, credit cards, or flathead screwdrivers are inappropriate , they apply uncontrolled force across multiple pins simultaneously. For broader ecosystem context, read through our operational guide on how to fix intel arrow lake z890 bios voltage.
Recommended Toolkit
- 0.5mm mechanical pencil (lead removed): The hollow brass tube fits over individual AM5 socket pins precisely, guiding them upright without lateral slip. This is the most commonly cited professional-grade DIY solution for AM5 specifically.
- Fine sewing needle (#10 or sharper) or acupuncture needle: For LGA 1851 CPU pins, the needle tip provides point contact to nudge single pins without disturbing neighbors.
- Dental pick or plastic spudger: Useful for gentle lateral correction of grouped lean-bends but requires extreme restraint.
- USB digital microscope or stereo loupe (10x-30x): Real-time magnification during the repair is what separates successful repairs from compounded damage.
- ESD wrist strap: Mandatory. Electrostatic discharge can destroy the CPU or surrounding socket circuitry independent of physical damage.
- Non-fibrous lint-free gloves or finger cots: Skin oils contaminate gold contacts and degrade conductivity over time.
- Isopropyl alcohol (90%+) and swabs: For cleaning any contamination (thermal paste, dust, oils) before and after repair.
Step-by-Step AM5 Socket Pin Repair
AM5 motherboard socket pins are the more commonly encountered repair scenario. The process below applies to Ryzen 7000, 8000, and 9000 series compatible boards using the AM5 socket standard.
Preparation
- Place the motherboard on a non-conductive, anti-static surface (the anti-static bag it shipped in works).
- Attach your ESD strap to a ground point.
- Clean any thermal paste or debris from the socket area with IPA and a lint-free swab. Do not let liquid enter the socket. After your repair is complete, check that your thermal paste application is fresh before reinstalling the cooler.
- Set up your microscope or loupe above the socket at a comfortable working angle.
The Mechanical Pencil Method
- Remove the lead from a 0.5mm mechanical pencil, leaving just the hollow metal guide tube.
- Under magnification, identify the first bent pin. Note its lean direction.
- Lower the pencil tube over the pin tip carefully, the tube should sleeve around the pin, not push against it laterally.
- Apply gentle, steady vertical pressure in the correction direction. The goal is a 1 to 3° incremental correction per pass, not a single aggressive push.
- Withdraw the tool, inspect under magnification, then repeat as needed.
- Work outward from the center of any damage cluster, not inward, this avoids cascading lateral force into already-stressed pins.
- After each corrected pin, compare its height and angle against neighboring pins as reference.
After completing the repair, inspect the entire socket grid one final time before reinstalling the CPU. A successfully repaired pin will sit vertical within approximately 2 to 3°, sufficient for reliable contact. Re-seat the CPU following AMD’s alignment guide (the golden triangle marker on CPU and socket must match), lower the ZIF lever, and attempt to POST. Monitor your CPU temperature limits immediately after boot to confirm the cooler is seated correctly and the processor is functioning within spec.
Step-by-Step LGA 1851 CPU Pin Repair
LGA 1851 pin repair is performed on the CPU itself, which raises the financial stakes considerably. The technique is comparable but demands finer control due to the CPU package’s smaller tolerances. For troubleshooting and reliability insights, consult our in-depth how to safely connect 12v 2×6 gpu power cable report.
Key Differences from AM5 Repair
- Work on a flat, padded, ESD-safe surface with the CPU package face-up, IHS down.
- The 0.5mm pencil tube method still applies but may require a finer tool, a 0.3mm tube or a blunt acupuncture needle for the densest pin regions.
- LGA 1851 pins are grouped in functional zones (power delivery, data lanes, PCIe signal pins). Damage near PCIe signal pin regions can affect PCIe 5.0 compatibility with your GPU and M.2 devices even if the system POSTs.
- A single broken-base pin in a critical data path may render the CPU non-functional even after all visibly bent pins are corrected, this is a known outcome and should be disclosed to yourself as a risk before proceeding.
Post-Repair Validation for LGA 1851
- After physical correction, reinstall the CPU in the LGA 1851 socket per Intel’s alignment procedures, no force should be required if alignment is correct.
- Run a POST check, then enter BIOS to confirm all CPU cores are detected and memory channels are fully populated. Check your RAM speed and timings in BIOS, partial pin contact in memory controller zones can cause memory channels to drop or run at reduced frequency.
- Boot into Windows or Linux and run a full CPU stress test (Prime95, Cinebench R24 multicore) for at least 30 minutes. Any instability, crashes, thermal runaway, core desync, suggests residual contact failure.
- If the system is graphics-card dependent, install GPU drivers cleanly after confirming system stability. Follow a GPU driver clean install procedure using DDU to eliminate driver-layer false positives during diagnostic.
When DIY Repair Is Not Advisable
Not every bent pin scenario justifies a self-repair attempt. Certain conditions push the risk-reward calculus toward professional service or outright component replacement.
- Pins broken at the base: Micro-soldering is required to replace individual socket pin contacts. This is a job for board-level repair technicians with hot-air rework stations and binocular microscopes.
- More than 20 to 30 bent pins in a concentrated zone: High-density damage clusters are disproportionately difficult to address without causing secondary bends in adjacent pins during tool manipulation.
- Gold plating visibly worn or missing: Bare copper contacts oxidize rapidly and produce intermittent failures that worsen over time regardless of mechanical alignment.
- CPU or motherboard still under warranty: AMD and Intel will not honor warranties on components with physical pin damage caused by user handling, but some motherboard manufacturers have extended socket protection programs. Contact your vendor before attempting self-repair.
- LGA 1851 CPU with damage in power delivery pin zones: Incomplete power delivery contact creates unpredictable voltage instability that cannot be reliably diagnosed with standard consumer tools.
Prevention: How Bent Pins Happen and How to Stop It
The majority of bent pin incidents are preventable. Both AM5 and LGA 1851 damage events share a common root cause: rushing the installation process or skipping the alignment verification step.
AM5 Prevention Checklist
- Always align the CPU’s golden triangle with the socket’s matching indicator before releasing it.
- Never apply downward pressure to seat the CPU, it drops into place under gravity alone when properly aligned.
- Do not reuse a bent or damaged plastic socket cover; the cover itself can transfer deformation to pins if warped.
- When removing coolers (especially those using push-pin retention), twist gently before lifting, a thermally bonded cooler pulled straight up can drag the CPU out of the socket and drop it onto the pins.
LGA 1851 Prevention Checklist
- Retain the black plastic CPU carrier until the absolute last moment before installation, it protects pins during handling.
- Lower the CPU into the socket bracket using the carrier, then release, never finger-grip the CPU edge and push it down freehand.
- Confirm the retention arm closes without resistance. Forced arm closure is the leading cause of LGA 1851 pin damage and indicates misalignment, not a need for more force.
- Inspect the socket for debris before CPU installation. A grain of sand or a solder ball caught under the contact zone bends pins through the clamping force of the retention mechanism.
Conclusion
Bent socket pins on AM5 and LGA 1851 platforms are repairable in the majority of real-world cases, provided damage is limited to lean-bends rather than broken bases, the right tools are used, and the technician works under adequate magnification with patience. AM5 socket repair is inherently lower risk due to the pin array being on the replaceable motherboard rather than the CPU. LGA 1851 CPU pin repair demands greater precision and carries higher financial consequences if the repair is unsuccessful. In both cases, prevention through deliberate, alignment-verified installation practice remains the superior strategy. When in doubt, a board-level repair technician with micro-soldering capability is a cost-effective alternative to outright component replacement, particularly for flagship CPUs and premium platform motherboards.
Care Notes for Processor Sockets
Bent socket pins are fragile, so any repair should start with good lighting, a steady hand and a clear plan for the processor and board. General background on careful handling of electrical components is available from American National Standards Institute (ANSI).
