How Many Amps Is a Lawn Mower Battery? (Complete Guide)

Direct Answer: Lawn Mower Battery Amp Ratings

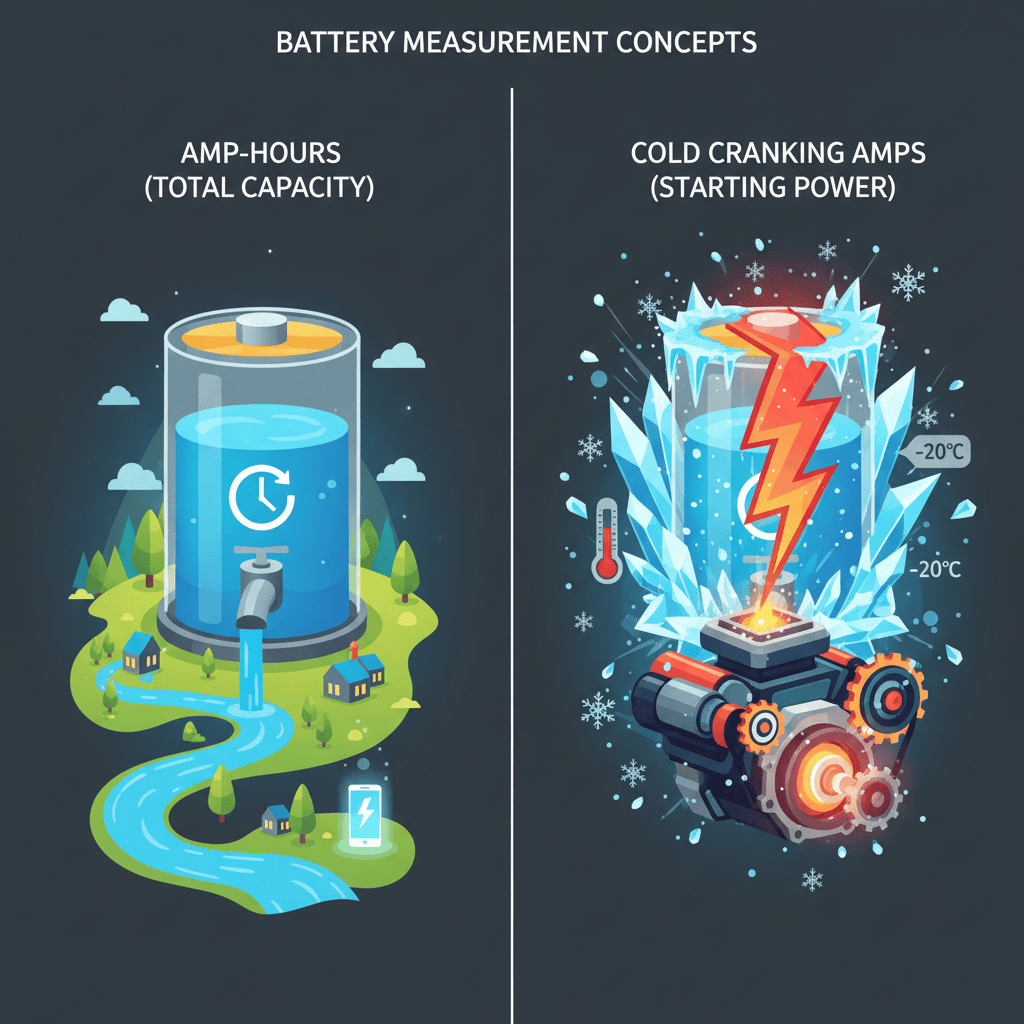

What Do “Amps” Mean for a Lawn Mower Battery?

When someone asks “how many amps is a lawn mower battery,” they’re usually referring to one of two distinct measurements: amp-hours (Ah) or cold cranking amps (CCA). These terms measure completely different aspects of battery performance, which is why clarifying the distinction is crucial.

Amp-hours (Ah) measure the total energy storage capacity of the battery. This tells you how long the battery can deliver a specific amount of current before becoming fully discharged. For example, a 25 Ah battery can theoretically deliver 25 amps for one hour, or 5 amps for five hours.

Cold cranking amps (CCA) measure the battery’s ability to deliver power in cold conditions, specifically how many amps the battery can supply for 30 seconds at 0°F while maintaining at least 7.2 volts. This is a crucial measurement for starting power, especially in winter or cold climates.

Both measurements matter, but they serve different purposes. Amp-hours determine how long your battery will last during operation, while CCA determines whether your battery has enough starting power to turn over the engine reliably.

Typical Amp-Hours (Ah) for Lawn Mower Batteries

Lawn mower batteries typically range from 20 to 35 amp-hours, with most common models falling in the 20–28 Ah range. The specific capacity depends on several factors:

• Mower type: Walk-behind push mowers usually have smaller batteries (18–24 Ah), while riding mowers and zero-turn mowers typically use larger batteries (28–35 Ah).
• Battery group size: Standard lawn mower batteries use Group U1 classification, which typically holds 20–35 Ah.
• Battery age and condition: Older batteries may have lower effective capacity due to internal degradation.

Amp-hours directly affect how long your mower can run on a single charge (for electric mowers) or how long the battery can power auxiliary systems like the starter motor and ignition (for gas-powered mowers). A higher amp-hour rating means the battery can sustain power delivery for longer periods.

For example, a 25 Ah battery will theoretically provide twice the runtime of a 12.5 Ah battery under the same operating conditions. However, actual runtime depends on the mower’s power consumption, which varies based on cutting conditions, blade engagement, and terrain.

Cold Cranking Amps (CCA) Explained

Cold cranking amps (CCA) measure the battery’s ability to start your mower engine in cold weather. Specifically, CCA is the number of amps a battery can deliver for 30 seconds at 0°F (−18°C) while maintaining a minimum voltage of 7.2 volts.

For lawn mower batteries, typical CCA ratings range from 230 to 350 CCA. Most standard 12-volt lawn mower batteries fall in the 250–300 CCA range, which is sufficient for reliable cold-weather starting.

Why CCA matters:

• Cold temperatures reduce battery efficiency and increase engine resistance, making it harder to crank the engine.
• A battery with insufficient CCA may struggle to start the mower in winter or cool mornings.
• Higher CCA ratings provide a safety margin for reliable starting even in extreme conditions.
• CCA is especially important if you live in a cold climate or need to start your mower early in the season.

It’s important to note that CCA is a cold-weather measurement. At normal operating temperatures (around 70°F), your battery will perform better than its CCA rating suggests. However, CCA is still the standard metric used to compare starting power across different batteries.

How to Find Your Lawn Mower Battery’s Amp Rating

The easiest way to determine your lawn mower battery’s amp rating is to read the information printed directly on the battery label. Here’s where to look and what to look for:

Step 1: Locate the Battery Label

The battery label is typically printed on the top or side of the battery case. For lawn mower batteries, it’s usually on the plastic casing itself or on a sticker affixed to the battery.

Step 2: Find the Voltage Rating

Look for “12V” or “12 Volt” on the label. Most lawn mower batteries are 12-volt systems, though some older or specialty mowers may use 6-volt batteries.

Step 3: Identify Amp-Hours (Ah)

The amp-hour capacity is typically listed as “20 Ah,” “25 Ah,” “28 Ah,” or similar. This number represents the battery’s total energy storage capacity.

Step 4: Find Cold Cranking Amps (CCA)

CCA is usually listed separately and may be labeled as “CCA,” “Cold Cranking Amps,” or “Starting Amps.” You’ll see a number like “250 CCA” or “300 CCA.”

Step 5: Check the Battery Group Size

The battery group size (such as “U1” or “U1R”) indicates the physical dimensions and terminal configuration. This information helps ensure you purchase a compatible replacement battery.

Example battery label: A typical lawn mower battery might read “12V 25Ah 300 CCA U1” — meaning it’s a 12-volt battery with 25 amp-hours capacity, 300 cold cranking amps, and Group U1 size.

Battery Size and Group Numbers

Lawn mower batteries are classified by group size, which standardizes physical dimensions, terminal locations, and mounting requirements. The most common group size for lawn mower batteries is Group U1.

Group U1 Specifications

Group U1 batteries are compact, lightweight batteries designed specifically for small engines like those in lawn mowers, garden tractors, and utility vehicles. Group U1 batteries typically measure approximately 5.9 inches long, 3.4 inches wide, and 3.6 inches tall.

Within the Group U1 classification, amp-hour capacities typically range from 18 to 35 Ah, depending on the specific battery model. The group size ensures that replacement batteries will fit in the same space and connect to the same terminals as the original battery.

Other Group Sizes

While Group U1 is standard for lawn mowers, you may occasionally encounter:

• Group U1R: A right-terminal variant of Group U1, with the positive terminal on the right side instead of the left.
• Group 24: Larger batteries sometimes used in commercial-grade or heavy-duty lawn equipment.
• Group 27: Even larger batteries used in some industrial or agricultural applications.

Always verify your lawn mower’s original battery group size before purchasing a replacement. Using the wrong group size may result in poor fit, terminal misalignment, or mounting issues.

Charging Current vs. Battery Capacity

A common source of confusion is mixing up charging current (the amps delivered by a charger) with battery capacity (the amp-hours stored in the battery). These are two separate measurements.

Battery Capacity (Amp-Hours)

Amp-hours represent the total energy the battery can store and deliver. A 25 Ah battery stores 25 amp-hours of energy, regardless of how quickly or slowly you charge it.

Charging Current (Amps)

Charging current is the rate at which a charger replenishes the battery’s energy. A charger might deliver 2 amps, 5 amps, 10 amps, or more, depending on the charger’s design and the charging mode selected.

Example: A 25 Ah battery charged at 5 amps would theoretically take 5 hours to fully charge (25 Ah ÷ 5 A = 5 hours). The same battery charged at 10 amps would take approximately 2.5 hours.

Safe Charging Guidelines

For lawn mower batteries, a general rule is to use a charging current of no more than 10% of the battery’s amp-hour capacity. For a 25 Ah battery, this means using a charger that delivers no more than 2.5 amps.

• Slow charging (1–2 amps): Safest method; takes longer but minimizes heat and stress on the battery.
• Standard charging (2–5 amps): Reasonable balance between charging speed and battery safety.
• Fast charging (10+ amps): Faster but generates more heat; use only if the charger and battery are designed for it.

Overcharging with excessive current can damage the battery, reduce its lifespan, and create safety hazards. Always use a charger appropriate for your battery’s capacity and follow the manufacturer’s charging recommendations.

Understanding Battery Voltage and Power Output

Lawn mower batteries are almost universally 12-volt systems. The “12V” designation indicates the nominal voltage under standard conditions. However, the actual voltage varies depending on the battery’s state of charge:

• Fully charged: Approximately 12.6–13.2 volts
• Half charged: Approximately 12.0–12.2 volts
• Fully discharged: Approximately 10.5–11.0 volts

The combination of voltage and amp-hours determines the battery’s total energy output, measured in watt-hours (Wh). For example, a 12V 25Ah battery has a total capacity of approximately 300 watt-hours (12V × 25Ah = 300Wh).

This is why both voltage and amp-hours matter: voltage determines the power delivery rate (watts), while amp-hours determine how long that power can be sustained.

Frequently Asked Questions

Q: Can I use a higher amp-hour battery as a replacement?

A: Yes, you can typically use a battery with a higher amp-hour rating as a replacement, as long as it has the same voltage (12V) and group size (usually U1). A higher Ah rating will provide longer runtime and is generally beneficial. However, ensure the battery physically fits in the battery compartment and that the terminals align correctly. Always verify compatibility with your mower’s specifications before purchasing.

Q: What does “cold cranking amps” mean in practical terms?

A: Cold cranking amps (CCA) measure how much starting power your battery has in cold weather. A battery with 300 CCA can deliver 300 amps for 30 seconds at 0°F while maintaining adequate voltage. This matters because cold temperatures make it harder to start engines. If your battery has insufficient CCA, you may experience slow cranking or complete failure to start in winter. Higher CCA provides a safety margin for reliable cold-weather starting.

Q: How often should I replace my lawn mower battery?

A: Most lawn mower batteries last 3–5 years with proper maintenance. Factors affecting lifespan include climate (hot climates reduce lifespan), charging habits, storage conditions, and usage frequency. If your mower struggles to start, the battery doesn’t hold a charge, or it’s visibly damaged, replacement is necessary. Perform a load test at a battery retailer to confirm whether replacement is needed before purchasing a new battery.

Q: Is there a difference between lawn mower batteries and car batteries?

A: Yes. Lawn mower batteries (Group U1) are smaller and lighter than car batteries (typically Group 24, 27, or 35), and they’re optimized for small engines with lower power demands. Car batteries have higher CCA ratings because cars require more starting power. While both are 12-volt systems, using a car battery in a lawn mower is generally not recommended due to size, weight, and mounting incompatibility. Always use the battery group size specified for your mower.

Key Takeaways

• Most lawn mower batteries are 12-volt batteries with 20–35 amp-hours (Ah) capacity.
• Cold cranking amps (CCA) typically range from 230 to 350 CCA for lawn mower batteries.
• Amp-hours measure total energy storage; CCA measures cold-weather starting power.
• Find your battery’s amp rating by reading the label on the battery case.
• Group U1 is the standard battery size for lawn mowers.
• Charging current (charger amps) is different from battery capacity (amp-hours).
• A higher amp-hour rating provides longer runtime and is usually beneficial as a replacement.
