Changing an edger blade is a straightforward maintenance task, but doing it safely and correctly is essential to keep your lawn edger working properly and avoid injury. The process involves isolating the power source, removing the old blade, installing the new blade in the correct orientation, and securing it tightly. Whether you have a gas, corded electric, or battery-powered model, the core steps are similar, though the safety preparation differs by power type. Always consult your owner’s manual for model-specific details like fastener size, thread direction, and torque specifications.
Fast Answer: The Blade Swap in Seven Steps
Here is a quick overview of the entire process. Follow these steps in order for a safe and successful blade change.
- Isolate the power: Disconnect the spark plug wire on a gas edger, unplug a corded electric edger, or remove the battery from a cordless model. This is the most important safety step.
- Position the edger: Place the machine on stable ground and tilt it so the blade is accessible. Let the frame or wheels support the weight.
- Identify the fastener: Determine if your blade is held by a single center bolt or multiple screws. Check your manual for the correct tool size.
- Lock the blade or shaft: Use a built-in lock, a block of wood wedged against the guard, or a second wrench to prevent the blade from spinning.
- Remove the old blade: Loosen the fastener, noting the direction of rotation and the order of any washers or spacers. Handle the sharp blade with care.
- Install the new blade: Place the new blade so its cutting edges face the direction of rotation. Reinstall washers and spacers in the same order.
- Tighten and verify: Secure the fastener firmly, then spin the blade by hand to confirm it moves freely and clears the guard before reconnecting power.
Know Which Edger and Which Fastener You Have
The word “edger” most commonly refers to a lawn edger, a wheeled tool used to create clean lines along sidewalks, driveways, and garden beds. However, the term can also describe a concrete edger used in masonry or a floor or woodworking edger. This guide focuses on lawn edgers, which are the most common type used by homeowners. Concrete and floor edgers have different blades, procedures, and safety requirements.
On most lawn edgers, the blade is attached in one of two ways:
- A single center bolt: This is the most common attachment. A bolt or nut in the center of the blade holds it to the arbor or spindle.
- Multiple screws: Some models use several screws around a blade mount to secure the blade.
Before you begin, confirm the correct replacement blade for your specific model. Check the owner’s manual for the part number, or look up your model number on the manufacturer’s website. Using an incompatible blade can cause vibration, poor cutting, or safety hazards. You will also need the correct wrench, socket, or screwdriver for the fastener. The manual will specify the tool size; do not guess, as using the wrong tool can strip the fastener.
Safety First: Make Sure the Engine or Motor Cannot Start
The most serious risk during a blade change is accidental startup. Before touching the blade, you must ensure the edger cannot possibly turn on. The method depends on your power source.
Gas Edgers

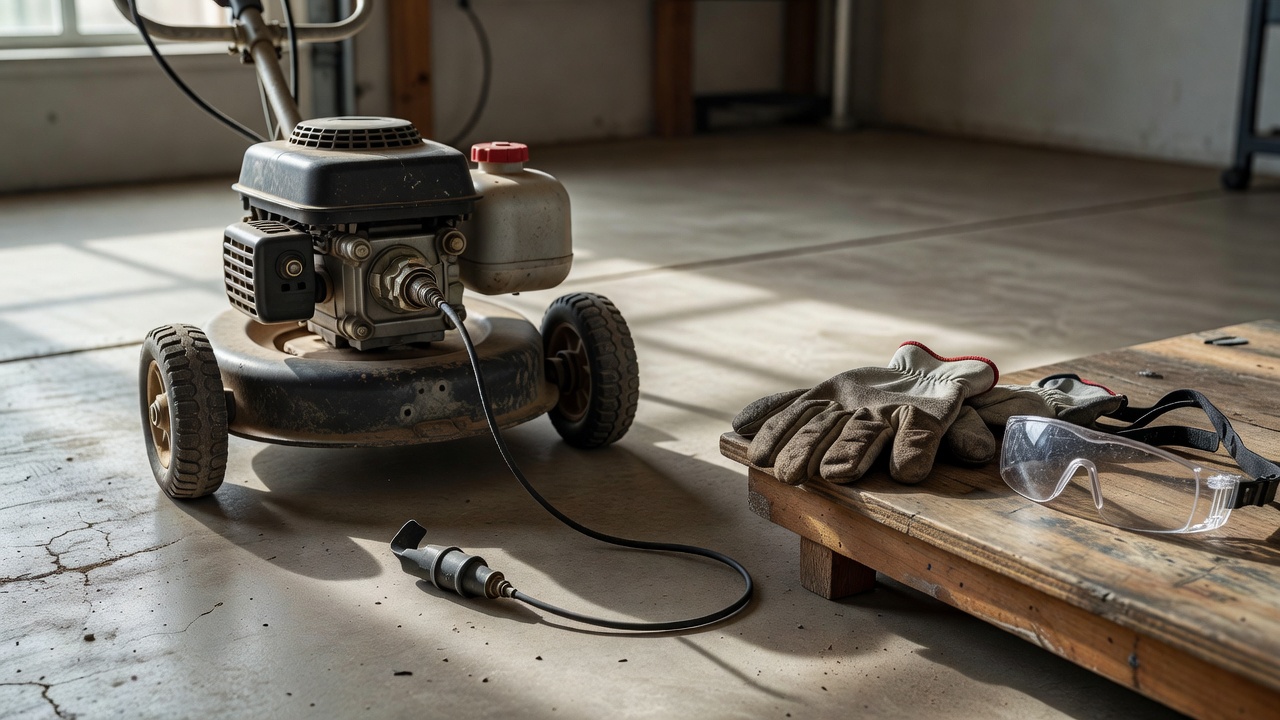

Disconnect the spark plug wire from the spark plug. Pull the rubber boot off the plug and move the wire end well clear of the plug so it cannot accidentally make contact. This prevents the engine from firing even if you pull the starter cord.
Corded Electric Edgers
Unplug the power cord from the wall outlet. Keep the plug end away from the outlet until you have finished the blade change and are ready to use the edger again.
Battery-Powered Edgers
Remove the battery from the edger. Set it aside in a safe location where it cannot be accidentally reinserted while you are working.
Regardless of power type, wear work gloves and eye protection when handling the blade. Edger blades are sharp, and even a removed blade can cut you during handling or installation.
Expose the Blade and Identify the Fastener
With the power isolated, position the edger so you can reach the blade comfortably. Place it on stable, flat ground. Tilt the machine back or lay it on its side, depending on the design, so the blade is exposed. Let the frame or wheels carry the weight rather than holding the machine up by hand.
Look at how the blade is attached. If you see a single bolt or nut in the center, you are working with a center-bolt attachment. If you see several screws around the blade’s mounting area, you have a multi-screw attachment. Check the manual for the exact tool size needed. Using a wrench or socket that does not fit snugly can round off the fastener, making it much harder to remove.
If you are unsure about any aspect of the fastener or the blade’s orientation, stop and consult the owner’s manual before proceeding. It is better to spend a few minutes reading than to damage the machine or install the blade incorrectly.
Remove the Old Blade Without Letting It Spin
When you turn the fastener, the blade or shaft may spin with it, preventing you from loosening the bolt. You need to lock the blade or shaft in place. Common methods include:
- Built-in blade or shaft lock: Some edgers have a pin, button, or hole that locks the shaft. Check your manual for this feature.
- Wood block method: Wedge a block of wood between the blade and the blade guard. This holds the blade still while you turn the fastener.
- Second wrench: Some models allow you to hold the shaft with a second wrench while loosening the blade fastener.
Which Way to Turn the Fastener
Most edger blade bolts tighten clockwise and loosen counterclockwise, like a standard bolt. However, some models use a left-hand or reverse-threaded bolt, which tightens counterclockwise and loosens clockwise. A left-hand bolt is sometimes marked with an “L” on the head. Your owner’s manual will tell you which type your edger uses. Turning the fastener the wrong way can strip the threads or damage the shaft.
Dealing with a Stuck Fastener
If the bolt or screws will not budge, apply a penetrating oil to the threads and let it soak for several minutes. This can help loosen corrosion or debris. Avoid using excessive force with a slipping wrench, as this can cut your hand or strip the fastener. If the fastener is stripped or will not come loose after reasonable effort, it is time to seek professional service.
Once the fastener is loose, remove it along with any washers, spacers, or bushings. Note the order in which these parts are stacked, as they must go back in the same sequence. Lift the old blade off the shaft or mount and set it aside carefully, keeping the sharp edges away from your hands.
Fit the New Blade the Right Way Round
The most common mistake during a blade change is installing the blade backwards. The cutting edges must face the direction the blade rotates. If the blade is reversed, it will not cut effectively and may cause excessive vibration or damage.
To determine the correct orientation:
- Look for an arrow on the blade guard or housing that indicates the direction of rotation.
- If there is no arrow, note the rotation direction before you disconnected power by briefly observing which way the blade spins when the edger is on.
- The new blade’s cutting edges should face forward in the direction of that rotation.
Place the new blade onto the shaft or mount, ensuring it sits flat and aligns with any mounting holes or the center arbor. Reinstall any washers, spacers, and bushings in the same order they were removed. If the new blade does not line up with the mounting holes or does not fit the arbor, do not force it. Double-check the part number against your manual to confirm you have the correct replacement blade.
Tighten the Fastener and Do the Final Checks
Thread the fastener back in by hand first to avoid cross-threading, then tighten it with the correct wrench or socket. Tighten it firmly and evenly. If your owner’s manual provides a torque specification, use a torque wrench set to that value. Do not guess at torque figures; over-tightening can damage the threads or the blade mount, while under-tightening can allow the blade to come loose during use.
Before reconnecting power, perform these checks:
- Spin the blade by hand: It should rotate freely without rubbing against the guard or housing.
- Check clearance: Make sure the blade clears the blade guard on all sides.
- Confirm the fastener is seated: The bolt or screws should be fully tightened with no gaps.
- Verify power is still disconnected: Do not reconnect the spark plug wire, plug in the cord, or reinsert the battery until all checks pass.
After reconnecting power and starting the edger, let it run for a short period, then shut it off and re-check the fastener. This confirms that the blade is seated properly and the fastener has not loosened under vibration. Periodically re-check the fastener during normal use as part of your regular maintenance routine.
When in Doubt, Follow the Owner’s Manual
This guide provides general instructions that apply to most lawn edgers, but every model is different. The owner’s manual is the authoritative source for:
- Fastener size and type
- Thread direction (standard or left-hand)
- Torque specification
- Correct replacement blade part number
- Any model-specific blade-lock or shaft-lock features
If you no longer have the paper manual, you can often find a digital version online by searching for your edger’s model number on the manufacturer’s website. Taking a few minutes to consult the manual ensures you are using the right parts and following the correct procedure for your specific machine.
Troubleshooting: When the Swap Goes Wrong
Even a simple blade change can run into problems. Here are some common issues and how to address them.
The Blade Spins Instead of Loosening
If the blade or shaft spins when you try to loosen the fastener, you need a better way to lock it in place. Try the wood block method or a second wrench on the shaft. Make sure you are using the correct wrench size so the fastener does not slip.
The Edger Vibrates After Installation
Vibration after a blade change usually points to one of these causes:
- Loose fastener: Shut off the edger and re-tighten the bolt or screws.
- Wrong blade: Confirm the replacement blade matches the part number in your manual.
- Blade not seated flat: Remove the blade and check for debris, bent washers, or misaligned spacers.
If vibration persists after checking these items, stop using the edger and have it inspected by a qualified technician.
The New Blade Looks Different
Replacement blades may look slightly different from the original, especially if the manufacturer has updated the design. As long as the mounting matches your manual and the blade fits correctly, this is usually fine. However, do not force a blade that does not fit. If the mounting holes do not align or the blade does not sit on the arbor properly, you likely have the wrong part.
When to Seek Professional Help
Stop and take the edger to a repair shop if:
- The fastener is stripped and will not tighten.
- The blade mount or arbor is damaged or bent.
- The blade will not sit true no matter how you adjust it.
- You are unsure about any step and do not have access to the manual.
A qualified technician can assess the damage and ensure the edger is safe to operate.
