How Do You Change a Lawn Mower Pull Cord? (Step-by-Step Guide)

Understanding Your Lawn Mower’s Pull Cord System

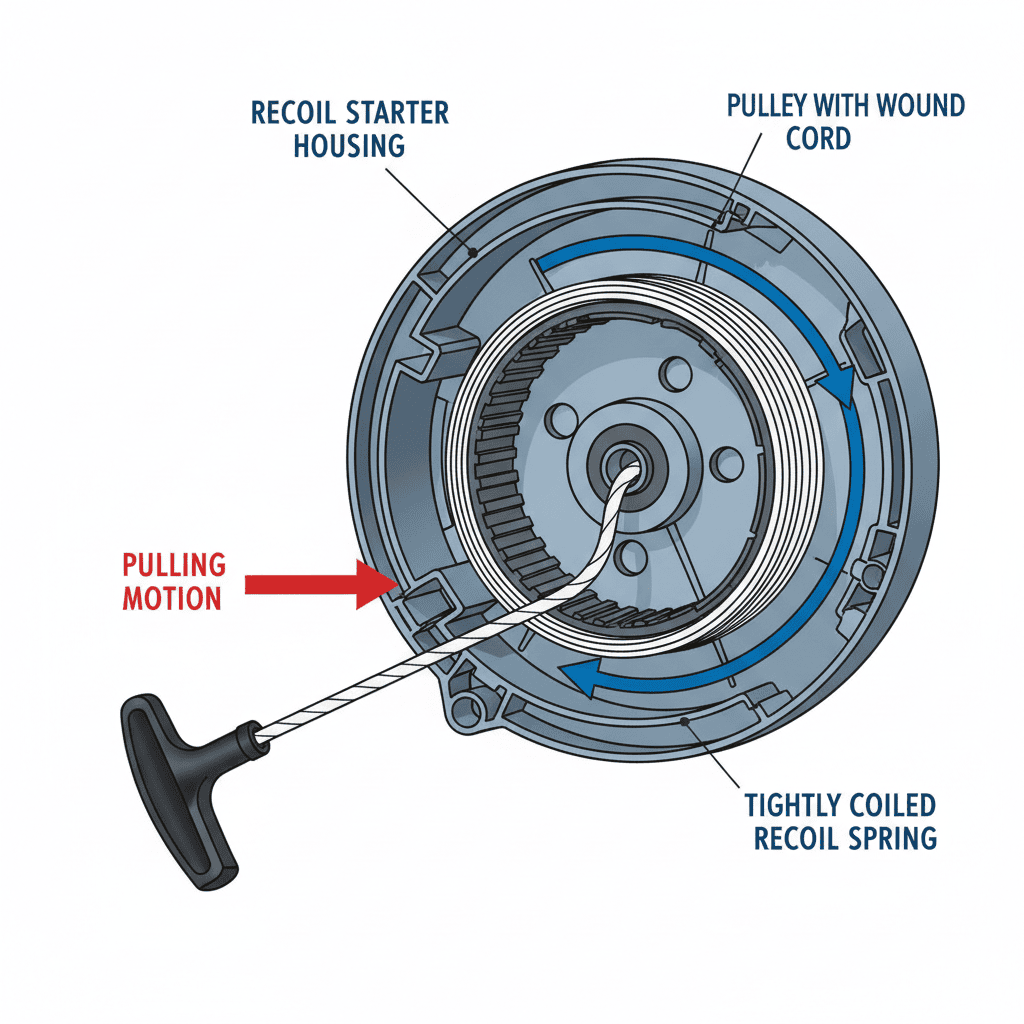

Before you start replacing your pull cord, it helps to understand how the recoil starter system works. The pull cord is connected to a spring-loaded pulley mechanism inside the recoil starter housing. When you pull the cord, it unwinds from the pulley and cranks the engine’s flywheel to start the motor. The recoil spring then automatically winds the cord back up, ready for the next pull.

Most pull cord systems consist of four main components:

• Recoil starter housing: The metal or plastic cover that encloses the pulley and spring
• Pulley: The spool that the cord winds around
• Recoil spring: A tightly coiled spring that provides tension and rewinds the cord
• Pull handle: The grip you hold to start the mower

Push mowers and small gas-powered equipment typically use similar cord designs, though riding mowers and larger commercial equipment may have variations. The basic replacement process remains the same across most residential mowers, but always check your owner’s manual for model-specific instructions.

Safety Precautions and Tools You’ll Need

Safety comes first when working on any power equipment. Before you touch anything inside the recoil starter:

• Disconnect the spark plug wire to prevent accidental engine startup while you’re working
• Allow the engine to cool if the mower was recently running
• Work on a flat, stable surface to prevent the mower from rolling or tipping
• Clear the area around the mower of people and pets

Tools and materials you’ll need:

• Screwdriver set (Phillips and flathead)
• Socket wrench or adjustable wrench
• Pliers
• Replacement pull cord kit or 5–6mm diameter starter cord (available at hardware stores or online for $10–25)
• New pull handle (usually included in replacement kits)
• Container or small bag for storing bolts and small parts
• Work gloves for safety

Replacement cord diameter varies slightly by mower model, but 5–6mm is standard for most residential push mowers. Check your manual or bring your old cord to a hardware store to verify the correct size.

How to Access the Recoil Starter Housing

The recoil starter housing is typically mounted on the engine’s top or side. Accessing it requires removing several bolts and, on some models, disconnecting the air filter cover or fuel tank slightly.

Step 1: Locate the recoil starter housing. On push mowers, it’s usually a round or oval-shaped metal or plastic cover on top of the engine. On some models, you may need to remove a shroud or plastic cover first.

Step 2: Remove surrounding components if necessary. Some mowers have the fuel tank, air filter, or other parts positioned too closely to access the housing bolts. Loosen (but don’t fully remove) these components to make room. Take photos with your phone as you go—they’ll help you reassemble everything correctly.

Step 3: Unscrew the housing bolts. Using the appropriate screwdriver or socket wrench, remove all bolts holding the recoil starter housing to the engine. Most mowers have 4–6 bolts. Place bolts in a small container so you don’t lose them.

Step 4: Carefully lift off the housing. The housing may be under slight spring tension. Lift it slowly and steadily. On some designs, the pulley will be attached to the housing; on others, it remains on the engine. Be aware of the recoil spring—it’s tightly coiled and under significant tension. Do not disassemble it unless absolutely necessary.

Removing the Old Pull Cord

With the housing off, you can now access the pulley and old cord.

Step 1: Examine the current setup. Look at how the old cord is attached to the pulley. Most cords are tied with a knot on the pulley’s center or wrapped around a post. Note the knot style for reference when installing the new cord.

Step 2: Unwind the old cord. Slowly and carefully unwind the old cord from the pulley. As you unwind, the recoil spring may begin to uncoil—this is normal. Work steadily to avoid sudden spring release, which can cause injury. If the cord is brittle or frayed, wear gloves for protection.

Step 3: Remove the handle from the old cord. Most handles are either tied to the cord with a simple knot or inserted through a loop. Untie or cut the old cord away from the handle. Discard the old cord.

Step 4: Check the spring tension. If the pulley spins freely and the spring feels loose, the spring may have lost its tension or the cord anchor point may have failed. If the spring appears damaged or severely weakened, replacement may be necessary (a more advanced repair best left to professionals).

Installing the New Pull Cord

This is the most critical step. Take your time to ensure proper installation.

Step 1: Prepare the new cord. Cut a length of new cord approximately 12–15 feet long (most replacement kits include pre-cut lengths, so verify your kit’s instructions). If the cord is slippery, seal the cut ends by briefly passing them through a flame or applying a small amount of super glue to prevent fraying.

Step 2: Thread the cord through the housing. Most recoil starters have a small opening or guide where the cord exits the housing to reach the pull handle. Thread one end of the new cord through this opening from inside the housing. Leave about 6–12 inches of cord outside the housing for attaching the handle.

Step 3: Secure the cord to the pulley. Tie a strong knot at the end of the cord still inside the housing. A simple overhand knot or double knot works well. Pull the knot tight and verify it won’t slip through the pulley’s anchor point. Some mowers use a knot with the cord looped around a post; others require threading the cord through a hole before knotting. Refer to your manual or the knot pattern of the old cord.

Step 4: Rewind the cord under spring tension. This requires careful balance. Manually rotate the pulley clockwise (direction may vary by mower—check your manual) to wind the new cord. After winding 3–4 complete rotations, the recoil spring should be tight enough to hold the pulley in place. The cord should be neatly wrapped around the pulley with no overlapping loops. If wrapping loosely, gently increase tension by rotating slightly further.

Step 5: Attach the pull handle. Thread the cord through the new handle (or the old one if still in good condition). Tie a strong knot to secure the handle to the cord, ensuring the knot won’t slip. The handle should be positioned so you can comfortably grip it and pull straight without obstruction.

Step 6: Test the cord before reassembly. Gently pull the cord—it should extend smoothly and rewind automatically. If the cord is stiff, difficult to pull, or doesn’t rewind completely, stop and recheck your winding tension. Too much tension makes pulling hard; too little causes poor rewind.

Reassembling and Testing Your Lawn Mower

Step 1: Position the housing. Carefully align the recoil starter housing over the pulley and engine. Ensure all mounting points line up and no cables or components are pinched.

Step 2: Reattach the housing bolts. Screw bolts back in by hand first to ensure they align properly. Then tighten firmly with your screwdriver or socket wrench. Don’t overtighten—this can crack plastic housings or strip bolts.

Step 3: Reconnect components. If you loosened the fuel tank, air filter, or other parts, reattach and tighten them now.

Step 4: Reconnect the spark plug wire. Push the wire back onto the spark plug firmly until it clicks into place.

Step 5: Test the pull cord. Before starting the engine, pull the cord several times to ensure smooth operation. It should require firm but not excessive force. The cord should rewind completely each time.

Step 6: Start the engine. Follow your mower’s normal startup procedure. If the engine starts smoothly and the cord functions properly, your repair is successful. If the engine doesn’t start, don’t repeatedly yank the cord—troubleshoot to find the issue (see below).

Common Issues and Troubleshooting

Pull cord is too stiff or hard to pull:

• The cord is wound too tightly. Disassemble the housing and reduce the number of rotations by half a turn.
• The knot at the pulley is too large or positioned incorrectly. Retie with a smaller knot.
• The spring tension is excessive. Manually reduce tension by rotating the pulley counterclockwise slightly.

Pull cord doesn’t rewind:

• The cord isn’t wound tightly enough. Disassemble and add an additional rotation or two.
• The recoil spring has lost tension or is broken. This requires spring replacement, which is best handled by a professional repair service.
• The cord is tangled or bunched on the pulley. Rewind more carefully, ensuring neat, even loops.

Engine won’t start after cord replacement:

• Verify the spark plug wire is connected. A loose or disconnected wire prevents spark.
• Check that the fuel valve is open and there’s gas in the tank.
• Inspect the air filter for blockages.
• The cord tension may be insufficient to turn the engine fast enough. Re-tighten the spring slightly.

Pull cord breaks again quickly:

• You may be using undersized cord. Verify you’re using the correct diameter (5–6mm for most push mowers).
• Poor knot security or the cord slipping at the pulley. Retie with a stronger knot or use a double-wrapped knot.
• The handle is catching on something as the cord extends. Check for obstructions or rough edges on the housing.

Preventative Maintenance for Pull Cords

A little maintenance extends your pull cord’s lifespan and prevents unexpected failures mid-season.

Inspect your cord regularly. Before each mowing season, visually check the cord for fraying, cracks, or discoloration. If you notice early wear, consider replacing the cord proactively rather than waiting for it to break.

Store your mower properly. Over winter or during long storage periods, keep your mower in a dry location. Moisture and temperature fluctuations degrade both cord and spring. Avoid storing the mower in direct sunlight, which can weaken the cord material.

Don’t force a stuck cord. If the cord suddenly becomes hard to pull or won’t budge, stop immediately. Forcing it can break the cord or damage the spring. Investigate the cause—the cord may be snagged, or there could be an engine issue preventing normal operation.

Use smooth, controlled pulls. Jerky, aggressive pulling wears the cord faster. Develop a smooth, steady pulling motion for both engine starting and cord longevity.

Keep the housing clean. Dirt and debris around the housing can cause the cord to fray or wear. Periodically wipe the housing clean with a dry cloth.

When to Seek Professional Help

Pull cord replacement is a straightforward DIY task for most homeowners, but some situations warrant professional repair:

• The recoil spring is broken or won’t hold tension. Spring replacement requires specialized knowledge and tools.
• The pulley is cracked or damaged. A damaged pulley affects cord function and safety.
• The housing bolts won’t loosen or are stripped. You may need a professional to avoid further damage.
• Multiple attempts to install the cord have failed. A professional can diagnose underlying issues.
• Your mower is under warranty. DIY repair may void warranty coverage. Check before proceeding.

Frequently Asked Questions

How much does it cost to replace a lawn mower pull cord?

A replacement pull cord kit typically costs $10–25 and includes cord, handle, and installation instructions. Labor at a repair shop adds $50–150, depending on your location and mower model. DIY replacement costs only the kit price, making it a budget-friendly repair.

Can I use any type of rope as a replacement pull cord?

No. Standard rope or twine won’t work—it stretches, frays easily, and lacks durability. Use only starter cord designed for small engines, which is made from reinforced nylon or similar durable materials. The diameter must match your mower’s specifications (typically 5–6mm for push mowers).

How long does a new pull cord last?

A properly installed and maintained pull cord typically lasts 3–5 years or longer, depending on usage frequency and storage conditions. Mowers used daily may need cord replacement every 2–3 years, while seasonal mowers can go 5+ years. Proper storage and smooth pulling technique extend cord life.

Do I need to replace the recoil spring when changing the pull cord?

Not usually. The recoil spring lasts much longer than the cord and rarely needs replacement during a cord change. However, if the spring has lost tension, won’t hold the wound cord, or appears visibly damaged, it should be replaced at the same time. Spring replacement is more complex and may require professional help.
