Direct Answer: How to Change Weed Wacker Line
To change weed wacker line, first disconnect the spark plug (gas models) or remove the battery (electric models) for safety. Press the tabs on the trimer head, turn the cap counterclockwise, and remove the old spool. Cut trimer line to 15–25 feet (using the gauge recommended for your model, typically .065 to .095 inches), insert it into the anchor notch on the spool, and wind it in the direction shown by the arrow on the spool, maintaining even tension. Leave4–6 inches exposed, thread the ends through the eyelets on the head, lock them in the notches, and reassemble the cap. Test the trimer before use.

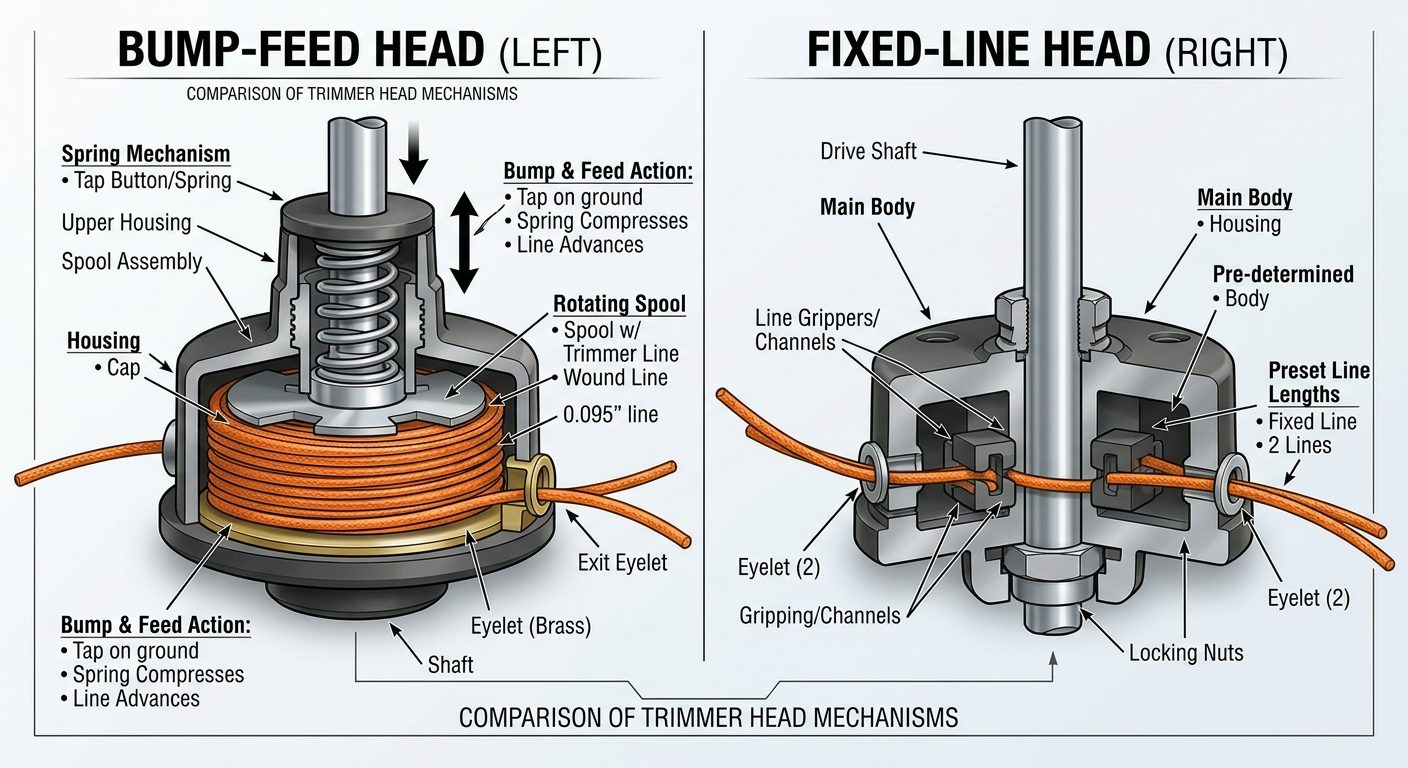

Understanding Your Weed Wacker Head Type
Not all trimer heads work the same way. Identifying your head type is essential because the loading and line-release mechanisms differ, and following the wrong procedure can result in tangled line or poor feeding.
Bump-Feed Heads
Bump-feed heads are the most common on consumer-grade string trimmers. These heads have a spring-loaded spool that releases a small amount of fresh line each time you tap the head on the ground while the trimmer is running. The spool holds two lengths of line that rotate independently, so you get two cutting paths. Bump-feed heads are convenient because youdo not have to stop work to manually extend the line—just tap and go.
Fixed-Line Heads
Fixed-line heads hold a preset length of line that does not advance automatically. Once the line wears down or breaks, you must stop disassemble the head, and re-spool or replace the line. These heads are less common on residential trimmers but appear on some commercial or specialty models. They offer consistent line length and less waste.
Tap ‘N Go and Pre-Wound Spools
Some trimmer heads accept pre-wound spools—replaceable cartridges that come fully loaded with line. You simply pop out the old spool and snap in a new one, skipping the hand-winding step entirely. Tap ‘N Go is a specific brand name associated with this convenience feature on some Black+Decker and similar models.
Safety and Preparation Before You Start
Disconnect Power
Before you touch the trimmer head, always disconnect the spark plug wire (gas models) or remove the battery (electric and cordless models). This prevents accidental starting and serious injury. Even with the power switch off, a gas engine can start if the spark plug is connected.
Choose the Correct Line Gauge
Trimer line diameter, called gauge, is measured in inches and affects cutting performance and engine load. Using the wrong gauge can damage the head or strain the engine. Consult your trimmer’s manual or manufacturer label for the correct gauge:
- .065 inch: Lightweight electric trimmers and low-power models
- .080 inch: Mid-range gas and electric trimmers
- .095 inch: Heavy-duty gas trimmers and commercial equipment
Most residential gas-powered weed wackers use .080 or .095 inch line.
Gather Tools and Materials
You will need:
- Replacement trimer line (the correct gauge for your model)
- Scissors or a utility knife to cut line to length
- A Phillips or flat-head screwdriver (if the spool cap is secured with screws instead of tabs)
- Your trimer’s user manual or head diagram for reference
- A clean, flat work surface
Step-by-Step: Removing the Old Spool
Access the Trimer Head
Place the trimmer on a flat surface with the head facing up. Locate the two or three small tabs or notches on the edge of the spool cap. Press these tabs inward while turning the cap counterclockwise. Some caps screw on instead; if so, use a screwdriver and turn counterclockwise. The cap should come free in a few rotations.
Remove the Spool
Once the cap is off, the spool will lift out or remain loosely on the spindle. Gently pull the spool away from the head. If it resists, do not force it; check for any remaining tabs or clips holding it. The spool should come away cleanly.
Clear Old Line and Debris
Remove any remaining pieces of old, broken, or tangled line from the spool and the head cavity. Use your fingers or a small brush to clean out loose line fragments, dirt, or debris. A clean spool and cavity ensure smooth feeding of the new line.
How to Wind Trimmer Line on the Spool
Prepare Your Line
Unroll your replacement trimer line. Cut a length of 15–25 feet, depending on your spool size and line gauge. Thicker line (.095 inch) requires less length because it occupies more space on the spool; thinner line (.065 inch) may allow up to 25 feet. Most manuals specify the ideal length; if unsure, aim for 20feet as a middle ground.
Locate the Anchor Notch
Examine the spool. You will see a small notch, slot, or hole at the base of the spool—this is the anchor point. Insert one end of your trimer line into this notch. Some spools have two notches (one on each side of the spool) if the head uses two line paths; if so, insert both ends simultaneously, one into each notch.
Wind in the Correct Direction
Look for an arrow printed or molded onto the spool face. This arrow shows the winding direction. Wind the line around the spool in the direction of the arrow, keeping tension on the line so it coils neatly without crossing over itself or bunching. Uneven winding orinding against the arrow causes jams and poor line feed. Wind tightly but not so hard that you strain your hands; a moderately firm grip is sufficient.
Leave Line Exposed
As you wind, leave approximately 4–6 inches of line unwind at the starting point. This exposed segment is what you will thread through the eyelets on the trimer head. Continue winding until you reach the end of your measured line length. The entire spool should be covered with a single, neat layer. Do not wind over previous layers.
Pre-Wound Spools: No Winding Required
If your trimer head accepts pre-wound spools, simply place the pre-loaded spool onto the spindle, ensuring any protruding line segments are positioned near the eyelets. Pre-wound spools save time and eliminate winding mistakes.
Threading the Line and Reassembling the Head
Feed the Line Through the Eyelets
The trimer head has two small eyelets (holes) where the cutting line exits. With your wound spool seated on the spindle, take the two exposed line ends and thread each one through a corresponding eyelet. The eyelets guide and protect the line as it spins. Make sure the line is fully inserted and sits flush with the eyelet opening.
Lock the Line in Place
At the base of each eyelet, there is a small notch or groove. Tuck the end of each line segment into this notch. This notch acts as a temporary lock, preventing the line from slipping back into the head before you reassemble the cap. The line should sit snugly in the notch without excess slack.
Reassemble the Head Cap
Align the spool cap over the spool and spindle. For tab-lock caps, press the tabs inward and turn the cap clockwise until it seats firmly. For screw-on caps, use your screwdriver and turn clockwise until snug but not over-tightened. A properly seated cap holds the spool in place and prevents line from unwinding during use.
Trim Excess Line
Use scissors or a utility knife to cut away excess line that protrudes beyond the trimer head’s guard or safety shield. This ensures the line length is safe and complies with the guard dimensions. Most trimmers work best when the line is even with or slightly recessed into the guard.
Bump-Feed vs. Fixed-Line Heads: Operation After Loading
How Bump-Feed Heads Release Line
After reassembly, start your trimmer (if it is gas-powered, follow the engine start procedure). While the head is spinning, tap the bottom of the head lightly against the ground. This tap triggers a spring mechanism inside the head that advances the spool, releasing a measured length of fresh line. You can bump the head repeatedly to extend the line as it wears down during use. Bump-feed heads are designed for continuous work without stopping.
Fixed-Line Heads: Manual Advancement
Fixed-line heads do not advance line automatically. Once the line wears to a shorter length or breaks, you must stop the trimer, disconnect power, disassemble the head, and re-spool or reload. There is no bumping mechanism, so the line stays at whatever length you set during assembly. Some users prefer this for precision work where consistent line length is important.
Double-Line vs. Single-Line Spools
Most residential bump-feed heads use two line paths, meaning the spool holds two separate lengths of line that both cut as the head spins. This doubles cutting efficiency. Fixed-line heads and some specialty heads may use a single line path. When loading, verify whether your spool has one or two anchor notches; the number of notches tells you how many line paths your head uses.
Troubleshooting Common Line Problems
Line Will Not Feed or Is Stuck
If the line does not advance when you bump the head, the line may be tangled or jammed inside the head cavity. Stop the trimmer, disconnect power, and disassemble the head. Look for twisted line or debris blocking the spool. Rewind the line neatly, ensuring it follows the directional arrow and lies flat on the spool without crossing. If the jam persists, inspect the spool for cracks or damage; a damaged spool may need replacement.
Line Snaps Immediately After Re-Spooling
New line breaking within minutes suggests improper winding or an internal head obstruction. Verify that you wound the line in the correct direction and with even tension. Also check that no old line fragments are lodged inside the head; these sharp edges can cut new line. Clean the head cavity thoroughly before reassembling. If the problem continues, the spool or head may have internal wear and require replacement.
Line Comes Out Too Long or Too Short
Bump-feed heads release a set length of line per tap; if the amount seems wrong, the spool may not be seated fully on the spindle. Disassemble, reseat the spool, and ensure cap locks firmly. Alternatively, some bump-feed mechanisms wear out over time and release inconsistent lengths. For fixed-line heads, adjust the amount of exposed line you leave after winding; more exposed line means longer cutting length, and vice versa.
Spool Cap Is Stuck or Hard to Remove
If the cap will not turn, do not force it and risk cracking the plastic. Try pressing the tabs inward more firmly while applying steady rotational pressure. If it remains stuck, wrap a rubber band around the cap for better grip and try again. As a last resort, apply a small amount of penetrating oil around the cap seam, wait a few minutes, and try again. For screw-on caps, ensure you are turning counterclockwise and use the correct screwdriver to avoid stripping the head.
Frequently Asked Questions
How often should I change or re-spool trimer line?
The frequency depends on how often you use your trimmer and the toughness of vegetation. Light, occasional users may re-spool once per season. Heavy users, especially those triming thick brush or hitting obstacles like stones, may re-spool every few weeks. Most residential users re-spool every 2–4 weeks during the growing season. Keep spare line on hand so you do not run out mid-season.
Can I use any brand of trimmer line, or must it match my trimer brand?
Trimer line is a universal consumable; it does not have to match your trimmer brand. What matters is the gauge (diameter). As long as the line diameter matches your manual’s specification (typically .065, .080, or .095 inch), any reputable brand will work. Generic or store-brand line is usually cheaper and performs identically to branded alternatives. Avoid extremely cheap or unusual gauges, as they may cause feed problems or damage the head.
What is the difference between round and twisted trimer line?
Round line is smooth and cylindrical; twisted line has a spiral or helical shape. Twisted line is slightly moredurable and cuts through thick weds and brush more effectively, but it wears faster and costs more. Round line is gentler on vegetation, useful for edging near garden beds, and lasts longer in light use. Your trimer head is designed for one or the other; check your manual. Using the wrong line shape may cause feed problems or poor cutting.
Is it safe to use a thicker or thinner gauge line than my manual recommends?
No. Using line gauge outside the manufacturer’s specification can strain the engine, damage the spool, or cause poor cutting. Thinner line (.065 inch) on a head designed for .095 inch will wind loosely and feed unpredictably. Thicker line (.095 inch) on a lightweight electric head designed for .065 inch will overload the motor and may not spool correctly. Always use the gauge listed in your trimer’s manual or on the factory label.
Key Takeaways
Changing weed wacker line is a straightforward maintenance task that takes 10–15 minutes once you understand your trimer head type. The critical steps are: disconnect power, remove the old spool, wind new line in the correct direction with steady tension, thread through the eyelets, and reassemble securely. Bump-feed heads offer convenience through automatic line release when you tap the ground, while fixed-line heads provide consistency but require manual re-spooling when the line wears out. Using the correct line gauge, keeping your spool and head clean, and winding neatly prevent jams and feed failures. With these steps, you can maintain your trimmer efficiently and keep it cutting smoothly throughout the season.
