How to Change the Wire on a Weed Wacker? (Step-by-Step Guide)

Quick Answer: How to Change the Wire on a Weed Wacker

To change the wire on a weed wacker, first disconnect the spark plug or battery and let the trimmer cool down. Remove the trimmer head or open the spool compartment, take out any remaining old line, then cut a fresh piece of nylon line to the length recommended in your owner’s manual. Wind the new line tightly and evenly onto the spool in the direction shown by the arrows on the head, thread the ends through the eyelets (for bump-feed heads) or secure them in the slots (for fixed-line heads), and reassemble everything until it clicks into place. A quick test run will confirm the line advances and cuts properly.

Note: What most people call “wire” is actually nylon cutting line (also called trimmer line or string). It is a flexible, durable monofilament that wears down and must be replaced regularly.

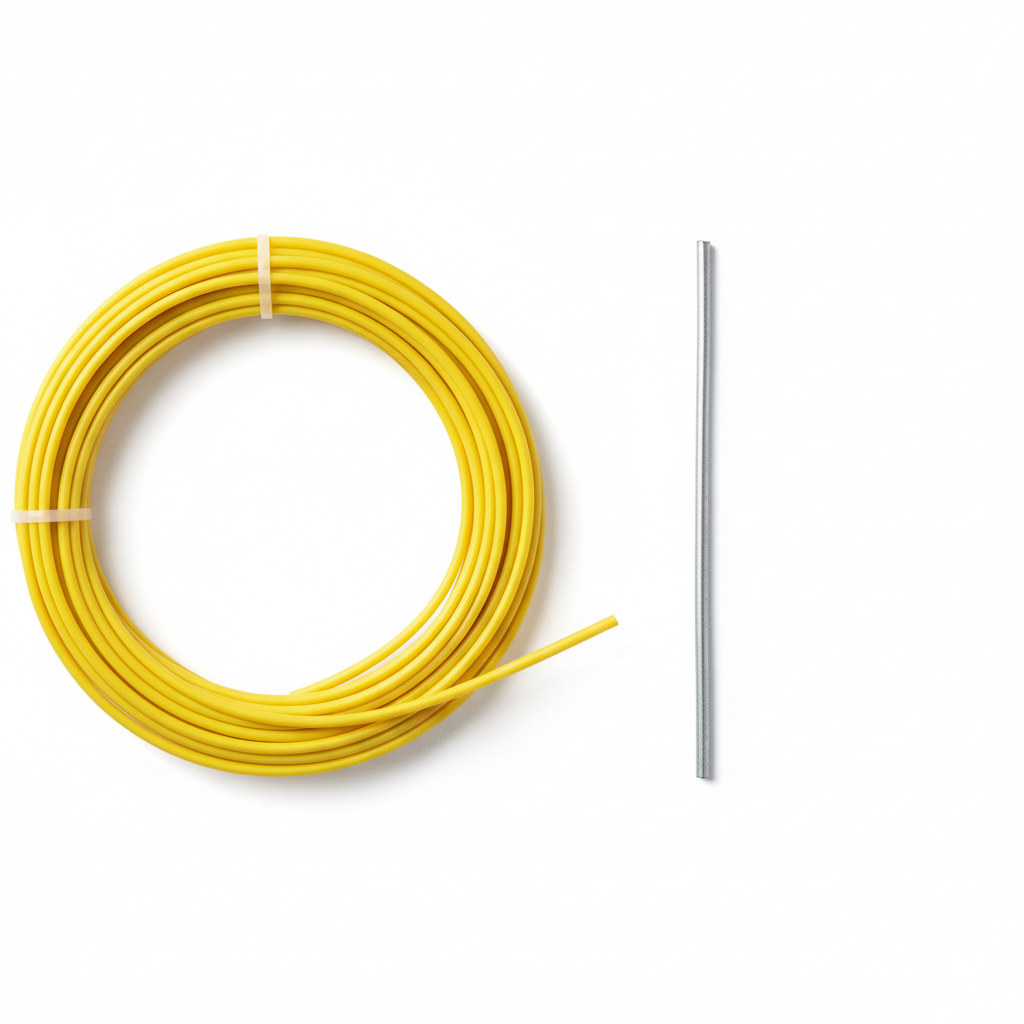

What Is the “Wire” on a Weed Wacker?

The term “wire” is a common, casual way to describe the nylon cutting line on a string trimmer or weed wacker. Unlike metal wire, this line is typically made from nylon, which is tough enough to cut grass and weeds yet flexible enough to be advanced from a spool as the tip wears away.

Over time, the cutting line gets shorter, frays, or snaps from striking hard surfaces such as sidewalks, fences, and stones. When that happens, the trimmer cuts poorly, the motor has to work harder, and you may need to stop repeatedly to pull out more line. Knowing how to restring the head yourself saves time and money.

Why Does the Cutting Line Need to Be Replaced?

• Normal wear: The spinning line erodes as it slices through grass and weeds, so the effective cutting radius shrinks.
• Impact damage: Hitting concrete, rocks, or metal can snap or shred the line instantly.
• Heat fatigue: Extended use can soften and fuse the line on the spool.
• Performance: A short or damaged line makes trimming slower and less even, and it forces the engine or motor to rev higher.

Replacing the line is a simple, low-cost maintenance job that most homeowners can do in about 10 to 15 minutes without special tools.

Common Types of Trimmer Heads

The exact steps for changing the line depend on the design of your trimmer head. There are three main types.

What to Consider Before Replacing the Line

Choose the Correct Line Diameter

String trimmer line is sold in several diameters, most commonly between 0.065 and 0.110 inches (about 1.65 to 2.8 mm). Your owner’s manual will list the recommended diameter for your specific model. Using a line that is too thick may jam the feed mechanism or overload the engine, while a line that is too thin will wear out quickly and cut less effectively.

Pick the Right Line Shape and Material

• Round line: The most common and cheapest; fine for general grass and light weeds.
• Twisted or star-shaped line: Cuts faster and creates more noise; good for thicker vegetation.
• Serrated or edged line: Aggressive cutting for heavy brush but wears spools faster.
• Commercial-grade line: Resists heat and breakage for heavy-duty use; may be less flexible.

Gather the Tools You Need

• New spool of nylon trimmer line in the correct diameter
• Scissors or a sharp utility knife
• Gloves (optional, but they protect your hands from debris and sharp edges)
• Safety glasses
• The owner’s manual for your trimmer (for model-specific directions)

Follow Safety Precautions

• Disconnect the power: Remove the spark plug boot, disconnect the battery, or unplug the trimmer before touching the head.
• Let the trimmer cool: The engine, muffler, and the head itself can be hot after use.
• Wear eye protection: Old line and debris can fly off during removal.
• Never work with the trimmer running: The head spins at high speed and can cause serious injury.

Step-by-Step Guide to Changing the Weed Wacker Line

Step 1: Prepare the Trimmer Safely

Place the weed wacker on a flat, stable surface. Switch the tool to the off position and disconnect the spark plug wire, remove the battery, or unplug the power cord. Clean the trimmer head with a dry cloth or brush if grass clippings and debris are packed around it, because dirt makes disassembly harder and can hide the locking holes.

Step 2: Access the Spool or Remove the Head

How you access the spool depends on your trimmer:

• Removable cap heads: Press the release tabs on the sides of the head and lift off the cap to reveal the spool.
• Screw-on heads: Look for a locking hole in the head; insert a screwdriver or the hex wrench that came with the trimmer to hold the shaft still, then unscrew the cap or center bolt.
• Speed-feed heads: These often have a knob or crank that rotates the spool without removing the head from the shaft.

If your head will not separate by hand, refer to the owner’s manual, because some models require a specific wrench or turning direction. Never use pliers on plastic parts with more force than necessary, since the tabs can crack.

Step 3: Remove the Old Line

Once the spool is visible, pull out any remaining line from the spool and the eyelets. If the line is jammed, unwind it slowly instead of yanking, because aggressive pulling can break the internal spring or the spool itself. Remove the empty spool if it is not already out, and inspect it for damage such as cracks, melted plastic, or a broken spring. Replace the spool if it is damaged.

Step 4: Measure and Cut the New Line

Check the owner’s manual or the sticker on the head for the recommended line length. As a general rule:

• Bump-feed heads: Cut two equal pieces, usually between 10 and 20 feet (3 to 6 meters) total per piece depending on the spool size. A common starting length is about 10 feet (3 meters) per piece for a small head and 15 to 20 feet (4.5 to 6 meters) for larger heads.
• Fixed-line heads: You typically need much less – often just 6 to 12 inches (15 to 30 cm) per slot, matching the manufacturer’s guide.

When in doubt, start slightly shorter rather than longer; an overfilled spool is the most common cause of a jammed feed. Cut the line at a clean angle so the ends slide into the eyelets easily.

Step 5: Wind the Line onto a Bump-Feed Spool

Find the spool, which has a divider in the middle and usually an arrow stamped on it. Insert the middle of one line into the anchor slot on one side of the divider, and the middle of the other line into the anchor slot on the other side. Hold both lines with one hand to keep them anchored, then wind each line in the direction indicated by the arrow. Many spools are labeled “wind here” or show the direction with a curved arrow.

• Wind tightly and evenly, laying the line in neat rows next to each other rather than piling it in one spot.
• Keep the two lines on their respective sides of the divider and do not let them cross.
• Stop winding when there is about 4 to 6 inches (10 to 15 cm) of line left sticking out at each end. Do not cut it yet.

Step 6: Thread the Eyelets and Reassemble the Bump-Feed Head

Take each loose end and feed it through the metal or plastic eyelet on the side of the head from the inside out. Then place the spool back into the head housing, aligning the tabs or notches so it seats flush. Push the cap on until it clicks, or screw it back on using the locking hole and wrench. Finally, give each line end a firm tug to release the anchor slot – you should hear or feel the tension release – and trim the exposed ends to the recommended length (usually about 4 to 6 inches).

Step 7: Restring a Fixed-Line or Easy-Load Head

Fixed-line heads: These have slots or holes on the outside of the head. Push a short piece of line through the slot, and pull it through until an equal length sticks out on both sides, or follow the arrows printed near the port. No spool winding is required; you simply replace the line whenever it wears down.

Speed-feed / easy-load heads: These heads are the fastest to restring. Look for the arrow on the knob or cap. Insert one end of the line into the loading hole and push it until it exits the matching port. Then rotate the knob or crank in the direction of the arrow several times until the line winds snugly onto the internal spool. Pull the loose ends out to the desired cutting length.

Step 8: Reassemble and Test the Trimmer

Reinstall the head on the shaft if you removed it, and retighten any bolts or cap per your manual. Reconnect the spark plug, battery, or power cord. Hold the trimmer away from your body and start it, then give the throttle a moment to spin the head. For bump-feed heads, tap the head on the ground once or twice to verify the line advances. The trimmer should cut cleanly, and the line should not fly out in excess. If it does, the spool was overfilled or the line was not anchored correctly.

Troubleshooting Common Line Problems

Why Won’t the Line Feed After Bumping?

• Spool is overfilled: Too much line binds inside the head; remove line so it winds freely.
• Line ends are too short or too long: Keep the exposed cutting length near the manufacturer’s recommendation.
• Line is tangled: Unwind and rewind evenly, keeping the lines on their correct sides of the divider.
• Internal spring is broken: If tapping no longer releases line and the spool is wound correctly, the spring or ratchet may need replacement.

Why Does the Line Keep Breaking?

• You are hitting hard surfaces (concrete, brick, tree trunks) at full throttle; slow down when trimming near edges.
• The line is too thin for the vegetation, or it is old and brittle.
• The line is catching on the eyelet because the end is frayed; trim it with scissors.
• The head is tilted too aggressively, causing the line to wear unevenly.

Why Does the Line Come Out in One Long Piece?

This usually means the line was not anchored in the spool slot when you wound it, or you used a single very long line instead of the anchor-slot method. Rewind the spool, ensure each line is seated in its anchor, and test again.

When Should You Replace the Entire Trimmer Head?

If the plastic housing is cracked, the tabs break off, the spool constantly unwinds, or the feed mechanism fails even with a correctly wound spool, it is more economical to replace the trimmer head than to keep repairing it. Universal replacement heads are widely available, but confirm the thread size and shaft type match your trimmer.

Maintenance Tips to Extend Line Life

• Use the right diameter: Match the line to your engine power and the manufacturer’s recommendation.
• Trim dry vegetation: Wet grass and weeds wrap around the head more easily and wear the line faster.
• Let the line do the work: Pressing the head into vegetation forces the motor to strain and snaps line sooner.
• Keep the eyelets clean: Wipe away grass buildup after each session, because packed debris prevents the line from advancing.
• Store line away from sunlight: UV exposure makes nylon brittle; keep spare line in a cool, dark place.
• Buy quality line: Cheap line breaks more often; reputable brands generally offer better durability (always check compatibility with your head).

Frequently Asked Questions

How much line should I put on the spool?

For most bump-feed heads, cut two pieces of about 10 to 15 feet (3 to 4.5 meters) each and wind both onto the spool, leaving roughly 4 to 6 inches (10 to 15 cm) of each end outside the eyelets. If the line will not feed after winding, the spool is probably overfilled, so remove a few inches and try again.

How do I know what diameter line my weed wacker needs?

Check the owner’s manual or the label printed on the trimmer head. If neither is available, look at the size of the eyelet or the spool’s channel. Most residential trimmers use 0.080 to 0.095 inch line, while heavier-duty models accept 0.105 inch or larger. When in doubt, start with the smaller diameter that fits the head opening.

Do I have to take the head off to restring it?

Not always. Fixed-line heads and many speed-feed (easy-load) heads let you insert line without removing the head from the shaft. Bump-feed heads usually require you to pop off the cap and remove the spool, but the head itself can often stay attached to the trimmer. Check your manual for the fastest method for your model.

Why does my trimmer line keep jamming?

The most common causes are an overfilled spool, a crossed or tangled wind, grass packed into the eyelets, or a worn internal spring. Empty the spool, clean the head, rewind the line evenly in the direction of the arrow, and confirm the line ends are cut cleanly. If jamming continues, inspect the spring and replace the spool if it is damaged.

Final Thoughts

Changing the wire – the nylon cutting line – on a weed wacker is one of the easiest and most valuable maintenance skills for any homeowner. By matching the correct line diameter, winding the spool tightly in the correct direction, and keeping the head clean, you will get consistent cutting performance with far fewer frustrating mid-job replacements. Always prioritize safety: disconnect the power, wear eye protection, and follow your owner’s manual for model-specific details. With this guide, you can restring a bump-feed, fixed-line, or easy-load head with confidence in about 15 minutes.
