How to Clean a Lawn Mower Carburetor: A Step-by-Step Guide
Cleaning a lawn mower carburetor involves disconnecting the spark plug, removing the carburetor, disassembling it, cleaning all components with carburetor cleaner or a specialized solution, inspecting for wear, and reassembling. This process removes built-up varnish, gum, and debris that cause poor engine performance, stalling, or difficulty starting. Safety is paramount: always work in a well-ventilated area, wear gloves and eye protection, and ensure the engine is cool and disconnected from power before beginning.

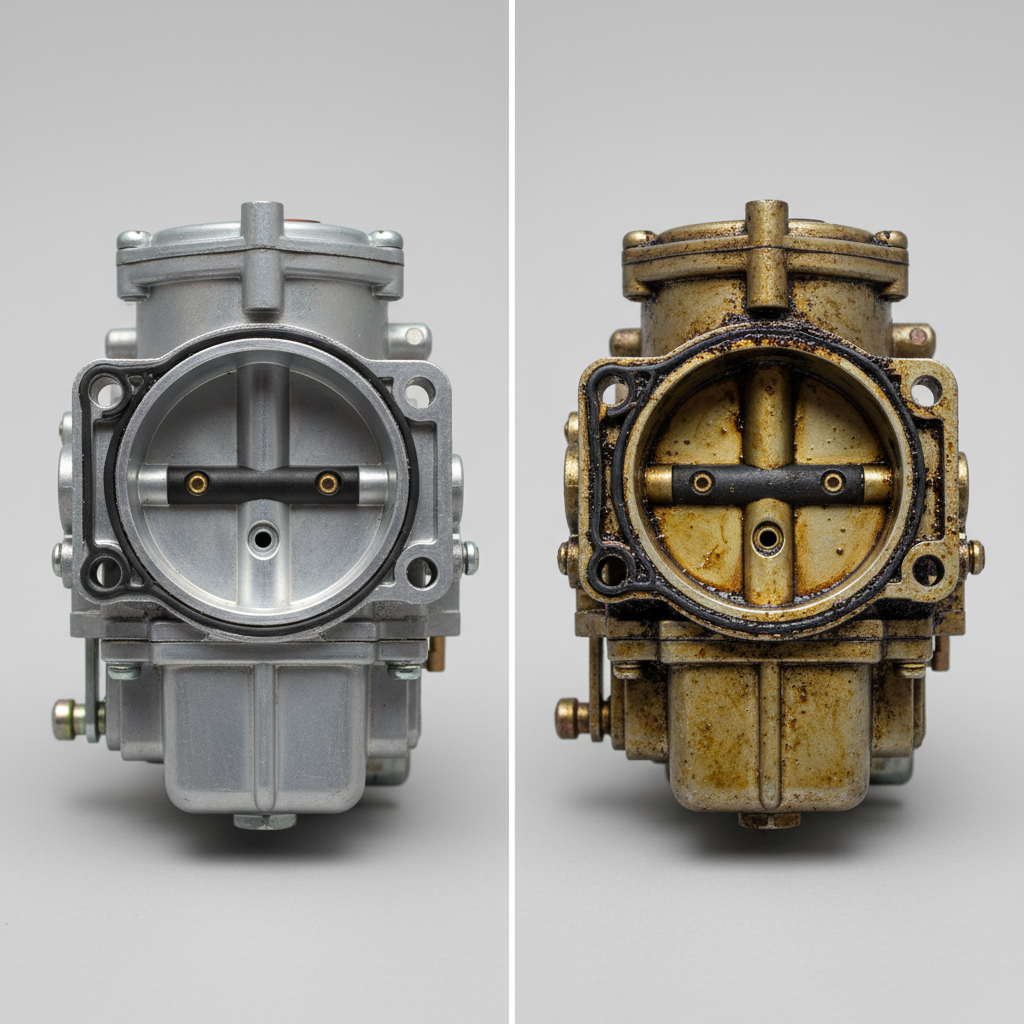

Why Clean Your Lawn Mower Carburetor?
The carburetor is responsible for mixing air and fuel in the correct ratio for combustion. Over time, especially with modern ethanol-blended fuels, residues can build up and clog its tiny passages. Cleaning is necessary when you notice symptoms like:
- Rough Idle: The engine runs unevenly or may stall when not under load.
- Difficulty Starting: The mower requires multiple pulls or extended cranking.
- Surging or Hesitation: The engine speed fluctuates erratically or bogs down during use.
- Poor Fuel Efficiency: The mower consumes more fuel than usual.
Performing a carburetor cleaning is a key part of seasonal maintenance, particularly before storing the mower for winter, to prevent gum and varnish from hardening and causing permanent damage.
Tools and Materials Needed
Gather these items before starting to ensure a smooth process:
- Basic Tools: Socket set or wrenches, screwdrivers (Phillips and flat-head), needle-nose pliers, and a small container for parts.
- Cleaning Supplies: A commercial carburetor cleaner spray (with a straw for precision), a carburetor cleaning dip or solution, and clean rags or paper towels. For a non-toxic alternative, white vinegar or isopropyl alcohol can be used for soaking parts.
- Safety Gear: Nitrile gloves, safety goggles, and work in a well-ventilated area away from ignition sources.
- Optional: Compressed air canister for blowing out passages, a small wire or carburetor cleaning tool kit for jets, and a new carburetor gasket set (recommended for reassembly).
Step-by-Step Carburetor Cleaning Process
1. Preparation and Safety
Disconnect the spark plug wire to prevent accidental engine start. Allow the engine to cool completely. If the mower has a fuel shut-off valve, turn it to the “off” position. If not, you may need to clamp the fuel line with a pair of pliers to stop fuel flow.
2. Access and Remove the Carburetor
Locate the carburetor, typically attached to the engine’s intake manifold. Remove any air filter housing or covers obstructing access. Disconnect the throttle and choke linkages, noting their positions for reassembly. Carefully disconnect the fuel line from the carburetor inlet; have a rag ready to catch any spilled fuel. Unbolt the carburetor from the engine block and carefully pull it away.
3. Disassemble the Carburetor
Work over a clean, well-lit surface. Use a screwdriver to remove the screws holding the float bowl (the bottom reservoir) in place. Gently tap the bowl to loosen it. Remove the float and the needle valve beneath it. Locate and unscrew the main jet and any pilot jets. Take photos during this process to aid in reassembly.
4. Clean All Components
Thoroughly spray every part, including the carburetor body, jets, float bowl, and needle valve, with carburetor cleaner. Pay special attention to the tiny holes in the jets. If parts are heavily coated, soak them in a carburetor cleaning dip for the recommended time. Use compressed air to blow out all passages and jets after cleaning. For stubborn deposits, gently clear jets with a thin wire, being careful not to enlarge the orifice.
5. Inspect and Reassemble
Inspect the float, needle valve, and gaskets for wear or damage. Replace any worn parts. Reassemble the carburetor in reverse order of disassembly: install jets, then the float and needle valve, and finally reattach the float bowl with a new gasket if available. Ensure all screws are snug but not overtightened.
6. Reinstall and Test
Reattach the carburetor to the engine, reconnect the linkages and fuel line. Reinstall the air filter and housing. Reconnect the spark plug wire. Start the engine and let it run for a few minutes, checking for fuel leaks and ensuring smooth operation.
Troubleshooting and When to Seek Help
If the engine still runs poorly after cleaning, the issue may be deeper. Consider these possibilities:
- Further Cleaning Needed: A passage may still be clogged. Re-disassemble and clean again, focusing on the pilot circuit.
- Worn Parts: The needle valve or float may be worn, causing fuel level issues. These parts are inexpensive and should be replaced.
- Replacement vs. Cleaning: If the carburetor body is cracked, heavily corroded, or if cleaning doesn’t resolve the issue, it may be more practical to replace the entire carburetor assembly. Aftermarket replacements are often affordable and come pre-assembled.
Frequently Asked Questions
Can I use vinegar to clean a lawn mower carburetor?
Yes, white vinegar can be used as a non-toxic alternative to commercial cleaners for soaking parts like the float bowl and jets to dissolve varnish. However, it may require a longer soaking time (several hours to overnight) and should be followed by thorough rinsing with water and complete drying to prevent corrosion.
How often should I clean my lawn mower carburetor?
A carburetor cleaning is typically part of annual or seasonal maintenance. It’s highly recommended to clean it before winter storage to prevent fuel residue from gumming up the system. If you use ethanol-blended fuel, consider cleaning it more frequently or always using a fuel stabilizer.
Do I need to drain the gas tank before cleaning the carburetor?
It’s not strictly necessary, but it’s a good practice. Clamping the fuel line prevents most spillage. Draining the tank ensures no old fuel flows into the cleaned carburetor during reassembly and allows you to start with fresh fuel, which is ideal for testing.
What if I lose a small part during disassembly?
Work in a contained area like a baking tray to prevent parts from rolling away. If a part is lost, you can often purchase a carburetor rebuild kit specific to your mower’s engine model, which includes all the small gaskets, jets, and needles.
