Direct Answer: To clean a carburetor on a riding lawn mower, drain the fuel tank, disconnect the carburetor from the engine, and disassemble it by removing the float bowl and internal components. Soak removable parts in carburetor cleaner for 15–30 minutes, then use a soft brush and compressed air to clear jets and passages. Inspect gaskets and seals for wear, replace if necessary, reassemble in reverse order, and prime the fuel system before testing the mower.

When to Clean Your Carburetor: Recognizing the Signs

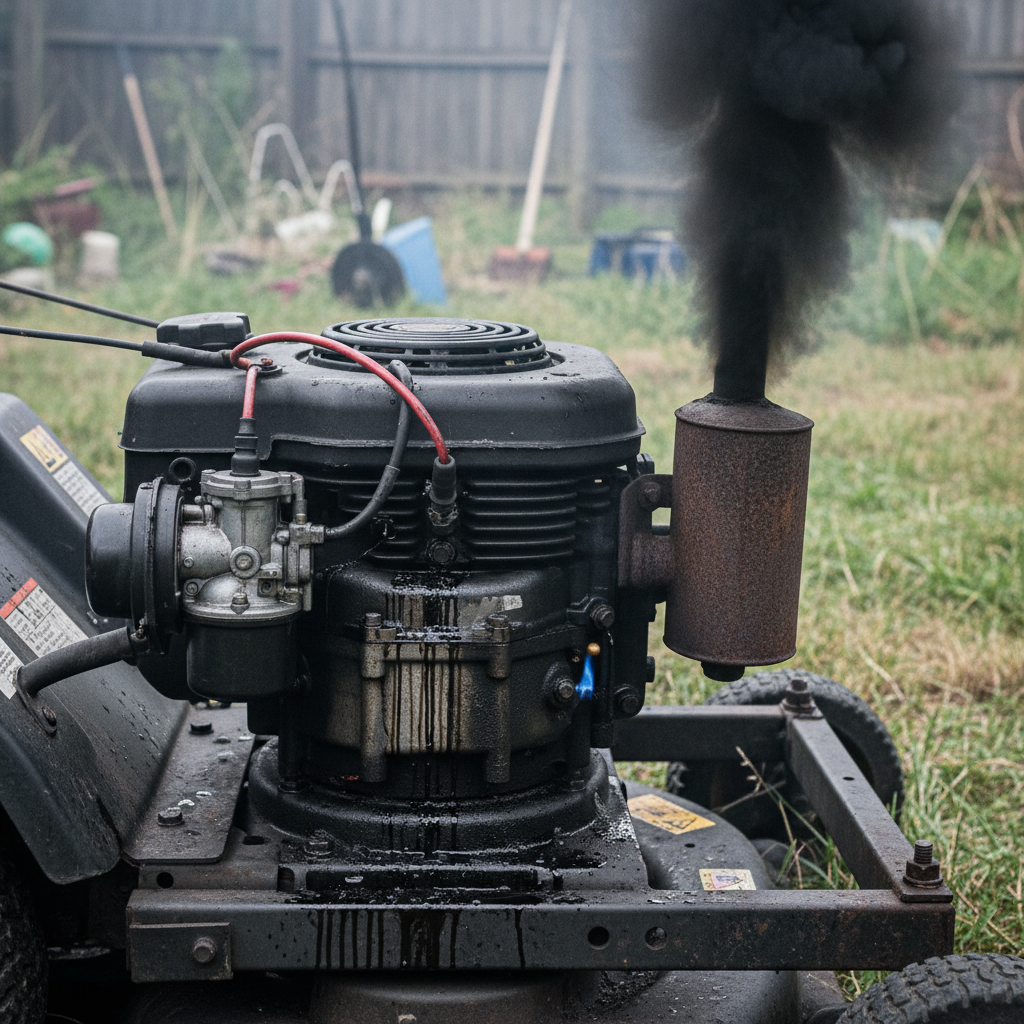

Riding mower engine showing signs of carburetor problems including exhaust smoke and fuel leaks

Not every lawn mower problem requires carburetor cleaning. Before disassembling, confirm that a dirty carburetor is actually the issue. Common symptoms include:

  • Hard starting or won’t start: Fuel cannot reach the engine due to clogged jets or fuel passages.
  • Rough idling or stalling: The engine cannot maintain a steady fuel-air mixture.
  • Black smoke from the exhaust: Indicates an overly rich fuel mixture, often from a stuck needle valve.
  • Fuel leaking from the carburetor: Usually caused by a stuck float or deteriorated gasket.
  • Reduced power or hesitation during operation: Fuel delivery is inconsistent due to partial blockage.

If your mower has been sitting idle for several months without fuel treatment, the carburetor is likely clogged. Ethanol-based gasoline gums up fuel passages over time, especially during off-season storage.

Try simpler fixes first: Before committing to full disassembly, check that the fuel tank is filled, the fuel line is not kinked, and the spark plug is clean and properly gapped. Many starting issues are not carburetor-related. If the engine cranks but won’t ignite, then carburetor cleaning is warranted.

Cleaning frequency: Riding lawn mower carburetors typically need cleaning every 1–2 seasons if the mower is used regularly. If stored for extended periods without fuel stabilizer, plan on cleaning at the start of each season.

Tools and Materials You’ll Need

Gather everything before starting to avoid interruptions:

  • Basic hand tools: Screwdriver set (Phillips and flathead), adjustable wrench or socket set, needle-nose pliers, small wire brush or soft brass brush.
  • Carburetor cleaner: Use a commercial product designed for small engines (typically sold in spray cans or liquid bottles). Avoid using gasoline or acetone, which can damage rubber components.
  • Compressed air: A hand pump, electric air compressor, or canned compressed air (at least 40–60 PSI) to blow out clogged passages.
  • Container for soaking: A small plastic tray or jar deep enough to submerge carburetor parts.
  • Clean rags or paper towels: For drying and wiping parts.
  • Safety equipment: Nitrile gloves (carburetor cleaner is harsh), eye protection, and a well-ventilated workspace.
  • Gasket and seal kit (optional): Most hardware stores sell carburetor rebuild kits for common mower engines. These include new gaskets, seals, and sometimes a needle valve, useful if existing parts are worn.
  • Fuel stabilizer (optional but recommended): For treating fresh fuel before reinstalling the carburetor.

Safety Precautions Before You Start

Fuel and hot engine components pose real hazards. Follow these steps:

  • Drain the fuel tank completely: Use a fuel siphon pump or drain plug (check your mower’s manual for location). Collect fuel in an approved gasoline container. Work outdoors or in a well-ventilated space.
  • Allow the engine to cool for at least 30 minutes: Hot metal surfaces can cause severe burns. If the mower was running, wait before touching the engine block or carburetor.
  • Disconnect the spark plug wire: Remove the wire from the spark plug to prevent accidental engine start while you work.
  • Work in a ventilated area: Carburetor cleaner produces fumes. Open garage doors, use a fan, or work outside. Do not smoke or use open flames nearby.
  • Wear gloves and eye protection: Carburetor cleaner can irritate skin and eyes. Use nitrile gloves and safety glasses.

How to Disassemble the Carburetor

Disassembly order matters because you’ll reverse it during reassembly. Take photos or notes at each step if you’re unfamiliar with the process.

Step 1: Remove the Carburetor from the Engine

  • Locate the fuel line connected to the carburetor inlet. If fuel remains in the line, place a small container beneath it before disconnecting.
  • Use pliers to loosen the hose clamp and slide the fuel line off. Plug the fuel line with a small piece of cloth or cork to prevent debris from entering.
  • Locate the carburetor mounting bolts (typically 2–3 bolts holding the carburetor to the engine intake manifold). Using the appropriate wrench or socket, remove these bolts completely.
  • Carefully slide the carburetor away from the engine. Set it on a clean surface away from the work area to avoid dirt contamination.

Step 2: Remove the Float Bowl

  • The float bowl is a removable section at the bottom of the carburetor held by 2–4 screws. Identify these screws and remove them with a screwdriver.
  • Gently slide or pry the float bowl downward. A gasket sits between the bowl and the main carburetor body; inspect it for cracks or hardening.
  • Inside the bowl, you’ll see a brass float (shaped like a hollow ball or rectangular tab) and a small needle valve connected to the float. Handle these carefully—the needle valve is easily damaged.

Step 3: Remove Internal Components

  • Carefully remove the float by unclipping or unbolting it from the hinge pin.
  • Remove the needle valve by gently pulling or unbolting it (method depends on carburetor type; consult your mower’s manual if unsure).
  • Locate the main jet and pilot jet. These are small brass cylinders with holes visible from the side. Some are threaded and screw out; others are pressed in. Threaded jets can be removed with a small wrench. Do not force pressed-in jets—they are harder to reinstall.
  • Place all removed parts in a small container to keep them organized and prevent loss.

Cleaning Carburetor Parts: Methods and Best Practices

Soaking Method

  • Pour carburetor cleaner into a shallow container deep enough to submerge removable parts (float, needle valve, jets, and gasket surfaces).
  • Submerge parts for 15–30 minutes. This dissolves varnish and gum buildup on fuel-contact surfaces.
  • Do not soak rubber gaskets, seals, or the diaphragm (if present) for extended periods—carburetor cleaner degrades rubber. Remove gaskets before soaking and clean them separately with a damp cloth.

Brushing and Air Blowing

  • After soaking, remove parts and use a soft brass brush to gently scrub away loosened deposits. Brush in the direction of fuel flow, not against jets or sensitive passages.
  • Use compressed air (40–60 PSI minimum) to blow out internal passages, jets, and needle seats. Hold the carburetor body at an angle so debris falls away from critical areas.
  • Crucial: Never insert a wire, toothpick, or metal pick into jets or passages. These tools can enlarge holes and ruin precise fuel metering. Compressed air and brushes are sufficient.
  • Repeat soaking, brushing, and air blowing until no more deposits appear.

Cleaning the Main Carburetor Body

  • With the float bowl and jets removed, soak the main carburetor body in cleaner for 15–20 minutes. This clears varnish from internal fuel passages and the idle circuit.
  • Use compressed air to blow through all passages, starting from the fuel inlet and working toward the engine-facing side.
  • Pay special attention to the idle jet passage—this is often the smallest and most prone to clogging.

What NOT to Use

  • Do not use gasoline, diesel, or lacquer thinner to clean carburetors. These do not dissolve varnish as effectively and can leave residue.
  • Avoid abrasive cleaners, wire wheels, or sandpaper. These damage precision surfaces and fuel passage walls.
  • Do not use hot water or soak for extended periods without proper ventilation—fumes are hazardous.

Inspecting Gaskets, Seals, and Wear Components

Parts that fail during storage or use should be replaced to prevent future leaks and performance issues.

  • Float bowl gasket: Lay the gasket on a clean surface. If it is hardened, cracked, discolored, or no longer pliable, replace it. A worn gasket causes fuel leaks and allows air into the fuel system.
  • Needle valve and seat: Inspect the tip of the needle valve under a light. It should have a fine point and smooth surface. If the point is flattened, corroded, or pitted, the valve cannot seat properly and fuel will overflow. Consider replacing it.
  • Float condition: Check the float for dents, cracks, or fuel inside (which would cause it to sink and flood the carburetor). If damaged, replace it.
  • Rubber seals and o-rings: Any rubber component that feels sticky, crumbly, or has lost elasticity should be replaced. Carburetor rebuild kits typically include new seals.

If any part is damaged, a carburetor rebuild kit for your mower’s engine model is the most economical solution. Kits cost $15–$40 and include all gaskets, seals, and often a new needle valve, eliminating the need to source individual parts.

Reassembly and Fuel System Priming

Reassembling the Carburetor

  • Work in reverse order of disassembly. Install the main jet first (if threaded, tighten by hand, then a quarter turn with a wrench—do not over-tighten). Install the pilot jet the same way.
  • Install the needle valve and float. Ensure the float pivots freely and is not bent.
  • Place the new gasket (or cleaned original if reusing) between the float bowl and main carburetor body, ensuring all gasket holes align with mounting holes.
  • Reattach the float bowl using the original screws, tightening evenly in a star pattern (alternate opposite screws) to ensure an even seal.

Reinstalling the Carburetor on the Engine

  • Position the carburetor against the engine intake manifold.
  • Insert mounting bolts and tighten by hand first, then snug them with a wrench. Do not over-tighten—this can crack the carburetor body.
  • Reconnect the fuel line, sliding it onto the carburetor inlet and securing it with the hose clamp.

Priming the Fuel System

  • Fill the fuel tank with fresh gasoline. If available, add fuel stabilizer to the tank per product instructions (this prevents future gum buildup).
  • Reconnect the spark plug wire.
  • If your mower has a manual primer bulb on the carburetor, press it 5–10 times until fuel flows. This fills the float bowl and fuel passages, eliminating air pockets.
  • If there is no primer bulb, proceed to starting the engine—it may require several pulls before fuel reaches the combustion chamber.

Starting and Testing

  • Engage the throttle to the “start” or “choke” position (depending on your mower’s controls).
  • Pull the starter cord firmly and steadily. The engine may require 3–5 pulls before igniting if air is still in fuel passages.
  • Once running, move the throttle to “run” and allow the engine to idle for 1–2 minutes. It should settle into a smooth, steady idle without stalling or racing.
  • If the engine runs but still sounds rough or hesitates under load, the carburetor may require a second cleaning cycle or professional service.

Model-Specific Variations: Float Bowl vs. Diaphragm Carburetors

Most riding lawn mowers use float-bowl carburetors (described above), but some use diaphragm carburetors, particularly older or smaller models. Key differences:

  • Float-bowl carburetor: Uses a hinged float to control fuel level. Fuel gravity-feeds into the bowl. These are simple and reliable but can overflow if the needle valve sticks. The disassembly method above applies.
  • Diaphragm carburetor: Uses a rubber or plastic diaphragm connected to a fuel pump. No float bowl exists. These are lighter and less prone to fuel leaks but are more sensitive to worn diaphragms. Disassembly requires removing the diaphragm cover and pump chamber—different access points and screws.

Check your mower’s manual or engine label to identify your carburetor type. A quick visual inspection: if you see a large bowl bolted to the bottom of the carburetor, you have a float-bowl type. If the carburetor is compact with no visible bowl, it is likely a diaphragm model. Many YouTube videos and manufacturer websites provide specific disassembly guides for each type; these are invaluable if your carburetor differs from the general process outlined here.

When to Call a Professional

  • Carburetor still leaks after reassembly: If fuel drips from the float bowl or carburetor body after cleaning and reassembly, the gasket may be damaged or improperly seated. A professional can test for internal leaks or advise on carburetor replacement.
  • Engine won’t start after cleaning: If the engine still won’t ignite after priming and multiple pull attempts, other issues (spark plug, ignition coil, compression) may be at fault, not the carburetor. A technician can diagnose with a compression test or ignition check.
  • Engine stumbles under load: Persistent hesitation or power loss after carburetor cleaning may indicate a carburetor rebuild kit is necessary (not just cleaning). A professional can advise on repair vs. replacement.
  • Carburetor is severely corroded or damaged: If the carburetor body is cracked, corroded to the point where passages are compromised, or if metal parts are pitted, replacement is often more economical than repair.

Carburetor cleaning is a manageable DIY task for owners with basic mechanical skill, but if you are uncomfortable working with fuel systems or unsure about your mower’s carburetor type, professional service is a worthwhile investment to avoid damage or injury.

Frequently Asked Questions

How long does it take to clean a carburetor on a riding lawn mower?

For an experienced mechanic, 1–2 hours is typical. This includes disassembly (20–30 minutes), soaking and cleaning (30–45 minutes), inspection (15 minutes), and reassembly with testing (30–40 minutes). First-time cleaners should allow 3–4 hours, especially if consulting a manual or taking photos at each step.

Can I use gasoline to clean carburetor parts instead of carburetor cleaner?

Gasoline is flammable and not formulated to dissolve varnish effectively. Carburetor cleaner contains solvents specifically designed for fuel system deposits. The cost difference is minimal (carburetor cleaner is $5–$12 per can), and using the correct product ensures better results and safer handling. Never use gasoline indoors.

What if I lose a small part during disassembly?

Losing a jet, gasket, or needle valve is frustrating but recoverable. Most hardware stores and online retailers sell carburetor rebuild kits for common mower engines (Briggs & Stratton, Kohler, Tecumseh, etc.). A kit typically costs $15–$40 and includes all small parts, gaskets, and seals. Identify your engine model (stamped on the engine block or in your mower’s manual) and purchase the matching kit. This also addresses any wear in the existing parts.

Should I replace the fuel filter while I’m servicing the carburetor?

Yes, if your mower has a fuel filter (usually a small cartridge between the tank and carburetor). A clogged filter can cause similar symptoms to a dirty carburetor and is inexpensive ($5–$15) and easy to replace. Inspect it during the fuel line disconnect; if it appears discolored or clogged, swap it for a new one. This prevents the same problem from recurring.
