Graphics cards pull 200 to 600 watts of heat through a fin stack often thinner than 30 mm, and that fin stack sits directly in the path of case airflow — which means it behaves like an air filter for your entire system. Within 6 to 12 months of normal operation, lint, skin cells, pet hair, and mineral dust compress into a felt-like mat between the heatsink fins, choking airflow before it ever reaches the die. The result is a slow, silent thermal degradation: fans spin faster, clocks drop under load, and junction temperatures creep toward throttle territory. Learning how to clean gpu dust correctly — specifically, without letting the fans over-spin on compressed gas — is one of the highest-return maintenance tasks in all of pc hardware 2026, and it costs under $20 and 30 minutes.

Quick Answer

Shut down, unplug the PSU, and work outdoors. Pin both fan hubs with fingers or a plastic straw so blades never spin under gas pressure. Blow the fin stack in short bursts against normal airflow direction from 10–15 cm, alternating sides. Brush the shroud with an anti-static brush, vacuum the ground dust, then reassemble and verify a 5–15 °C load-temperature drop.

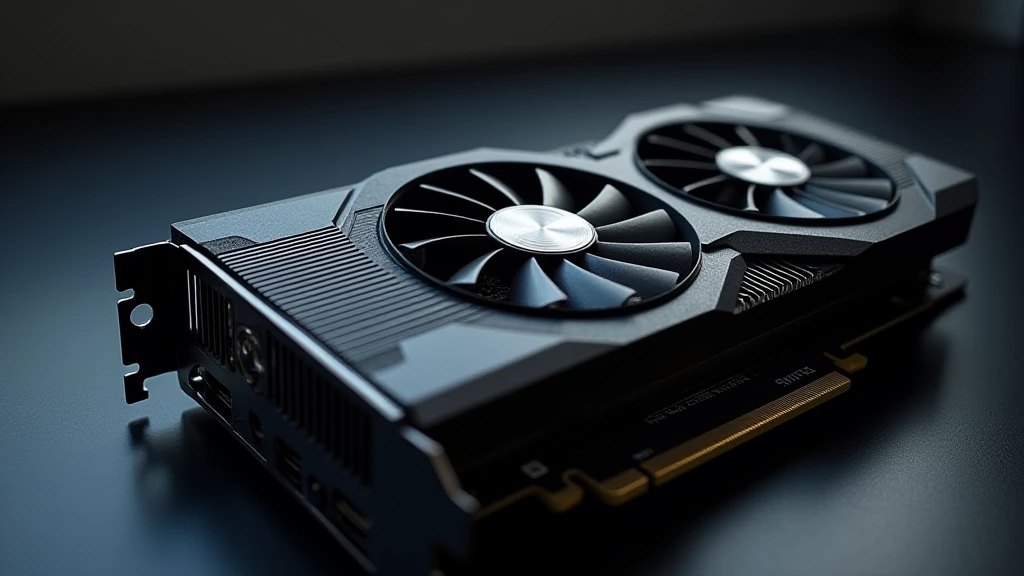

How to Deep Clean Dust Out of GPU Heatsink Fins Without Damaging Fans
How to Deep Clean Dust Out of GPU Heatsink Fins Without Damaging Fans — Equipment Evaluation & Field Diagnostics

Why Dust Loading Destroys GPU Cooling Performance

The Physics: Fins, Static Pressure, and Thermal Resistance

A GPU cooler transfers heat through three series resistances: die-to-vapor-chamber, vapor-chamber-to-fins, and fins-to-air. The first two are fixed at the factory. The third is the only one you control, and dust attacks it directly. Laminar airflow through a 1.5 mm fin gap requires clean channels; a 0.5 mm dust layer on each fin face reduces effective channel cross-section by roughly 60%, which collapses volumetric airflow even when fan RPM stays constant. Because fin-to-air transfer scales with mass flow, the cooler’s effective dissipation capacity drops while the die keeps producing identical wattage — so temperature rises until the delta compensates.

The compounding problem is fan compensation curves. As the fin stack clogs, the fan controller demands higher RPM to hit the same thermal target. Higher RPM accelerates bearing wear on sleeve-bearing designs, increases noise 5–10 dBA, and — critically — pulls more dust into the intake face, so clogging is exponential, not linear. A card that gained 4 °C in its first six months can gain 15 °C in the next six. Per NVIDIA GeForce Hardware Documentation, sustained operation at elevated junction temperatures directly reduces the service life of the GPU die and surrounding VRM components, which is why cleaning is preventive maintenance, not cosmetic upkeep.

How Dust Mats Form Inside the Heatsink

Dust enters as loose particles but does not stay loose. Three mechanisms bond it into a mat: static adhesion (air moving through fins generates triboelectric charge that captures particles), oil nucleation (cooking aerosols and skin oils from a bedroom or kitchen-adjacent PC act as adhesive), and hair weaving (pet and human hairs thread across fins and trap finer particles like a net). By the time you can see a visible gray layer through the shroud cutouts, the mat is typically 2–5 mm thick and partially hydrophobic — it will not blow out with a single puff. This is why technique matters as much as frequency, and why a proper how to clean gpu dust guide separates light maintenance from full disassembly cleaning.

Diagnostic Matrix: When Your GPU Actually Needs Cleaning

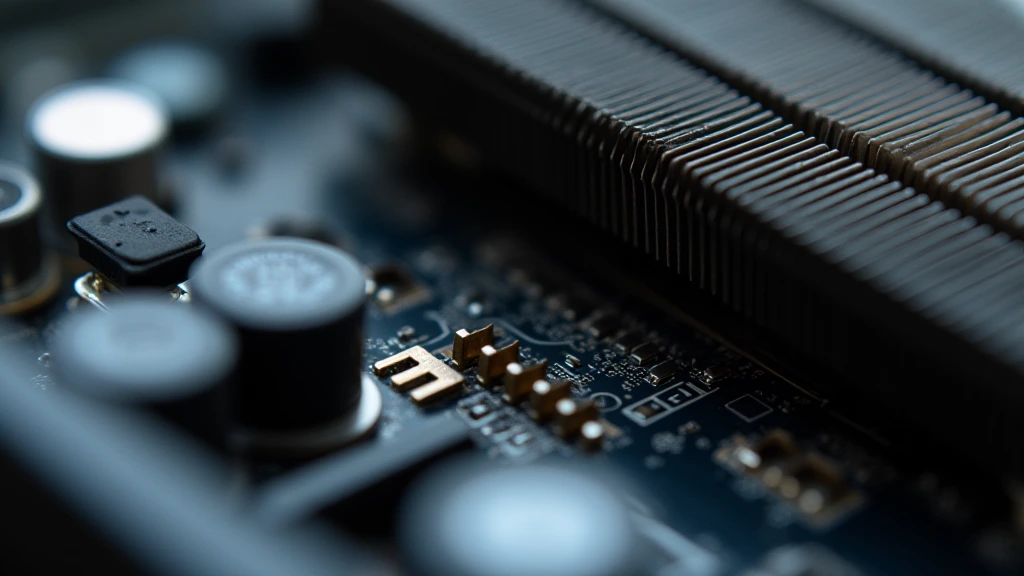

How to Deep Clean Dust Out of GPU Heatsink Fins Without Damaging Fans Detail
Detailed Component Architecture & Field Diagnostics

Cleaning on a calendar is inferior to cleaning on evidence. Run a 10-minute load test (any modern benchmark loop) and log hotspot, edge, and memory temperatures alongside fan RPM and core clock, then cross-reference the table below. For model-specific baseline numbers — what a healthy RTX 5070 or RX 9070 XT should hit — our graphics card tests & GPU guides catalog stock-cooler thermal data you can compare against.

Symptom Likely Cause Severity Corrective Action
Load temp rose 8–15 °C over 6 months, same ambient Fin-stack dust mat, 50–70% airflow loss Moderate Full blow-out clean, both fan faces
Fans audible at idle (40%+ RPM at desktop) Zero-RPM threshold broken by rising idle temp Low–Moderate Blow-out clean; check case intake filters too
Core clock drops 100–250 MHz under sustained load Thermal throttling past 83–88 °C target High Immediate deep clean; inspect pads/paste if temps persist
Hotspot-to-edge delta exceeds 20 °C Pump-out / dried paste OR blocked fin channels High Clean first; if delta holds, repaste the die
Grinding, clicking, or RPM fluctuation Hair wound into fan hub or bearing wear High Extract hair with tweezers; replace fan if bearing noise remains
Memory (GDDR) temp above 90–100 °C Dust on memory thermal pads or backplate Critical Disassembly clean; replace degraded thermal pads
Crashes only after 20+ minutes of gaming Soak-in thermal runaway from cumulative dust load Critical Full deep clean plus thermal interface inspection

Reading Temperature Thresholds Correctly

Modern GPUs expose three temperatures and misreading them causes false diagnoses. Edge (the reported “GPU temp”) throttles near 83–88 °C on most designs. Hotspot legitimately runs 10–15 °C above edge; a delta under 15 °C is healthy, over 20 °C signals interface or airflow failure. Memory junction on GDDR6/GDDR7 should stay under 90 °C for longevity. Ambient matters: a 26 °C summer room inflates every number 3–5 °C versus the same card in a 20 °C room. Log before cleaning, log after — the delta is your proof the procedure worked.

Safe Tools and Materials

Approved Toolkit

  • Compressed gas duster (100+ psi output) or a 40–60 PSI regulated air compressor with moisture trap and needle nozzle
  • Anti-static brushes: soft natural-bristle for PCBs, stiff nylon for fin stacks and shrouds
  • Plastic straw or trimmed coffee stirrer for pinning fan hubs
  • Fine-point ESD tweezers for hair extraction from fan hubs
  • Isopropyl alcohol (90%+) and lint-free microfiber cloths for shroud and backplate
  • Anti-static wrist strap grounded to the case chassis
  • Fishing line or plastic cable tie to pin multiple fans simultaneously on triple-fan cards
  • Thermal paste and 1 mm/2 mm thermal pads only if performing full disassembly
  • Philips PH1/PH2 drivers for shroud screws and a magnetized tray to track them

What Damages Hardware

Household vacuum nozzles held against the card generate significant static charge — a known killer of VRM MOSFETs and VRAM chips — so never insert a vacuum wand near the PCB; vacuum only the airborne dust cloud below the work area. Paper towels and cotton cloths shed fibers directly into fin gaps. Standard compressed air cans inverted eject liquid difluoroethane propellant, which leaves residue and can thermally shock cold components — always hold the can upright and test-fire away from hardware. Finally, never let a fan spin freely under a gas blast; that single mistake causes more service claims than dust itself, and the mechanics deserve their own section below.

Step-by-Step: How to Clean GPU Dust Without Damaging Fans

Preparation and ESD Protocol

Shut down Windows fully (disable fast startup so the card powers down completely), flip the PSU switch off, unplug the AC cable, then hold the power button for five seconds to drain capacitors. Ground yourself with a wrist strap clipped to unpainted case metal before touching the card. Remove the GPU entirely — two PCIe latch steps and the bracket screws — and carry it to a ventilated outdoor area or garage; blowing dust indoors just relocates it into your next breath and your case intake. Lay the card PCB-down on the anti-static bag it shipped in or a wooden surface. If your whole platform needs attention, schedule a combined session: pair the GPU clean with a CPU cooler blow-out and re-paste check using the procedures covered in our desktop CPU benchmarks & reviews, since both coolers ingest the same dust stream and one clogged component always precedes the other.

The Fan-Pinning Method: The Non-Negotiable Step

Here is the core of every how to clean gpu dust technique, and the step competitors omit. Spinning a fan with compressed gas can drive it past 10,000 RPM — far above its 2,000–3,500 RPM design ceiling. Two failure modes follow: generator back-EMF, where the fan motor acting as a generator pushes current backward into a powered-off GPU’s fan header circuitry and can damage the fan controller IC, and bearing brinelling, where the ball or sleeve bearing is impact-loaded at overspeed and develops permanent rumble within weeks. Prevent both:

  1. Thread a plastic straw, cable tie, or fishing line through the fan shroud so it physically blocks blade rotation at the hub. On dual- and triple-fan cards, run one continuous line across all hubs.
  2. Hold the hub with a finger where line placement is impossible — you are stopping rotation, not deflecting blades.
  3. Confirm zero blade movement with a test burst before committing to full cleaning.
  4. Keep the pin in place until every gas burst is finished, then rotate fan positions and re-pin.

Compressed Gas Technique for Fin Stacks

Attack the fin stack from the exhaust side, blowing opposite to normal airflow direction. Dust entered from the intake face; pushing it back out the way it came dislodges the mat intact instead of packing it deeper. Insert the nozzle straw between fan blades into the shroud cavity, aim at the fin stack from 10–15 cm, and fire short 1–2 second bursts rather than sustained streams — long bursts chill the can, kill pressure, and risk propellant spitting. Work in a pattern: top fins to bottom fins, then sweep the card 180° and repeat from the intake face to clear what loosened but did not exit. Alternate sides two or three times; mats 3 mm or thicker typically break apart over successive bursts as air finds channels through them. Follow each gas pass with a nylon brush stroke along the fins in their direction — never across, which snaps soldered aluminum fins. Stubborn compacted hair at the fin base requires fishing it out with tweezers before it will blow free.

Deep Clean: Disassembly, Thermal Paste, and Pads

When blow-out cleaning no longer restores temperatures, or the diagnostic matrix flagged hotspot delta or memory temps, disassemble. Remove the four spring-loaded screws around the die in a diagonal cross pattern, quarter-turn by quarter-turn, then the perimeter shroud screws. Photograph screw positions before removal — lengths vary and a long screw in a short hole pierces a PCB trace or shorts a pad. Lift the cooler straight off; twist slightly if paste adhesion resists. Clean the die and cold plate with isopropyl and lint-free cloth until both shine, apply a pea-sized dot of quality paste (or the vendor’s specified stencil pattern), and verify thermal pad thickness against compressed originals before reusing — flattened pads under-compress and memory temps climb. Note that cooler architecture dictates effort here: compact dual-fan cards like those compared in our Radeon RX 9060 XT 8GB vs 16GB comparison use dense, tightly-spaced fin stacks that clog faster than the oversized triple-slot coolers on halo cards, so budget more frequent cleaning sessions for shorter PCBs.

Backplate, PCB, and Connector Faces

Wipe the backplate with isopropyl and microfiber — it accumulates an oil film that insulates the rear VRAM thermal pads on cards that use them. Brush the PCB surface lightly with the natural-bristle brush; never scrub components. Blow out the PCIe edge connector fingers with gas from a distance, then finish with one dry microfiber wipe along the contact fingers only. Inspect the PCIe slot latch mechanism for hair while the card is out.

Post-Clean Validation and Thermal Testing

Benchmark Verification Protocol

Reinstall the card, seat it fully until the latch clicks, reconnect PCIe power with the connector locking tab engaged, and power on. Verify fan RPM reads normally for all fans in monitoring software — a fan reading 0 RPM or fluctuating after cleaning indicates hub hair or bearing damage from the procedure. Then repeat the exact pre-clean load test: same benchmark, same duration, same fan curve, ambient noted. Success criteria: load edge temperature drops 5–15 °C, hotspot-to-edge delta tightens below 15 °C, fans hold lower RPM at the same temp target, and core clocks stabilize without throttle-triggered dips. If temps improved under 5 °C, the dust mat was not the bottleneck — escalate to repaste inspection.

Maintenance Schedule and System Context

Interval scales with environment, not with time. Clean every 3–4 months for carpeted rooms, pets, or floor-level tower placement; every 6–12 months for hard-floor, elevated, low-traffic rooms. Case choice compounds everything: positive-pressure configurations with filtered intakes cut GPU dust ingestion dramatically compared to negative-pressure setups that pull unfiltered air through every gap — a variable worth weighing alongside raw feature sets when comparing premium platforms like the boards in our ASUS ROG Maximus Z890 Hero vs MSI MEG Z890 ACE comparison, since fan header control and sensor density determine how precisely you can run filtered, quieter airflow profiles. The same logic applies at every price tier when matching a GPU to a chassis and platform — see our AMD Ryzen 5 9600X vs Intel Core Ultra 5 245K comparison for how CPU thermal behavior shapes whole-system airflow planning, because a dust-choked GPU cooler always shares blame with a dust-choked CPU cooler and clogged intake filters.

Final Diagnostic Verdict & Maintenance Checklist

The how-to-clean-gpu-dust procedure above is low-risk, reversible at every stage short of repasting, and delivers measurable thermal returns when executed with the fan-pinning discipline intact. The verdict on priority: cleaning restores lost cooling capacity that no software tweak, undervolt, or fan-curve adjustment can recover once airflow is physically blocked. Treat it as scheduled maintenance with logged before/after data, not an emergency response to throttling.

Pre-session checklist:

  • Pre-clean load test logged: edge, hotspot, memory temps, fan RPM, core clock, ambient
  • PSU switched off, AC unplugged, capacitors drained, wrist strap grounded
  • Outdoor or ventilated workspace with anti-static surface

Procedure checklist:

  • All fans physically pinned or hub-held before first gas burst
  • Fin stack blown exhaust-to-intake, short bursts, 10–15 cm standoff, alternating sides
  • Hair extracted from fan hubs with ESD tweezers, not pulled by spinning blades
  • Fins brushed in fin direction only; PCB brushed with natural bristle only
  • Backplate and PCIe fingers wiped with 90%+ isopropyl and lint-free cloth

Post-session checklist:

  • All fans report valid RPM at idle and under load
  • Identical load test repeated: 5–15 °C improvement confirmed, hotspot delta under 15 °C
  • Case intake filters cleaned in the same session
  • Next cleaning date scheduled per room environment (3–4 or 6–12 months)
