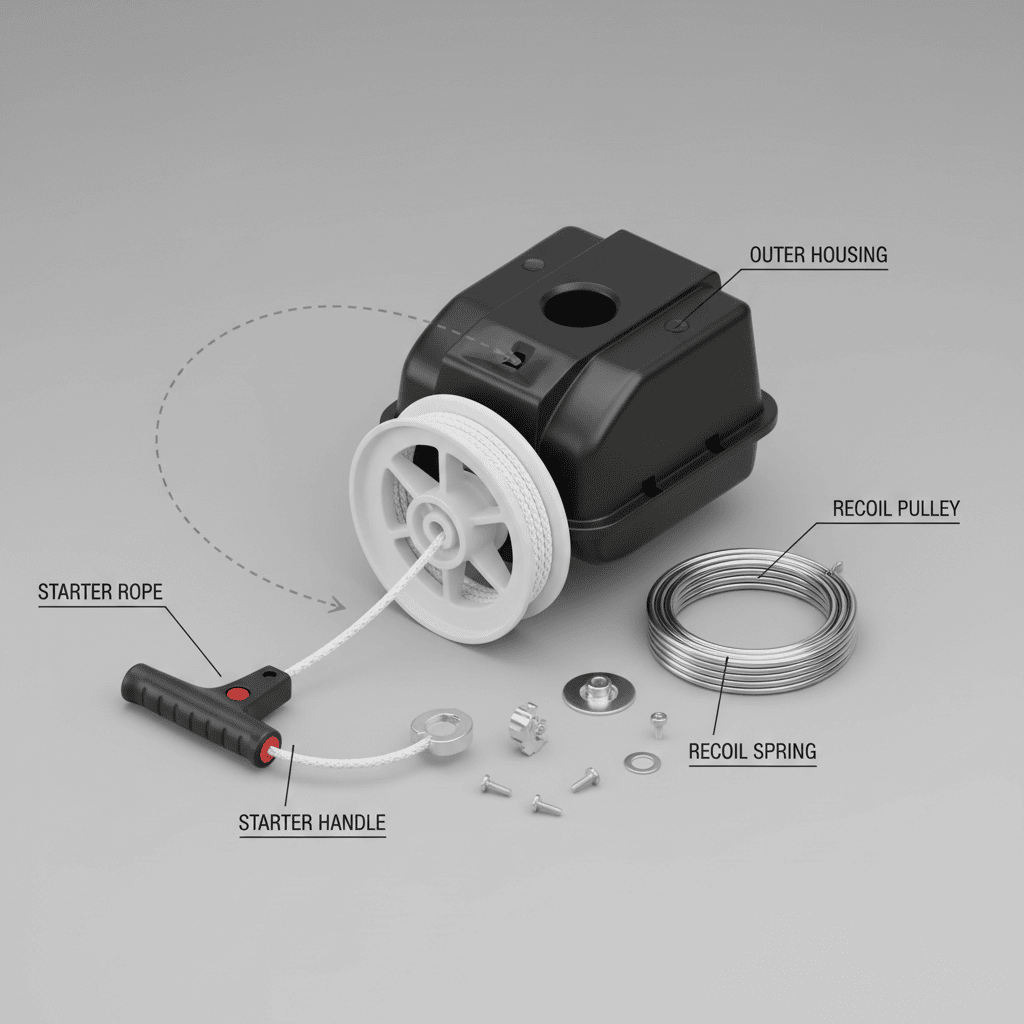

Understanding the Pull String and Recoil Starter System
The pull string, or starter rope, is a critical component of your lawn mower’s ignition system. It connects to a recoil starter mechanism that winds around a pulley connected to the engine’s crankshaft. When you pull the cord, it creates rotational force that spins the engine to start it. The recoil spring automatically retracts the rope after each pull.
Several issues can affect the pull string system:
- Frayed or broken rope: The most common issue, usually from age, UV exposure, or wear from repeated pulling.
- Rope won’t retract: Indicates a failed recoil spring or damaged pulley.
- Rope pulls out completely: Often means the knot has come loose or the rope attachment point has failed.
- Hard to pull: Can signal a locked engine, bent pulley, or spring tension issues.
Safety first: Always disconnect the spark plug wire before working on the recoil starter. This prevents accidental engine ignition. Allow the mower to cool for at least 30 minutes if recently used, as the engine housing and pulley can be hot.
Tools and Materials You’ll Need
Gather these items before starting your repair:
- Socket set or screwdrivers (Phillips and flathead)
- Replacement starter rope (typically 3-4mm diameter nylon cord)
- Needle-nose pliers
- Scissors or utility knife
- Work gloves and safety glasses
- Small container or plastic bag (to keep screws organized)
- Lighter or matches (to seal rope ends)
Starter rope is available at hardware stores and online retailers. Standard lawn mower rope is typically 3mm or 4mm in diameter. Some manufacturers sell rope kits with pre-attached handles and knots, which simplify the repair.
Step-by-Step Guide to Replacing the Pull String
Step 1: Disconnect the Spark Plug and Cool the Engine
Remove the spark plug wire by twisting and pulling it away from the spark plug. This is essential—it prevents the engine from starting accidentally during repair. Allow the mower to sit for 30 minutes if it was recently running.
Step 2: Locate and Remove the Recoil Starter Assembly
The recoil starter is typically mounted on top of the engine or on the side, depending on your mower model. It appears as a curved plastic or metal housing with a rope handle attached. Locate the mounting bolts or screws holding it to the engine block. Most assemblies are secured with 2-4 fasteners.
Using the appropriate screwdriver or socket, carefully remove all fasteners. Place them in a small container so you don’t lose them. Gently lift the recoil starter assembly away from the engine. Note any wires or clips attached—some models have safety switches connected to the starter.
Step 3: Examine the Internal Components
Once removed, inspect the assembly. Look for:
- The rope wound around the pulley
- The recoil spring, usually visible as a metal coil beneath the rope
- The handle attachment point at the rope’s outer end
If the recoil spring appears broken, rusty, or severely compressed, you may need to replace the entire assembly rather than just the rope. A damaged spring cannot be effectively repaired.
Step 4: Carefully Unwind the Old Rope
Slowly rotate the pulley by hand to unwind the old rope. Keep tension on the spring as you do this—do not let the puley spin freely, as the spring can snap back forcefully. Pay close attention to how many rotations the rope makes around the pulley an direction of the wind. This information helps when installing the new rope.
Once fully unwound, cut the old rope away and remove it from the pulley center. Inspect the puley for damage, cracks, or wear. If damaged, replacement may be necessary.
Step 5: Prepare the New Rope
Cut a new rope to match the length of the old one, or follow the manufacturer’s specification (typically 2.5 to 3.5 meters for most residential mowers). Using a lighter or matches, carefully melt the cut ends of the nylon rope to prevent fraying. Do this quickly—hold the flame near (not touching) the rope end until it slightly melts and fuses. Be cautious not to burn the rope excessively.
Step 6: Thread and Knot the New Rope
Tie a secure knot at one end of the rope—a simple overhand knot works well, or tie it through the handle grip if you’re reusing the old handle. The knot should be large enough that it cannot pass through the pulley’s center hole.
Thread the rope end through the center hole of the pulley from the underside, then carefully begin winding it around the pulley in the same direction as the old rope. Maintain even tension as you wind to ensure the rope sits neatly without overlapping or crossing itself.
Step 7: Tension the Recoil Spring
This is the critical step. Once the rope is wound around the pulley, you must pre-tension the spring so the rope retracts properly. Rotate the pulley by hand in the direction opposite rope winding. Typically, you’ll turn it2-4 complete rotations until you feel resistance from the spring. Do not over-tension—the rope should retract smoothly, not snap back violently.
Different mower manufacturers specify different tension amounts. If your mower’s manual is available, follow its guidance. As a general rule, the rope should fully retract with a gentle snap, not a violent jerk.
Step 8: Attach the Handle
Feed the outer end of the rope through the handle grip (or use a new handle kit). Tie another secure knot on the outside of the handle, or if using a pre-made handle, secure the rope as directed. The handle should sit comfortably in your hand, with the rope fully extended but not tight when at rest.
Step 9: Reassemble and Test
Carefully position the recoil starter assembly back onto the engine. Align the mounting holes and insert the fasteners. Tighten them evenly and securely—do not over-tighten, as this can crack the housing. Reconnect any wires or safety switches you disconnected earlier.
Reattach the spark plug wire. Give the pull string a few gentle test pulls. It should pull smoothly and retract fully on its own. If it feels stuck or won’t retract, stop and recheck the tension and rope routing.
Troubleshooting Common Issues
The Rope Won’t Retract
This usually indicates insufficient spring tension or a stuck pulley. Open the assembly and check that the puley rotates freely. If it’s binding, the spring may be damaged or misaligned. Try adding another half-rotation of tension to the spring, then test again.
The Rope Pulls Out Completely
The knot at the puley center has likely come loose or wasn’t tied securely. Remove the rope, tie a larger knot (or double knot), and re-thread it through the pulley.
The Pull Is Very Hard
Check whether the engine itself is seized—try starting the mower normally to rule this out. If the engine spins freely but the pull string is difficult, the spring may be over-tensioned. Release tension by rotating the pulley back slightly in the direction of the rope wind.
The Spring Makes Noise or Feels Broken
A damaged recoil spring cannot be effectively repaired. You’ll need to replace the entire recoil starter assembly. Contact your mower’s manufacturer or a lawn mower repair shop for a replacement unit specific to your model.
When to Replace the Entire Assembly
If the recoil spring is visibly broken, severely corroded, or makes a grinding sound when rotated, replacement of the whole assembly is safer and more reliable than attempting a rope-only fix. Replacement assemblies are widely available for most mower models and typically cost $30–$75. Professional installation at a repair shop usually costs $50–$100in labor.
Similarly, if the puley is cracked or the housing is damaged, a full replacement is recommended over repair.
Preventative Maintenance Tips
- Store the mower indoors: UV exposure and weather deteriorate the rope over time. A garage or shed extends rope life significantly.
- Pull smoothly: Jerky, aggressive pulls stress the rope and spring. A steady, controlled pull is gentler on the system.
- Let the rope retract fully: Never hold the rope in the extended position; allow it to retract completely between pulls.
- Inspect annually: Before the mowing season, check the rope for fraying or damage. Look for signs of wear on the handle.
- Keep the assembly clean: Dirt and debris can affect the puley’s rotation. Wipe the assembly with a dry cloth occasionally.
Frequently Asked Questions
How long does a pull string typically last?
A well-maintained starter rope usually lasts 3–5 years with regular use. Ropes stored outdoors or exposed to UV light may fail soner. Heavy use and aggressive pulling can shorten rope lifespan to 1–2 years.
Can I use any nylon rope as a replacement?
Not all nylon rope is suitable. Lawn mower starter rope must be durable, rot-resistant, and of the correct diameter (usually 3–4mm). Standard clothesline or paracord may fray quickly or be too stiff. Use rope specifically sold as starter rope for lawn mowers to ensure reliability.
Why does my new pull string still feel hard to pull?
A hard-to-pull rope often indicates over-tensioned spring, a stuck engine, or a misaligned pulley. First, verify the engine isn’t seized by checking if the blade moves freely. If the engine is fine, reduce the spring tension by a half-rotation and test again. If the problem persists, inspect the pulley for debris or damage.
Is it safe to use my mower immediately after fixing the pull string?
Yes, once you’ve tested the rope and confirmed it pulls smoothly and retracts fully, your mower is ready to use. However, perform a quick operational test in your yard before resuming normal mowing. Pay attention to how the engine starts and runs—any unusual sounds or behavior should be investigated before continuing.
When to Seek Professional Help
If you’re uncomfortable working on small engine equipment, or if the recoil starter assembly has damage beyond a broken rope, professional repair is a reasonable option. Lawn mower repair shops can typically complete this repair in 1–2 hours. Cost for parts and labor usually ranges from $75–$150, depending on your mower type and location.
Additionally, if the engine won’t start even after the rope is repaired, other ignition system components may be at fault. A professional can diagnose spark plug, fuel system, or carburetor issues that a pull string repair alone won’t address.
