Quick Answer: How to Install a Lawn Mower Pull Cord
The pull cord, often called a starter rope, is a critical component of a manual-start lawn mower. When you pull the cord, it engages a mechanism that spins the engine’s flywheel, initiating the combustion cycle. Over time, this cord can fray, snap, or become loose, preventing the mower from starting. Replacing it is a common and manageable DIY repair.
Pros
- Stated 1,600-pound capacity and 22 cubic feet
- Hand-pull or foot-pedal dumping options
- 16x8-inch pneumatic tires listed for grass, mud, and gravel
- Reinforced hitch and side rails per the listing
- Removable rear panel
Cons
- Heavy at about 118 pounds before loading
- Requires a hitch that accepts a 0.47-inch pin
Pros
- Manufacturer-rated 600 lb capacity and 17 cu. ft. storage
- Hand-pull and foot-pedal dumping options
- Three-sided guardrails to help contain loads
- 16-inch pneumatic tires for uneven ground
- Listed 0.47-inch (12mm) pin for hitch connection
Cons
- Listed weight of about 99 lb adds to towing load
- Capacity and build claims are manufacturer-stated, not verified
Pros
- 500-pound capacity and 10 cubic feet listed
- Hand-pull and foot-pedal dumping options
- 16-inch pneumatic tires listed for uneven ground
- 0.47-inch pin listed for various tractors and ATVs
Cons
- Listed weight is 59.92 pounds before loading
- No customer reviews are provided to confirm real-world durability

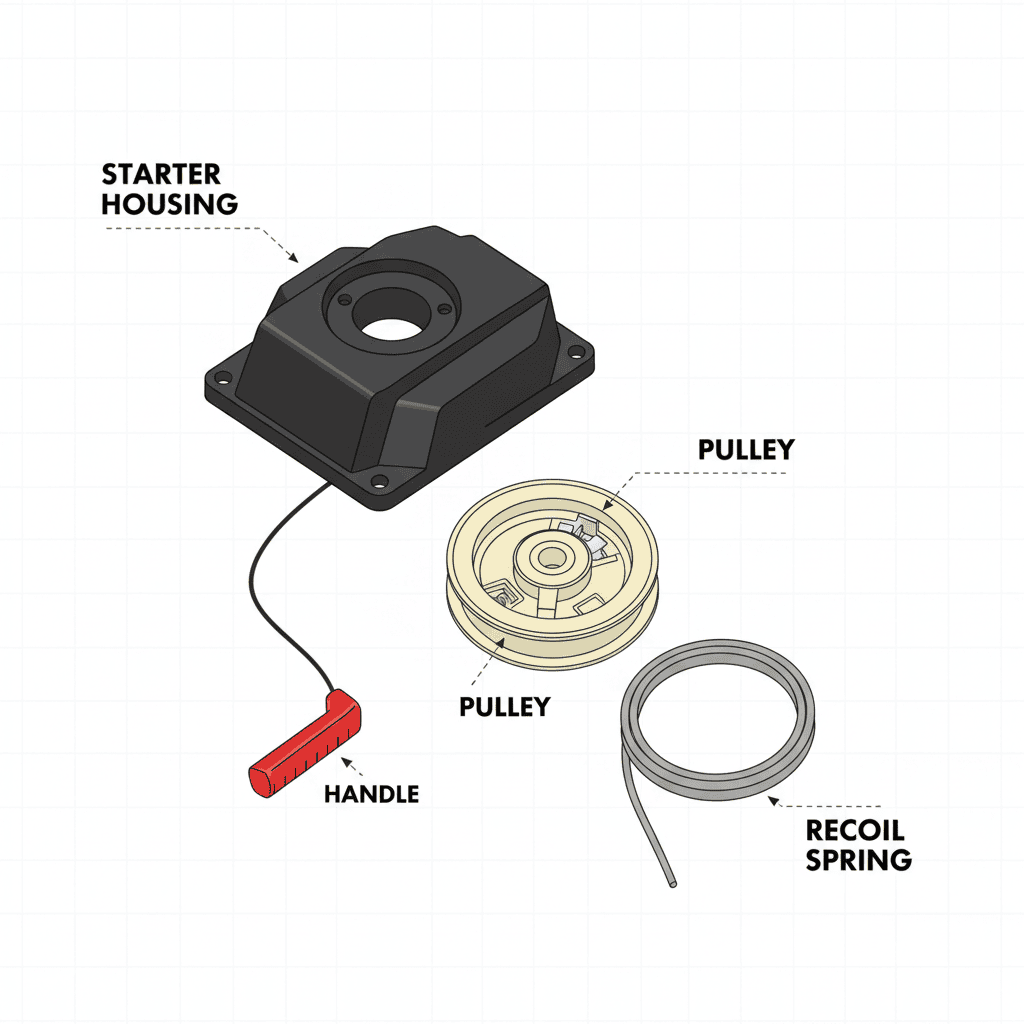

The core components involved are the recoil starter assembly, which includes the starter housing, a pulley, and a coiled recoil spring. The spring’s job is to retract the cord after each pull. Understanding this system is key to a successful installation.
What is a lawn mower pull cord and how does it work?
The pull cord is a durable rope connected to a pulley inside the starter housing. When you pull the cord, the pulley rotates, engaging a pawl (a small lever) that turns the engine’s flywheel. The recoil spring stores energy during the pull and uses it to automatically wind the cord back onto the pulley when you release it.
When should you replace a pull cord?
You should replace the cord if it is frayed, cracked, or has snapped. It also needs replacement if it has become unspooled from the pulley and cannot be retracted properly, or if the knot has come undone.
Key Factors to Consider Before Installation
Before starting the repair, gather the right materials and understand critical safety and specification details.
What diameter and length of pull cord do I need?
The correct cord diameter is crucial for proper function. Using a cord that is too thick can jam the mechanism, while one that is too thin may break easily. Common diameters are:
- 3/16 inch (approx. 5mm): Suitable for most walk-behind mowers with engines up to about 6 horsepower.
- 1/4 inch (approx. 6mm): Often used for larger walk-behind mowers or some riding mower engines.
For length, measure the old cord if possible, or plan for approximately 80-100 inches (about 7-8 feet) for a standard walk-behind mower. It’s better to have a little extra length than too little.
What safety steps must I take?
Always disconnect the spark plug wire from the spark plug before beginning any work. This prevents the engine from accidentally starting. Wear work gloves to protect your hands from sharp edges and the tension of the recoil spring. Work in a well-lit, stable area.
Are there differences between mower models?
Yes, while the general process is similar, the exact disassembly steps can vary between brands like Briggs & Stratton, Honda, and others. The starter housing may be held by different numbers or types of screws. Always consult your owner’s manual if available for model-specific guidance. This guide provides a universal approach. Before finalizing equipment decisions, refer to our comprehensive marshall stanmore iii vs harman kardon onyx studio 8 comparison.
Step-by-Step Guide to Installing a New Pull Cord
Follow these steps carefully. The most critical and delicate part is managing the recoil spring tension.
1. Remove the Starter Housing
Locate the starter housing on the top or side of your mower engine. It is typically secured by three to five bolts or screws. Use the appropriate socket or wrench to remove them. Carefully lift the entire starter housing assembly off the engine. For broader ecosystem context, read through our operational guide on dyson v8 cyclone vs bissell featherweight stick.
2. Safely Release Recoil Spring Tension
This step is critical to avoid injury. The recoil spring is under significant tension. Look for the center of the pulley where the spring is coiled. You may need to use pliers or a specialized tool to carefully unwind the spring tension. Some housings have a retaining clip or screw. Slowly let the spring unwind in a controlled manner until it is loose. If you are unsure, it may be safer to replace the entire recoil starter assembly.
3. Remove the Old Cord
With the tension released, you can now access the pulley. Locate the knot securing the old cord inside the pulley. Cut the cord close to the knot if necessary and pull it out from the starter handle and through the pulley. For troubleshooting and reliability insights, consult our in-depth bissell crosswave hydrosteam vs shark stainforce report.
4. Measure, Cut, and Thread the New Cord
Cut your new pull cord to the required length. Melt the cut ends with a lighter to prevent fraying. Thread one end of the new cord through the hole in the starter handle and tie a secure knot, such as a figure-eight knot or a barrel knot, to anchor it. Then, thread the other end through the hole in the pulley.
5. Wind the Recoil Spring and Set Cord Tension
This is the reverse of step 2. Carefully wind the recoil spring back into its coiled position, ensuring it is tight enough to retract the cord but not over-wound. The goal is to have just enough tension so the cord retracts fully without being overly tight. Once wound, you can tie the knot inside the pulley to secure the cord. A common method is to pull the cord through, tie a knot, and let the spring’s tension pull the knot snug against the pulley.
6. Reassemble and Test
Reattach the starter housing to the mower engine, securing it with its bolts. Reconnect the spark plug wire. Gently pull the new cord to ensure it extends and retracts smoothly. If it retracts properly, the installation is successful.
Troubleshooting and Maintenance Tips
What if the new cord doesn’t retract properly?
If the cord hangs loose, the recoil spring likely doesn’t have enough tension. You will need to remove the housing and re-wind the spring tighter. If the cord is too tight and difficult to pull, you may have over-wound the spring; release some tension.
How can I prevent the cord from breaking prematurely?
Always use a cord of the correct diameter and high-quality material. Avoid pulling the cord at extreme angles. Store your mower in a dry place to prevent the cord from degrading due to moisture or UV exposure.
When should I replace the entire recoil starter assembly?
Consider a full replacement if the recoil spring is broken, the pulley is cracked, or the housing itself is damaged. Sometimes, purchasing a complete assembly is more cost-effective and easier than repairing individual components.
Frequently Asked Questions About Install A Lawn Mower Pull Cord
Can I use any type of rope for a lawn mower pull cord?
No. You must use a starter rope specifically designed for recoil starters. These are made from durable, low-stretch synthetic materials like polyester or nylon. Using generic rope like clothesline or paracord is not recommended as it may stretch, fray quickly, or be the wrong diameter.
How tight should I wind the recoil spring?
The spring should be wound with enough tension to fully retract the cord and hold the starter handle snugly against the housing, but not so tight that it’s difficult to pull the cord out. A good rule of thumb is to wind it until the cord is fully retracted, then give it one or two additional half-turns for light tension.
Is it dangerous to work on the recoil spring?
Yes, the spring is under tension and can cause injury if it uncoils suddenly. Always wear gloves and eye protection. Work slowly and deliberately. If you are not comfortable with this step, it is safer to take the starter housing to a small engine repair shop or replace the entire assembly.
My mower is a Honda/Briggs & Stratton. Is this guide still valid?
The core principles of removing the housing, managing the spring, and restringing the cord are universal. However, the exact location of screws or the method to release spring tension may differ slightly. This guide provides the foundational process; always refer to your specific model’s manual for precise details.
