Quick Answer: Installing Edge Trimmer Line
To install edge trimmer line, first remove your trimmer head and clear any old line from the spool. Cut new trimmer line to the appropriate length (typically 15-20 feet depending on your model), then thread or load it into the spool channels, ensuring it sits properly in the guide grooves. Reassemble the spool onto the trimmer head, secure the line at the anchor points, and verify that both line ends extend equally before use.

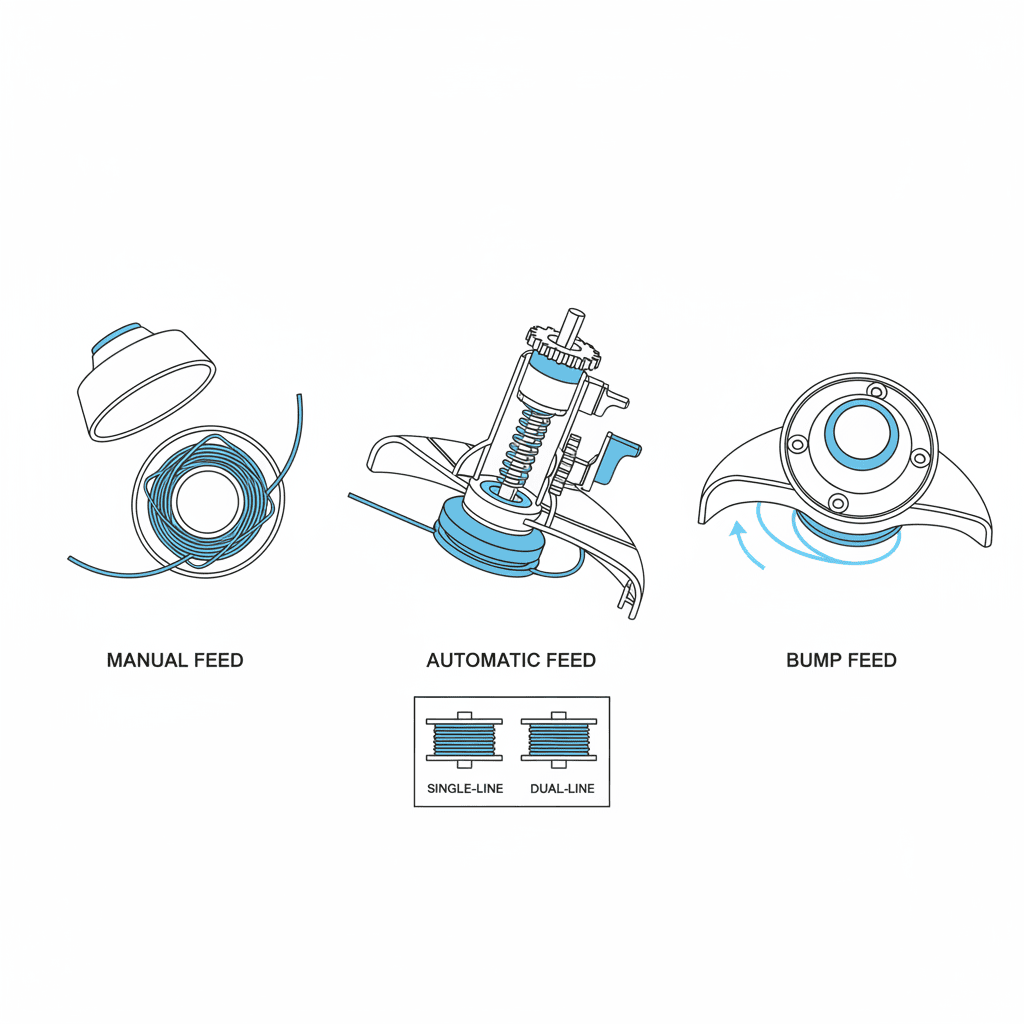

Understanding Your Trimmer Head Type
Before beginning installation, you need to identify which type of trimmer head you own, as different designs require slightly different installation methods. The main categories are manual feed, automatic feed, and bump feed systems.
Manual feed trimmers require you to manually advance the line by loosening the spool cap and pulling new line into position. Automatic feed systems advance line automatically as it wears down during operation. Bump feed trimmers use a simple tap-to-advance mechanism where tapping the spool head on the ground feeds out new line.
Single-line spools hold one continuous line bent in half, while dual-line (or two-chamber) spools hold two separate line segments, each in its own compartment. Your trimmer model documentation will specify which type you have—check your manual or the manufacturer’s website if you’re unsure.
Tools and Materials You’ll Need
Gather these items before starting installation:
- Replacement trimmer line in the correct gauge (typically .065", .080", or .095" diameter)
- Scissors or trimmer line cutter for cutting line to length
- Screwdriver (Phillips or flathead, depending on your trimmer head design)
- Work gloves for safety and grip
- Small brush or cloth for cleaning debris from the spool
- Your trimmer’s user manual for specific model measurements
Trimmer line comes in various gauges; check your trimmer’s specifications to ensure you purchase the correct thickness. Using the wrong gauge can affect cutting performance and potentially damage your trimmer. Most consumer edge trimmers use .065" or .080" line, but commercial-grade trimmers may require heavier .095" or larger gauges.
How to Remove the Trimmer Head
Start by ensuring your trimmer is unplugged (for electric models) or the engine is completely off and cool (for gas models). Wait at least 15 minutes after running a gas trimmer before touching the head.
For most residential trimmers:
- Locate the spool cap or head cover—this is typically a plastic dome at the center of the cutting head
- Look for the fastening method: some caps are secured by a single central bolt, while others twist counterclockwise to remove
- Use your screwdriver or hand to loosen the fastener. Most bolt-type heads require turning counterclockwise
- Carefully lift away the spool cap and set it aside in a safe location
- Remove the spool itself—it typically slides straight out or lifts away from the trimmer head base
Be aware that different manufacturers use different fastening systems. Some spools are held by a spring-loaded collar that must be compressed to release, while others use a simple E-clip or snap ring. If you encounter resistance, consult your trimmer’s manual rather than forcing components.
Removing Old Line and Cleaning the Spool
Once the spool is removed, inspect it for old line, tangled debris, or grass buildup inside the channels.
To clear old line:
- Pull out any remaining line segments manually—most old line comes out easily
- Use scissors to cut away stubborn pieces lodged in guide grooves
- If line is severely tangled, carefully pick it out with a small screwdriver or pick tool
- Wipe the interior channels with a dry cloth to remove dirt, grass, and debris
- Use a small brush to clean out grooves and anchor point areas
A clean spool ensures new line seats properly and feeds smoothly. Debris buildup can cause poor line advancement or premature line breakage during operation. Pay special attention to the anchor points (small notches or slots where line ends are secured)—these must be completely clear of old line fragments.
Measuring and Cutting Trimmer Line to Length
Using the correct line length is critical for proper installation and safe operation. Line that is too long will overlap inside the spool and cause tangling; line that is too short won’t extend properly from the trimmer head.
Standard line lengths:
- Most residential single-line spools: 15-17 feet
- Dual-line spools: 15-20 feet total (7.5-10 feet per chamber)
- Larger commercial trimmers: 20-25 feet or more
Check your trimmer’s manual for the exact specification, or measure using this method: Locate the line anchor points on your spool and measure from one anchor to the other going around the spool’s perimeter, or reference the manufacturer’s marking on the spool itself (many spools have indicator lines showing where to cut).
To cut line to length:
- Unroll the amount of line you need from the spool
- Mark the correct length using a pen or by holding your measuring tape against the line
- Use sharp scissors or a dedicated trimmer line cutter to make a clean, straight cut
- A jagged or angled cut can cause the line to slip or not feed properly
Threading Line Into Single-Line Spools
Single-line spools use one continuous line bent in half at the center.
Installation steps:
- Take your cut line and find the approximate midpoint
- Bend the line in half at this point to create a loop
- Locate the center slot or hook on the spool—this is where the line loop will sit
- Insert the loop into the center slot, ensuring the fold sits securely in the slot or on the retention hook
- With the loop anchored at the center, begin winding one line segment clockwise around the spool, keeping tension on the line so it lies flat in the first guide groove
- Wind until you reach an anchor point (a small notch or slot, typically near the spool edge)
- Insert the line end into the anchor point, ensuring it’s fully seated
- Repeat for the second line segment, winding in the same clockwise direction and anchoring the other line end in its corresponding anchor point
- The two line ends should now exit the spool at opposite sides, both anchored and ready to feed through the trimmer head openings
The key to success is maintaining consistent tension while winding—the line should lay flat without overlapping or bunching. If line overlaps, it will tangle when the spool spins. Once both ends are anchored, give each a gentle tug to confirm they’re secure before reassembling.
Loading Line Into Dual-Line Spools
Dual-line (two-chamber) spools hold two separate line segments, one in each compartment. Balanced loading is essential—uneven line distribution causes vibration and uneven cutting.
Installation steps:
- Determine the line length needed for each chamber by consulting your manual (typically 7.5-10 feet per chamber)
- Cut two line segments to the exact same length
- Locate the two separate chambers or grooves on your spool—they’re usually divided by a central wall
- Take the first line segment and locate its anchor point in chamber one
- Insert one line end into the anchor point (fully seat it so it won’t slip)
- Wind the line clockwise around the first chamber, keeping even tension and ensuring the line lays flat in the groove
- When you reach the end of the chamber, insert the other line end into its anchor point
- Repeat the exact same process for the second chamber with your second line segment, using the identical winding direction and maintaining the same tension
- Both chambers should now be loaded with equal amounts of line wound in the same direction
Equal line length and tension in both chambers is critical. If one chamber has more line or tighter winding than the other, the spool will be unbalanced, causing the trimmer to vibrate during operation and resulting in uneven line wear.
Reassembling the Trimmer Head
With the spool loaded, reassembly must be done carefully to prevent line slippage.
Reassembly sequence:
- Verify one final time that both line ends are firmly seated in their anchor points
- Check that line exits the spool cleanly without twisting or kinking
- Carefully insert the spool back into the trimmer head base, aligning any grooves or tabs
- The line should feed through the corresponding openings or ports on the trimmer head
- Replace the spool cap or cover, ensuring it seats fully against the base
- Tighten the central bolt or fastener by turning clockwise until snug—do not over-tighten, as this can strip plastic threads or crack the cap
- Most bolts should be tightened firmly but not with maximum force; hand-tight plus a quarter turn is typically correct
- Ensure the cap is seated evenly all around with no gaps
If you encounter resistance when inserting the spool, do not force it. Remove it and check for line twisting, misaligned grooves, or debris blocking the insertion path. Forcing the spool can break plastic components or misdirect the line.
Checking Line Alignment and Length Before Use
Before operating your trimmer, verify that installation is correct and safe.
Verification checklist:
- Line extends equally from both sides: Both line ends should protrude the same distance from the trimmer head—typically 4-6 inches for residential trimmers
- Line feeds smoothly: Gently pull on each line end; it should feed out slightly without resistance or binding
- No twisting or kinking: Line should be straight as it exits the head, not coiled or bent
- No gaps between cap and base: The spool cover should sit flush with no visible separation
- Anchor points are secure: Give the line ends a firm tug—they should not pull free from anchor points
If line lengths are unequal, remove the spool and adjust the line position in the anchor points—you may need to pull more line from one side if it’s been seated unevenly. If line won’t feed when pulled, the spool may not be fully inserted or line may be twisted inside—remove and reload if necessary.
Troubleshooting Common Installation Problems
Line slipping or unwinding: This usually means anchor points aren’t securing the line ends properly. Ensure line is fully inserted into anchor notches—it should not be possible to pull the line free with moderate tension. If anchor points are damaged or worn, the spool may need replacement.
Line tangling inside the spool: Tangling occurs when line overlaps or bunches during winding. When reloading, maintain consistent tension and ensure each wrap lies flat in the groove without crossing previous wraps. If line has already tangled, carefully unwind and reload.
Line won’t advance or feed: Poor line feeding is often caused by debris inside the spool housing, line twisted in the guide grooves, or the spool not fully inserted. Clean the spool thoroughly, check for twisted line, and verify the spool is fully seated in the trimmer head base.
One line is significantly shorter than the other: In dual-line spools, this indicates uneven winding—one chamber likely has more wraps than the other. Reload both chambers with equal line lengths and apply equal winding tension to both.
Line won’t cut or performance is poor: Verify that both line ends extend 4-6 inches from the trimmer head. If ends are too short, the line may not reach the cutting zone. If cuts are poor or uneven, ensure lines are equal length and the trimmer head is spinning freely.
Maintenance Tips to Extend Trimmer Line Life
Proper maintenance reduces replacement frequency and keeps your trimmer operating safely and efficiently.
Replacement intervals: Most residential users need to replace line every 3-6 months depending on usage. Heavy use or cutting thick weeds accelerates wear. Inspect line before each use for breaks, fraying, or thin spots.
Factors affecting line wear:
- Frequency and duration of use
- Type of vegetation being cut (thick weeds and brush wear line faster than grass)
- Surface contact—hitting rocks, concrete, or metal significantly shortens line life
- Line gauge—thinner line wears faster; heavier gauge lasts longer but uses more power
- Trimmer speed—higher RPM trimmers stress line more quickly
Storage recommendations: Store loaded spools in a cool, dry location away from direct sunlight. UV exposure can degrade line, making it brittle and prone to breaking. If storing a trimmer long-term, consider removing the spool and storing line separately in an airtight bag. Keep replacement line spools sealed until use.
Spool inspection: Before each installation, inspect the spool for cracks, worn grooves, or damaged anchor points. A damaged spool may not secure line properly and should be replaced. Many retailers sell replacement spools for popular trimmer models.
Frequently Asked Questions
What’s the difference between automatic and manual feed trimmer heads?
Manual feed trimmer heads require you to manually advance line by loosening the spool cap and pulling new line into the cutting position. Automatic feed heads advance line automatically as it wears, requiring no manual adjustment. Automatic systems are more convenient but add complexity; manual systems are simpler and more reliable. Installation steps are the same for both—the difference is in how line is consumed during use. Bump feed systems are a hybrid where tapping the spool on the ground feeds out new line automatically.
How do I know if I’m using the correct trimmer line gauge?
Check your trimmer’s user manual or the manufacturer’s website for the specified line diameter. Common sizes are .065 inch, .080 inch, and .095 inch. Using line that’s too thin will break frequently; line that’s too thick won’t fit properly in the spool channels and can strain the trimmer’s engine. If you can’t find your manual, contact the manufacturer with your trimmer model number, or bring your trimmer to a service center for confirmation.
Why does my trimmer line keep slipping out of the anchor points?
Slipping indicates the line isn’t fully seated in the anchor notches. When loading the spool, push each line end fully into its anchor point until you feel it catch. A gentle tug should not pull the line free. If slipping persists, inspect the anchor points for wear or damage—damaged anchor points may need spool replacement. Some older spools develop worn anchor notches that won’t grip line securely.
How tight should I wind the line on the spool?
Wind line tightly enough that it lies flat and doesn’t slip, but not so tightly that it’s difficult to unwind or causes the line to stretch. Moderate, consistent tension is ideal—the line should be snug in the groove but still allow gentle hand-unwinding. If wound too loosely, line will slip; if wound too tightly, it may not feed smoothly during operation. Practice will help you develop the correct feel.
