Direct Answer: How to Install Weed Wacker Line
To install weed wacker line, first identify your trimmer head type (bump feed, manual feed, or pre-wound spool) and disconnect power by unplugging electric models or removing the battery or spark plug on gas models. Remove the spool from the head, then either snap a pre-wound spool into place or hand-wind loose line onto the spool in the direction indicated by arrows, typically loading5 to 15 feet (or roughly 15 to 30 cm per side) evenly without overlapping. Thread the loose ends through the eyelets in the head cap, reassemble, and pull the lines to seat them. Always match the line gauge to your trimmer’s manufacturer recommendation to avoid jamming or cutting performance issues.

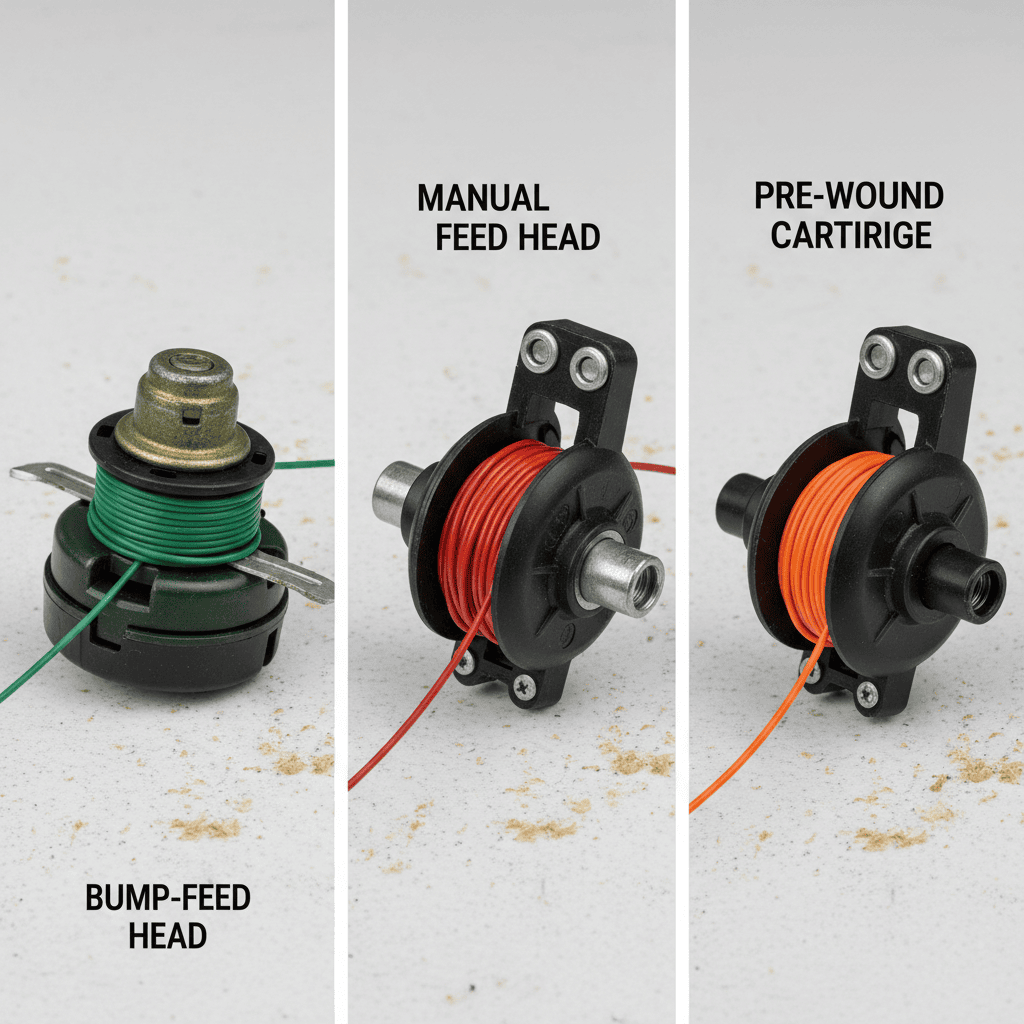

Identify Your Trimmer Head Type First
Before you begin installing new line, determine which spool system your trimmer uses. The three most common designs each require slightly different installation methods, and using the wrong approach can result in poor line feed or damage to the head.
Bump-Feed Head
A bump-feed head is the most common design on consumer string trimmers. This head has a fixed spool inside, and you manually wind loose line onto the spool or load a pre-wound spool cartridge. Once installed, you advance the line by tapping the bottom of the head on the ground while the trimer is running. The head automatically cuts off excess line and feeds fresh line into position. Bump-feed heads typically accept line gauges between 0.065 and 0.155 inches in diameter, depending on the model.
Manual-Feed Head
Manual-feed heads, also called fixed-head or tap-advance heads, require you to stop the engine and manually pull the line forward through eyelets to advance it. These heads are less common on modern residential trimmers but are found on some older models and commercial-grade equipment. Installation is similar to bump-feed, but you control line advancement by hand rather than through bump feeding.
Pre-Wound Spool or Cartridge
Some trimmers use pre-wound spool cartridges that snap or screw into the head without hand-winding. These are convenient but typically more expensive per use. If your trimmer uses this system, installation is as simple as removing the old cartridge, inserting the new one, and pulling the loose ends through the eyelets.
Safety and Preparation Before You Start
Proper preparation prevents accidents and ensures you can work efficiently on your trimmer.
Disconnect Power and Fuel
Electric trimmers: Unplug the trimer from the electrical outlet before disassembling the head.
Battery-powered trimmers: Remove the battery from the trimmer.
Gas trimmers: Turn off the engine, allow it to cool for at least 5 minutes, and remove the spark plug wire to prevent accidental starting.
Gather Safety Gear and Tools
- Safety glasses or eye protection
- Work gloves (optional but recommended)
- New trimer line matching your trimmer’s recommended gauge
- Screwdriver or hex key (if your head uses fasteners)
- Owner’s manual or trimer head diagram (for reference)
- Measuring tape or ruler
Find Your Line Gauge and Length Specifications
Consult your owner’s manual or check the trimmer head for a label indicating the correct line diameter. Common sizes range from 0.065 to 0.155 inches. Using the wrong gauge can cause line to jam, feed improperly, or break prematurely. Most residential bump-feed trimmers use 0.080 to 0.105 inch line.
Step-by-Step: Removing the Spool and Trimer Head
The trimer head assembly is held together by a retaining cap, springs, and sometimes small tabs. Careful disassembly prevents losing parts and damaging the head.
Locate and Remove the Retaining Cap
On bump-feed heads, the cap is typically located on top of the head and may be held by a center bolt or screw, it may twist off by hand. Consult your manual if unsure. If the cap is stuck, try wrapping a rubber band or cloth around it for grip, or use a rubber mallet to gently tap it loose. Do not force it, as the plastic can crack.
Remove Springs and the Spool
Once the cap is off, you may see one or two springs and the spool underneath. Take a photo before disassembly to remember the orientation. Carefully lift out the spool, noting how the spring is positioned. Some heads have a center bolt holding the spool in place; if so, remove it using the appropriate screwdriver or hex key.
Inspect and Clean the Head
While the head is apart, inspect the eyelets (the small holes through which line feeds) for cracks or debris. Use a damp cloth to wipe away grass clippings, dirt, or old line fragments. If an eyelet is cracked or missing, the head may need replacement, as damaged eyelets can snag line and prevent proper feed.
How to Wind Line Onto the Spool (by Head Type)
Line winding direction and length are critical to proper feed and performance. Incorrect winding is the most common cause of line jamming or failure to advance.
Hand-Winding Line onto a Bump-Feed Spool
1. Check the winding direction: Most spools have arrows embossed on the surface indicating the correct winding direction. If arrows are not visible, wind in the direction opposite to the trimer head’s rotation when the engine is running. Consult your manual if unsure.
2. Measure and prepare the line: Cut two lengths of line, typically 15 to 30 cm (6 to 12 inches) per side, depending on spool size. For a standard residential bump-feed head, 15 to 25 feet total (split between two segments) is typical. Refer to your manual for exact length recommendations.
3. Find the line-loading notch: Most spools have a small notch or slot on the edge where you insert the line. Insert one end of your line into this notch, leaving a 6-inch tail extending outward.
4. Wind the first segment: Holding the tail steady, wind the line tightly onto the spool in the indicated direction, keeping windings parallel and not overlapping. Wind 5 to 15 feet depending on your spool size, leaving a 6-inch tail when finished.
5. Load the second segment: Most spools have two winding chambers, one on each side of a center divider. Insert the second line segment into the corresponding notch on the opposite side and wind it the same way, maintaining the same direction and leaving a 6-inch tail.
6. Secure the tails: Once both segments are wound, tuck each tail into a small slot or notch on the spool’s edge to hold it in place during reassembly. Some spools have dedicated groves for this; others rely on the tension of the wound line to hold the tails.
Installing a Pre-Wound Spool Cartridge
1. Remove the old cartridge: Most pre-wound cartridges snap or click into the spool housing. Press on the tabs or sides to release it and remove it from the head.
2. Insert the new cartridge: Align the new cartridge with the spool housing, ensuring any guide pins or tabs align correctly. Push down firmly until you hear a click or feel it seat completely.
3. Pull the lineails: Once seated, pull both line segments outward until they click into eyelets on the head cap, or until you feel resistance indicating the line is properly positioned.
Manual-Feed Head Winding
Manual-feed heads are wound similarly to bump-feed spools, but typically accept longer line lengths since advancement is controlled by hand pulling rather than automatic bump feed. Wind line following the same directional cues, but load 20 to 30 feet or more per side if the spool is large enough. Refer to your manual for the maximum recommended length, as overloading can prevent the cap from seating.
Feeding the Line, Reassembling, and Testing
Proper reassembly ensures the line feeds correctly and the head performs as intended.
Thread the Line Through Eyelets
Once the spool is wound and installed back into the head housing, pull each line tail so that the line passes through the small eyelets or openings in the head cap. For bump-feed heads, this typically means pulling the line until it seats in one or two eyelets positioned at the cutting edge. The exact number and position of eyelets varies by head design; consult your manual or the diagram on the head for guidance.
Reinstall Springs and the Retaining Cap
1. Reposition the spring: If your head uses a spring (most do), place it back over the center post in its original orientation. The spring provides tension to keep the spool in position and helps advance line when bumping.
2. Align and install the cap: Place the retaining cap back onto the head, aligning any tabs or grooves with corresponding slots on the head housing. If the cap screws on, turn it clockwise until snug but not over-tightened, which can crack plastic. If it twists on, align it so the line exits cleanly through the eyelets and twist clockwise until hand-tight.
3. Double-check line positioning: Before running the trimer, visually confirm that both line segments are visible extending from the head and passing through the correct eyelets.
Test the Line Feed and Advance
For bump-feed heads: Reconnect power (plug in electric, reattach battery, or reattach spark plug wire on gas models) and start the trimer. Run at half-throttle and gently tap the head on the ground. You should hear a click and see fresh line advance. If line does not advance, stop the trimmer, disconnect power, and check that line is properly seated in the eyelets.
For manual-feed heads: Stop the engine and manually pull the line outward by hand. If the line advances smoothly, reassembly is correct. If it jams or resists, check that the head cap is seated fully and line is not twisted.
Troubleshooting and Pro Tips
Line Jams or Won’t Advance
Cause: Line is wound in the wrong direction, or line diameter does not match the head design.
Solution: Remove the cap and check the arrow on the spool. Rewind line in the correct direction. If the issue persists, verify that you are using the correct line gauge for your trimer. Using line thicker than the head is designed for is a common cause of jaming.
Line Tangling or Overlapping
Cause: Line was wound unevenly or allowed to overlap on the spool.
Solution: Remove the spool and rewind, paying close attention to keeping each wrap parallel and not crossing previous wraps. Overlapped line compresses and can tangle when advanced.
Line Breaking Frequently
Cause: Line diameter is too thin for the cutting material, or line has degraded (old line becomes brittle).
Solution: Use the exact line gauge recommended by your trimmer manufacturer. Replace line annually or if it appears cracked or discolored. Store spare line in a cool, dry location away from direct sunlight.
Line Feeds Too Quickly or Won’t Stop
Cause: On bump-feed heads, the advance collar or cutting blade may be worn or damaged, causing line to feed continuously.
Solution: Inspect the head for damage. If the advance mechanism appears worn, the head may need replacement. In the interim, avoid bumping the head repeatedly, which will deplete line faster than intended.
Pro Tip: Pre-Wind Spares
Many experienced users pre-wind extra spools at home and store them ready to use. This eliminates downtime in the middle of yard work. Wind spares following the same method as described above and store them in a sealed plastic bag to prevent moisture absorption and line degradation.
Pro Tip: Soak Old Line for Easy Removal
If old line is stuck or difficult to unwind, soak the spool in warm water for 10-15 minutes. This softens dried line and makes manual unwinding easier without damaging the spool.
Frequently Asked Questions
Q: What if my trimmer doesn’t have a label showing the line gauge?
A: Consult your owner’s manual, or visit the trimmer manufacturer’s website and search for your model number. You can also bring the trimmer to a lawn equipment dealer, who can identify the model and recommend the correct gauge. Using an incorrect gauge is likely to cause jamming or poor cutting, so confirming the specification before purchasing line is worth the extra step.
Q: Can I use a thicker line than recommended for better cutting?
A: No. Using line thicker than the head is designed for will cause jamming, prevent proper line feed, and potentially damage the advance mechanism. Thicker line is heavier and requires more motor power to spin, reducing efficiency and increasing fuel consumption on gas models. Stick to the manufacturer’s recommended gauge.
Q: How often should I replace the line?
A: Line should be replaced when it becomes noticeably shorter, frayed, cracked, or discolored. For typical residential use (mowing a 1/2 to 1 acre lawn every 1-2 weeks), line may last an entire season or need one to two replacement spools. Commercial or heavy use may require more frequent replacement. Always keep spare line on hand so you can continue work without interruption.
Q: Do I need to balance the spool after winding?
A: Residential spools do not require balancing. The spool is held in place by springs and the head housing, which naturally absorb any minor imbalances. If you notice significant vibration during operation after installing new line, check that the spool is seated fully in the head and that the retaining cap is tight.
