How to Install a Wire Trimmer Head on a String Trimmer

Disable the trimmer so it cannot start, confirm arbor size and thread direction from the owner’s manual or shaft markings, remove the old head or retaining hardware, seat the new wire trimmer head fully on the shaft, and tighten it in the correct direction until it is locked. Check that the head is seated, hardware is complete, and any line or wire is loaded as the head’s design requires before the first spin-up.

What installing a wire trimmer head involves

Installing a wire trimmer head is a mechanical mounting job: you lock a cutting attachment onto the trimmer shaft so it stays seated, turns with the arbor, and does not loosen when the string trimmer is running. That is different from loading cutting line or metal cutting wire into a head that is already on the machine. If the head is already mounted and you only need to refill it, skip ahead to the loading section after you have disabled the tool. If the head itself is worn, cracked, missing hardware, or the wrong type, start with a full swap.

“Wire” is used loosely in stores and search results. It may mean ordinary nylon cutting line, a fixed-line head that accepts pre-cut pieces, or a metal-wire or brush-style cutting head. Those products are not interchangeable. Nylon line and metal cutting wire have different hazards, and a metal attachment is allowed only when the trimmer and the attachment labeling say so. This article does not assume which one you own. Match the accessory to the machine, not to a generic photo.

Consumer string trimmers use several arbor sizes, adapters, retaining nuts, and locking methods. Thread direction is not the same on every model. The owner’s manual, the labels on the tool, and the hardware already on the shaft are the fit authority. A replacement that looks similar but does not match the bore, adapter, or nut should not be forced on. The sequence below is a universal safety-first path. Details such as left-hand versus right-hand thread, spool versus fixed-line design, and whether a cover or clip must go back on are variations you confirm on your machine.

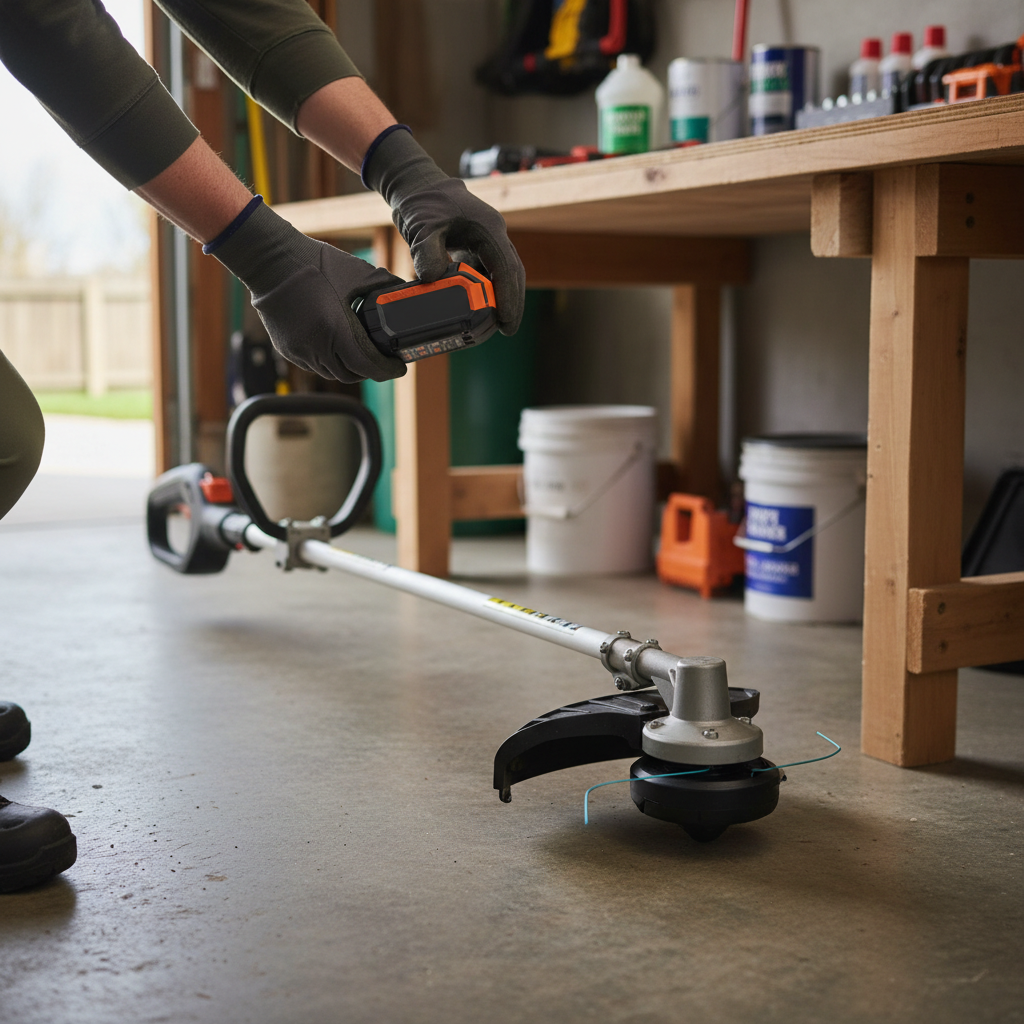

Disable the trimmer before you touch the head

A spinning head can cut, throw debris, or fly off if it is loose. An accidental start while your hands are on the arbor is the main preventable risk. Disable the machine completely before you remove or install anything on the cutting end.

• Battery trimmer: remove the battery pack and keep it away from the tool so it cannot be clicked back in by accident.
• Corded electric trimmer: unplug the power cord from the outlet, not only from an extension lead at the handle.
• Gas trimmer: let a hot engine and the cutting parts cool on a stable, clear surface. Move the unit away from spilled fuel and fuel vapors. Disconnect the spark-plug boot so an accidental pull-start cannot fire the engine.

Wait until hot metal and plastic are comfortable to handle. Do not work over grass clippings, loose fasteners, or a wobbly bench. Lay the trimmer so the shaft cannot roll and the head is easy to see. Keep bystanders, children, and pets out of the work area. Eye protection is appropriate for both the install and the later test spin. Gloves help with sharp line ends, metal wire, and hot or greasy hardware. These steps are general consumer practice. They do not replace the safety chapter in your owner’s manual, which may add lockout, fuel, or electrical details for that model.

Identify the arbor, retaining hardware, and thread direction

The arbor is the threaded or splined output at the end of the trimmer shaft. The wire trimmer head either screws onto that arbor or clamps over an adapter that the retaining nut holds in place. Before you turn anything, look at how the current head is held on. Photograph the stack or lay parts out in order later so washers and cups go back the same way.

Find the shaft lock. Many units have a hole in the gear case or a lock button you press while you rotate the head until a pin or screwdriver can hold the arbor still. Others have flats on the shaft for a wrench. Locking the arbor keeps you from twisting the whole shaft or rounding the retaining nut. If you cannot find a lock, check the manual rather than gripping the flexible shaft or the cutting line.

Thread direction varies by machine. Many grass trimmers use a reverse (left-hand) thread so operating rotation tends to tighten the head in use, but that is not universal. Do not guess from brand memory. Look for an L or R marking on the nut, shaft, or old head, an arrow showing loosen or tighten, or a diagram in the owner’s manual. The loosening direction is the one that backs the head or nut off once the shaft is locked. If markings conflict with what you expect, stop and confirm before you apply force.

Besides the head itself you may find a retaining nut, one or more washers, an adapter cup, a dust cover, a clip, or a small guard that sits against the gear case. Some bump-feed heads include their own threaded bore and do not use a separate nut. Some metal-wire or blade-style attachments use a different nut stack and cover than a nylon string head. If the new head’s bore, adapter, or nut does not match the shaft or the manual’s diagram, do not install it. Wrong hardware is how a head loosens or leaves the arbor at speed.

Match the new head to the machine and gather basic tools

Compatibility is a shaft and accessory match, not a “looks close enough” match. Check the trimmer model, the existing head, and the manual against the replacement. The new head must match shaft diameter, the way it locates on the arbor, thread direction, and the cutting accessory the machine is meant to run. A head sold for nylon line is not automatically approved for metal cutting wire. A metal or brush-style head may also require a specific debris guard or cover. If the listing or the box cannot be reconciled with your shaft and labels, choose a different head or get the parts identified by a dealer.

An aftermarket adapter is acceptable only when it is made for that arbor and that head and sits square without play. A forced fit, a missing washer that the design needs, stacked extra washers, or an improvised sleeve is a reason to stop. Do not drill, grind, or hammer the arbor to make a part go on.

Everyday tools are usually enough:

• A wrench or socket that fits the retaining nut, if the design uses one
• The shaft-lock pin, a screwdriver, or a punch that fits the lock hole without being forced
• A second wrench if the shaft has flats
• A clean rag and a soft brush for debris on the threads and shoulder
• Optional penetrating oil for a stuck nut, used with patience rather than impact

Work in good light. Keep a small tray for washers and clips so nothing is lost in the grass.

Remove the old head or retaining parts

With the machine disabled and the shaft locked, support the shaft so you are not bending the housing. Turn the head or the retaining nut in the loosening direction. Use a wrench that fully seats on the nut. Avoid pliers that round the corners. If the head itself is the threaded part, turn the head, not the cutting line or a fragile bump knob.

A head that will not move is often packed with grass, rust, or overtightened from use. Clean the visible threads and the joint between the head and the gear-case shoulder. Penetrating oil and time are safer than force. Do not heat the arbor, hammer on the shaft, or cut the threaded stub. Those methods damage the output and can make the trimmer unsafe to run. If the nut rounds off, the shaft turns despite the lock, or you see cracked plastic, bent metal, or chewed threads, stop and seek service.

As parts come off, keep them in the order they left the machine. Some pieces belong to the old head and are replaced by parts in the new kit. Others—especially a machine-specific adapter, a shoulder washer, or a cover—must be reused. Wipe the arbor threads, the shoulder the head seats against, and any splines. Debris left on that face is a common reason a new head sits crooked and later wobbles.

Inspect the exposed shaft before you go further. Deeply stripped threads, a bent output, a cracked gear-case housing, or oil leaking from a damaged seal are not installation tweaks. They are reasons to park the tool and have the drive end checked.

Seat and tighten the new wire trimmer head

Reassemble in the order the manual and the parts you removed describe. A typical stack is adapter or cup first (if used), then any washer that belongs against the shoulder, then the head, then the retaining nut and any outer cover or clip. Some heads thread directly onto the arbor and replace the nut. Do not invent extra hardware, and do not leave out a washer that came off the machine unless the new head’s instructions clearly replace that stack.

Start threads by hand. Keep the head square to the shaft. If it binds in the first turn, back it off and check for cross-threading, leftover old washer, or the wrong thread direction. The head should spin on smoothly until it meets the shoulder or adapter. Fully seated means the head sits flush against that stop, does not rock, and does not sit visibly cocked. A gap that you can close only by forcing the last turns is a warning, not a sign to lean harder.

Lock the shaft again. Tighten the head or nut firmly in the direction specified for that machine. Many left-hand-thread heads tighten counterclockwise when you face the cutting end, and many right-hand-thread heads tighten clockwise, but you must follow the markings and the manual, not a rule of thumb. Tight enough means firm and secure so the head cannot spin independently of the shaft. It does not mean a numeric torque unless your manual gives one. Avoid using a long cheater bar that can strip plastic hubs or twist the output.

Reinstall any extra lock, clip, dust cover, or bump-knob hardware the design uses. Rotate the head by hand with the shaft unlocked only enough to confirm it turns with the arbor and does not wobble. If the head turns and the shaft stays still, the connection is not locked. Take it apart and find the missed adapter, unfinished thread, or wrong direction before you restore power.

Load line or wire only after the head is mounted

Loading cutting material is a separate step from locking the head onto the arbor. Do the mechanical mount first so you are not fighting a loose spool while you also chase thread direction. Some bump-feed heads are easier to wind with the spool in your hands and the housing already on the shaft. Others load more cleanly if you take the spool out, wind it, then click it back into the mounted housing. Follow the head’s markings.

At a high level, common designs differ like this:

• Bump-feed or tap-and-go spool heads hold a coil of nylon line. Wind in the direction marked on the spool. Uneven, overlapping, or reversed winds jam the feed.
• Fixed-line heads take pre-cut pieces. Push each piece fully into its slot or hole until it locks. A piece that only sits in the opening can fly out.
• Quick-change heads may use short pre-cut lengths or a cassette. The lock feature still has to click or seat; friction alone is not enough.
• Metal-wire or brush-style heads, when the machine allows them, are loaded or clamped according to that attachment. They are not “thicker string.”

Diameter, length, and material limits are specific to the head and the trimmer manufacturer. Use only what those sources allow. Do not mix leftover metal cutting wire into a head meant for nylon line. Never run with unbound coils, one side much longer than the other, or wire that sticks out past the debris guard’s intended cut-off.

Metal cutting wire is a different decision from nylon line. It can throw debris more aggressively, and some tools forbid it on the label. Extra eye and face protection, a clear area, and a solid debris guard matter even more. If the trimmer, guard, or attachment does not clearly allow metal wire, do not install it. Local rules can also restrict metal cutting attachments; this article cannot settle that for your site. Stay with the labeled accessory.

Inspect the job before the first spin-up

A loose head, a missing washer, or a guard left off will not announce itself until the attachment reaches speed. Do a slow visual and physical check while the machine is still disabled.

• The head is tight, centered, and does not wobble or spin on the arbor.
• Every washer, adapter, nut, clip, and cover that belongs on the stack is present and seated.
• The debris guard is installed, undamaged, and positioned as the machine requires.
• Line or wire is even, locked, and within the head’s design. Nothing hangs past a cut-off blade in a way that looks unbound.
• No tools, rags, or spare nuts remain on the shaft or tucked in the housing.
• Handles, the shaft coupler (if the trimmer splits), and any wing knobs are snug.

Only after that inspection should you reconnect the battery pack, plug in a corded unit, or refit the spark-plug boot. Put on eye protection. Clear a wide swing zone of people, glass, vehicles, and loose objects. Start the trimmer and run a short, no-load check. You are listening and watching, not cutting yet. Stop at once if the head wobbles, the pitch changes, you hear grinding or ticking, the head starts to loosen, or anything is thrown. Shut the machine down, disable it again, and find the cause before another start. A clean first spin-up means the install looks sound right now. It does not prove the head will stay tight forever, so recheck the nut or threaded bore after the first brief work session.

Common variations you may encounter

The same safety sequence applies when your machine does not match a generic picture. Match the variation to the manual and the hardware in your hand rather than treating any one style as the only correct method.

Bump-feed spool heads usually thread on as a complete housing; loading is a later, separate action. Fixed-line heads often mount the same way but have no inner spool to wind. Quick-change systems may use a bayonet or clip after a short thread. In every case the head still has to seat on the arbor and lock against loosening. Do not confuse a line-loading click with the mechanical lock on the shaft.

Straight-shaft and curved-shaft trimmers can use different gear-case shapes and lock-button locations, but the arbor job is the same: identify thread direction, lock the shaft, seat the head. A unit with a gear-case output may hide the lock hole on the side of the housing. An electric or battery trimmer may use a different lock button or a tool-less collar even when the head looks like a gas model’s head. Use the lock that belongs to that drive end.

Metal-wire, brush, or blade-style attachments, when approved, are often mounted more like a blade than like a string spool. They may need a specific cover, a cupped washer, and a nut stacked in a set order, and they may follow a different rotation rule than the nylon head you just removed. Do not move a string-head nut onto a blade-style accessory or the reverse unless the manual shows that stack. If the trimmer was sold only as a nylon-line machine and the labels do not allow a metal attachment, do not convert it with leftover hardware.

If the head will not seat, tighten, or stay locked

If the head will not start on the threads, stop turning. Recheck left-hand versus right-hand thread, confirm you are not starting a nut on the wrong end of an adapter, and look for debris or a leftover washer on the shoulder. If it starts and then stops short of the shoulder, it may be cross-threaded or meant for a different arbor diameter. Back it off by hand. Forcing the last turns can ruin both the head and the shaft.

If a newly installed head loosens after a short run, shut down and disable the machine. Do not keep running it, and do not add extra lock washers, wire, or thread locker as a workaround unless the manufacturer’s instructions for that head call for a specified compound. Re-verify direction, seating, and whether an adapter or washer was omitted or doubled. Operating rotation should not unscrew a correctly installed head; if it does, the thread direction or the stack is still wrong.

A damaged shaft, stripped nut, cracked head, or egg-shaped bore is a replacement or service problem, not an installation tweak. Do not weld, drill new holes, mix blade nuts onto a string head, or keep using a wobbling attachment. Those shortcuts are how a head leaves the arbor. Replace the damaged part or take the trimmer to a technician who can inspect the output and clutch or gear area.

When to stop and use the owner’s manual or a technician

Generic steps give you a safe order of work. They do not override the owner’s manual or the labels on the tool. Stop a DIY install when thread direction is still unknown after you have checked markings and the manual, when you cannot tell whether metal cutting wire is approved, or when the new head simply does not match the shaft. Unknown fit is not something to solve with force.

Do not run the trimmer if the shaft is bent, the threads are stripped, the gear case is cracked, the debris guard is missing or broken, or the head will not lock so that it turns only with the arbor. Missing safety parts and a loose cutting attachment are enough to end the job, even if the new head physically goes on. A qualified service shop is the right next step when the drive end is damaged or the accessory question is not answered by the documentation you have. The goal is a head that is seated, locked, and safe to run—not a head that was made to fit.
