How to Put Weed Eater String In: Quick Answer
To load weed eater string, first identify your spool type, most common are bump-feed (automatic) and manual-wind. For bump-feed models: remove the spool head cap, insert trimmer line through the eyelets, wind it around the spool following the directional arrows, and secure the ends in the notches. For manual-wind models: thread the line through the spool holes and wrap it tightly in the marked direction. Always check your specific model’s manual, as designs vary significantly between manufacturers.

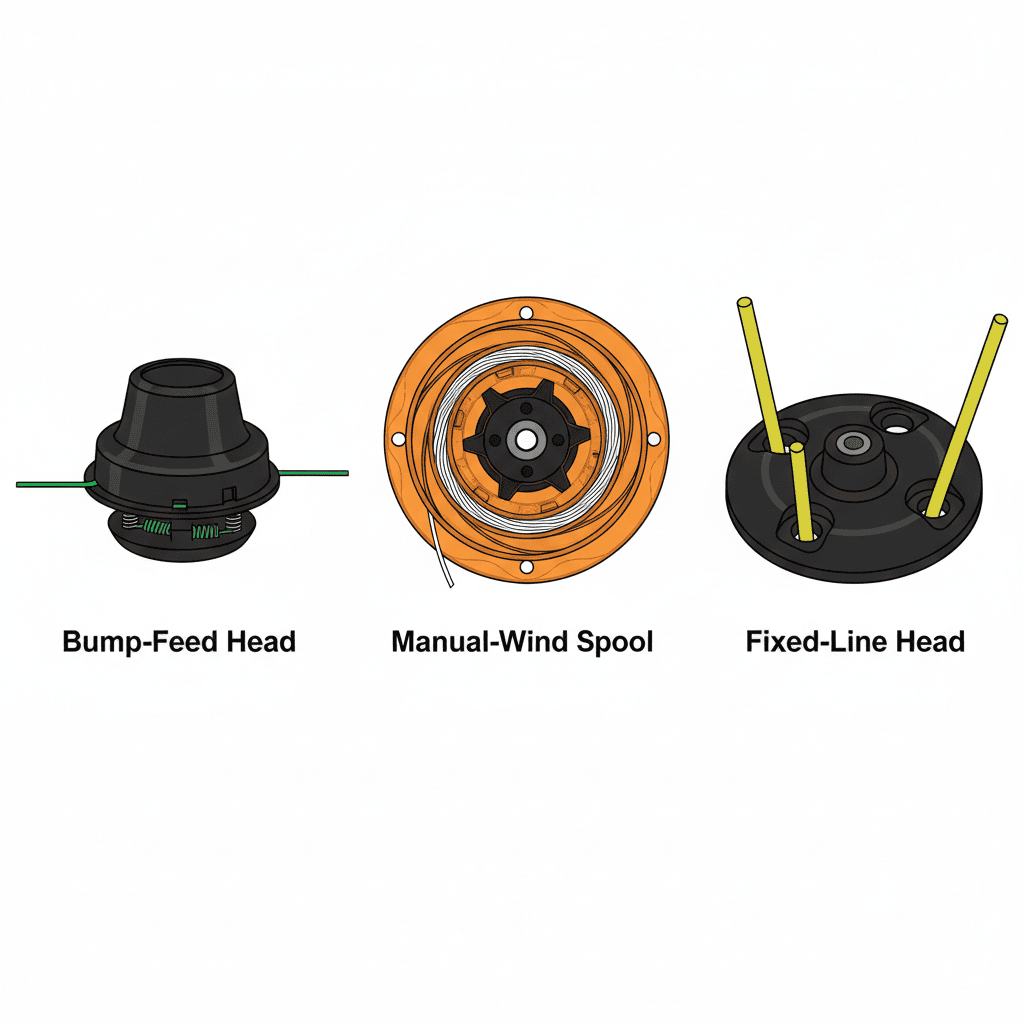

Understanding Your Weed Eater Spool Type
Before attempting to load string, you need to identify which spool mechanism your weed eater uses. The three main types are bump-feed (automatic), manual-wind, and fixed-line designs. Bump-feed spools automatically advance new line when you tap the head against the ground, these are the most common on residential trimmers. Manual-wind spools require you to hand-wrap the line and are often found on commercial-grade equipment. Fixed-line models have permanently installed line and aren’t reloadable by end users.
You can identify your spool type by examining the trimmer head. Bump-feed heads typically have a rounded cap on top with a small button or tab in the center. Manual spools show visible winding grooves or notches around the spool body. Check your owner’s manual or look for markings on the head itself, most manufacturers label the type clearly. Understanding this distinction prevents frustration and ensures you follow the correct installation procedure.
How to Load String in a Bump-Feed Trimmer Head
Bump-feed spools are the easiest to work with for most homeowners. Here’s the step-by-step process:
What You’ll Need
- Replacement trimmer line (usually .065″ to .095″ diameter for residential models)
- Flathead screwdriver (sometimes included with the trimmer)
- Small scissors or utility knife for cutting line
- Your owner’s manual for model-specific guidance
Removal and Preparation
Unplug your weed eater or remove the battery to ensure safety. Locate the spool head cap, it’s the round plastic piece on top of the trimmer head. Most caps are held in place with a single center bolt or can be twisted counterclockwise by hand. Remove this cap and set it aside. You may see a spring and spindle in the center; these stay in place and help feed line automatically when you tap the head.
Next, remove any old string still wound on the spool. If the spool is full of old, tangled line, completely clear it before loading new string. Inspect the spool for cracks or damage; a damaged spool may need replacement.
Loading the String
Most bump-feed spools have two small eyelets (holes) on opposite sides of the head. Start by inserting approximately 12-18 inches of trimmer line into one eyelet from the outside. Feed it into the groove or slot on the spool body. You’ll typically see arrows or directional markings indicating which way to wind. Wind the line around the spool in the direction shown by the arrows, keeping tension on the line as you wrap to prevent tangling.
Leave about 4-6 inches of line free at the starting point. Continue winding until you’ve loaded the appropriate amount of line, usually 20-30 feet total, depending on your trimmer model. The spool groove typically has a marked endpoint or maximum fill line; don’t overfill, as this prevents proper feeding and can jam the mechanism.
Securing and Reassembling
Once wound, secure the free end by inserting it into a notch or retention slot on the spool. Most bump-feed spools have small notches designed to hold the line end in place. Feed the remaining free line end into the second eyelet. Thread this section through the groove or slot as well, following the same directional pattern as the first section. Secure this end in its notch. For additional operational safety benchmarks, see our published testing notes on marshall stanmore iii vs harman kardon onyx studio 8.
Reassemble the spool head by placing the cap back on and tightening the center bolt or twisting it clockwise until snug. Don’t over-tighten, as this can crack the plastic. Plug in your trimmer and test-fire it at low speed. The line should feed out smoothly and advance when you tap the head on the ground.
How to Wind String on a Manual Spool
Manual-wind spools require more hands-on work but give you precise control over line loading. This type is common on commercial trimmers and some residential models. To compare alternative configurations, check our hands-on review of dyson v8 cyclone vs bissell featherweight stick.
Accessing the Spool
Remove the spool head cap or cover, typically held by a bolt or retaining ring. Some manual spools are completely removable from the trimmer head, while others remain fixed in place. If removable, carefully lift it away and set it on a clean surface. Inspect the spool for directional markings, arrows indicating clockwise or counterclockwise winding. These markings are critical; winding in the wrong direction prevents line from feeding.
Threading and Winding Process
Manual spools have two or more small holes or eyelets around the spool body for threading line. Start by inserting one end of your trimmer line through an eyelet, leaving 4-6 inches as a tail. Begin winding the line around the spool body in the direction indicated by arrows, keeping it tight and neat. Make each wrap close to the previous one without overlapping. Users looking for related component recommendations can explore our bissell crosswave hydrosteam vs shark stainforce breakdown.
Wind tightly but not so tight that you strain the spool or make it difficult to remove the line later. Aim for consistent, even tension throughout. Once you’ve wound the first section, insert the free end into a second eyelet, threading it back through the spool mechanism. Continue winding the second section in the same direction, matching the tension and neatness of the first side.
Fill the spool until you reach the marked maximum line capacity. Unlike bump-feed models, manual spools give you more room for judgment, but overfilling still causes problems. Leave the line ends free in the eyelets, they’ll hold in place once the spool is reassembled and the cap is secured.
Securing and Testing
Replace the spool head cap, ensuring line ends are properly threaded through the eyelets and positioned to feed outward. Tighten any bolts or securing rings firmly but without forcing. Test by gently pulling on each line end; it should unwind slightly without tangling. If you encounter resistance or bunching, remove the cap and rewind more loosely.
Common Mistakes to Avoid When Installing Trimmer String
Winding in the Wrong Direction: The most frequent error is ignoring directional arrows on the spool. Winding backward prevents the line from feeding properly and creates tangling. Always identify the correct direction before you begin, and double-check as you wind.
Overfilling the Spool: Loading too much line causes jams, prevents the head from spinning freely, and makes the trimmer difficult to control. Stick to manufacturer recommendations, typically 20-30 feet for residential models. Most spools have visual fill lines for guidance.
Inconsistent Winding Tension: Wrapping loosely in some areas and tightly in others creates bunching and tangling. Maintain even, steady tension throughout the entire winding process. This is especially important for manual-wind spools where you control tension directly.
Using Incompatible String Thickness: Trimmer line comes in various diameters (.055″, .065″, .080″, .095″, etc.). Using string thicker than your spool and head are designed for strains the motor and may jam. String that’s too thin can break easily and won’t cut effectively. Check your manual for the correct diameter specification.
Failing to Clear Old String: Attempting to load new line over existing tangled string creates immediate problems. Always completely remove old string before loading new material. Take time to clean any debris or bits of old line from the spool.
Not Securing Line Ends Properly: Free-floating line ends work loose during operation, causing feeding failures. Ensure both ends are firmly seated in their retention notches or slots before reassembling the head.
How Much String Do I Need and What Type Should I Use?
Standard String Diameters: Most residential weed eaters use .065″ or .080″ diameter line, which balances cutting power with motor load. Heavy-duty or commercial models often use .095″ line for tougher vegetation. Check your owner’s manual for your specific model’s requirement, using the wrong diameter reduces performance or damages the trimmer.
Loading Quantities: Calculate the total length needed by consulting your manual, typical residential models load 20-30 feet total (10-15 feet per spool section). To measure, place the loaded spool on a flat surface and measure the diameter at its widest point. A full spool typically feels slightly firm when you try to spin it by hand, but not locked.
String Material Types: Most trimmer line is made from nylon, which offers a good balance of durability and cost. Some premium lines include twisted or spiral designs for better cutting and longer life. Specialty materials like reinforced nylon or carbon-core string are available for tougher cutting tasks but may cost more. Stick with the material type your manual specifies; incompatible materials may not feed properly or may wear out the spool mechanism faster.
Brand Compatibility: Most universal trimmer line works with standard spools, though some manufacturers recommend their own branded line. Universal line is typically cheaper and widely available. Read your manual to see if brand-specific line is required, though most standard-diameter line will perform acceptably regardless of brand.
Troubleshooting String Loading Issues
String Won’t Feed Out After Loading: This usually indicates incorrect winding direction or line that’s too tightly wound. Remove the spool head, verify the directional arrows, and rewind more loosely. Ensure line ends are properly threaded through eyelets and aren’t caught on the spool edge. If using a bump-feed model, test the tap-feed function by gently bumping the head against the ground, automatic advancement should deploy new line.
Spool Won’t Reassemble or Cap Won’t Tighten: Check that line ends aren’t pinched between the spool and cap. If winding was too tight, the line may prevent full reassembly. Remove the cap, loosen the line slightly, and try reassembling. Ensure the center spindle and spring are properly seated in the spool cavity before replacing the cap.
Line Slips or Unwinds During Use: This indicates line ends aren’t firmly seated in retention notches or the line is too loosely wound. Stop using the trimmer immediately and reload. Reposition line ends more securely in their notches, apply slightly more winding tension, and verify they don’t budge when you gently tug.
Tangled or Bunched Line During Use: This is usually caused by loose or inconsistent winding, overfilling, or winding in the wrong direction. Remove the spool head, completely clear all line, inspect for damage, and reload carefully with even tension and correct directional winding.
String Thickness Won’t Fit Into Eyelets: You’re likely using line that’s too thick for your spool model. Check your manual for the correct diameter. If you’ve been using the wrong size, switch to the correct thickness. Forcing oversized line damages the eyelets and prevents proper feeding.
Common Questions on How To Put Weed Eater String In Answered
How often should I reload my weed eater string?
Most homeowners reload 2-4 times per mowing season, depending on usage frequency and vegetation density. Heavy weekly use may require reloading monthly, while occasional users might reload once or twice yearly. You’ll know it’s time to reload when the line becomes noticeably shorter, you hear the head spinning without cutting, or the automatic feed stops advancing new line.
Can I use any brand of trimmer line, or does it need to match my weed eater brand?
Universal trimmer line in the correct diameter works with nearly all standard spools, regardless of weed eater brand. While some manufacturers produce branded line, it’s not required. Select any quality universal line matching your spool’s specified diameter. Premium or specialty lines may offer longer life, but standard universal nylon is fine for most users.
What’s the difference between bump-feed and manual-wind, and which is better?
Bump-feed (automatic-feed) advances line automatically when you tap the trimmer head on the ground, convenient but less precise and can waste line. Manual-wind requires hand-loading but gives you exact control over how much line you use. Most residential users prefer bump-feed for ease of use, while professionals often choose manual-wind for efficiency. Neither is objectively “better”, it depends on your preference and trimmer design.
Why does my string keep tangling no matter how carefully I wind it?
Tangling usually results from winding too loosely, wrapping in the wrong direction, or overfilling the spool. Verify directional arrows before winding, maintain consistent medium tension (not too tight, not too loose), and don’t exceed the spool’s maximum fill line. If problems persist after reloading, the spool itself may be damaged and need replacement.
Key Takeaways
- Identify your spool type (bump-feed or manual-wind) before loading, they use different procedures
- Follow directional arrows precisely; winding backward prevents line from feeding
- Use the correct trimmer line diameter specified in your manual
- Maintain even winding tension and don’t overfill the spool
- Secure line ends firmly in retention notches before reassembling
- Always consult your specific model’s owner’s manual for manufacturer-specific guidance
- If problems persist after reloading, the spool may need replacement rather than reloading
Pros
- Wire-free optical navigation requires no perimeter wire or antenna for nearly zero-installation setup.
- App control provides real-time remote status checks and convenient operation from the charging dock.
- Includes 2.0AH battery and charger with the versatile 24V trimmer that converts easily to an edger.
- Obstacle avoidance and auto-charging support smooth hands-free mowing on defined lawns.
- Drop-N-Mow mode extends use to secondary areas up to 1600 square feet without outdoor power.
Cons
- Operates only during daylight hours due to reliance on optical vision technology.
- Designed for lawns up to 1/6 acre which limits suitability for larger properties.
- Requires clearly defined lawn edges around the full perimeter for optimal navigation.
The LawnMaster OcuMow VBRM701YAMIDR robotic lawn mower bundled with the CLGT2410S 24V 10-inch cordless string trimmer provides a ready-to-go solution for compact yards. It features nearly zero installation after unboxing by placing the charging dock and defining lawn edges. The trimmer arrives lightweight under 6 lbs with a telescopic shaft and stabilizing wheels for comfortable handling.
Performance centers on optical navigation using advanced sensors and a wide-angle camera to identify grass even in tricky lighting plus ultrasonic obstacle avoidance for objects as small as 6 inches. The mower auto-returns to the station for a 2-hour charge and covers up to 1/6 acre while Drop-N-Mow mode runs up to 3 hours for 1600 square feet without a dock. The trimmer offers a 10-inch cutting width and converts to an edger via 5-position pivoting head and 90-degree rotating shaft for precise edges.
Drawbacks include daylight-only operation to protect nocturnal wildlife which prevents evening use. It works best on smaller defined lawns up to 1/6 acre and needs clear perimeter edges without additional power for secondary zones. Available data focuses on specifications so long-term durability depends on individual conditions.
This LawnMaster bundle delivers strong value for homeowners with compact primary and secondary lawns who want wire-free robotic mowing plus a versatile cordless trimmer. Ideal users prioritize simple app-controlled setup and wildlife-friendly features for efficient complete yard maintenance.
Pros
- Powerful 25.4cc X-TORQUE engine delivers strong performance with reduced engine wear
- Effortless Smart Start technology and auto-reset stop switch enhance usability
- Tap-n-Go head makes string reloading simple and fast
- Fuel-efficient design supports longer sessions with less frequent refueling
- Straight shaft and 17-inch path excel at precision trimming in confined spaces
Cons
- 2-cycle gas engine requires proper fuel-oil mixing which adds preparation steps
- Gas-powered design involves emissions and regular maintenance unlike cordless electric options
- Limited specifications provided on weight or included accessories may require extra research for some buyers
The Husqvarna 525L is a gas-powered string trimmer built for everyday residential yard work. It features a straight shaft design and 17-inch cutting width that give it a solid, professional impression right out of the box. This model targets homeowners who need reliable access to grass in tight or irregular areas.
In real-world use the 25.4cc X-TORQUE engine provides strong low-RPM power while the efficient air filter helps reduce wear. Smart Start technology and the Tap-n-Go head make starting and line reloading straightforward. Intuitive choke and purge controls plus the auto-reset stop switch keep operation simple and keep the tool ready between sessions.
As a 2-cycle gas unit the 525L requires fuel-oil mixing and routine maintenance that electric models avoid. Buyers seeking quiet cordless convenience or detailed weight and accessory data will need to consider these trade-offs carefully.
Overall the Husqvarna 525L suits homeowners and gift buyers looking for a durable gas weed eater that handles everyday trimming tasks efficiently. Those who value easy starting and reliable power in a straight-shaft package will get the most value from this landscaping tool.
Pros
- Powerful 170cc 4-cycle engine handles tough brush and weeds effectively
- Sturdy one-piece steel deck increases strength and reduces vibration
- 14-inch flat-free wheels provide reliable traction on any terrain
- Wide 22-inch cutting diameter speeds up large-area clearing
- Foldable handle enables easy storage and better user grip
Cons
- Gas-powered design requires fuel mixing or oil checks and ongoing engine maintenance
- Push-only operation demands physical effort with no self-propelled assist listed
- Gasoline product returns must go through the manufacturer instead of standard Amazon channels
The BILT HARD Walk Behind String Trimmer is a gas-powered brush cutter built around a tough one-piece steel deck and a 170cc 4-cycle OHV engine. Its walk-behind design and 22-inch cutting width give an immediate impression of a heavy-duty farm and yard tool meant for serious overgrowth rather than light edging.
In real use the manual recoil start and robust engine deliver solid power for clearing thick grass and light brush. The heavy-duty nylon line covers a full 22-inch path while the 14-inch never-flat wheels roll easily across uneven ground. The foldable ergonomic handle improves grip and lets the unit reach fence lines and tight spots that standard mowers miss.
Drawbacks include the need for fuel and routine 4-cycle maintenance plus the physical effort of a pure push design with no self-propulsion mentioned. As a gasoline product it also follows special return rules that require contacting the manufacturer directly.
Overall this string trimmer suits property owners with large lawns, farms, or overgrown yards who want durable gas performance and wide-path efficiency. Users seeking low-maintenance electric options or self-propelled ease may want to consider alternatives.
Pros
- Powerful 28-cc 2-cycle engine effectively handles large areas and denser vegetation
- Rapid Replace head makes string reloading quick and convenient
- Attachment-ready shaft expands functionality with optional click-on tools
- LowVib Technology and ergonomic handle lessen vibration and fatigue
- Spring-assisted system with Air Purge ensures easier and more reliable starts
Cons
- Click-on attachments and extra tools are sold separately, adding to the total cost for multi-tool setups
- 2-cycle gas engine requires proper fuel-oil mixing and regular maintenance
- Gas-powered operation may produce more noise and emissions than battery or electric alternatives
The Husqvarna 330LK is a gas-powered string trimmer featuring a 28-cc 2-cycle engine and a 20-inch straight shaft. It presents a durable professional-grade build with an ergonomic design that prioritizes comfortable handling for extended outdoor use on large properties.
Performance shines in real-world yard work and gardening thanks to the customizable cutting width that switches between 20 inches for broad coverage and 18 inches for thicker growth. The Rapid Replace head simplifies string changes, the spring-assisted start with Air Purge delivers effortless ignition, and LowVib Technology keeps vibration low. Its detachable shaft also makes the tool attachment capable for greater versatility.
Drawbacks to consider include the fact that additional click-on tools are sold separately, which raises the investment for full multi-purpose capability. As a 2-cycle gas model, it also requires correct fuel mixing and routine maintenance, and it will be noisier than electric options.
The Husqvarna 330LK delivers the most value to homeowners and property maintainers who need reliable power for large areas and appreciate easy starting plus expandability. It stands out as a solid choice for those seeking a capable gas weed eater for regular landscaping tasks.
Related Maintenance and Operating Guides
To keep your equipment running at peak operating efficiency, explore our related technical walkthroughs and maintenance tutorials:
- Consult our detailed breakdown on cordless stick vacuum buyer guide.
- Consult our detailed breakdown on robotic pool cleaner comparison guide.
Safe Stringing for Weed Eaters
Putting string in a weed eater works best with the engine off and the spark plug disconnected. For a broader look at safety around outdoor power equipment, American National Standards Institute (ANSI) is a useful starting point.
Gloves are worth wearing, because the cutting line and spool edges can be sharp.
