How Do You Remove a Spark Plug on a Lawn Mower?
To remove a lawn mower spark plug, first ensure the engine is cool and the mower is turned off. Disconnect the spark plug wire by gripping the rubber boot (not the wire itself) and pulling it straight off the terminal. Clean any debris from around the plug base so nothing falls into the cylinder. Using a spark plug socket with a ratchet wrench (typically 13/16-inch or 5/8-inch depending on the engine), fit the socket over the plug, then turn counterclockwise to loosen and unscrew it by hand once free.
Why Would You Need to Remove a Spark Plug?
Removing the spark plug is a fundamental part of lawn mower maintenance. The spark plug is responsible for igniting the fuel-air mixture in the engine’s combustion chamber. Over time, it can become fouled with carbon deposits, wear out, or simply need inspection as part of a regular tune-up. Common reasons for removal include:
- Routine Maintenance: Checking the spark plug’s condition is a standard part of seasonal or annual mower service.
- Starting Problems: A faulty spark plug is a leading cause of a mower that won’t start or runs roughly.
- Performance Issues: If the mower bogs down, misfires, or has poor fuel efficiency, the spark plug may be the culprit.
- Winterization: Removing the plug can help prevent the engine from hydro-locking during off-season storage.
Tools and Preparation Before You Start
Gathering the right tools beforehand ensures a smooth and safe process. You will need:
- Spark Plug Socket: A specialized socket with a rubber insert to grip the plug’s ceramic insulator. Common sizes are 13/16-inch or 5/8-inch, but check your owner’s manual.
- Ratchet Wrench: To provide leverage for loosening the plug.
- Gap Gauge: A simple tool to measure and set the electrode gap if reinstalling the old plug or installing a new one.
- Clean Rag or Brush: To clean debris from around the spark plug well before removal.
- Owner’s Manual: For model-specific information on plug type, gap, and torque specifications.
Preparation is key. Ensure the mower is on a flat, stable surface. The engine must be cool to the touch to avoid burns and to prevent damage to the cylinder head threads, which can expand when hot. For walk-behind mowers, you generally do not need to tilt them, but for some riding mower models, you may need to access the plug from a specific angle.
Safety Precautions for Spark Plug Removal
Safety is paramount when working on any engine. Follow these critical steps to prevent accidental starting or injury:
- Turn Off the Engine: Ensure the mower is completely off and the ignition key is removed (for riding mowers).
- Disconnect the Spark Plug Wire: This is the most important safety step. Grip the thick rubber boot at the end of the wire and pull it straight off the spark plug terminal. Never pull on the wire itself, as this can damage the conductor inside. This physically prevents the engine from firing.
- Work in a Well-Ventilated Area: Avoid inhaling any residual fumes from the fuel system.
- Wear Gloves: Protective gloves can prevent cuts from sharp metal edges and keep hands clean.

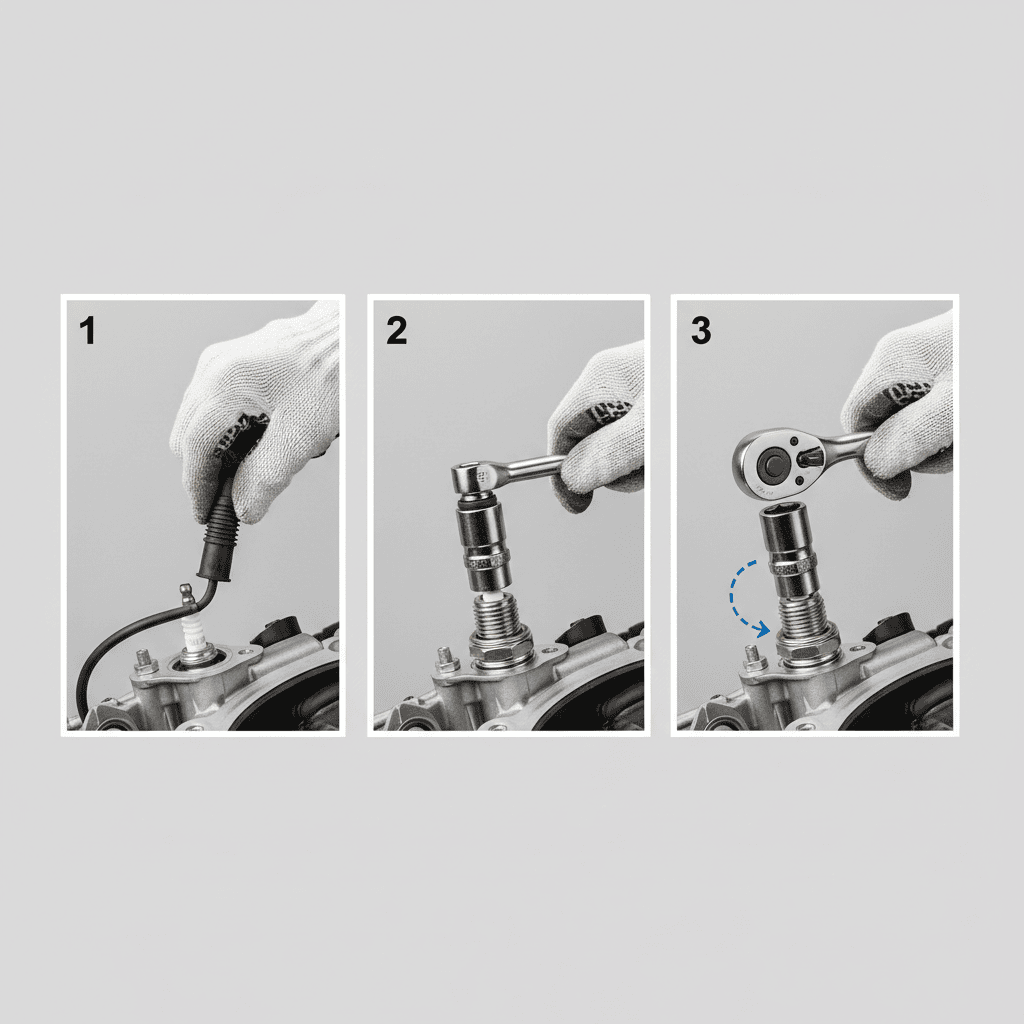

Step-by-Step Guide: Removing the Spark Plug
Follow this universal procedure for most standard walk-behind and riding lawn mower engines:
- Access the Spark Plug: Locate the spark plug, usually on the front or side of the engine, connected to a thick black wire. Clear any grass clippings or dirt from the area.
- Disconnect the Boot: Firmly grip the rubber boot and pull it straight off the spark plug terminal. Set the wire aside where it cannot accidentally contact the plug.
- Fit the Socket: Select the correct spark plug socket. Place it over the spark plug and ensure it is fully seated.
- Loosen the Plug: Attach the ratchet wrench to the socket. Turn the ratchet counterclockwise to loosen the plug. Apply steady, even pressure. If it is very tight, you may need a breaker bar for initial leverage, but be cautious not to strip the threads.
- Unscrew by Hand: Once the plug is loosened with the ratchet, remove the wrench and unscrew the plug the rest of the way by turning the socket or extension by hand. This gives you better control and helps you feel if the threads are cross-threading.
- Remove and Inspect: Carefully lift the spark plug out of the well. Place it on a clean surface.
Inspecting and Reinstalling or Replacing the Spark Plug
Once removed, examine the spark plug’s condition:
- Healthy Plug: The insulator should be light tan or grayish-white. The electrodes should be intact with minimal wear.
- Fouled Plug: Covered in black, oily residue (oil-fouled) or dry, black soot (carbon-fouled). This indicates engine issues that should be addressed.
- Worn Plug: The electrodes are rounded, or the gap is excessively wide.
To Reinstall the Old Plug (if in good condition):
- Check the electrode gap with a gap gauge and adjust to the specification in your owner’s manual (commonly 0.030 inches).
- Carefully thread the plug back into the hole by hand to ensure it is not cross-threaded.
- Once hand-tight, use the ratchet to tighten it further. A general rule is to snug it down and then give it an additional 1/4 to 1/2 turn. Do not overtighten, as this can strip the threads or crack the plug.
- Reconnect the spark plug boot firmly until it clicks into place.
To Install a New Plug:
- Verify the new plug is the correct type and pre-set the gap to the manufacturer’s specification.
- Follow the same hand-threading and tightening procedure as above.
- Consult your manual for the precise torque specification if available.
Common Mistakes and Model-Specific Considerations
Avoid these frequent pitfalls:
- Cross-Threading: Forcing the plug in at an angle can ruin the cylinder head threads, leading to expensive repairs. Always start threading by hand.
- Overtightening: Excessive force can crack the spark plug’s ceramic insulator or strip the threads.
- Ignoring the Manual: While this guide is universal, socket sizes, plug reach, and torque specs vary between engine models (e.g., Briggs & Stratton, Honda, Kohler). Your owner’s manual is the definitive source.
- Walk-Behind vs. Riding Mowers: The procedure is fundamentally the same, but access on some riding mower engines may be tighter, requiring a swivel or universal joint on the ratchet extension.
Frequently Asked Questions
How often should I remove and check my lawn mower spark plug?
It is recommended to inspect the spark plug at least once per mowing season or every 100 hours of operation. A good practice is to check it during your annual spring tune-up before the first use of the season.
What happens if I don’t disconnect the spark plug wire before working on the engine?
Disconnecting the wire is a critical safety step. If left connected, there is a risk the engine could accidentally fire if the blade is turned or the engine is cranked, which could cause serious injury. Always disconnect it first.
Can I use a regular socket instead of a spark plug socket?
It is strongly discouraged. A standard socket can easily crack the fragile ceramic insulator of the spark plug. A spark plug socket has a rubber insert that grips the plug securely without applying pressure to the ceramic, making removal and installation safer and easier.
My spark plug wire is stuck. How do I remove it without breaking it?
Grip the boot as close to the engine as possible and twist it gently back and forth while pulling straight out. Applying a small amount of dielectric grease to the boot’s interior during reinstallation can prevent it from sticking in the future.
