Replacing worn-out trimmer line is an essential maintenance task that keeps your string trimmer performing at its best throughout the growing season. To replace weed wacker line, first disconnect the power source and access the spool by removing the cutting head cover. Remove the old line remnants, select the correct gauge and length of new line, wind it tightly in the proper direction, then reassemble and test the mechanism before use.
This process typically takes fifteen to thirty minutes for first-time users, though experience reduces this time significantly. Below, you’ll find detailed guidance for bump-feed systems—the most common type—along with notes on variations for automatic-feed models and different power sources.

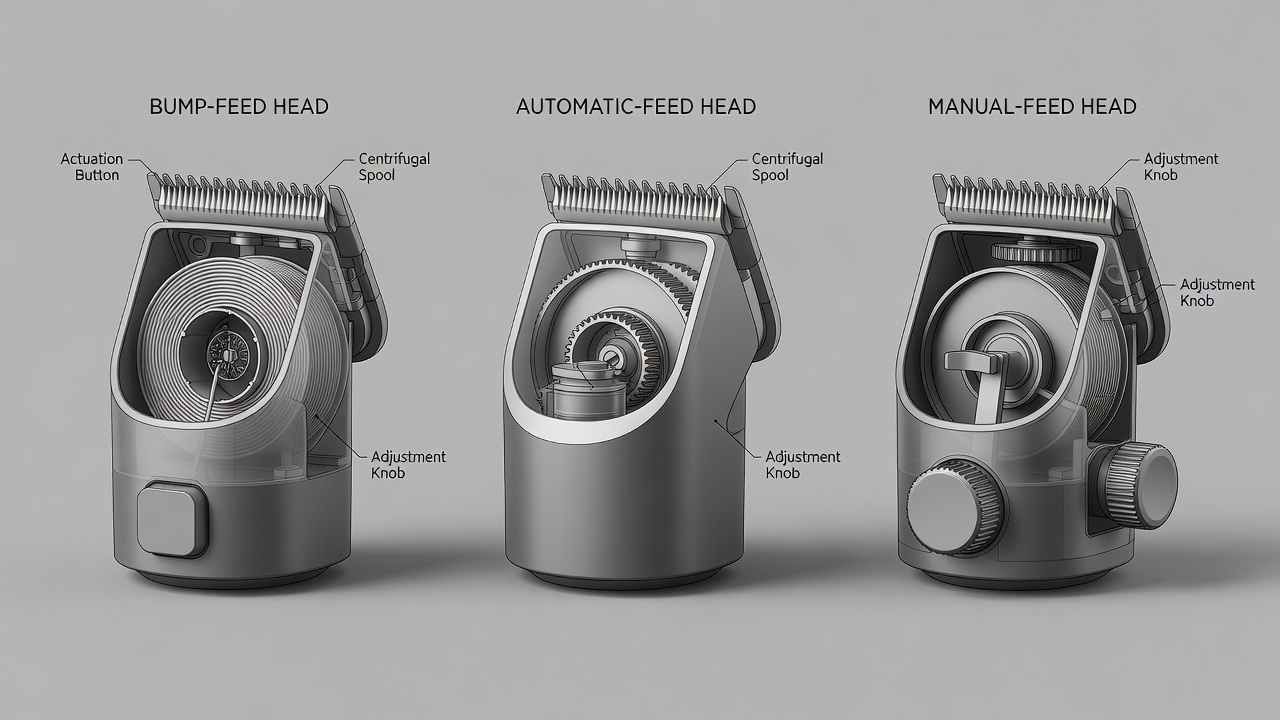

Understanding Your Weed Wacker’s Line System
Before attempting line replacement, it helps to understand how your specific trimmer delivers line to the cutting area. String trimmers generally fall into three categories based on their feed mechanism.
Bump-feed trimmers require you to tap the cutting head against the ground to release additional line from the spool. The spool sits inside a protective housing, and a bump button or knob at the base of the head controls line advancement. Most consumer-grade gas and electric trimmers use this system because it gives users direct control over line length.
Automatic-feed trimmers sense when line is breaking down and automatically advance fresh line without any action from the operator. These systems typically have electronic sensors or spring mechanisms that release line as needed. While convenient, they may use more line over time since the feed mechanism activates frequently.
Manual-feed trimmers require you to turn off the engine and adjust line by hand. These are less common in modern consumer models but appear in some professional-grade equipment where precise line length control matters.
The spool itself may be a single-line or dual-line design. Single-line spools have one length of line wrapped around the spool, while dual-line spools have two lines extending from opposite sides. Dual-line designs cut more efficiently and balance the head better, but the winding process requires slightly more attention to ensure both lines feed evenly.
Key Factors Before You Start
Selecting the Correct Line
Trimmer line comes in various gauges, typically ranging from 0.065 to 0.130 inches in diameter for consumer equipment. Using the wrong gauge can cause poor cutting performance or damage to the trimmer. Consult your owner’s manual for the manufacturer-recommended gauge for your specific model.
Line material also matters. Nylon line handles most residential trimming tasks well. Reinforced or composite lines work better for heavy vegetation and woody weeds. Round line suits regular grass, while serrated or shaped line (square, star) provides faster cutting through denser growth.
Gathering Necessary Tools
Most line replacements require minimal tools. Common items include:
- A screwdriver (Phillips or flat-head, depending on your model’s screws)
- Work gloves to protect your hands during winding
- Safety glasses for eye protection
- The replacement line itself
- Scissors or line cutters for trimming excess
Some newer trimmer models feature tool-free spool access, requiring only that you twist or press the head to open it. Others use retaining clips or screws that need removal first.
Safety Preparation
Always disconnect the power source before beginning any maintenance on your trimmer. For gas-powered trimmers, remove the spark plug boot to prevent accidental starting. For cordless electric trimmers, remove the battery pack entirely. For corded electric models, unplug from the power source and consider taping the cord in the off position as an additional precaution.
Place the trimmer on a stable work surface with good lighting. Ensure children and pets remain at a safe distance from the work area.
Step-by-Step Replacement Process
Step 1: Access the Spool Chamber
Locate the cutting head assembly at the bottom of your trimmer shaft. The method for accessing the spool varies by manufacturer, but common approaches include:
- Twist-and-lock caps: Grasp the bump knob at the base of the head and twist counterclockwise to release the cap. The spool will lift out with the cap.
- Press-and-release tabs: Depress tabs on the side of the head housing, then pull the cap away from the spool.
- Screw-off housings: Use a screwdriver or the bump knob to unscrew the protective housing from the base.
Once the cap releases, lift the spool out of the housing. Set the cap aside in a safe place where it won’t roll away.
Step 2: Remove Old Line and Debris
Examine the spool and housing for remaining line fragments, grass clippings, and debris. Old line often becomes brittle and breaks into small pieces during use. Clear these away with your fingers or a small brush.
If the old line is tangled or wound tightly, unwind it completely. Some spools have notches or slots that hold the line ends in place—note these positions for reference when installing new line.
Step 3: Measure and Cut New Line
Check your spool for maximum line capacity markings. These often appear as notches, arrows, or printed labels indicating how much line the spool can hold. Exceeding this capacity can cause tangling or poor feed performance.
For most consumer trimmer spools, you’ll need approximately fifteen to twenty feet of line, though capacity varies by model and spool design. Cut your line to the appropriate length for your specific spool. Using pre-cut line segments designed for your spool type can simplify this step.
Step 4: Wind the Line Onto the Spool
This step requires attention to direction. Look for arrows, directional indicators, or raised ridges on the spool that show the winding direction. Winding in the wrong direction causes the line to feed improperly or not at all.
Insert one end of the line into the anchor hole or notch on the spool. Hold the line taut and begin winding in the direction indicated. Space the windings evenly and keep them tight against the spool’s inner ridge. Wind most or all of the line length onto the spool, leaving roughly six to eight inches of line free at the end.
For dual-line spools, insert both line ends into opposite anchor holes and wind each line separately in the same direction, keeping the windings parallel and organized.
Step 5: Reassemble the Cutting Head
Feed the free end(s) of the line through the eyelet hole(s) on the side of the housing or through the designated channel. These holes allow the line to pass from the spool to the cutting area.
Some spools have small locking tabs that hold the line in place during reassembly. Ensure these engage properly. Place the spool back into the housing, aligning any notches or keys that position it correctly. Press down firmly and replace the cap or housing cover, twisting or snapping it into the locked position.
Step 6: Test the Mechanism
Reconnect your power source and perform a brief test run in a safe outdoor area. For bump-feed trimmers, tap the head gently against a hard surface to confirm line advances properly. Listen for even cutting and check that the line doesn’t retract unexpectedly.
For automatic-feed trimmers, run the trimmer briefly and observe whether line extends automatically. If line doesn’t feed after several seconds of use, check that the spool moves freely and that the line hasn’t tangled during reassembly.
Variations for Automatic-Feed and Special Cases
Automatic-Feed Trimmers
Automatic-feed systems may require slightly different handling. The spool often stays stationary while a separate advance mechanism feeds line from the spool to the cutting area. Some automatic systems use a fixed-length cartridge that cannot be rewound—these require complete replacement rather than re-spooling.
If your automatic-feed trimmer uses a traditional spool design, the winding process remains similar to bump-feed models. However, pay special attention to how the advance mechanism interacts with the spool. Ensure the line routes correctly through any guides, springs, or channels that control feed rate.
Cordless Electric Models
Cordless trimmers generally follow the same line replacement procedure as other models. The primary difference involves battery safety: always remove the battery pack before accessing the spool. Some cordless models feature tool-free head designs that make access particularly convenient.
Gas-Powered Equipment
Gas trimmers typically use the same spool designs as electric models, but the safety protocol differs more significantly. Beyond removing the spark plug boot, allow the engine to cool before beginning maintenance. Gas trimmer heads sometimes experience carbon buildup or fuel residue, which can make the housing difficult to remove. A gentle tap or application of a dry lubricant around the cap threads can help if sticking occurs.
Stuck or Damaged Spools
If a spool refuses to release, examine whether debris has accumulated around the threads or locking mechanism. Clear any visible blockage before attempting to force the cap. Never use excessive force, as this can crack plastic components or strip threads.
Replace damaged spools rather than attempting repairs. Cracked spools, worn anchor holes, or deformed ridges compromise line retention and create safety hazards during operation.
Common Mistakes and Troubleshooting
Winding in the Wrong Direction
This is the most frequent error during line replacement. Line that winds opposite to the designated direction may not advance when you bump the head or use the trimmer. The line simply spins in place rather than extending to the cutting path.
If this occurs, disassemble the head and rewind the line in the correct direction. Take time to identify the directional indicators before beginning.
Line Not Feeding After Replacement
Several issues can prevent proper line feed. The line may be tangled on the spool if wound too loosely. It may be catching on debris in the housing. The anchor holes might be blocked, or the line may be the wrong gauge for your model.
Disassemble and inspect for tangles, clear any debris, verify the line gauge matches specifications, and ensure anchor holes remain open and unobstructed.
Insufficient Line Length
If line runs out quickly after installation, you may have wound too little line onto the spool. Each spool has a maximum capacity designed to balance line availability with manageable head weight. Wind the full recommended length to avoid frequent interruptions during use.
Excessive Line Usage
Conversely, overfilling the spool causes tangling and irregular feed. Follow capacity markings rather than forcing additional line onto a full spool.
Head Failing to Lock
If the cutting head cap doesn’t secure properly after reassembly, the spool may be misaligned. Remove the cap, reposition the spool so that any keys or notches engage correctly, and try again. Forcing a misaligned cap can damage threads.
Frequently Asked Questions
How often should I replace trimmer line?
Replace line when it becomes worn to less than half its original diameter, breaks frequently, or no longer cuts vegetation effectively. Some users replace line at the start of each trimming season as preventive maintenance.
Can I use any brand of line in my trimmer?
Most trimmer line works across brands if the gauge matches your equipment’s specifications. However, quality varies among manufacturers. Using reputable line products reduces breakage and improves cutting performance.
What should I do if my spool won’t open?
Check for debris around the cap threads, ensure you’re turning in the correct direction, and try gentle tapping around the housing perimeter to break any seal. Avoid using tools to pry the cap, as this can cause damage.
Is professional service necessary for line replacement?
Line replacement is a standard maintenance task that most users perform themselves. However, if your trimmer shows signs of damage, unusual wear patterns, or mechanical problems beyond the scope of line replacement, consult a qualified small engine or outdoor power equipment technician.
Conclusion
Replacing weed wacker line is a straightforward maintenance task that restores cutting performance and extends the useful life of your string trimmer. By understanding your specific trimmer’s feed mechanism, selecting appropriate line, and following proper winding technique, you can complete this service efficiently and reliably.
Remember that safety comes first: always disconnect power sources before beginning, work in adequate lighting, and consult your equipment manual for model-specific guidance. With proper care and attention to the steps outlined above, you’ll maintain a trimmer that performs season after season.
