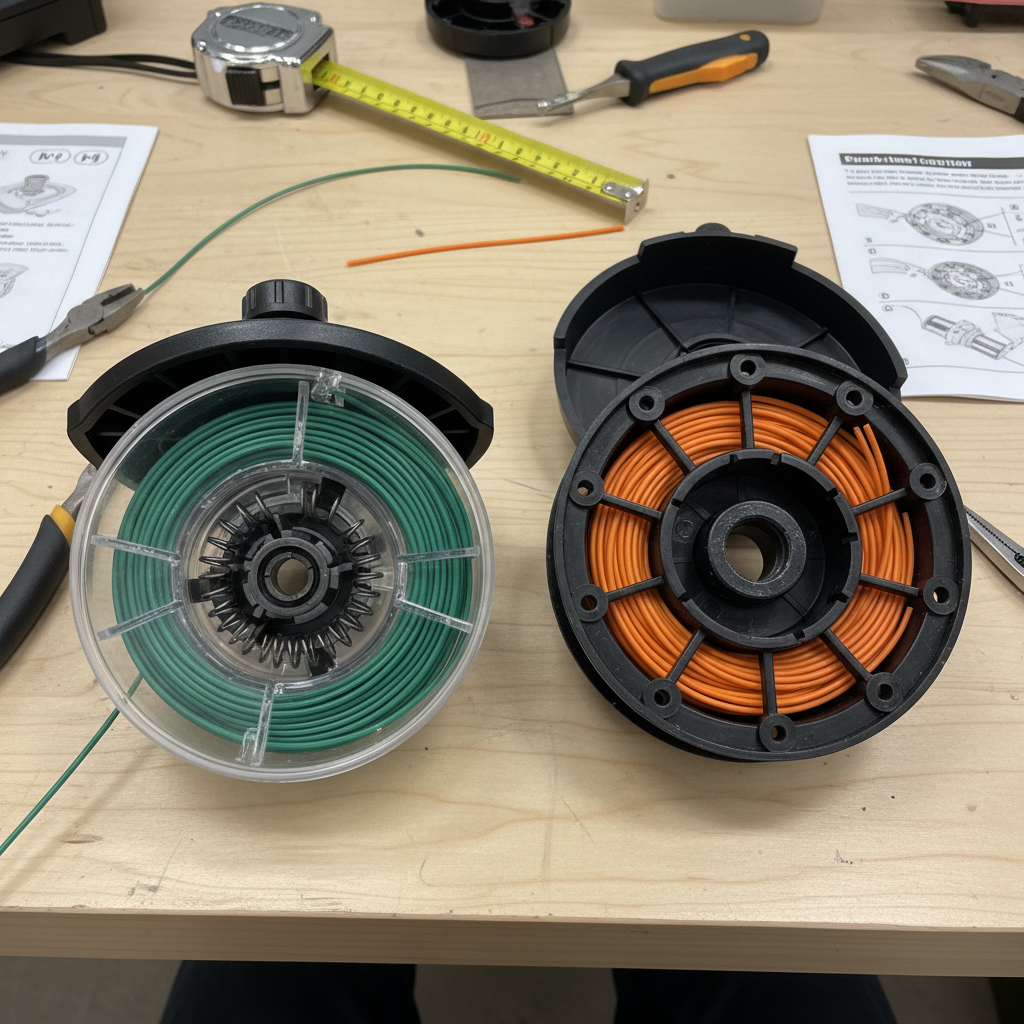

Understanding Your Trimmer Spool Type
Before you begin restringing, identify which spool type your trimmer uses. This determines your approach and helps you understand how the line feeds during operation.
Bump-Feed Spools automatically advance line when you tap the spool head against the ground. These spools hold both the active cutting line and a reserve that advances as needed. The mechanism relies on precise line length and winding to function properly.
Fixed-Line Spools have a set length of line that doesn’t advance automatically. You manually replace the line when it wears down or breaks. These are simpler to restring and more forgiving of minor winding mistakes.
Check your trimmer’s manual or examine the spool head closely. You’ll typically find directional arrows molded into the spool indicating which way to wind the line. Some spools have a single arrow showing rotation direction; others have separate arrows for each line path on dual-line spools. These arrows are critical—winding in the wrong direction causes the line to unwind during use.
Tools and Materials You’ll Need
Gather these items before starting:
- Trimmer line: Purchase the correct gauge (typically .065", .080", or .095" diameter) for your specific trimmer model. Check your manual for the exact specification.
- Scissors or line cutter: A utility knife or heavy-duty scissors cuts trimmer line cleanly without fraying.
- Screwdriver: Usually Phillips or flathead, depending on your trimmer head’s fastening system.
- Needle-nose pliers: Helpful for holding line in place while winding and for manipulating the spool’s retention tabs.
- Measuring tape: Ensures you cut the correct line length for your specific spool.
- Small brush: Optional but useful for cleaning debris from the spool before rewinding.
Regarding line length, most residential spools require 15–20 feet of line total. Bump-feed spools typically use 15–17 feet, while fixed-line spools may use 20+ feet depending on size. Your trimmer’s manual provides the exact specification. When in doubt, use slightly less rather than more—excess line causes winding difficulties and feeding jams.
Removing the Old Line
Start by safely detaching the spool head from your trimmer. Unplug electric trimmers or disconnect the spark plug wires on gas models to prevent accidental startup.
Removing the spool head: Most trimmer heads attach via a central bolt or snap-fit tabs. Check your manual for the specific method. If bolt-fastened, use your screwdriver to loosen and remove the bolt, then gently pull the spool head away from the trimmer shaft. Snap-fit heads typically release by squeezing tabs on opposite sides while pulling.
Unwinding old line: Once the head is removed, unwind any remaining line by hand. Most old line simply pulls away from the spool. If line is wrapped tightly or stuck, use needle-nose pliers to grip and gently pull it free. Don’t force it—aggressive pulling can damage the spool’s internal structure.
Cleaning the spool: Before winding new line, wipe the spool with a dry cloth to remove grass clippings, dirt, and dried debris. Buildup in the spool’s grooves interferes with smooth line winding and feeding. For stubborn debris, use a small brush to dislodge it.
Winding New Line onto the Spool
This is the most critical step. Improper winding causes line tangles, feeding failures, and poor trimmer performance.
Step 1: Insert the line into the starting point. Locate the small notch or groove at the spool’s edge—this is where the line anchors. Insert one end of your measured trimmer line into this notch. Some spools have a small hook or slot; insert the line fully to ensure it catches.
Step 2: Wind in the correct direction. Check the directional arrow on your spool. Turn the spool by hand in the direction the arrow indicates. Wind slowly and deliberately, maintaining steady tension with your other hand to guide the line. The line should sit flat against the spool without overlapping itself. If you notice line layering on top of previous wraps, you’re either winding too fast or the line isn’t being guided correctly—stop and reposition.
Step 3: Maintain consistent tension. Too-loose winding causes line to tangle and slip during use. Too-tight winding can damage the spool or make the final feeds difficult to manage. Aim for firm, even pressure—imagine tension similar to winding a cassette tape by hand. The line should be snug but not strained.
Step 4: Fill the spool evenly. As you wind, guide the line back and forth across the spool’s width, creating neat, parallel rows. This distributes line evenly and maximizes spool capacity. Avoid piling line in one area.
Step 5: Leave the correct amount of line exposed. Stop winding when you have 6–8 inches of line remaining. This exposed line is critical—it’s what actually cuts grass and what feeds through the trimmer head’s eyelets. Check your trimmer’s manual for the exact specification, as this varies by model.
Step 6: Secure the line. Most spools have a small notch or slot near the rim where you insert the free end of line to hold it in place while you reassemble the head. If your spool lacks this feature, hold the wound line firmly and proceed carefully during reassembly to prevent it from unwinding.
Reassembling and Testing Your Trimmer
Reattaching the spool head: Carefully align the spool head with the trimmer’s shaft. For bolt-fastened heads, slide it onto the shaft and hand-tighten the bolt first, then use your screwdriver to snug it firmly—don’t over-tighten, as this can strip the bolt threads. For snap-fit heads, push the head fully onto the shaft until you hear or feel the tabs click into place.
Thread the line through eyelets: Most trimmer heads have one or two small metal or plastic eyelets (openings) where line exits the head. Carefully pull your exposed line through these eyelets. Bump-feed spools may have a specific starting procedure—consult your manual for details.
Initial test: Before using your trimmer on grass, perform a dry test. Plug in electric trimmers or reconnect spark plugs on gas models. Start the trimmer and let it run at low speed for 10–15 seconds, listening and watching for any unusual vibration, noise, or line binding. If the line doesn’t feed smoothly or the spool vibrates excessively, stop immediately and recheck your winding.
First use: When you’re confident the restringing is correct, test the trimmer on a small patch of grass at low speed. Bump-feed spools may require a couple of ground taps to feed line initially—this is normal. If line feeds smoothly and cuts grass cleanly, your restringing is successful.
Common Mistakes to Avoid
Winding in the wrong direction: This is the most frequent error. The line unwinds during use rather than staying tight on the spool. Always double-check the directional arrow before winding, even if you think you remember from last time.
Overlapping line during winding: When line layers on top of itself, it binds and tangles. Guide each wrap carefully so it sits adjacent to the previous wrap, not on top of it. If you make a mistake partway through, unwind, reposition, and start again.
Winding too loosely: Loose line slips on the spool during operation, preventing consistent feeding and causing tangles. Maintain firm, even tension throughout.
Leaving too much or too little line exposed: Excess exposed line can wrap around the trimmer head or get caught during operation. Too little line limits cutting efficiency. Stick to your manual’s specification—typically 6–8 inches.
Using the wrong line gauge: Trimmer line comes in various thicknesses. Using line that’s too thin for your trimmer can cause breakage and feeding problems. Too-thick line may not fit on the spool or feed through eyelets. Always purchase the exact gauge specified in your manual.
Not securing line before reassembly: If your spool has a retention slot, use it. Otherwise, hold the wound line firmly while reassembling. Loose line unwinds partially during reassembly, throwing off your tension and line length.
Frequently Asked Questions
Can I use any brand of trimmer line on my spool?
Most standard trimmer line works on any spool, provided it matches your trimmer’s specified gauge. However, some premium or specialty lines (round vs. twisted, reinforced cores) perform differently. Stick to your manual’s recommendation initially. Once you’re comfortable, you can experiment with alternative brands, but always verify the gauge is correct.
Why does my line keep tangling after I restring?
Tangling usually results from winding in the wrong direction, overlapping line during winding, or loose winding tension. Verify the directional arrow is correct and that each wrap sits flat and adjacent to the previous one. If tangles persist, unwind completely and start over, paying close attention to even tension and line placement.
How often should I restring my trimmer spool?
This depends on trimmer use. Frequent users may restring every few weeks; occasional users, a couple times per season. You’ll know it’s time when line breaks frequently, feeding becomes inconsistent, or you run out of exposable line. Most people restring either when line runs out or when performance degrades noticeably.
What’s the difference between bump-feed and fixed-line spools regarding restringing?
Fixed-line spools are simpler—you replace line once and it lasts until it wears or breaks. Bump-feed spools are more complex because improper winding affects the automatic feeding mechanism. Both follow the same basic restringing steps, but bump-feed requires more precision in line length and winding to ensure the feed mechanism engages correctly.
Key Takeaways
Restringing a trimmer spool is straightforward when you understand your specific spool type and follow the directional arrows. The most critical steps are using the correct line gauge, winding in the correct direction, maintaining steady tension, and leaving the appropriate amount of line exposed. Taking time to wind neatly and securely prevents tangles and feeding issues that frustrate users. With practice, the entire process takes 10–15 minutes, saving you money compared to professional service while keeping your trimmer in peak working condition.
