How Do You Rethread a Weed Wacker? (Step-by-Step Guide for Every Head Type)

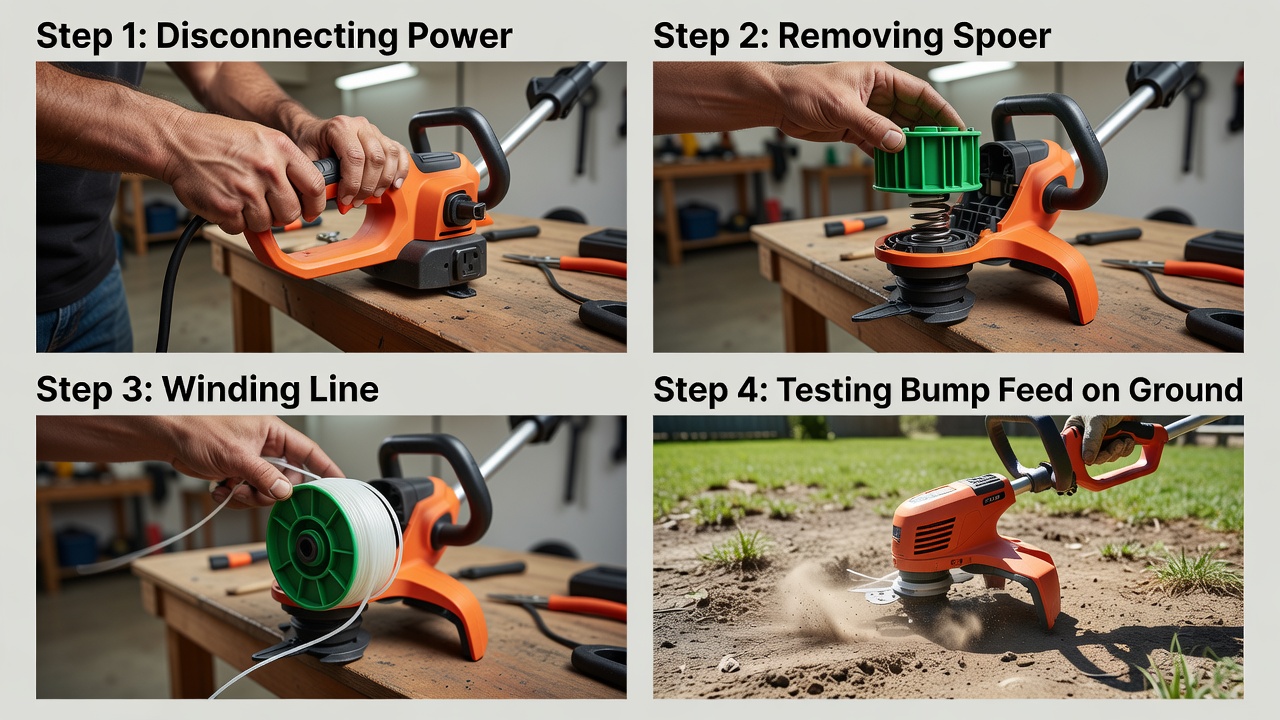

Quick Answer: How to Rethread a Weed Wacker

Turn off the trimmer and disconnect the power source — unplug corded units, remove the battery on cordless models, or pull the spark plug wire on gas trimmers. Press the retaining tabs on the spool head, pull the spool free, and remove old line. Cut fresh line to the length your owner’s manual specifies (commonly 6–9 ft per strand), anchor it in the spool’s center notch, and wind it in the direction of the molded arrow on the spool. Thread the ends through the eyelets, snap the cap back until it clicks, and test the bump feed on the ground.

Safety Prerequisites Before You Touch the Spool

Every rethreading job starts with power isolation — the trimmer’s cutting head can spin unexpectedly if this step is skipped. Follow the correct procedure for your power type before any disassembly.

Gas Trimmers

• Move the throttle to the off or stop position.
• Let the engine cool for at least 5 minutes.
• Pull the spark plug wire firmly off the spark plug terminal and tuck it away from the plug. This is the definitive anti-start measure for gas-powered tools — even with the switch off, residual compression can cause the engine to kick if the head rotates.
• Place the trimmer on a flat surface with the head pointing away from you.

Corded Electric Trimmers

• Release the trigger and engage the safety lock.
• Unplug the power cord from the outlet. Do not rely on the power switch alone.

Cordless (Battery-Powered) Trimmers

• Release the trigger and engage the safety lock.
• Remove the battery pack completely before touching the head.

Personal Protective Equipment

• Gloves: Trimmer line ends are sharp and can cut skin during winding.
• Safety glasses: Old line fragments can flick free when you pull the spool.

Identify Your Trimmer Head Type

Rethreading steps differ significantly between head types. Using the wrong procedure is the leading cause of reassembly failure. Check the head itself or your owner’s manual before proceeding.

Bump-Feed Head

The most common type. A spring-loaded spool sits inside a cap. You advance new line by tapping (bumping) the head against the ground, which releases a small amount of line each time. The head has a visible bump knob on the bottom.

Fixed-Line (Pre-Cut) Head

Uses individual pre-cut line segments — typically 6 to 12 inches each — that insert directly into ports or eyelets around the head. There is no internal spool. Common on commercial and pro-grade trimmers (e.g., STIHL AutoCut C heads).

Auto-Feed (Automatic-Feed) Head

Senses line length via centrifugal force and advances line automatically without bumping. It contains a larger-capacity internal spool with a self-advancing clutch mechanism. Recognizable by the absence of a bump knob and sometimes a vented cap.

Choose the Right Replacement Trimmer Line

Using the wrong diameter or profile causes immediate breakage or motor strain. Check the inner spool housing or owner’s manual — the correct diameter is almost always stamped there.

Line Diameter by Common Brand and Model Class

Important: These figures are typical ranges only. Always confirm the exact diameter and maximum line length in your model’s owner’s manual or the manufacturer’s product spec page — loading oversized line can jam the spool or overheat the motor.

Line Profile (Shape)

• Round: The universal default. Long-lasting, works in all head types, quietest.
• Twisted / Serrated: Cuts slightly more aggressively through dense grass and weeds. Generates more noise. Check that your head and motor are rated for the added load before upgrading.
• Star / Multi-sided: Maximum cutting aggression for heavy brush. Appropriate only for commercial-rated heads and high-torque gas engines. Manufacturer data sheets are the only reliable source for efficiency comparisons between profiles — unsupported claims of universal superiority are common but not independently verified.

How to Rethread a Bump-Feed Trimmer Spool

This covers the procedure for single-line and dual-line bump-feed spools — the two most common configurations in consumer string trimmers.

Step 1 — Remove the Spool Cap

1. Hold the shaft of the trimmer firmly with one hand.
2. Locate the tabs on the sides of the spool cap (usually two tabs, 180° apart).
3. Press both tabs inward simultaneously and twist the cap counterclockwise, or simply pull straight down — method varies by brand. Do not force it; if it resists, check for a second set of hidden tabs.
4. Pull the cap free, then lift out the spool. Note the orientation of the spring underneath — it must go back in the same way.

Step 2 — Clear Old Line

1. Pull all remaining old line off the spool.
2. Inspect the spool for cracks or worn eyelets. Replace the spool if damaged — a cracked spool is the most common hidden cause of line breakage after rethreading.
3. Wipe debris from the spool housing with a dry cloth.

Step 3 — Cut and Prepare New Line

• Single-line spool: Cut one strand to the length specified (typically 6–9 ft).
• Dual-line spool: Cut two equal strands, or cut one long strand and fold it in half — check whether your spool has one center notch (fold method) or two separate anchor slots (two-strand method).

Step 4 — Anchor the Line

• Find the anchor notch or hole at the center of the spool (some spools have a small slot on the divider between the two winding channels).
• For the fold method: fold the line at the midpoint and hook the bend into the center notch.
• For the two-strand method: insert one end of each strand into its respective anchor hole until it catches (a short 1–2 cm tail locks it).

Step 5 — Wind the Line

1. Locate the directional arrow molded on the spool body. This is not optional — winding in the wrong direction causes the line to unwind and jam instead of advancing.
2. Wind the line tightly and evenly in the direction of the arrow, keeping each layer close but not overlapping excessively. Loose or crossed wraps cause fusing and jams.
3. For dual-line spools: wind each strand in its own channel (above and below the center divider). Maintain equal tension on both sides to keep the spool balanced.
4. Leave approximately 6 inches of line unwound at the end of each strand.

Step 6 — Thread the Eyelets and Reassemble

1. Thread each free end through the corresponding eyelet on the spool housing, pulling it through until the line is seated and the winding is held under tension.
2. Hold the line ends to maintain tension and place the spring back into the housing (spring goes on the spool shaft, not inside the cap).
3. Press the spool into the housing, align the cap tabs with their slots, and push or twist clockwise until you hear or feel a definitive click.
4. Pull each line end firmly outward to seat the line against the eyelets.

Step 7 — Test the Bump Feed

1. Reconnect your power source.
2. Start the trimmer and run it at low throttle.
3. Tap the head sharply against a patch of bare ground once. The line should advance 1–2 cm per bump. If it does not advance, see the troubleshooting section below.

How to Rethread a Fixed-Line (Pre-Cut) Trimmer Head

Fixed-line heads do not use a wound spool. Each line segment is a discrete piece inserted directly into a port. This head type requires no spool removal in most cases.

1. Complete the safety steps for your power type (power off, disconnect source).
2. Remove spent segments: Grip each remaining line stub and pull it straight out of its port. Some ports have a small retaining clip — press it inward while pulling.
3. Cut fresh segments: Cut monofilament line to the length stamped on the head or specified in the manual — typically 6–12 inches per segment. The correct diameter still applies.
4. Fold if required: Some fixed-line heads (e.g., STIHL AutoCut C) use a fold-through design — fold the segment in half and push the fold through a center port until both ends extend equally from opposite sides.
5. Insert segments: Push each segment firmly into its port until it stops. The port grips the line by friction or a small retaining barb. Tug to confirm it is seated.
6. Check line extension: All segments should extend to equal length. Unequal lengths cause vibration and uneven cut.
7. No spool cap to reinstall. Reconnect power and test.

How to Rethread an Auto-Feed Trimmer Head

Auto-feed heads carry more line than standard bump-feed spools and use a centrifugal clutch mechanism to advance line automatically. The winding procedure is functionally similar to a bump-feed spool, but loading sequence matters more because tangled line disables the auto-advance mechanism.

1. Complete the safety steps for your power type.
2. Open the head: Most auto-feed caps unscrew counterclockwise (some are press-and-twist). Remove the cap and lift out the spool. The auto-advance spring assembly is typically integrated into the cap — keep cap and spool together and note their relative orientation before separating.
3. Remove old line: Clear all old line from the spool. Inspect the advance mechanism (a small clutch plate or ratchet) for debris — packed grass is the most common cause of auto-advance failure and does not require rethreading to fix.
4. Load new line: Auto-feed spools typically hold more line (25–40 ft total across both channels). Cut to the length specified on the spool or in the manual. Wind each strand in the direction of the molded arrow, keeping wraps tight and even. Do not exceed the fill-line indicator molded on the spool — overfilling defeats the auto-advance clutch.
5. Thread eyelets: Feed each end through its eyelet. On auto-feed heads the eyelets are often recessed — use a thin rod or the line itself fed from outside to confirm the path is clear before threading.
6. Reassemble: Align the cap’s orientation marks with the spool’s marks (critical on auto-feed heads — misalignment prevents the clutch from engaging). Press and twist until it locks.
7. Test: Run the trimmer at operating speed. The line should advance automatically as it wears down. If it does not advance after rethreading, check for overfilling or cap misalignment before assuming a mechanical fault.

Common Rethreading Mistakes and How to Fix Them

Line Breaks Immediately After Rethreading

• Cause: Wrong line diameter (too thin), cracked spool with sharp edges, or eyelet worn to a sharp burr.
• Fix: Confirm diameter against the owner’s manual. Inspect the spool and eyelets — replace if edges are sharp. Sand a slightly burred eyelet with fine-grit emery cloth as a temporary measure.

Spool Cap Won’t Click Back Into Place

• Cause: Line is overloaded past the spool’s capacity, line is crossed between channels, or the spring is seated incorrectly.
• Fix: Remove the spool, unwind several wraps to reduce bulk, re-seat the spring, and reassemble. The cap should seat flush before the click — if it sits proud, there is too much line.

Line Not Feeding When Head Is Bumped

• Cause: Line wound in the wrong direction, line not threaded through the eyelets, or line ends too short to reach the cutting plane.
• Fix: Open the head and confirm winding direction matches the arrow. Confirm both ends exit through the eyelets. Ends should extend at least 3–4 inches beyond the housing before testing.

Line Wound in the Wrong Direction

• Symptom: Line retracts into the head during use instead of advancing; bump feed produces no extension.
• Fix: Unwind completely and re-wind following the arrow. There is no shortcut — incorrect direction winding must be fully removed.

Trimmer Line Fusing or Welding Together on the Spool

• Cause: Heat from friction between wraps that are too loose and flutter, or between crossed wraps. Also caused by storing the trimmer in direct sunlight.
• Fix: Wind tighter and more evenly. Keep wraps in their correct channel. Store the trimmer in a shaded, cool location. Soaking a fused spool in water for 30 minutes before unspooling can loosen heat-welded monofilament.

Frequently Asked Questions

How often should I rethread my weed wacker?

Rethread when less than 3–4 inches of line extends from the head, or when the bump feed produces no extension at all. Frequency depends on use intensity and the surface being trimmed — gravel and concrete wear line much faster than grass. Heavy users may rethread weekly; occasional users may go an entire season on one spool load.

Can I use any brand of trimmer line, or does it have to match my trimmer’s brand?

Line brand does not need to match the trimmer brand. Diameter and profile must match the head’s specification. Third-party lines that match the correct diameter work reliably. Avoid no-name bulk line of unknown diameter — measure with calipers if the packaging lacks a clear spec.

What is the difference between how to rethread a weed wacker and how to replace trimmer line?

The terms are functionally identical and describe the same task. “Rethread” emphasizes routing line through the eyelets; “replace trimmer line” emphasizes swapping old for new. Both phrases describe the complete process of removing spent line, loading new line onto the spool, and reassembling the head.

Why does my trimmer line keep breaking even after I rethread it correctly?

The four most common causes after a correct rethread: (1) line diameter is too thin for the work being done — size up if you are cutting dense weeds or brush; (2) the spool or eyelets have sharp wear points — replace the spool or head; (3) the line is old and brittle — monofilament degrades with UV and heat exposure, so replace line that has been stored for more than one season; (4) engine or motor speed is too high for the line gauge — run at the speed specified in the manual for the installed line diameter.
