How to Rewire a Weed Wacker?
Rewiring a weed wacker involves disconnecting all power, carefully disassembling the handle or motor housing, removing old wiring, routing and connecting new wires to the correct terminals (motor, switch, and power source), and reassembling and testing the unit. The exact procedure varies significantly between corded electric, battery-powered, and gas models with electric start systems, but safety—especially disconnecting all power sources—is the universal first step. Always consult your model’s specific manual for wiring diagrams.

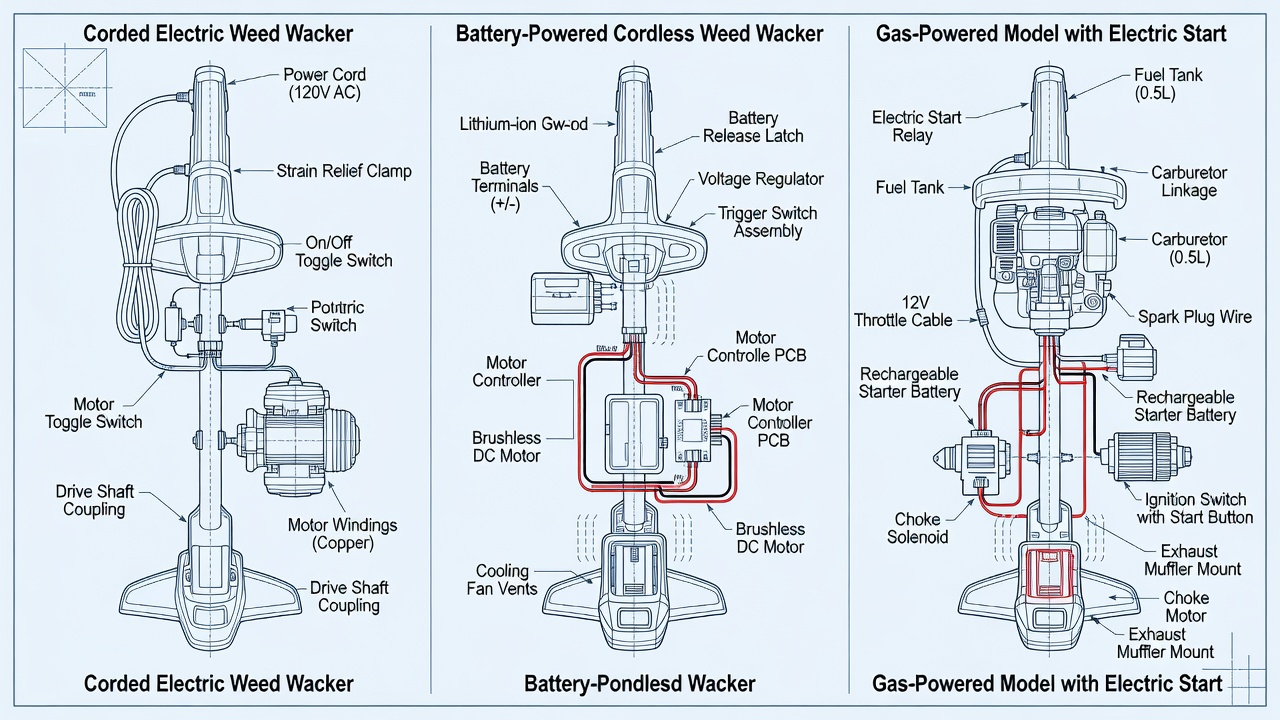

Understanding Weed Wacker Wiring Systems and Types
Before attempting any rewiring, it’s crucial to identify your weed wacker’s type, as the wiring systems differ fundamentally.
- Corded Electric Models: These have a main power cord that runs from the wall outlet to the handle, where it connects to the trigger switch and safety switch. Rewiring often involves replacing this main cord or the internal wiring within the handle.
- Battery-Powered (Cordless) Models: These contain internal wiring that connects the battery terminal, safety switch, trigger switch, and motor. Rewiring typically means repairing or replacing damaged internal wires within the handle or motor housing.
- Gas-Powered with Electric Start: These have a small electrical system for the starter button and ignition coil. Rewiring here is less common and usually involves the starter circuit, not the main power.
The term “rewiring” most commonly refers to replacing a damaged power cord on a corded model or fixing broken internal connections in any model.
Essential Safety Precautions and Required Tools
Safety is non-negotiable. Failure to follow these steps can result in electric shock or injury.
- Disconnect ALL Power: For corded models, unplug the unit from the wall. For battery models, remove the battery pack. For gas models, disconnect the spark plug wire.
- Work in a Dry, Well-Lit Area: Avoid damp surfaces.
- Wear Protective Gear: Use insulated gloves and safety glasses.
- Use Insulated Tools: Screwdrivers with insulated handles are recommended.
Required Tools:
- Screwdriver set (Phillips and flat-head)
- Wire strippers/cutters
- Multimeter (for testing continuity)
- Soldering iron and solder (for permanent connections)
- Heat shrink tubing or electrical tape (for insulation)
- Replacement wire (of appropriate gauge) and connectors
- Small pliers or needle-nose pliers
Step-by-Step Guide to Rewiring a Weed Wacker
This guide covers the most common scenario: replacing a damaged power cord or internal handle wiring.
Step 1: Disassembly
Carefully remove the screws holding the handle halves together. Take photos as you go to remember screw locations and wire routing. Gently separate the handle to expose the internal wiring and switches (trigger and safety).
Step 2: Identify and Document Wiring
Before removing any wires, note or photograph how they connect to the trigger switch, safety switch, and motor leads. Pay attention to wire colors and terminal positions. If a wiring diagram is available in your manual, reference it.
Step 3: Remove Old Wiring
Disconnect the old wires from their terminals. If they are soldered, carefully desolder them. For a corded model, you will typically cut the old cord near the strain relief bushing where it enters the handle.
Step 4: Route and Connect New Wiring
Strip the insulation from the ends of the new wires. Connect them to the correct terminals on the switches and motor leads. Ensure connections are secure. For a permanent fix, solder the connections and cover them with heat shrink tubing. For a temporary or modular fix, use appropriate crimp connectors.
Step 5: Reassembly and Testing
Carefully reassemble the handle, ensuring no wires are pinched. Secure all screws. Before full reassembly, use a multimeter to test for continuity across the plug prongs (for corded models) and ensure the safety switch and trigger switch function correctly. Reconnect power (plug in or insert battery) and perform a brief, safe test run.
Troubleshooting Common Rewiring Issues
- Weed Wacker Does Not Power On: Check that the power source is connected. Use a multimeter to test for continuity from the plug to the motor. Verify all wire connections are tight and not reversed.
- Intermittent Power: This often indicates a loose connection or a wire that is being pinched during reassembly. Disassemble and inspect all connections.
- Safety Switch Not Working: Ensure the switch is wired correctly. Test the switch independently with a multimeter. A faulty switch may need replacement.
- Short Circuit (Trips Breaker): This indicates a direct short, likely from a wire touching the wrong terminal or a bare wire contacting metal. Immediately disconnect power and inspect all wiring.
Frequently Asked Questions
Can I rewire a weed wacker without a diagram?
It is strongly discouraged. Without a diagram, you risk incorrect connections that can damage the motor or create a safety hazard. Always try to obtain the model-specific wiring diagram from the manufacturer’s website or manual.
What gauge wire should I use for replacement?
Use wire of the same gauge (thickness) as the original. For most weed wacker power cords, this is typically 16 or 18 AWG (American Wire Gauge). Using a thinner wire can cause overheating.
Is it safe to use wire nuts instead of soldering?
Wire nuts are generally not recommended for the small-gauge wires and tight spaces inside a weed wacker handle. They can come loose from vibration. Soldering with heat shrink tubing provides a more secure and insulated connection.
When should I call a professional instead of rewiring myself?
Call a professional if you are uncomfortable with electrical work, if the damage is inside the motor housing, or if the weed wacker has a complex control board. Safety should always be the priority.
