Quick Answer: How To Rewire Weed Wacker?
To rewire a weed wacker, first disconnect all power by unplugging it, removing the battery, or pulling the spark plug boot. Open the housing to access the wiring, identify the faulty wire or switch, replace or reconnect it using proper connectors, and test the unit before fully reassembling. This process can often fix common issues like a non-responsive trigger or…
Pros
- Broad compatibility with multiple Ryobi ONE Plus+ voltage platforms.
- Automatic feed design simplifies spool replacement and routine maintenance.
- Durable nylon construction with claimed abrasion resistance and high tensile strength.
Cons
- Compatibility is limited to specified Ryobi ONE Plus+ models, so it is not a universal trimmer line solution.
- The listing does not provide detailed dimensions or fit guidance for every exact trimmer variant.
- Top review data is not available here, so long-term user experience is harder to verify from the manufacturer information.
Overview & Design: The YWTESCH AC80RL3 is a replacement string trimmer refill made for Ryobi ONE Plus+ weed eaters. It uses 0.080-inch polyamide nylon line and is paired with trimmer caps, giving it the look and function of a practical maintenance part for regular yard work.
Performance & Key Features: This refill is built for Ryobi 18V, 24V, and 40V trimmers and uses an automatic feeding spool style to reduce the hassle of manual winding. The brand also states that the line is abrasion resistant and has a tensile strength of over 100 lb, which suggests solid durability for cutting grass and light weeds.
Drawbacks & Considerations: The main limitation is compatibility, since it is intended for specific Ryobi ONE Plus+ models rather than all string trimmers. The listing also does not include detailed fit measurements, so users with less common trimmer variations should confirm compatibility before buying.
Verdict: This is a sensible pick for Ryobi owners who want a straightforward refill option with automatic feed convenience and a durable 0.080-inch line. It is best suited for routine home lawn maintenance rather than heavy-duty commercial trimming.
Pros
- Exceptional durability from commercial-grade co-polymer construction resists wear and breakage
- 50 percent noise reduction for quieter operation compared to standard lines
- Precise cutting performance with undulated surface for clean results
- Made in the USA ensuring quality engineering and materials
- Long 140-foot length provides extended value per spool
Cons
- Supplied as a continuous spool that requires manual winding into the trimmer head and cutting to length
- 0.095-inch diameter may not match the preferred thickness for every trimmer model
- Limited to basic cutter accessory with no pre-cut segments or extra tools included
The Husqvarna Titanium Force 0.095-Inch 140-Foot Spooled String Trimmer Line is a professional-grade copolymer weed eater line built for reliability. Its co-extruded polymer construction with a round dimpled profile offers immediate impressions of solid build quality aimed at both homeowners and those seeking gifts for men or Fathers Day. Manufactured in the USA, the continuous spool design prioritizes longevity and flexibility right out of the package.
In real-world performance this line excels through its undulated surface that cuts noise by 50 percent while delivering precise cutting and improved energy efficiency. The commercial-grade resins provide strong abrasion resistance and reduced breakage, making it suitable for tackling thick weeds and grass around standard trimmer heads. The included cutter allows easy length customization for consistent results across various landscaping tasks.
Potential drawbacks include the need to manually wind the full 140-foot spool into the head and cut segments as required, which adds a minor setup step. The fixed 0.095-inch diameter also means it may not optimally match every trimmer model that prefers thinner or thicker line options.
Overall this Husqvarna Titanium Force line is an excellent choice for homeowners and yard maintenance users who value quiet durable performance and USA-made quality. Those needing a versatile professional-grade replacement will find strong value in its design and features.
Pros
- Heavy-duty .095" nylon construction is built for tougher trimming tasks.
- Square shape can improve cutting efficiency and edging precision.
- Long 330-foot spool reduces the need for frequent replacement.
- Compatible with many trimmer types that use .095" line.
Cons
- May be less suitable for very light-duty trimming where a thinner line could be easier on smaller trimmers.
- No included trimmer head or additional accessories are listed in the product data.
- Performance can vary by trimmer power and the type of vegetation being cut.
Overview & Design: The VIABRICO .095" Weed Eater String is a square-profile trimmer line made from premium nylon-based material for general lawn care and heavier edging tasks. The orange color makes the spool easy to identify, and the 330-foot length is useful for users who go through line regularly.
Performance & Key Features: Its square shape is designed to create sharper cutting edges and a larger cutting surface than standard round line, which can help improve trimming speed and edge definition. The line is also advertised as abrasion resistant, crack resistant, and highly impact resistant, with a precision-wound spool intended to reduce tangling, misfeeds, and jams.
Drawbacks & Considerations: This is a .095" heavy-duty line, so it may be more than some lightweight trimmers need. The product data does not include accessories, and real-world results will still depend on the power of the trimmer and the type of weeds or terrain being handled.
Verdict: This VIABRICO trimmer line is a solid fit for homeowners and frequent yard-maintenance users who want a durable .095" line with better cutting performance than basic round string. It is especially relevant for edging, thicker weeds, and rougher terrain where wear resistance matters.
Pros
- Common .065-inch round line size improves compatibility with many trimmer models.
- Long 328-foot spool supports multiple refills from one package.
- Nylon material is positioned as a budget-friendly option for basic lawn maintenance.
- Useful for light trimming and edging around typical residential yards.
Cons
- Round .065-inch line is designed for light trimming, so it is not ideal for heavy weeds or thick overgrowth.
- Compatibility is broad but not universal, so users still need to confirm their trimmer calls for .065-inch line.
- No extra accessories or prewound spool system are included in the product information provided.
Overview: The FEPITO Round .065-Inch String Trimmer Line is a nylon replacement line designed for garden string trimmers and edgers. It is positioned as a straightforward, economical option for routine home yard maintenance.
Performance: With a 0.065-inch round profile and 328 feet of total line, this spool is meant for light trimming of small to medium grass. The longer length can provide around 16 refills, which is useful for users who want a supply that lasts through repeated mowing and edging sessions.
Drawbacks: This is not a heavy-duty trimmer line, so it may be less effective on thick weeds, dense brush, or tougher landscaping jobs. Buyers also need to check compatibility, since it is only suitable for trimmers that specifically call for .065-inch round line.
Verdict: The best value will be for homeowners who need a basic, budget-conscious replacement line for regular light trimming. If your yard work is mostly routine edging and grass cleanup, this FEPITO spool is a practical fit.

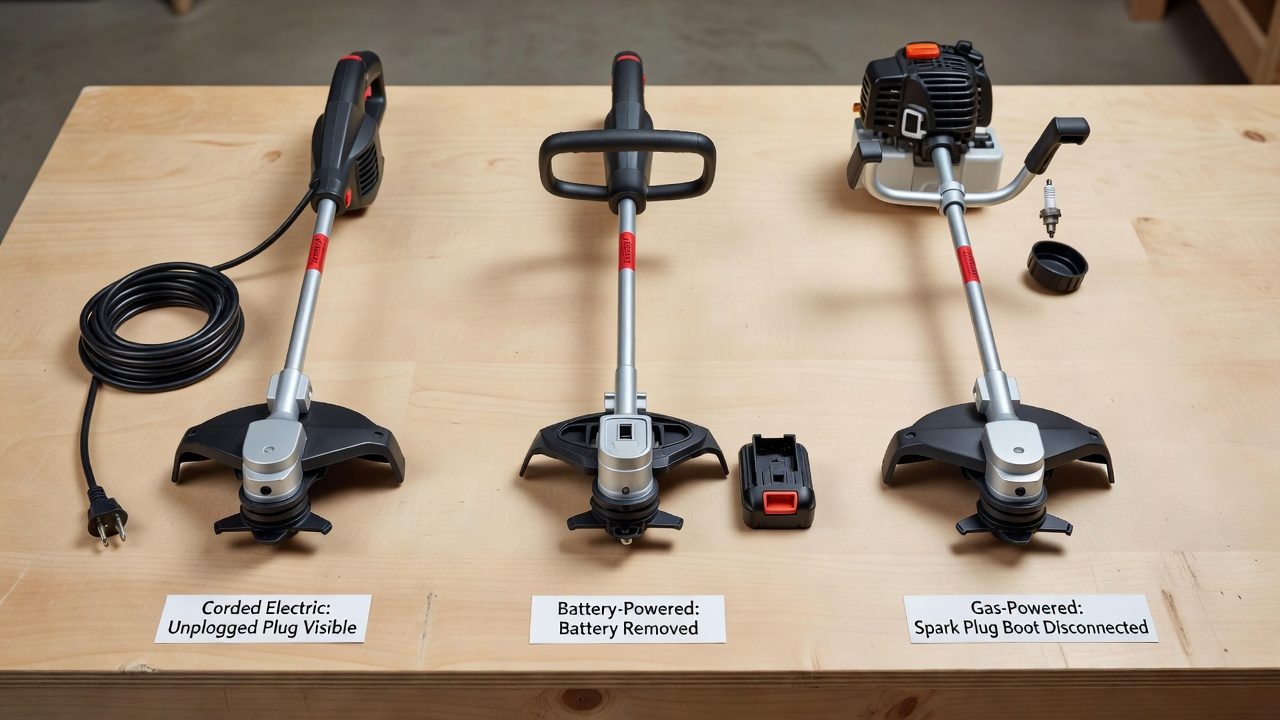

Safety First: Disconnect All Power
Before you touch any wiring on your string trimmer, you must ensure it cannot accidentally start. This is the most critical step to prevent electric shock or injury from a spinning cutting head. The method depends entirely on your trimmer’s power source.
- Corded Electric Trimmers: Unplug the power cord from the wall outlet. Do not rely on the switch being in the “off” position.
- Battery-Powered Trimmers: Remove the battery pack completely from the unit. Set it aside in a safe location away from your work area.
- Gas-Powered Trimmers: Pull the spark plug boot off the spark plug. This physically prevents the engine from firing. For added safety, you can also drain the fuel tank or ensure the fuel cap is secure to prevent spills.
Never attempt to open the housing or work on internal components while the trimmer is connected to a power source.
Know Your Trimmer: Corded, Battery, or Gas
Identifying your trimmer type is essential, as the internal layout and rewiring procedures differ. While all three types have a trigger switch and wiring harness, their power delivery systems are distinct.
- Corded Electric: Has a long power cord that plugs into an outlet. The wiring runs from the plug, through the handle, to the trigger switch and then to the motor.
- Battery-Powered: Features a removable battery pack that slots into the base or handle. Wiring connects the battery terminals to the switch and motor.
- Gas-Powered: Contains a small engine with a fuel tank and pull-start cord. The “wiring” is typically limited to the ignition system, connecting the spark plug, ignition coil, and a kill switch.
In most models, the primary wiring and the trigger switch are housed within the handle assembly.
Tools and Materials You’ll Need
Having the right tools on hand will make the job smoother and help you avoid damaging the trimmer’s plastic housing or electrical connections.
- Screwdriver Set: A mix of Phillips-head and flathead screwdrivers to remove housing screws.
- Pliers: Needle-nose pliers are useful for gripping small wires and connectors.
- Wire Strippers: For cleanly removing insulation from wire ends.
- Crimp Connectors or Soldering Iron: Crimp connectors (like butt splices) offer a quick, solderless repair. A soldering iron with solder provides a more permanent, vibration-resistant connection.
- Heat-Shrink Tubing or Electrical Tape: To insulate and protect repaired wire connections. Heat-shrink tubing is generally more durable.
- Multimeter (Optional but Recommended): An invaluable tool for testing continuity in switches and wires to pinpoint the exact fault.
Step-by-Step: Accessing the Wiring
Once power is disconnected, you can safely open the trimmer to access the internal components.
- Remove Screws: Carefully remove all screws holding the handle or housing halves together. Keep screws organized, perhaps in a small container, as they may be different lengths.
- Separate the Housing: Gently pry the two halves of the housing apart. Be mindful of plastic clips that may also hold it together; forcing it can break them.
- Document the Layout: Before disconnecting anything, take a clear photo of the existing wiring layout with your phone. This is your reference for reassembly. Note how wires are routed and which terminals they connect to on the switch.
- Identify Components: Once open, you will typically see the trigger switch, the wiring harness, and connections leading to the motor (in electric models) or the ignition system (in gas models).
Identifying Wires and Switch Terminals
Understanding the basic wiring helps you diagnose the problem and ensure correct reassembly.
Wire colors are not universally standardized across all trimmer brands. Do not assume a red wire is always positive or a black wire is always ground. Rely on the photo you took or a wiring diagram if one is printed inside the housing. Common connections include: Before finalizing equipment decisions, refer to our comprehensive marshall stanmore iii vs harman kardon onyx studio 8 comparison.
- Power Input: Wires coming from the power source (cord, battery terminals, or ignition coil).
- Switch Terminals: The trigger switch will have two or more metal terminals where wires attach, often via spade connectors.
- Output to Motor/Engine: Wires that carry current from the switch to the motor or ignition system.
A simple continuity test with a multimeter can confirm if a switch is working: set the meter to continuity mode (often a sound symbol), touch one probe to each switch terminal, and press the trigger. A beep indicates a closed circuit.
How to Replace a Faulty Trigger Switch
A broken trigger switch is a common reason a trimmer won’t start. Replacing it involves careful disconnection and reconnection. For broader ecosystem context, read through our operational guide on dyson v8 cyclone vs bissell featherweight stick.
- Disconnect Wires: Note which wire goes to which terminal on the old switch. Gently pull the spade connectors off the terminals using pliers if needed. If wires are soldered, you will need to desolder them.
- Remove the Switch: The switch may be held in place by screws or clips. Remove it from the housing.
- Install the New Switch: Secure the new, compatible switch in the same position. Ensure it is rated for the trimmer’s voltage and amperage (this information is often on the motor label or in the manual).
- Reconnect Wires: Attach each wire to the corresponding terminal on the new switch, exactly as they were on the old one. Double-check your photo reference.
How to Splice a Cut or Broken Wire
If a wire is severed or its insulation is damaged, you can repair it without replacing the entire harness.
- Strip the Ends: Use wire strippers to remove about 1/2 inch of insulation from each broken end, exposing clean copper strands.
- Join the Wires: Twist the exposed strands of the two ends together firmly.
- Secure the Connection:
- With a Crimp Connector: Slide a butt splice connector over the twisted wires and use a crimping tool to compress the metal sleeve, creating a strong mechanical and electrical bond.
- With Solder: Apply heat to the twisted wires with a soldering iron and feed solder into the joint until it flows and coats the wires. Let it cool completely.
- Insulate the Repair: Slide a piece of heat-shrink tubing over the connection and shrink it with a heat gun or lighter flame (carefully). Alternatively, wrap the repair tightly with electrical tape. A proper splice should be insulated and able to withstand vibration.
Testing Your Repair Before Reassembly
Before closing everything up, verify your work to avoid having to reopen the housing. For troubleshooting and reliability insights, consult our in-depth bissell crosswave hydrosteam vs shark stainforce report.
- Visual Inspection: Ensure all connections are secure, no bare wire is exposed, and no wires are pinched where the housing halves meet.
- Continuity Test: Use your multimeter to check for continuity across the repaired wire or new switch. This confirms the electrical path is complete.
- Cautious Power Test:
- Corded: Plug it in, keep your body clear of the cutting head, and briefly press the trigger.
- Battery: Insert the battery and test the trigger.
- Gas: Reattach the spark plug boot and attempt a pull start (with the cutting head clear).
If the trimmer activates as expected, you can proceed with reassembly. If not, disconnect power again and recheck your connections.
When to Repair vs. Replace Your Trimmer
While rewiring can fix many issues, it’s not always the most practical solution. Consider replacement or professional service if:
- The motor is burned out, seized, or making grinding noises.
- The housing is cracked or damaged to the point it cannot be safely reassembled.
- The cost of replacement parts (like a new switch and connectors) combined with your time approaches the price of a new trimmer.
- The problem involves the circuit board (on some advanced battery models) or internal engine components you are not comfortable servicing.
For complex issues like motor rewinding or carburetor problems on gas models, a qualified small-engine repair technician is often the best option.
Frequently Asked Questions
Can I use any wire to rewire my trimmer?
No. Use wire of a similar gauge (thickness) and insulation rating to handle the current and resist heat and vibration. Using undersized wire can create a fire hazard.
My trimmer runs but cuts out when I tilt it. Is this a wiring issue?
This is often a safety feature (low-oil sensor on 4-cycle engines) or a fuel delivery issue, not typically a wiring problem. Check your manual.
How do I know if my switch is bad?
A multimeter continuity test is the most reliable method. If the meter shows no continuity when the trigger is pressed (or shows continuity when it’s released, depending on switch type), the switch is likely faulty.
