How to Test a Coil on a Lawn Mower: Direct Answer
To test a coil on a lawn mower, you can perform three diagnostic methods: first, conduct a visual inspection for physical damage and check the air gap between the coil and flywheel; second, perform a spark test by grounding the spark plug against the engine block and pulling the starter cord to observe for a strong blue spark; and third, use a multimeter to measure primary and secondary resistance values, comparing them against manufacturer specifications. These methods progress from simple no-tool checks to technical measurements, allowing you to accurately diagnose whether your ignition coil is faulty or if another component is causing the problem.
Pros
- Wide compatibility across several Kawasaki FR, FS, and FX engine models.
- Matches multiple OEM and replacement part numbers for easier cross-referencing.
- Two-set quantity adds value for multi-unit maintenance or spare inventory.
Cons
- Fitment is model-specific, so buyers must verify their exact engine and part number before ordering.
- The listing does not provide detailed installation instructions or performance test data.
- No customer review history is available in the manufacturer listing, so long-term reliability is not independently verified here.
Overview: The DABAZUALY 21171-0743 ignition coil module set is a replacement part designed for Kawasaki FR, FS, and FX series 4-stroke engines. It is positioned as a direct-fit style repair component for mower and small engine applications that use the listed Kawasaki part numbers.
Performance & Key Features: This product is built around broad engine coverage, including FR541V, FR600V, FR651V, FR691V, FR730V, FS481V, FS541V, FS600V, FS691V, FS730V, FX751V, and FX801V models. It also references several related part numbers, which can help buyers cross-check compatibility before purchase and reduce the chance of ordering the wrong coil.
Drawbacks & Considerations: The main limitation is that ignition coils must match the exact engine model and replacement number, so confirmation is essential. The listing also does not include extra installation hardware, detailed instructions, or independent performance data, so some buyers may need technical confidence or a mechanic's help.
Verdict: This is a practical replacement option for owners and repair shops maintaining compatible Kawasaki engines. It is most valuable for buyers who already know their part number and want a multi-unit coil replacement for routine maintenance or repair.
Pros
- Broad compatibility with many 2-cycle small engine brands and carburetor types.
- Includes both carburetor adjustment tools and a spark tester in one kit.
- Squared handles support more controlled 1/4-turn tuning adjustments.
- Carrying case helps organize the full tool set.
- Useful for multiple equipment types including trimmers, chainsaws, blowers, and edgers.
Cons
- Product data does not list exact tool tip profiles or sizes, so buyers should verify compatibility with their specific carburetor before purchase.
- Designed mainly for carburetor tuning and ignition testing, not for broader small-engine repair tasks.
- No detailed dimensions or material specifications are provided beyond the corrosion-resistant finish and heat-treated bits.
Overview & Design: The Hipa 14-piece carburetor adjustment tool kit is built for maintaining 2-cycle small engines used in outdoor power equipment. It includes a set of carburetor adjustment tools, an ignition coil spark tester, and a carrying case, giving DIY users and small-engine service owners a compact tuning setup.
Performance & Key Features: The kit is designed to help adjust carburetor mixture settings on equipment from brands such as STIHL, Husqvarna, Craftsman, Poulan, Echo, Ryobi, Troy-Bilt, Toro, ZAMA, and Walbro. Squared handles make it easier to judge 1/4-turn increments, which is helpful when fine-tuning idle and mixture settings. The included spark tester adds value by helping confirm ignition coil operation during troubleshooting.
Drawbacks & Considerations: While the compatibility list is broad, the product data does not provide exact tool tip profiles or sizes, so users should confirm that the kit matches their specific carburetor design. It is also a specialized maintenance kit, so it will not replace a full small-engine repair tool set.
Verdict: This Hipa carburetor adjustment tool and spark tester kit is best for owners of 2-cycle trimmers, chainsaws, blowers, hedge trimmers, edgers, and similar equipment who want a practical way to tune carburetors and diagnose ignition issues. It offers strong utility for routine small-engine maintenance, especially for users working with multiple outdoor power tool brands.
Pros
- Broad model coverage across multiple Toro riding mower series and Predator engines
- Complete kit with resistor spark plug and feeler gauge for ready-to-install convenience
- Direct cross-reference to original part numbers for guaranteed dimensional match
- Suitable for both residential TimeCutter and commercial TITAN HD applications
- Single-module format simplifies stocking for common V-twin ignition failures
Cons
- Restricted exclusively to listed 2P77F V-twin and Predator 22HP engines so verification of exact model is required
- Package contains only one coil module limiting multi-cylinder or spare inventory needs
- No extra mounting hardware or detailed wiring diagram supplied beyond the basic accessories
The YAMAKATO 136-7883 ignition coil is a purpose-built aftermarket module engineered as a direct replacement for Toro 136-7883 139-0720 and 127-9216 parts on 2P77F V-twin powered riding mowers. Its compact housing and standard terminals give an immediate OEM-like impression while the included resistor spark plug and feeler gauge complete the basic service kit.
In real-world use the coil restores reliable spark generation for Toro TITAN HD 1500 2000 TimeCutter ZS SW SS MX SWX HD MyRide series and TRX-250 Trencher models as well as Harbor Freight PREDATOR 22HP 708cc engines. Compatibility with chassis numbers 74661 74865 75313 and 74687 plus Loncin cross-references ensures the unit seats correctly and delivers consistent ignition under mowing loads without further tuning beyond gap adjustment.
Considerations include the fact that the product is limited strictly to the engines and part numbers listed so incorrect application will result in no-start conditions. Only a single coil is supplied and no additional brackets or extended wiring harness appear in the package which may require users to retain original hardware.
This YAMAKATO coil offers the strongest value to owners of compatible Toro riding mowers and Predator-powered equipment who need an affordable plug-and-play ignition solution with essential installation tools included. Users outside the stated model range should confirm engine codes before purchase.
Pros
- Precise compatibility with John Deere JA62 JS63 and listed Home Depot 21-inch mowers
- High-class quality construction rated as very durable and in good working condition
- Straightforward easy-to-install design for quick replacement
- Clear part number identification matching 590454 796964 originals
- Priority customer service commitment with satisfaction focus
Cons
- Compatibility restricted solely to specified John Deere JA62 JS63 and similar 21-inch walk-behind models
- As an aftermarket component it may lack original equipment manufacturer certifications
- No detailed dimensional specifications or included installation hardware noted in available data
The ZhongfaTec 590454 796964 magneto armature ignition coil is a direct-fit replacement component built for John Deere JA62 JS63 Home Depot 21-inch walk-behind lawnmower models. Its high-class quality construction creates an immediate impression of durability and readiness for service, with a focus on matching the original part numbers exactly.
In performance this ignition coil delivers reliable magneto armature function to restore proper spark and starting ability on compatible engines. Key features such as easy installation and good working condition make it suitable for homeowners performing DIY repairs, allowing the mower to return to consistent operation without complex adjustments.
Drawbacks include its restriction to the listed John Deere and Home Depot models only, which limits broader use. As an aftermarket part it may not carry the same certifications as genuine OEM units, and the manufacturer listing offers no extra tools or extensive dimensional details for installation.
Overall the ZhongfaTec 590454 796964 provides strong value for owners of matching 21-inch walk-behind lawnmowers who need a durable, easy-to-fit ignition coil. It is best suited for DIY users seeking a straightforward replacement that prioritizes quality and customer support.
Understanding the Ignition Coil and Common Failure Signs
The ignition coil serves as the heart of your lawn mower’s ignition system, transforming the low voltage from the battery into the high voltage necessary to create a spark at the spark plug. This electromagnetic component consists of two sets of windings, the primary winding receives 12 volts from the battery, while the secondary winding generates the 20,000+ volts required for ignition. Without a properly functioning ignition coil, your engine cannot start or run smoothly.
Recognizing the symptoms of a failing ignition coil helps you identify when testing is necessary. A damaged or worn coil often produces a no-start condition where the engine cranks but fails to fire. You might also experience intermittent operation, where the mower runs roughly, sputters, or loses power during operation. Another common sign is a weak or orange-colored spark instead of the strong blue spark that indicates healthy ignition. If your lawn mower backfires or runs rich (consuming excessive fuel), the ignition coil may be malfunctioning.

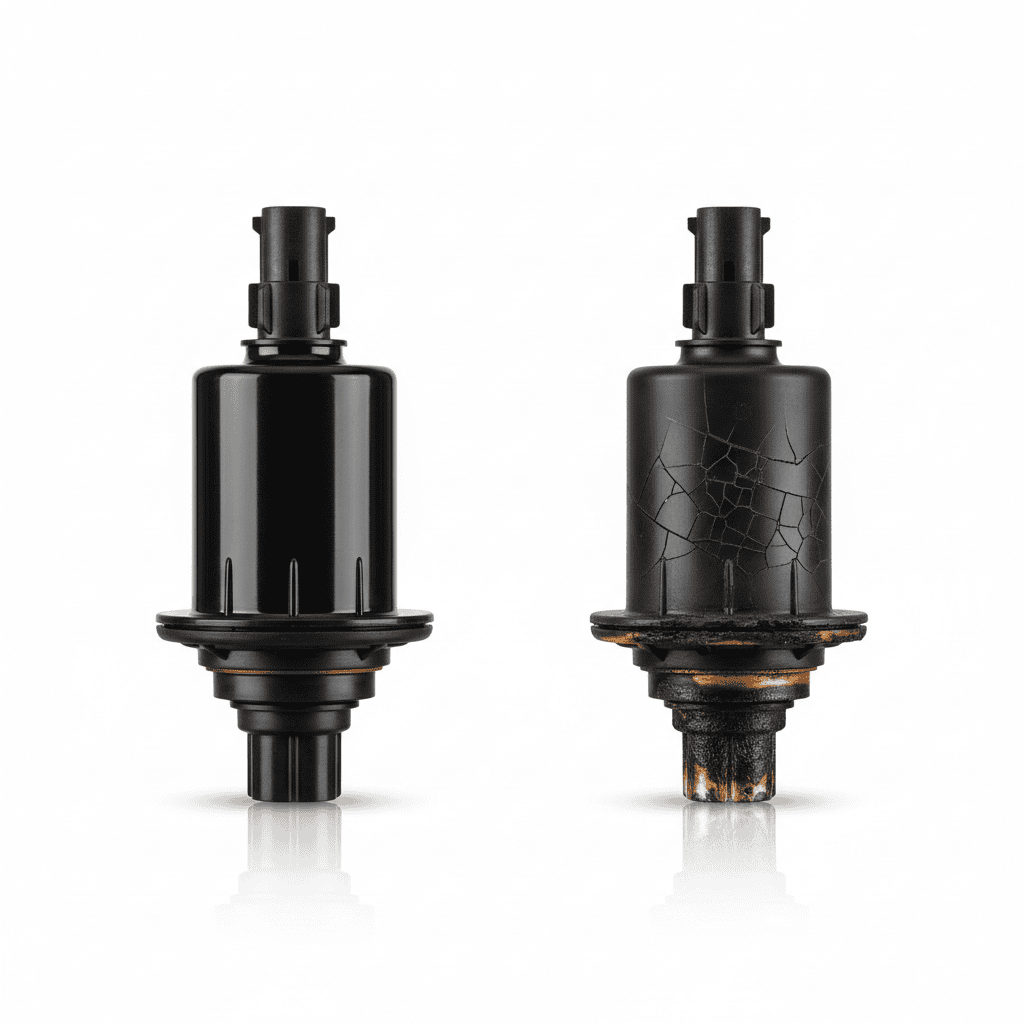

Physical indicators of coil failure include visible cracks in the casing, burn marks or discoloration from excessive heat, corrosion on the electrical terminals, and evidence of moisture intrusion. Internal failures, however, require electrical testing to confirm. Understanding these signs prepares you for the systematic testing process that follows.
Safety Precautions Before Testing
Before beginning any diagnostic work on your lawn mower’s ignition system, prioritizing safety prevents injury and equipment damage. Always work on a cool engine, hot components can cause burns and may warp during handling. Allow the engine to cool for at least 30 minutes after running, or overnight if possible.
The most critical safety step involves disconnecting the spark plug wire. This prevents accidental engine starting while you’re working near moving components or the ignition system. Grasp the boot firmly (not the wire itself) and pull straight out with a gentle twisting motion. Some technicians recommend additionally grounding the disconnected wire against the engine block using insulated pliers for extra safety.
Wear appropriate personal protective equipment including safety glasses to protect your eyes from debris, work gloves to protect your hands from sharp edges and hot surfaces, and closed-toe shoes for foot protection. If using a multimeter, ensure the probes are in good condition with no exposed wiring. Remove any jewelry that could contact electrical components, and avoid working in wet conditions unless necessary equipment is rated for such environments.
When performing the spark test, maintain a safe distance from the spark plug gap and avoid touching the metal body of the plug while the test is in progress. The high voltage generated during testing can cause a painful shock, though it is typically not life-threatening due to the low current involved. Keep flammable materials away from the work area and ensure adequate ventilation when working indoors or in enclosed spaces.
Method 1: Visual Inspection and Air Gap Check
The first and simplest method for testing your ignition coil requires no tools at all. A thorough visual inspection often reveals problems that would cause ignition failure. Begin by locating the ignition coil on your engine, it typically mounts near the flywheel on the engine’s side or behind the recoil starter assembly, depending on your mower’s design.
Examine the coil’s outer casing for any visible cracks, even hairline fractures that may not seem significant. These cracks allow moisture and contaminants to enter the coil, degrading internal components over time. Look for signs of burning or scorching, which indicate overheating that has damaged the windings. Check the mounting area for evidence of looseness or stripped threads that could affect proper positioning. Inspect the electrical connectors for corrosion, bent pins, or loose connections that might interrupt electrical flow. For broader ecosystem context, read through our operational guide on marshall stanmore iii vs harman kardon onyx studio 8.
The air gap, the distance between the ignition coil’s pole piece and the flywheel magnets, significantly impacts performance. When the flywheel rotates, the passing magnets induce voltage in the coil windings. An incorrect air gap prevents proper magnetic induction, resulting in weak or absent spark generation. Consult your owner’s manual or service documentation for the correct air gap specification for your specific engine model. Generally, most lawn mower coils require an air gap between 0.006 and 0.012 inches (0.15-0.30mm), though this varies by manufacturer.
To check the air gap, use a feeler gauge or a business card as a makeshift measuring tool. Insert the gauge between the coil’s laminated core and the flywheel magnet, ensuring the flywheel is at its closest point. The gauge should slide with slight resistance but not be forced. If adjustment is needed, loosen the mounting screws slightly, insert the appropriate gauge, and retighten while maintaining correct positioning. This simple check often resolves intermittent running issues without requiring coil replacement.
Method 2: The Spark Test (No-Tool Diagnosis)
The spark test provides a functional assessment of your ignition system’s ability to generate the high voltage required for combustion. While this test cannot pinpoint the exact failing component, it confirms whether the system as a whole is producing adequate spark. Perform this test after visual inspection reveals no obvious physical damage. For troubleshooting and reliability insights, consult our in-depth dyson v8 cyclone vs bissell featherweight stick report.
Begin by removing the spark plug from the cylinder head using a properly sized spark plug socket. Inspect the spark plug simultaneously, excessive carbon buildup, worn electrodes, or oil fouling may indicate underlying engine problems contributing to poor performance. With the plug removed, insert it back into the spark plug boot, ensuring a secure connection.
Position the spark plug so its metal body contacts a grounded metal surface on the engine block. You can use alligator clips, a wire twisted around the body, or simply hold it firmly against bare metal while maintaining safe distance from the gap. Ensure the plug’s threads or metal shell make direct contact with unpainted, bare engine metal to establish a proper ground path. Readers comparing setup options can review our technical analysis on bissell crosswave hydrosteam vs shark stainforce.
Pull the starter cord briskly while observing the spark plug gap. A healthy ignition system produces a strong, blue spark that is clearly visible in daylight conditions. This spark should appear thick and continuous, indicating sufficient voltage and current flow. A weak, yellow, or orange spark suggests inadequate voltage generation, possibly from a failing coil, insufficient magnetic field strength, or excessive resistance in the system. No spark at all points to a complete failure in the ignition circuit, which could involve the coil, kill switch, wiring, or the coil’s connection to ground.
Interpreting results requires considering other factors. An intermittent spark, appearing on some pulls but not others, may indicate a marginal coil that performs poorly when warm or at certain engine positions. Test multiple times to establish consistency. Remember that a spark that appears adequate visually may still be insufficient for reliable ignition under compression, as the spark must sustain across the fuel-air mixture under pressure. If you suspect marginal performance despite visible spark, proceed to the multimeter test for precise measurements.
Method 3: Multimeter Resistance Test
The multimeter resistance test provides quantitative data about your ignition coil’s electrical health, allowing comparison against manufacturer specifications to determine whether the coil falls within acceptable parameters. This method requires a digital multimeter capable of measuring resistance in the milliohm and kilo-ohm ranges.
Set your multimeter to the resistance (ohms) measurement function. Before testing the coil itself, perform a quick continuity check on your meter’s probes by touching them together, the reading should show 0.0 to 0.2 ohms, indicating good probe continuity. If your meter has auto-ranging capability, ensure it’s set appropriately; otherwise, start with a higher range and adjust downward for more precise readings.
Testing the primary winding requires touching one probe to the smaller primary terminal (usually marked with a “P” or smaller connector) and the other probe to the metal frame or mounting surface of the coil, which serves as ground. Primary resistance readings for lawn mower ignition coils typically range from 0.5 to 2.0 ohms, though this varies significantly by manufacturer and design. For example, Briggs & Stratton engines commonly specify 1.13 to 1.41 ohms for the primary circuit, while Honda engines may have different specifications. Record your reading precisely.
The secondary winding test measures resistance across the high-voltage output terminal to the primary terminal or ground. This reading is considerably higher, usually ranging from 6,000 to 15,000 ohms (6 to 15 kilo-ohms). Connect one probe to the spark plug wire terminal (or the boot where it contacts the wire) and the other probe to either primary terminal. Some technicians test by inserting one probe into the spark plug boot while touching the other to a primary terminal. The reading should be consistent with manufacturer specifications, deviations of more than 10% may indicate degraded windings.
Comparing your readings against specifications helps determine coil health. An open circuit (infinite resistance) indicates a broken winding that requires replacement. A reading significantly lower than specifications suggests shorted windings from moisture intrusion or insulation breakdown. Slightly elevated readings may indicate corrosion or poor connections that increase resistance and reduce performance. Always consult your specific engine’s service manual for exact specifications, as variations between Briggs & Stratton, Honda, Kohler, and other manufacturers are substantial.
Additionally, test for shorts between windings and ground by touching one probe to each primary terminal and the other to the metal frame. Any continuity reading (less than infinite ohms) indicates insulation failure and coil replacement is necessary. Document all readings for comparison if testing multiple coils or performing periodic maintenance checks.
Troubleshooting Other Ignition System Components
A weak or absent spark doesn’t automatically condemn the ignition coil. The ignition system comprises multiple interconnected components that must function together for reliable operation. Understanding how to isolate and test each component ensures you replace only the necessary parts, avoiding unnecessary expense.
The spark plug itself often mimics coil failure symptoms. A fouled, worn, or incorrectly gapped spark plug can prevent reliable starting and running despite having adequate voltage from the coil. Inspect the plug for carbon deposits, worn center and ground electrodes, or oil contamination. The electrode gap increases slightly with use, requiring periodic adjustment. Replace spark plugs annually or after 100 hours of operation, whichever comes first. Swapping in a known-good spark plug provides a quick comparison test during troubleshooting.
The kill switch (often called the ignition module or stop switch) interrupts the primary circuit to shut off the engine. A malfunctioning kill switch that remains partially engaged, even when not activated, can ground out the primary circuit and prevent spark generation. Test the kill switch by disconnecting it from the circuit and performing the spark test again. If spark returns, the kill switch requires replacement. Inspect the wiring harness for chafed insulation, broken connections, or corrosion that could create intermittent shorts.
Charging system issues can also affect ignition coil performance. A weak battery or failing magneto/generator may provide insufficient voltage to the primary circuit, especially under load. Test battery voltage with the engine off (should read 12.4 to 12.7 volts for a fully charged battery) and while cranking (voltage should not drop below 9.6 volts). The charging system should return battery voltage to specification within minutes of starting the engine. Low voltage at the coil’s primary terminal during operation indicates charging system problems rather than coil failure.
Ground connections are frequently overlooked but critical for reliable operation. The coil frame must maintain a solid ground path to the engine block through its mounting surface. Paint, rust, corrosion, or loose mounting can interrupt this ground, causing intermittent operation or complete failure. Clean mounting surfaces with a wire brush, ensure mounting screws are tight, and verify continuity between the coil frame and engine block using your multimeter.
Buyer FAQs: How To Test A Coil On A Lawn Mower Solved
What does an ignition coil do in a lawn mower engine?
An ignition coil is a type of electrical transformer that converts the low voltage (12 volts) from your mower’s battery or magneto into the high voltage (20,000+ volts) needed to create a spark at the spark plug. This high-voltage spark ignites the fuel-air mixture in the engine’s combustion chamber, powering the engine. Without a functioning ignition coil, the engine cannot start or run because the spark plug cannot fire properly.
What are the common signs of a bad ignition coil?
Common symptoms of a failing ignition coil include: the engine fails to start despite the starter motor working; the engine starts but runs roughly, sputters, or stalls intermittently; you notice a weak, yellow, or orange spark instead of a strong blue spark; the mower loses power during operation or under load; excessive fuel consumption or a rich-running condition; backfiring through the carburetor or exhaust; and visible physical damage to the coil such as cracks, burns, or corrosion on the terminals.
How do you test ignition coil resistance with a multimeter?
To test coil resistance, set your digital multimeter to the ohms function. For primary resistance, touch one probe to the small primary terminal and the other to the metal coil frame (ground). Typical primary readings range from 0.5 to 2.0 ohms. For secondary resistance, touch one probe to the high-voltage terminal or spark plug wire connection and the other to a primary terminal. Secondary readings typically range from 6,000 to 15,000 ohms. Compare your readings against manufacturer specifications, any reading that deviates significantly indicates coil failure requiring replacement.
How do you check and adjust the air gap on a lawn mower coil?
To check the air gap, rotate the flywheel until the magnet aligns with the coil’s laminated core. Insert a feeler gauge (typically 0.006 to 0.012 inches depending on your engine) between the magnet and core, the gauge should slide with slight resistance. If adjustment is needed, loosen the coil mounting screws, insert the correct gauge, position the coil for proper clearance, and tighten the screws while maintaining alignment. Consult your owner’s manual for exact specifications for your specific engine brand and model.
