How to Test a Lawn Mower Starter
To test a lawn mower starter, first identify your mower type: a push mower typically uses a recoil pull-start, while a riding mower uses an electric starter system. For electric starters, begin with a visual inspection, then use a multimeter to check battery voltage (should be ~12.6V), test the starter solenoid for proper voltage activation, and perform a continuity test on the starter motor windings. For recoil starters, inspect the pull cord, spring, and engagement mechanism. Always disconnect the spark plug wire for safety before any testing.
Identifying Your Lawn Mower Starter Type
Before you begin testing, you must correctly identify your starter system. The diagnostic procedure differs significantly between the two main types.
- Recoil Pull-Start (Push Mowers): This is a mechanical system where you pull a cord to spin the engine’s flywheel and start the mower. Common issues involve the cord, spring, or engagement pawls.
- Electric Starter (Riding Mowers & Some Push Mowers): This system uses a battery-powered starter motor and a solenoid to engage the flywheel. Problems can stem from the battery, solenoid, starter motor, or safety interlocks.
Check your owner’s manual or look for a key ignition switch. If your mower has a key, it almost certainly has an electric start system.
Tools and Safety Precautions for Testing
Gather the necessary tools and follow critical safety steps before starting.
Required Tools
- Multimeter: Essential for testing voltage and continuity.
- Basic Hand Tools: Socket set, wrenches, and screwdrivers for removing covers or the starter.
- Safety Gear: Gloves and safety glasses.
- Wire Brush: For cleaning corroded connections.
Essential Safety Steps
- Disconnect the Spark Plug Wire: This is the most important step. It prevents the engine from accidentally starting while you are working on it.
- Work in a Well-Ventilated Area: Especially if you will be testing the starter with the battery.
- Secure the Mower: For riding mowers, engage the parking brake and place the transmission in park.
Step-by-Step Guide to Testing an Electric Starter System
Follow these steps in order to diagnose the problem in your electric start system.
1. Perform a Visual Inspection
Before using any tools, look for obvious problems:
- Check for loose, frayed, or corroded wires connected to the battery, solenoid, and starter motor.
- Ensure the battery terminals are clean and tight.
- Look for physical damage to the starter motor housing or solenoid.

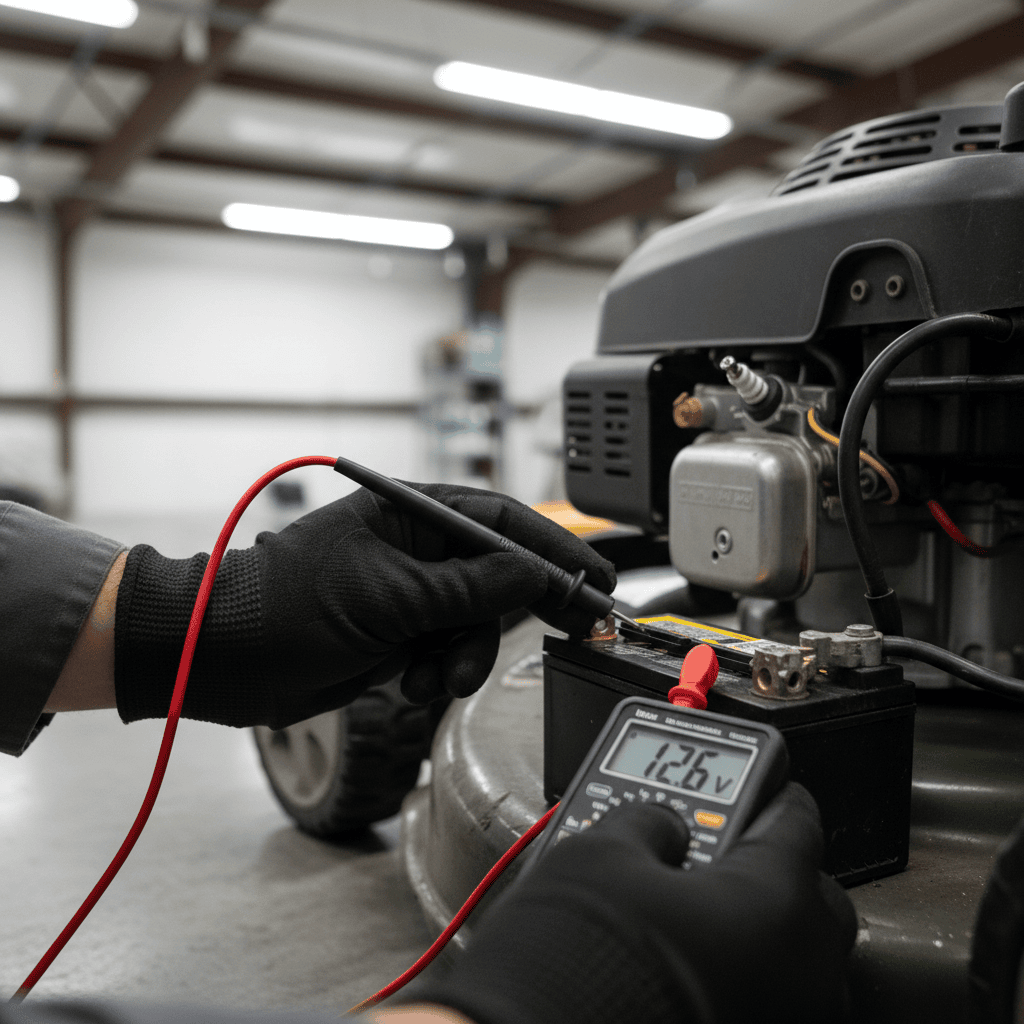

2. Test the Lawn Mower Battery
A weak or dead battery is the most common cause of starting issues.
- Set your multimeter to measure DC Voltage (20V range).
- Touch the red probe to the battery’s positive (+) terminal and the black probe to the negative (-) terminal.
- A fully charged battery should read approximately 12.6 volts. A reading below 12.4V indicates a need for charging. Below 12.0V, the battery is likely dead or faulty.
3. Test the Starter Solenoid
The solenoid is a switch that sends power from the battery to the starter motor when you turn the key.
- Locate the solenoid, usually mounted near the starter or on the frame.
- With the multimeter set to DC Voltage, place the black probe on a clean ground point on the mower’s frame.
- Have a helper turn the ignition key to the “start” position (or use a remote starter switch).
- Touch the red probe to the small “S” terminal on the solenoid. You should see battery voltage (12V+). If not, the problem is in the ignition switch or safety interlock circuit.
- If voltage is present at the “S” terminal but the starter doesn’t engage, the solenoid itself may be faulty.
4. Perform a Continuity Test on the Starter Motor
This test checks if the electrical circuit inside the starter motor is intact.
- Disconnect the large power cable from the starter motor’s main terminal.
- Set your multimeter to the continuity setting (often marked with a sound wave symbol).
- Touch one probe to the starter motor’s main terminal and the other probe to the starter’s metal housing (a clean, unpainted spot).
- Result: There should be NO continuity (no beep). A beep indicates a short circuit, meaning the starter motor is grounded internally and needs replacement.
- Next, check for continuity across the motor’s terminals (if accessible). A healthy motor will show low resistance (continuity).
Diagnosing and Testing a Recoil Pull-Start Assembly
For push mowers with a pull cord, the issue is usually mechanical.
Common Signs of a Faulty Recoil Starter
- The pull cord is broken, frayed, or won’t retract.
- The cord pulls out but doesn’t engage the engine (feels loose).
- The starter makes a grinding or clicking noise.
Inspection Steps
- Inspect the Pull Cord: Look for wear, fraying, or breaks. A damaged cord needs replacement.
- Check the Spring Mechanism: If the cord doesn’t retract, the recoil spring may be broken or disconnected.
- Test the Starter Pawls: Remove the starter assembly (usually held by 3-4 bolts). Look at the plastic or metal pawls that should flip out to engage the flywheel. If they are worn, broken, or stuck, the starter won’t turn the engine.
Bench Testing the Starter Motor (Advanced)
If you suspect the starter motor is bad but want confirmation, you can test it off the mower.
- Safely Remove the Starter: Disconnect the battery, then unbolt the starter motor from the engine block. Note how the wires are connected.
- Secure the Starter: Clamp the starter body in a vise (be careful not to damage it).
- Connect Jumper Cables:
- Connect the negative (-) cable from a good battery to the starter motor’s mounting flange (the metal body).
- Connect the positive (+) cable to the main power terminal on the starter.
- Use a small jumper wire to momentarily touch the positive battery terminal to the starter’s “S” terminal.
- Observe the Result: The starter gear should spin rapidly and forcefully. If it spins slowly, weakly, or not at all, the starter motor is faulty and should be replaced.
Interpreting Results: Repair vs. Replacement
Based on your tests, here is how to decide your next step.
- Battery is Low/Dead: Charge or replace the battery.
- Corroded Connections: Clean all terminals and wire ends with a wire brush. This often solves the problem.
- Starter Solenoid Fails Voltage Test: The solenoid needs replacement. This is a common and relatively inexpensive fix.
- Starter Motor Fails Continuity or Bench Test: The starter motor is faulty and requires replacement.
- Recoil Starter Components are Worn/Broken: You can often buy a rebuild kit for the pull cord, spring, and pawls, or replace the entire recoil assembly.
Typical Repair vs. Replace Scenario: If the issue is a broken pull cord or worn pawls on a recoil starter, repair is cost-effective. For an electric starter motor that has failed internally, replacement is usually the only option, as they are not designed to be rebuilt.
Frequently Asked Questions
What does it mean when my lawn mower clicks but won’t start?
A single click often indicates a faulty starter solenoid. Rapid clicking usually means the battery is too weak to engage the starter motor properly, even though it may have enough power for lights. Test the battery voltage first.
Can I jump-start my lawn mower battery?
Yes, you can use jumper cables from a car battery, but connect them carefully (positive to positive, negative to a ground on the mower, not the battery). It’s often better to remove the mower battery and charge it with a proper charger to avoid damaging the mower’s electrical system.
How much does it cost to replace a lawn mower starter?
Costs vary widely. A recoil starter assembly for a push mower might cost $20-$60. An electric starter motor for a riding mower can range from $50 to $200+, not including labor if you hire a mechanic.
Why does my riding mower starter spin but not engage the engine?
This usually means the starter drive gear (Bendix) is worn and not extending to mesh with the engine’s flywheel. The starter motor itself is working, but the engagement mechanism has failed. The starter motor assembly will need to be replaced.
