How to wire a weedeater: This task involves restoring the electrical path from the power source—whether a wall outlet, battery, or gas-engine ignition circuit—through the switch to the motor. This guide focuses on the three most common wiring repairs: replacing a trigger switch, repairing or replacing a power cord, or fixing battery-terminal connections. The safe process is universal: disconnect the power source, document the original wiring, match each wire to its original position, insulate every connection, and test with a multimeter before reassembly. If the problem involves the motor’s internal windings or the battery’s cells, stop and consult a professional.

The Short Answer: What Wiring a Weedeater Actually Involves

In plain terms, “wiring a weedeater” or string trimmer means ensuring a complete, safe electrical circuit from the power source to the motor. When this path is broken, the trimmer won’t run. The break most commonly occurs at three points: the trigger switch, the power cord (on corded models), or the battery terminals (on battery models). Before you begin, the single most important rule is to completely disconnect the power source. This means unplugging the unit from the wall or removing the battery pack.

Understanding which of these three repairs you’re likely dealing with will help you follow the correct steps. A trigger switch replacement is often needed when the trimmer fails to start despite having power. A power cord repair is necessary if the cord is frayed, cut, or has been pulled loose. Battery-terminal fixes are required when the connection between the battery and the trimmer is loose or corroded.

Safety First: Rules to Follow Before Touching Any Wire

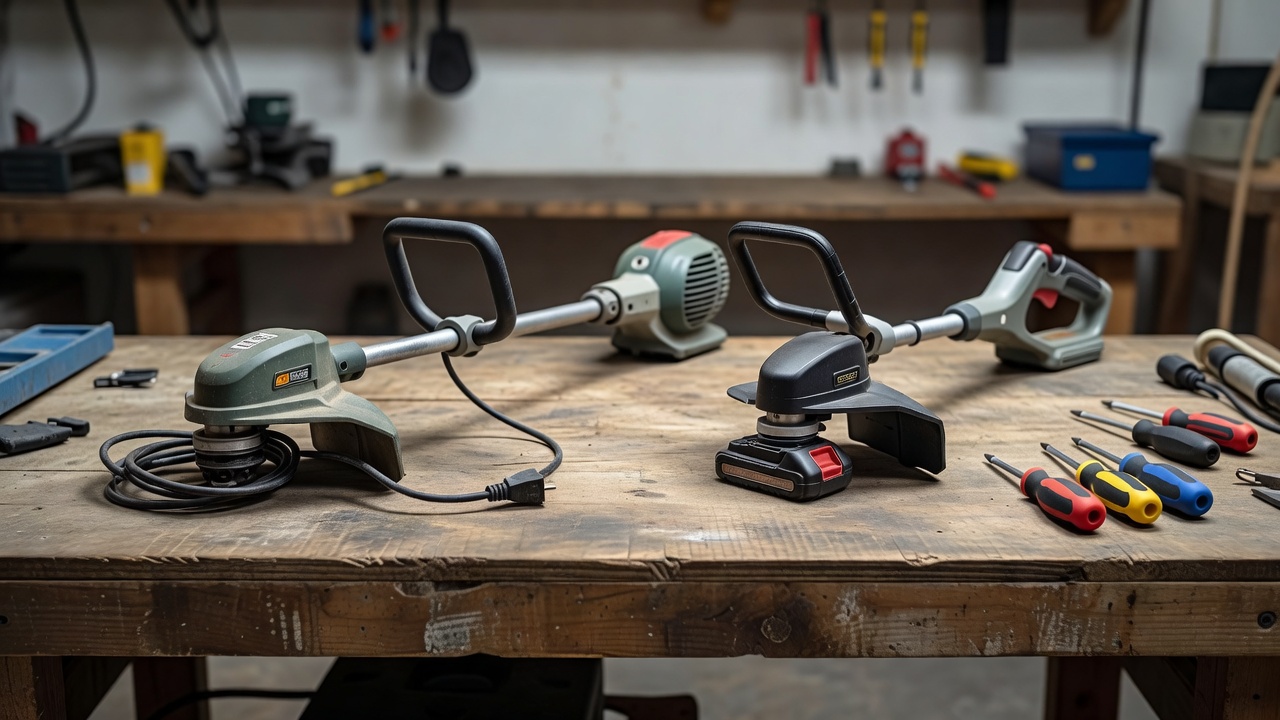

Unplugged trimmer and removed battery pack resting on a workbench with insulated tools.

Working with electricity, even at the voltages used in household appliances, carries risks of electric shock and fire. Following these non-negotiable precautions is essential.

  • Disconnect Power Completely: For corded electric models, unplug the trimmer from the wall outlet. For battery-powered models, remove the battery pack entirely. For gas-powered models, ensure the engine is off and has cooled completely, including the muffler.
  • Use Insulated Tools: Always use hand tools with insulated handles to reduce the risk of shock.
  • Work in a Safe Area: Perform repairs in a dry, well-lit area on a non-conductive surface like a wooden workbench. Keep metal objects away from any live terminals.
  • Document Before Disconnecting: Before you remove any wire, take a clear photo or draw a simple sketch of the wiring layout. This is your map for reassembly.
  • Handle Wires Carefully: Never tug on wires to disconnect them. Always grip the connector or terminal itself.

Know Your Weedeater Type Before You Start

The wiring layout differs significantly based on the trimmer’s power source. Identifying your type is the first step.

  • Corded Electric: The electrical path runs from the wall outlet, through the power cord, to the trigger switch, and then to the motor. The cord itself is a primary component of the circuit.
  • Battery-Powered: The path runs from the battery terminals, through the switch, to the motor. There is no long power cord; the connection is at the battery dock.
  • Gas-Powered: The electrical system is limited. It primarily consists of the ignition module (which creates the spark), the kill switch (which stops the engine), and the wiring connecting them. The engine runs on fuel, not electricity.

Locate your trimmer’s model number, usually on a label on the housing. Check the owner’s manual for a wiring diagram; some units also have a simplified diagram printed on an internal label.

Anatomy of a Trimmer’s Electrical System

Regardless of the power source, a typical trimmer’s electrical system has a few key components in series:

  1. Power Source Connection: This is where the electricity enters the system—either the prongs of the plug, the battery terminals, or the ignition circuit wires.
  2. Trigger Switch: This is the in-line control. When you pull the trigger, it closes the circuit, allowing electricity to flow to the motor. A separate safety lock-off switch often must be engaged first.
  3. Wiring Harness: This is the set of wires that connects all the components. Wires are typically connected with crimp connectors, spade terminals, or solder joints.
  4. Motor Leads: These are the final wires that connect to the electric motor itself.

Important: Wire colors are not standardized across manufacturers. You cannot assume a red wire is always positive or a black wire is always ground. You must match wires based on their original position and connections.

Tools and Materials You’ll Need

Gather these basic tools before disassembling your trimmer:

  • Screwdrivers: Both Phillips-head and flat-head types are commonly used for housing screws.
  • Wire Strippers: For cleanly removing insulation from wire ends.
  • Crimping Tool: For securing new connectors onto wires.
  • Connectors: Have a selection of appropriate butt splices, spade terminals, or bullet connectors on hand.
  • Insulation: Heat-shrink tubing (for a durable, professional repair) or high-quality electrical tape.
  • Multimeter: Essential for testing continuity and verifying your connections.
  • Soldering Iron & Solder (Optional): For creating the most permanent and reliable connections.
  • Replacement Wire: If needed, use wire that matches the gauge (thickness) and type of the original wire in the trimmer.

How to Replace a Trigger Switch (Most Common Repair)

Follow these steps for the most common wiring repair. Always refer to your specific model’s manual if available.

  1. Disconnect Power: Unplug the trimmer or remove the battery.
  2. Access the Switch: Remove the screws holding the housing together to expose the switch and wiring.
  3. Document and Label: Take a photo. Use small pieces of tape to label each wire according to which terminal it connects to on the old switch.
  4. Remove Old Switch: Carefully disconnect each wire from the old switch. This may involve pulling off spade connectors or desoldering.
  5. Install New Switch: Connect each labeled wire to the corresponding terminal on the new switch. Ensure the connections are tight and secure.
  6. Reassemble and Test: Before fully reassembling the housing, test the trimmer (see the testing section below).

If the replacement switch has a different terminal layout, compare the functions (e.g., which terminal is for the lock-off switch) and consult your manual. For gas models, the kill-switch wiring is a separate circuit that must be matched to the engine’s ignition system.

How to Repair or Replace the Power Cord (Corded Models)

A damaged power cord is a serious hazard and should be repaired or replaced immediately.

  1. Unplug the Trimmer.
  2. Assess the Damage: If the cord is melted, deeply cut, or extensively frayed, it is safer to replace the entire cord rather than splice it. If the damage is minor or the cord has pulled loose from its connection, a repair is feasible.
  3. Prepare the Cord: Cut back the damaged section to reach clean, undamaged wire. Use wire strippers to remove about ½ inch of insulation from each conductor (the individual wires inside the cord).
  4. Reconnect: Using appropriate crimp connectors or solder, reconnect each conductor to its original connection point inside the trimmer. Ensure the hot (typically black) and neutral (typically white) wires are connected correctly.
  5. Insulate and Secure: Insulate each connection separately with heat-shrink tubing or electrical tape. Ensure the cord is secured by the strain relief clamp inside the housing so that tugging on the cord does not pull on the electrical connections.

How to Fix Loose or Corroded Battery-Terminal Connections (Battery Models)

Problems with battery connections can prevent power from reaching the motor.

  1. Remove the Battery.
  2. Inspect the Terminals: Look at both the terminals on the battery pack and the contacts inside the trimmer’s battery dock. Look for corrosion (a white or greenish powder), dirt, or bent contacts.
  3. Clean Contacts: Use a battery contact cleaner or a small amount of isopropyl alcohol on a cotton swab to clean corroded areas. For light corrosion, very fine-grit sandpaper or an eraser can be used gently. Ensure contacts are dry before reassembly.
  4. Check Connections: Ensure any screws or push-on connectors securing the wiring to the terminals are tight.
  5. Observe Polarity: Connection points are usually marked with positive (+) and negative (-) symbols. Ensure the wiring matches these markings.

Warning: Do not attempt to open or repair the battery pack itself. The internal cells and circuit board are high-risk components. If the battery pack is faulty, it should be replaced.

How to Test Your Wiring Before Reassembly

Before putting the housing back together, use a multimeter to verify your work.

  1. Set the Multimeter: Turn the dial to the continuity setting (often marked with a sound wave symbol) or to a low ohms (Ω) setting.
  2. Test the Switch: With the trimmer still unplugged, place one probe on each terminal of the trigger switch. When the trigger is pulled (closed), the meter should beep or show a very low resistance reading. When released (open), there should be no continuity (no beep, or a reading of “OL” for open loop).
  3. Test the Full Circuit: With the switch closed (trigger pulled), you can trace the circuit from the plug prongs or battery terminals through to the motor leads. Place one probe on a plug prong and the other on the corresponding motor lead wire. A continuous beep confirms an unbroken path.

Troubleshooting: When It Still Doesn’t Work

If the trimmer still won’t run after your wiring repair:

  • Confirm the power source is working (test the outlet with another device, ensure the battery is charged).
  • Re-check that all wire connectors are tight and fully seated.
  • Inspect for any pinched, chafed, or shorted wires that may have been damaged during reassembly.

Stop immediately and disconnect power if you see sparks, smoke, or smell a burning odor. This indicates a serious electrical fault. If the motor runs but seems weak, the issue is more likely internal to the motor (such as worn carbon brushes) rather than a wiring problem.

When to Stop: Repairs to Leave to a Professional

DIY wiring repairs are safe and practical for switches, cords, and terminal connections. However, you should stop and seek professional service for:

  • Motor Rewinding or Internal Work: Problems with the motor’s windings, armature, or carbon brushes require specialized knowledge and tools.
  • Battery Pack Repair: Any work inside the battery pack’s cells or circuit board is dangerous and should not be attempted.
  • Complex Ignition Issues (Gas Models): Problems with the ignition module or coil often require diagnostic equipment.

Regarding warranties, terms vary significantly by manufacturer and region. Performing DIY repairs may affect your warranty coverage. Consult your product documentation for specific details. The safe DIY scope is clear: switch, cord, and terminal connections. Anything beyond that is best left to a qualified repair technician.
