Direct Answer: Where Is the Spark Plug Located?
The spark plug is typically located on the engine block of your lawn mower, connected to the top or side of the cylinder head via a thick rubber boot and spark plug wire. On push mowers, it is usually accessible from the side or top of the engine. On riding mowers and zero-turn mowers, the spark plug location varies depending on engine placement but is generally found on the engine mounted beneath or behind the seat. The exact location depends on your specific mower type and engine manufacturer (Briggs & Stratton, Kohler, Honda, Toro, etc.), so consulting your owner’s manual is essential for precise guidance on your model.
Understanding Spark Plug Location in Lawn Mowers
What Is a Spark Plug and Why Is It Important?
A spark plug is a critical engine component that ignites the fuel-air mixture inside the combustion chamber, allowing your lawn mower to start and run. Without a functioning spark plug, your mower will not start or will run poorly. The spark plug receives electrical current from the ignition system and creates a spark at precisely the right moment during the engine cycle.
Understanding where the spark plug is located is essential for:
- Routine maintenance and inspection
- Cleaning or replacing a fouled or worn spark plug
- Troubleshooting starting problems
- Seasonal mower preparation
- Diagnosing engine performance issues
Why Does Spark Plug Location Vary Between Mower Types?
Spark plug location varies because lawn mowers use different engine configurations and orientations. The engine’s cylinder head position, which houses the spark plug, depends on how the engine is mounted in the mower frame. Horizontal-shaft engines (common in push mowers) position the spark plug differently than vertical-shaft engines (common in riding mowers). Additionally, different manufacturers design engines with varying layouts, so a Briggs & Stratton engine may have a different spark plug location than a Kohler or Honda engine.
What Are the Main Engine Placements in Residential Lawn Mowers?
Residential lawn mowers typically use three engine configurations:
- Horizontal-shaft engines: Common in push mowers and some small riding mowers. The engine’s crankshaft runs parallel to the ground.
- Vertical-shaft engines: Standard in most riding mowers and zero-turn mowers. The engine’s crankshaft runs perpendicular to the ground.
- Overhead-valve (OHV) engines: Found in premium mowers across all types. These engines have valves positioned above the combustion chamber, affecting spark plug accessibility.
Spark Plug Location in Push Mowers
Where Is the Spark Plug Typically Positioned?

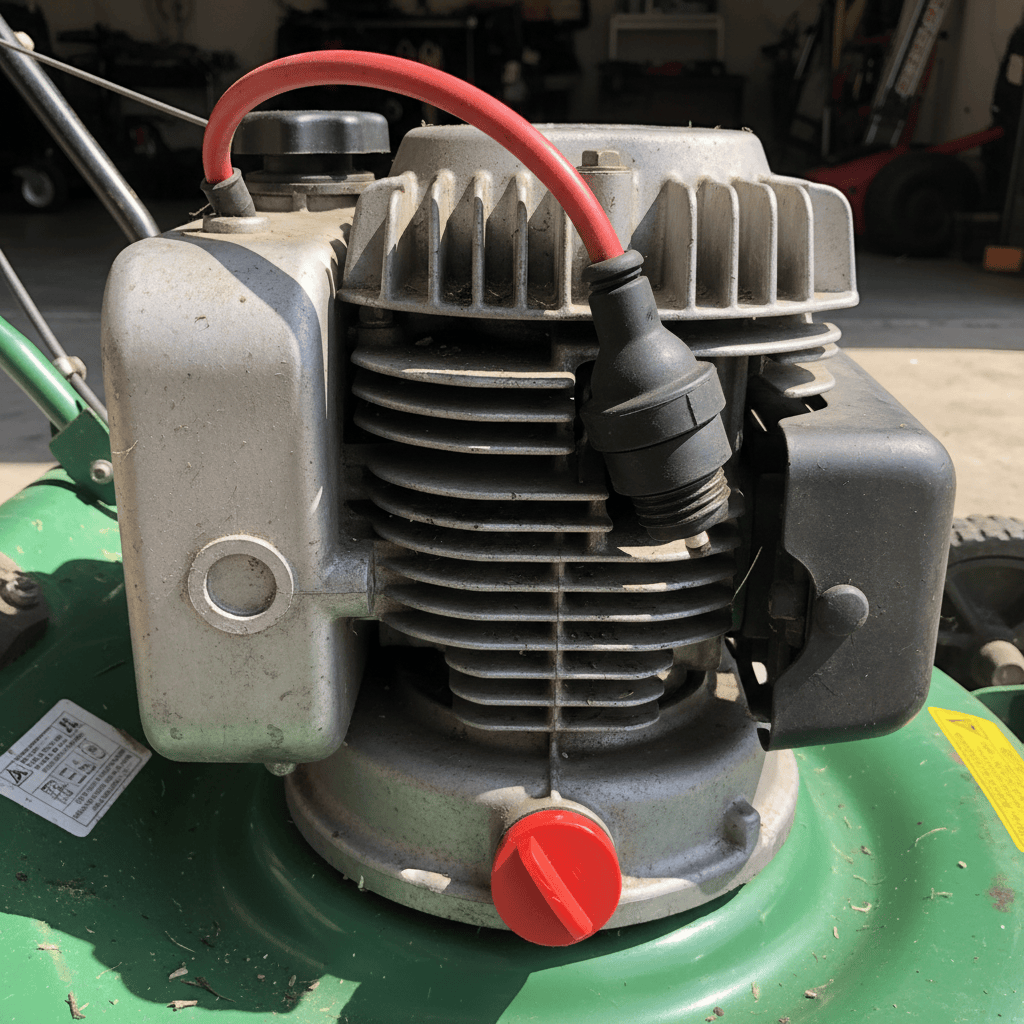

On most push mowers, the spark plug is located on the side or top of the engine block, near the cylinder head. Because push mowers use horizontal-shaft engines, the spark plug is often positioned toward the side of the engine, making it relatively accessible without removing other components.
To locate it on a push mower:
- Look for a thick rubber or plastic boot connected to the engine
- This boot covers the spark plug wire and sits directly on top of or beside the spark plug
- The spark plug itself is a small cylindrical component, typically 1/2 to 3/4 inch in diameter
- It is threaded into the cylinder head at an angle (usually 45 degrees or perpendicular)
How Do I Identify the Spark Plug Wire on a Push Mower?
The spark plug wire is the most obvious clue to locating the spark plug. It is a thick, insulated wire (usually black or dark colored) that runs from the ignition coil or magneto to the spark plug. The wire terminates in a rubber boot that slides directly over the spark plug terminal. On push mowers, this wire is typically visible and accessible without tilting or disassembling the mower.
What Safety Steps Should I Take Before Locating the Spark Plug?
Always follow these safety precautions:
- Stop the engine and allow it to cool for at least 5 minutes
- Disconnect the spark plug wire by gently twisting and pulling the rubber boot (not the wire itself)
- Ensure the engine is off and will not accidentally start
- Wear work gloves to protect your hands from sharp edges or hot surfaces
- Never attempt spark plug work on a running or warm engine
Spark Plug Location in Riding Mowers
Where Are Spark Plugs Located on a Riding Mower?
On riding mowers, the spark plug location is more variable because engines are mounted beneath or behind the operator’s seat. Typically, the spark plug is located on the engine block, which sits low in the mower frame. You may need to:
- Tilt the mower deck or seat to access the engine
- Remove the engine cover or shroud
- Look on the side of the cylinder head, usually toward the rear of the engine
- Follow the spark plug wire from the ignition coil to locate the spark plug
On many riding mowers, the spark plug is positioned on the engine’s side or back, requiring you to work from beneath or behind the seat area.
Do Riding Mowers Have Multiple Spark Plugs?
Most residential riding mowers have one spark plug per cylinder. Single-cylinder engines (most common) have one spark plug. However, some premium or commercial-grade riding mowers may have twin-cylinder engines with two spark plugs. Check your owner’s manual to determine how many spark plugs your mower has. If your mower has multiple spark plugs, they will be located on different sides or areas of the engine block.
How Do I Access the Spark Plug on a Riding Mower Safely?
Accessing spark plugs on riding mowers requires more preparation:
- Park the mower on a flat, level surface
- Engage the parking brake and turn off the engine
- Disconnect the spark plug wire(s)
- If necessary, remove the engine cover, air filter cover, or seat to access the spark plug
- Use a flashlight to locate the spark plug clearly
- Refer to your owner’s manual for specific removal procedures for your model
Spark Plug Location in Zero-Turn Mowers
Where Is the Spark Plug on a Zero-Turn Mower?
Zero-turn mowers typically have vertical-shaft engines mounted in the center or rear of the mower deck. The spark plug is located on the engine block, usually on the side or back of the cylinder head. Because zero-turn mowers are designed for commercial or heavy-duty residential use, engine access may be more restricted than on standard riding mowers. The spark plug is often positioned in a location that requires:
- Removing the engine cover or protective shroud
- Accessing the engine from above or the side
- Using appropriate tools to reach tight spaces
Are Zero-Turn Mowers Different from Riding Mowers Regarding Spark Plug Access?
Yes, zero-turn mowers often have more compact engine compartments and tighter engine placement compared to standard riding mowers. This means spark plug access may require more disassembly or careful maneuvering. However, the spark plug itself functions the same way and is located on the cylinder head like all other lawn mower engines. The primary difference is accessibility, not location.
What Tools Do I Need to Locate and Inspect the Spark Plug?
Basic tools for spark plug inspection include:
- A flashlight or headlamp for visibility
- Work gloves for hand protection
- A spark plug socket and ratchet wrench (if removal is needed)
- A gap tool or feeler gauge (for checking spark plug gap)
- Your mower’s owner’s manual
How to Safely Locate Your Spark Plug
Step-by-Step Guidance for Spark Plug Location
Step 1: Prepare Your Mower
- Stop the engine and let it cool completely
- Move the mower to a well-lit, flat work area
- Engage any safety locks or parking brakes
Step 2: Locate the Spark Plug Wire
- Look for the thick, insulated wire connected to the ignition coil or magneto
- Follow this wire to where it connects to the engine
- The rubber boot at the end of this wire covers the spark plug terminal
Step 3: Identify the Spark Plug Boot
- The rubber boot is the most visible part of the spark plug assembly
- It is typically black or dark-colored and cylindrical
- Gently grasp the boot (not the wire) and twist it slightly to break the seal
Step 4: Disconnect the Wire Safely
- Pull the rubber boot straight off the spark plug terminal
- Do not yank the wire itself, as this can damage the connection
- Set the wire aside in a safe location
Step 5: Locate the Spark Plug Body
- Once the boot is removed, you can see the spark plug terminal
- The spark plug itself is the cylindrical component threaded into the engine block
- It typically has a ceramic insulator (white or tan colored) and a metal body
What Should I Do If I Cannot Locate the Spark Plug?
If you are having difficulty locating the spark plug after following these steps:
- Consult your owner’s manual for a diagram specific to your mower model
- Contact the mower manufacturer’s customer service for guidance
- Visit an authorized dealer or service center if you need professional assistance
- Do not force or disassemble components if you are unsure of the correct procedure
Using Your Owner’s Manual to Find the Spark Plug
Why Is the Owner’s Manual the Most Reliable Source?
The owner’s manual is the most reliable resource for spark plug location because it contains manufacturer-specific diagrams and instructions for your exact mower model. While general guidance applies to most mowers, individual models and engine types have variations. The manual will show:
- Exact spark plug location with labeled diagrams
- The correct spark plug type and specifications for your engine
- Proper removal and installation procedures
- Safety precautions specific to your mower
- Maintenance schedules and spark plug replacement intervals
How Do I Locate the Owner’s Manual for My Mower?
If you have lost your original manual, you can find it through:
- Manufacturer websites: Briggs & Stratton, Kohler, Honda, Toro, John Deere, and other manufacturers offer PDF manuals on their websites
- Mower model number: Look for the model number on a label attached to your mower frame, usually near the engine or seat
- Online manual databases: Websites like ManualsLib or the manufacturer’s support page
- Authorized dealers: Local mower dealers can provide printed or digital copies
What Information Should the Manual Provide About Spark Plug Location?
A quality owner’s manual will include:
- A labeled diagram showing the spark plug’s exact position on the engine
- Instructions for safely accessing the spark plug
- The correct spark plug type, gap setting, and part number
- Removal and installation torque specifications
- Recommended replacement intervals (typically annually or every 100-200 hours of use)
- Troubleshooting guidance if the spark plug is difficult to access
Common Spark Plug Issues and Maintenance
Why Would I Need to Access the Spark Plug?
There are several reasons you may need to locate and work with your spark plug:
- Routine inspection: Check the spark plug’s condition at the start of each mowing season
- Cleaning: Remove carbon deposits from the spark plug electrode
- Gap adjustment: Ensure the gap between the electrodes is correct for proper ignition
- Replacement: Install a new spark plug when the old one is worn or damaged
- Troubleshooting: Remove the spark plug to diagnose starting or performance problems
What Are Signs That My Spark Plug Needs Inspection or Replacement?
Common indicators include:
- Difficulty starting: The mower is hard to start or requires multiple pulls
- Rough running: The engine runs unevenly or sputters during operation
- Loss of power: The mower cuts less effectively or lacks normal acceleration
- Black residue on the spark plug: Carbon buildup indicates a fouled plug
- Visible wear or damage: Cracks, erosion, or excessive gap on the spark plug electrode
- Age: Spark plugs typically last 1-2 seasons of regular use
How Often Should I Check My Spark Plug?
For optimal lawn mower performance:
- Annually: Inspect the spark plug at the beginning of the mowing season
- Every 50-100 hours of use: Clean the spark plug if it shows carbon buildup
- Every 100-200 hours of use: Replace the spark plug with a new one
- After extended storage: Check the spark plug before starting the mower after winter or long periods of non-use
Frequently Asked Questions
Q: Can I locate the spark plug without consulting the owner’s manual?
A: Yes, you can locate the spark plug by following the spark plug wire from the ignition coil to the engine block. The rubber boot at the end of the wire covers the spark plug. However, the owner’s manual provides the most accurate information for your specific mower model and may reveal access points or safety considerations unique to your machine.
Q: Is the spark plug location the same on all Briggs & Stratton engines?
A: No, Briggs & Stratton manufactures many engine models with varying configurations. While most have the spark plug on the cylinder head, the exact location, orientation, and accessibility differ between engine series. Always refer to your specific engine model’s documentation for precise location information.
Q: What should I do if the spark plug wire is damaged or missing?
A: If the spark plug wire or boot is damaged, the mower will not start or will run poorly. You will need to replace the spark plug wire and boot assembly. Consult your owner’s manual for the correct replacement part number, or contact an authorized dealer. Do not attempt to operate the mower without a properly connected spark plug wire.
Q: How do I know if I have found the correct spark plug?
A: The correct spark plug will have the rubber boot connected to it via the spark plug wire, be threaded into the cylinder head, and have a ceramic insulator visible. The part number on the spark plug should match the specification in your owner’s manual. If you are unsure, compare the spark plug location to the diagram in your manual or contact the manufacturer.
