Are Lawn Mower Batteries 12 Volt? The Short Answer
Yes — most lawn mower batteries are 12 volt. This is especially true for standard gasoline-powered riding mowers and lawn tractors. However, the voltage can vary depending on the mower’s type, age, and power system. Some smaller or older mowers use 6 volt batteries, while many modern electric riding mowers and larger commercial machines use 24 volt or even higher voltage systems.
The most important takeaway is that you must match the battery voltage to your specific mower. Installing a battery with the wrong voltage can damage the charging system, prevent the mower from starting, or create safety hazards. Always verify the required voltage by checking your mower’s owner’s manual or the label on the existing battery before purchasing a replacement.

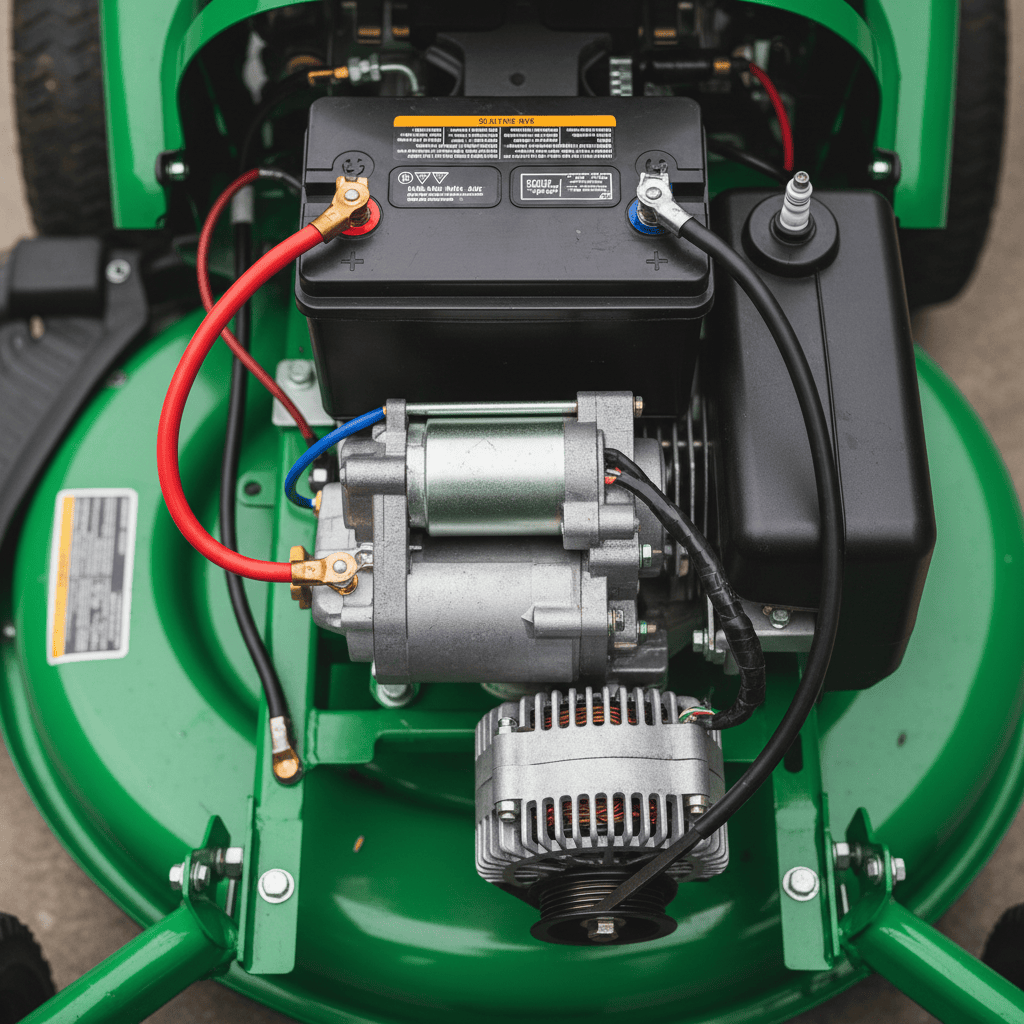

Why Most Riding Mowers Use 12 Volt Batteries
The 12 volt electrical system has become the industry standard for gasoline-powered riding mowers for several practical reasons. A 12 volt lead-acid battery provides sufficient power to operate the starter motor, ignition system, headlights, and other electrical components found on most residential and commercial riding mowers.
The 12 volt system also aligns with standard automotive charging components. Most riding mowers use an alternator or stator system that charges the battery while the engine runs, maintaining a charge level between 13.5 and 14.5 volts during operation. This compatibility with widely available automotive-style parts makes 12 volt systems cost-effective for manufacturers and easy to service for owners.
What does a 12 volt mower battery power? The primary function is cranking the engine through the starter motor. Beyond starting, the battery also powers the ignition system, electronic fuel injection (on fuel-injected models), safety interlock switches, headlights, and any onboard electronics like hour meters or digital displays.
When Lawn Mowers Use 6 Volt or 24+ Volt Batteries
While 12 volt is the norm, there are notable exceptions depending on the mower type and age.
6 Volt Batteries in Smaller or Older Mowers
Some smaller garden tractors, older riding mowers (particularly those manufactured before the 1980s), and certain walk-behind mowers with electric start features use 6 volt batteries. These systems were common when electrical demands were lower and manufacturers used 6 volt generators rather than 12 volt alternators. If you own a vintage or antique mower, a 6 volt battery may be required.
24 Volt and Higher Systems in Electric and Commercial Mowers
Many modern electric riding mowers use 24 volt, 48 volt, or even higher voltage battery systems to power their electric drive motors. These higher voltages are necessary to deliver the torque and runtime required for cutting large areas without a gasoline engine. Some commercial-grade zero-turn mowers and stand-on mowers also use 24 volt systems for enhanced electrical capacity.
Battery electric mowers (both push and riding) typically use lithium-ion battery packs rather than traditional lead-acid batteries. These packs often contain multiple cells wired in series to achieve the required voltage, which can range from 20V to 80V depending on the mower’s power requirements.
How to Check Your Mower’s Battery Voltage Before Buying
Before purchasing a replacement battery, you need to confirm the exact voltage your mower requires. Here are the most reliable methods:
- Check the owner’s manual: The manual will specify the battery type, voltage, group size, and cold cranking amps (CCA) required for your specific model.
- Read the label on the existing battery: The voltage is typically printed prominently on the battery case, often near the terminal markings. Look for “12V,” “6V,” or “24V”.
- Use a multimeter: Set a digital multimeter to DC voltage and touch the red probe to the positive terminal and the black probe to the negative terminal. A fully charged 12 volt battery should read approximately 12.6 to 12.8 volts. A 6 volt battery will read around 6.3 to 6.4 volts.
- Check the mower’s specifications plate: Many mowers have a metal or sticker plate on the frame listing electrical specifications, including the battery voltage.
Key Factors to Consider When Choosing a Replacement Battery
Voltage is critical, but it’s not the only factor. When selecting a replacement lawn mower battery, consider these additional specifications:
Battery Type: Lead-Acid vs. Lithium
Most traditional riding mowers use sealed lead-acid (SLA) or flooded lead-acid batteries. These are affordable, widely available, and reliable for standard applications. Lithium-ion batteries are lighter, hold a charge longer, and have a longer lifespan, but they cost more upfront. For electric mowers, lithium-ion is typically the standard.
Cold Cranking Amps (CCA)
CCA measures a battery’s ability to start an engine in cold temperatures. While lawn mowers are typically used in warmer months, a higher CCA rating indicates a stronger battery capable of delivering more power during startup. For most residential riding mowers, a battery with 200 to 350 CCA is sufficient.
Group Size and Terminal Configuration
Battery group size refers to the physical dimensions and terminal placement. Common lawn mower battery group sizes include U1, U1R, 22NF, and 24. The terminals must align with your mower’s cable connections — typically top-post or side-post configurations. Always match the group size to ensure a proper fit in the battery tray.
Frequently Asked Questions
Can I replace a 6 volt battery with a 12 volt battery?
No. You should never replace a 6 volt battery with a 12 volt battery unless the entire electrical system has been converted to 12 volts. Installing a 12 volt battery in a 6 volt system will overvolt the electrical components, potentially damaging the starter, lights, voltage regulator, and other electronics. Always use the voltage specified by the manufacturer.
How long should a lawn mower battery last?
A quality lawn mower battery typically lasts 3 to 5 years with proper maintenance. Lead-acid batteries benefit from regular charging during off-season storage and keeping terminals clean and corrosion-free. Lithium-ion batteries in electric mowers may last 5 to 10 years depending on usage and charging habits.
Do I need a special charger for a 12 volt mower battery?
A standard 12 volt automotive battery charger or smart trickle charger works well for lawn mower batteries. Avoid using a charger with a higher voltage output than the battery’s rating. Smart chargers that automatically adjust the charging rate are ideal for maintaining battery health during storage periods.
What happens if I install a battery with the wrong voltage?
Installing a battery with incorrect voltage can cause serious problems. A battery with too low a voltage won’t have enough power to start the engine. A battery with too high a voltage can damage the starter motor, blow fuses, fry wiring, and destroy electronic components. Always double-check the voltage before installation.
