Direct Answer: Touch a jumper wire across the two large terminals on your riding mower’s starter solenoid. If the starter motor cranks, the solenoid is bad and needs replacement. If nothing happens, the solenoid is not the problem — check the battery, ignition switch, or starter motor instead. No multimeter required for this first test.

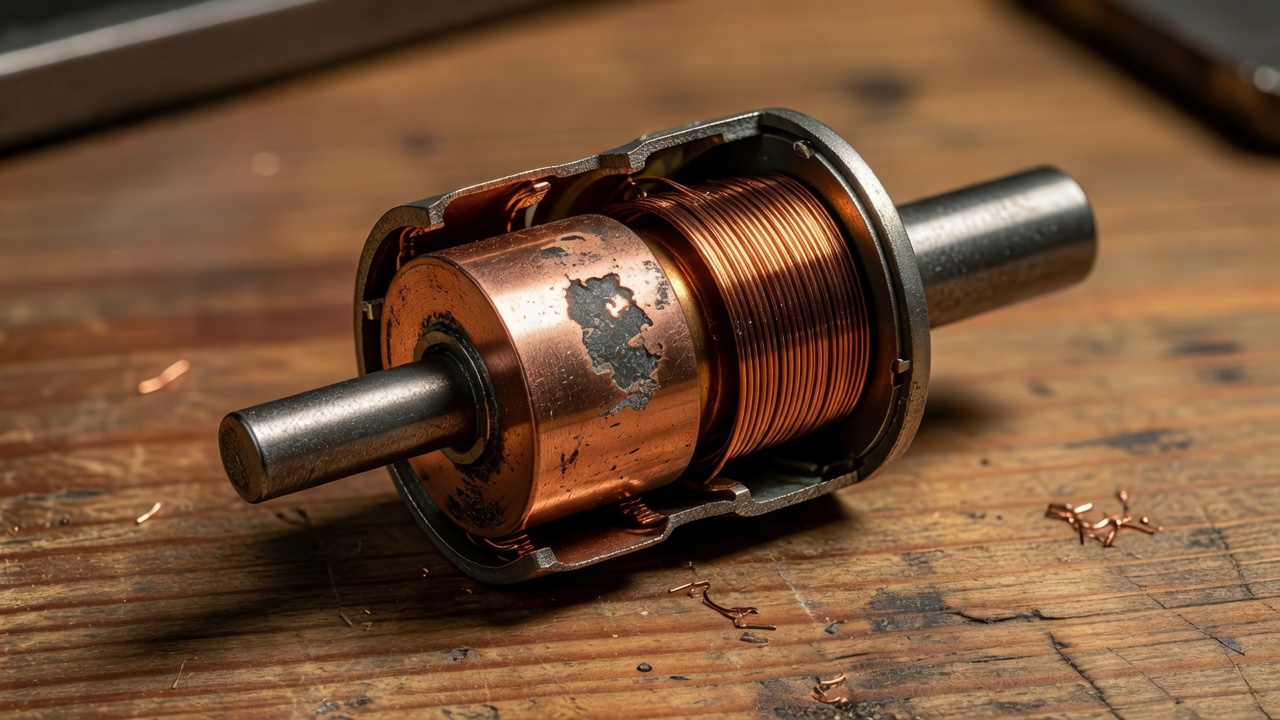

What a Lawn Mower Solenoid Does (and Why It Fails)
The starter solenoid on a riding lawn mower is an electromagnetic switch mounted between the battery and the starter motor. When you turn the ignition key, a small control current flows through the solenoid coil, which pulls a plunger inward and bridges two large copper contacts. Those contacts complete the high-amperage circuit that spins the starter motor.
On most riding mowers, the solenoid sits near the battery or bolted directly to the starter motor. It typically has four terminals: two large threaded posts carrying the main battery-to-starter current, and two smaller terminals carrying the low-current signal from the ignition switch and the chassis ground.
How solenoids fail:
- Open coil: The internal coil wire breaks; the solenoid never activates — mower does nothing or produces no sound.
- Burned contacts: High-amperage arcing erodes the copper contacts; the solenoid activates but passes little current — you hear a single click but the starter doesn’t turn.
- Welded contacts: An overload fuses the contacts together permanently; the starter motor engages every time battery power is present, even without the key.
Starter solenoid vs. safety solenoids: Riding mowers also use safety switches (seat switch, blade-engagement switch, brake switch) that interrupt the solenoid control circuit rather than the main power circuit. Those switches are not solenoids and are tested differently. This article covers the starter solenoid only.
Push mowers almost never use a starter solenoid — they rely on a direct recoil pull-start or a simple motor contactor. If you have a push mower, confirm a solenoid is actually present before proceeding.
Signs Your Solenoid May Be Bad (Before You Test)
These symptoms suggest a faulty starter solenoid on a riding mower. They are starting points, not a definitive diagnosis — the tests below confirm or rule out the component.
- Single loud click, no crank: The solenoid activates (you hear it engage) but its internal contacts are too corroded to pass enough current to the starter motor. This is the most common solenoid failure sound.
- Dead silence when key turns: No click at all. Either the coil is open, the safety-switch circuit is interrupted, or the battery is too low to activate the coil.
- Starter engages without the key: Welded contacts — the mower may crank or start the moment you connect the battery. Disconnect the battery immediately; this is a safety hazard.
- Intermittent starting: The mower starts sometimes and not others, often correlated with heat. Corroded terminals or a marginal coil can cause thermal failure.
Symptoms that point away from the solenoid: Slow cranking (battery or starter), clicking that speeds up as you hold the key (low battery voltage), or grinding sounds (starter drive or ring gear). A dead battery mimics a dead solenoid — always confirm battery voltage is at or above 12.4V with a multimeter before testing the solenoid.
Tools and Safety Steps Before Testing
Tools You Need
| Tool | Used For | Required? |
|---|---|---|
| Insulated jumper wire (12–14 AWG, 6–12 inches) | Bypass / jump test | Test 1 — Yes |
| Digital multimeter | Continuity and voltage tests | Tests 2 & 3 — Yes |
| Safety glasses | Arc flash protection | Always |
| Insulated gloves | Shock and burn protection | Strongly recommended |
| 8mm or 10mm wrench | Removing solenoid terminal nuts | Test 2 — Yes |
| Wire brush or sandpaper | Cleaning corroded terminals | Optional but useful |
Non-Negotiable Safety Steps
- Park on level ground and set the parking brake.
- Disengage the cutting blades — move the PTO/blade engagement lever to the OFF position.
- Remove the ignition key before touching any wiring (exception: voltage drop test requires the key in the crank position — see Test 3).
- Wear safety glasses and insulated gloves. The jump test creates a direct connection across a 12V battery capable of producing a significant arc and sparks.
- Keep the jumper wire away from fuel lines, the carburetor, and the fuel tank. Sparks and fuel vapor are a fire hazard.
- Do not work near a running engine — the jump test will attempt to crank the engine. Keep hands clear of the flywheel, belt, and blade area when performing Test 1.
Test 1 — The Jumper Wire Bypass Test (Fastest, No Multimeter Needed)
This is the standard first diagnostic. It removes the solenoid from the circuit entirely to determine whether it is the fault point.
Identify the Terminals
Locate the solenoid (typically near the battery or on the starter motor). You will see:
- Two large terminals (posts): One connects to the positive battery cable; the other connects to the starter motor. These carry the main current.
- Two small terminals: One carries the ignition switch signal; the other is chassis ground. Do not connect the jumper to these.
Step-by-Step Procedure
- Confirm the battery measures 12.4V or higher with a multimeter. A low battery produces identical symptoms to a bad solenoid — fix the battery issue first.
- Confirm the parking brake is set and the blades are disengaged.
- Put on safety glasses and insulated gloves.
- Hold one end of the insulated jumper wire against the large battery-side terminal on the solenoid.
- Briefly touch the other end to the large starter-side terminal. Hold it for no more than 3–5 seconds.
- Observe what happens.
Pass/Fail Results
| What Happens | Diagnosis | Next Step |
|---|---|---|
| Starter motor cranks the engine | Solenoid is bad — the bypass succeeded where the solenoid failed | Replace the solenoid |
| Nothing happens (no crank, no sound) | Solenoid is not the problem — the main power circuit and starter motor are the issue | Test the starter motor and battery cables |
| Mower cranks or starts without the key (before you perform the test) | Welded contacts — solenoid contacts are fused closed permanently | Disconnect the battery immediately; replace the solenoid |
| Loud arc/spark but no crank | Solenoid contacts may be severely burned, or starter motor is seized | Proceed to Test 2 to confirm; also check starter motor |
Important: If the jump test cranks the engine, the engine will attempt to start. This is expected. The test confirms the solenoid is faulty; the mower runs because you manually completed the circuit the solenoid failed to complete.
Test 2 — Multimeter Continuity Test (Off-Mower Bench Test)
This test checks the solenoid’s internal coil and contact integrity after the component is removed. It confirms jump-test results and is useful when the jump test gives ambiguous results.
Remove the Solenoid
- Disconnect the negative battery cable first, then the positive.
- Label and photograph all wires connected to the solenoid terminals before removing them.
- Disconnect all four terminal wires and unmount the solenoid from the chassis or starter.
Test the Coil (Small Terminals)
- Set your multimeter to Ohms (Ω) mode — resistance measurement.
- Place one probe on each of the two small terminals.
- Read the resistance value.
| Multimeter Reading | Diagnosis |
|---|---|
| 2–5 Ω (ohms) | Coil is good — within normal operating range for most small-engine starter solenoids |
| OL / 1 / infinite | Open coil — internal wire is broken; solenoid cannot activate; replace it |
| 0–0.5 Ω (near zero) | Shorted coil — coil windings have fused; replace the solenoid |
Note on resistance range: The 2–5 Ω range reflects typical values across common small-engine solenoids from manufacturers including Briggs & Stratton, Kohler, and Kawasaki. Individual OEM specifications vary. If your solenoid’s service manual is available, use the published specification for your exact model. A reading outside 2–5 Ω does not automatically mean failure — but OL (open loop/overload) and near-zero readings are definitive failures regardless of manufacturer.
Test the Contacts (Large Terminals)
- Switch your multimeter to Continuity mode (beep symbol) or keep it in Ohms mode.
- Place probes on the two large terminals.
- At rest (coil not energized): The multimeter should read OL / no continuity. The contacts are normally open.
- With coil energized: Apply 12V DC across the two small terminals (positive to one, negative to the other) using a 12V power source such as a battery or bench supply. The solenoid should click. The multimeter across the large terminals should now read 0–0.3 Ω or continuity.
| Contacts at Rest | Contacts Energized | Diagnosis |
|---|---|---|
| OL (open) | 0–0.3 Ω (closed) | Contacts are good |
| OL (open) | OL (still open) | Contacts are burned/failed — solenoid activates but cannot pass current; replace it |
| 0 Ω (closed at rest) | 0 Ω (always closed) | Welded contacts — replace immediately |
Test 3 — Voltage Drop Test (On-Mower, Multimeter Required)
The voltage drop test identifies high-resistance solenoid contacts that pass continuity checks but fail under real load. It is the most accurate test of the solenoid’s contacts during actual cranking conditions.
When to Use This Test
Use Test 3 when: the jump test and bench test pass, but the mower still cranks slowly or intermittently. High-resistance contacts that appear fine at bench-test current levels fail when carrying the 100–200A starter motor current.
Step-by-Step Procedure
- Confirm the battery is fully charged (12.6V at rest; 12.4V minimum).
- Set the multimeter to DC Volts mode, 20V range.
- Place the red probe on the large input terminal (battery side) of the solenoid.
- Place the black probe on the large output terminal (starter side) of the solenoid.
- Have a helper turn the ignition key to the crank position (or use the key yourself if probes are secured). Do not hold the key for more than 5–7 seconds at a time to avoid overheating the starter.
- Read the voltage while the engine is cranking.
Pass/Fail Results
| Voltage Drop Reading | Diagnosis |
|---|---|
| 0–0.5V drop | Solenoid contacts are good — less than 0.5V loss across contacts is acceptable |
| 0.5V–2V drop | Contacts are degraded — elevated resistance; solenoid replacement recommended |
| More than 2V drop | Contacts have failed — significant resistance is robbing the starter motor of voltage; replace the solenoid |
| Full battery voltage appears on output side but engine doesn’t crank | Starter motor is faulty — solenoid is passing voltage correctly; test the starter motor |
Confirm battery voltage first: Measure battery voltage at the battery terminals during cranking. If it drops below 9.6V while cranking, the battery cannot sustain the load — test and replace the battery before evaluating solenoid voltage drop.
Reading Your Results — Is the Solenoid Bad or Is Something Else Wrong?
Use this decision matrix after completing the tests above.
| Test 1 Result | Test 2 Result | Test 3 Result | Diagnosis |
|---|---|---|---|
| Cranks on bypass | Contacts failed or OL coil | — | Replace the solenoid |
| No crank on bypass | Coil and contacts both good | Low voltage at output | Test the starter motor — solenoid is fine |
| No crank on bypass | Coil and contacts both good | Battery drops below 9.6V cranking | Replace or recharge the battery |
| Dead silence (no click) | OL coil reading | — | Replace the solenoid (open coil) |
| Dead silence (no click) | Coil reads 2–5 Ω | No voltage at input terminal during crank | Test the ignition switch and safety switches — the solenoid control circuit is open upstream |
| Starts without key | Contacts closed at rest (welded) | — | Replace the solenoid immediately — safety hazard |
When to Test the Ignition Switch and Safety Switches
If the solenoid coil reads 2–5 Ω (good) but produces no click when the key is turned, the problem is upstream in the control circuit. Check:
- Seat switch: Must detect operator weight. Test by jumping it temporarily while seated.
- Brake/clutch switch: Must confirm the brake is engaged before allowing start.
- Blade engagement switch: PTO must be disengaged.
- Ignition switch: Should deliver 12V to the solenoid small terminal in the crank position — verify with multimeter in DC volts mode.
Solenoid testing ends at diagnosis. If the solenoid is confirmed bad, replacement is a separate procedure — consult your mower’s service manual or a dedicated replacement guide for your specific make and model.
Frequently Asked Questions
What does a single click mean when I turn the key on a riding mower?
One loud click followed by silence is the characteristic sound of a solenoid that activates but has burned internal contacts that cannot pass sufficient current to the starter motor. It differs from a dead battery, which typically produces rapid repeated clicks as the solenoid cycles on and off due to voltage fluctuation. Confirm battery voltage is above 12.4V, then perform Test 1 (jumper bypass) to determine whether the solenoid or the starter motor is at fault.
Can I test a lawn mower solenoid without a multimeter?
Yes. The jumper wire bypass test (Test 1) requires only a short length of insulated 12–14 AWG wire and no measuring instruments. It delivers a clear pass/fail result: if the starter cranks when you bridge the two large terminals, the solenoid is bad. A multimeter is needed only for Tests 2 and 3, which are used to confirm ambiguous results or identify high-resistance contact failure not caught by the bypass test.
What resistance should a lawn mower solenoid read on a multimeter?
The solenoid coil, measured across the two small terminals, typically reads 2–5 ohms on most small-engine riding mower solenoids. A reading of OL (overload/infinite resistance) indicates an open coil — the solenoid is dead. A reading near 0 ohms indicates a shorted coil. Both are definitive failures. Always cross-reference with your OEM service manual if available, as specifications vary by manufacturer and solenoid model.
Could a safety switch or ignition switch cause the same symptoms as a bad solenoid?
Yes, and this is a common misdiagnosis. Safety switches (seat, brake, blade) interrupt the low-current control circuit that activates the solenoid coil. If any safety switch is open, the solenoid never receives its activation signal — the result is identical to a dead solenoid coil: no click, no crank. Perform the bypass test first. If bypassing the solenoid cranks the engine, the solenoid is bad. If bypassing does nothing, measure for 12V at the solenoid’s small input terminal during cranking — no voltage there confirms the fault is in the ignition switch or safety switch circuit, not the solenoid itself.
