Direct Answer: How Zero Turn Mowers Work
A zero turn mower works through a dual-wheel independent drive system where each rear wheel is controlled independently by the operator through steering levers. This design allows the wheels to move at different speeds or in opposite directions simultaneously, enabling the mower to rotate on its own axis without forward motion—hence “zero turn radius.” The system typically uses hydraulic pumps connected to each wheel’s motor, with the operator’s lever inputs controlling hydraulic flow to each side, managing both speed and direction independently.
The Core Mechanism: Independent Wheel Drive System
The fundamental innovation that defines zero turn mowers is the independent wheel drive system. Unlike traditional mowers that use a single engine to power all wheels through a shared transmission, zero turn mowers dedicate separate hydraulic motors to each rear wheel. This separation is the key to zero-radius turning capability.
In a conventional mower, both wheels are mechanized together, so when you turn the steering wheel, the front wheels angle but the rear wheels remain parallel. The mower must follow a curved path with a turning radius—it cannot pivot in place. Zero turn mowers eliminate this limitation by allowing each rear wheel to operate independently at different speeds or directions.
When the operator pushes one steering lever forward while holding the other neutral or pushing backward, hydraulic fluid is directed differently to each rear wheel. The wheel receiving more hydraulic flow moves faster or in one direction, while the other wheel moves slower or in the opposite direction. This speed differential causes the mower to pivot around its center point rather than following a curved path.
Hydraulic and Mechanical Components
The hydraulic system is the mechanical heart of a zero turn mower. Here’s how the key components function:
Hydraulic Pump
The engine drives a hydraulic pump that pressurizes hydraulic fluid. This pump generates the power needed to move the wheels. In zero turn mowers, the pump’s output is directed to control valves that route fluid to individual wheel motors based on operator input.
Hydraulic Motors
Each rear wheel connects to its own hydraulic motor. These motors convert pressurized hydraulic fluid into rotational motion, spinning the wheels. Because each motor operates independently, wheels can rotate at different speeds or directions depending on the hydraulic pressure each receives.
Steering Levers and Control Valves
The operator controls hydraulic flow through steering levers. When you move a lever, it adjusts a control valve that regulates how much pressurized fluid flows to that wheel’s motor. Moving a lever forward increases flow and wheel speed in the forward direction. Pulling a lever backward reverses the hydraulic flow, making that wheel move backward. A neutral position stops fluid flow, halting that wheel.
Hydrostatic Transmission
This is the complete system of hydraulic pump, motors, and control valves working together. It’s called “hydrostatic” because the system uses fluid pressure (rather than mechanical gears) to transmit power from the engine to the wheels. This design eliminates the need for a traditional multi-speed transmission, clutch, and differential—components found in conventional mowers.
Steering and Control Input
Understanding how operator inputs translate to mower movement clarifies why zero turn mowers achieve their distinctive maneuverability:
Moving Both Levers Forward Equally
When both steering levers are pushed forward equally, equal hydraulic pressure flows to both rear wheel motors. Both wheels receive the same power and rotate at the same speed, propelling the mower straight forward.
Pushing One Lever Forward, Holding One Neutral
If you push the right lever forward and hold the left lever neutral, the right wheel accelerates while the left wheel stops. The faster-moving right wheel causes the mower to pivot left around the stationary left wheel. This is zero-radius turning—the mower rotates on its center point without traveling forward significantly.
Pushing Levers in Opposite Directions
For maximum turning speed, push one lever forward and the opposite lever backward. This causes one wheel to move forward while the other moves backward simultaneously. The mower spins rapidly on its axis, achieving dramatic directional changes in minimal space.
Turning in Place
Yes, zero turn mowers can literally turn in place. By moving one lever fully forward and the other fully backward, the mower rotates 360 degrees without translating across the yard. This capability is impossible with traditional steering designs and is a defining advantage for navigating tight spaces, obstacles, and complex yard layouts.
Cutting Deck Integration
The cutting deck—the housing containing the spinning blades—operates independently from the drive and steering systems. The engine powers both the hydraulic pump (for wheel control) and a separate belt or direct shaft that drives the blade spindles. This separation means blade speed does not depend on wheel speed or steering input.
The operator controls the cutting deck with a separate engagement lever or switch, allowing the blades to run while the mower is stationary (ideal for making adjustments) or to stop cutting while still moving the mower. Cutting deck height is typically adjusted by a mechanical linkage system unrelated to the hydraulic drive, giving the operator independent control over both where the mower goes and how short the grass is cut.
Design Advantages and Practical Benefits
Superior Maneuverability: Zero turn mowers excel in yards with trees, gardens, flower beds, and other obstacles. The ability to pivot tightly and turn in place means fewer passes and less wasted motion around obstacles.
Time Efficiency: Because the mower doesn’t need to follow curved paths or make wide turns, operators complete mowing jobs faster. A yard that might take two hours on a traditional mower could take 30-45 minutes on a zero turn mower, depending on landscape complexity.
Reduced Trimming: Traditional mowers leave uncut sections around trees and obstacles because their turning radius is wide. Zero turn mowers minimize these areas, reducing the need for line trimming or secondary passes.
Operator Comfort: The intuitive dual-lever steering system is natural for many operators and allows fine-tuned control. Moving both levers equally feels smooth; moving them differently feels deliberate and responsive.
Terrain Suitability: Zero turn mowers perform best on flat to gently sloped terrain with good drainage. They’re ideal for residential lawns, parks, and athletic fields. Steep hillsides pose safety and traction concerns regardless of mower type.

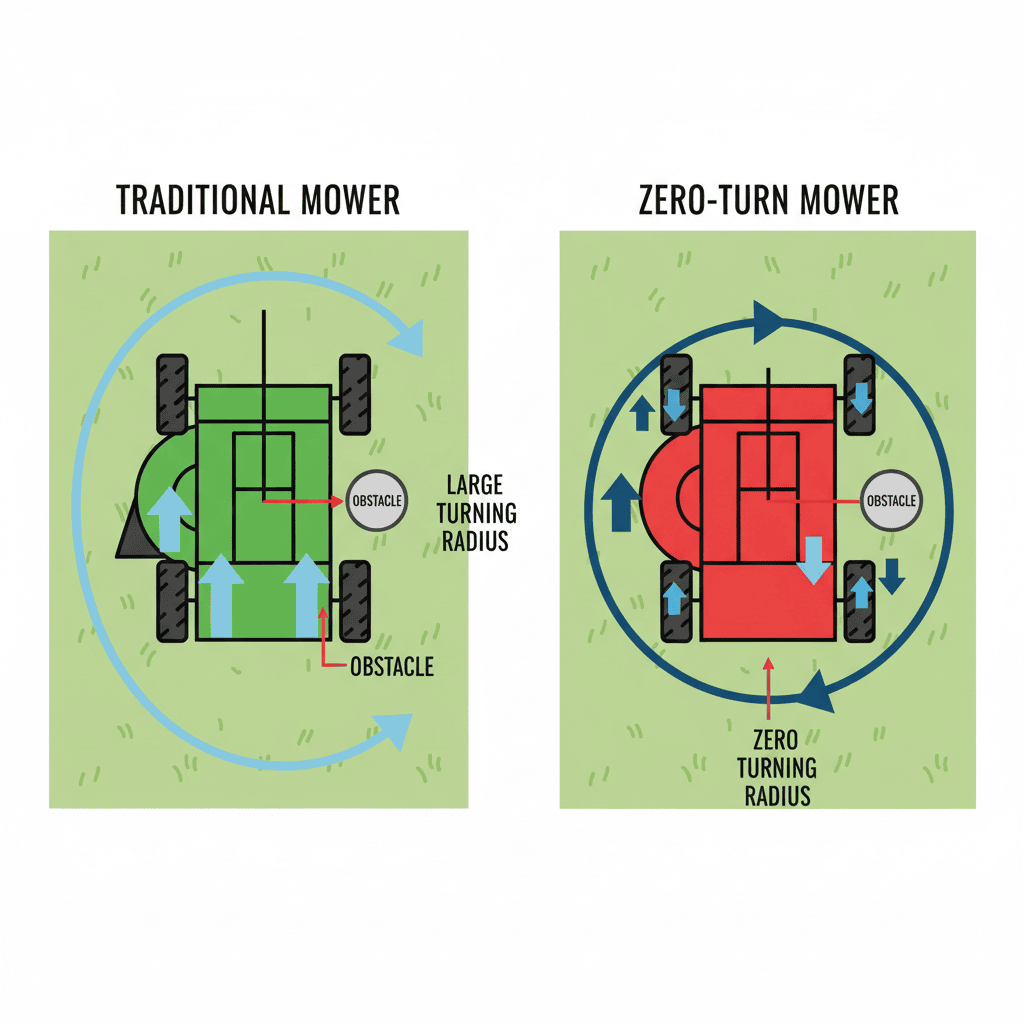

Zero Turn vs. Traditional Mower Steering
Traditional lawn mowers use Ackermann steering geometry, the same principle used in automobiles. The front wheels angle to create a curved turning path, and the rear wheels follow. The inside rear wheel travels a shorter distance than the outside rear wheel, following a circular arc. This design requires a turning radius—there’s always a minimum distance needed to complete a turn.
Zero turn mowers eliminate the Ackermann constraint by controlling rear wheels independently. The front wheels (if steerable) become optional or secondary to the rear drive wheels. Because the rear wheels can move at different speeds or opposite directions, the mower’s turning radius becomes zero—it can pivot in place.
This fundamental difference transforms how operators interact with the mower. A traditional mower requires broader, more deliberate turns. A zero turn mower responds instantly to precise steering inputs, enabling tight navigation around small obstacles and quick directional changes.
Frequently Asked Questions
Are zero turn mowers more expensive than traditional mowers?
Yes, generally. Zero turn mowers cost more upfront because hydraulic systems, dual motors, and specialized control valves are more complex and expensive to manufacture than traditional mechanical transmissions. However, the time savings and reduced trimming can justify the higher cost over the mower’s lifespan, especially for large or complex yards. Entry-level zero turn mowers start around $3,000, while commercial-grade models exceed $10,000.
Can zero turn mowers handle hills and slopes?
Zero turn mowers are designed for flat to gently sloped terrain. On steep hills, the independent wheel control can actually increase tip-over risk because wheels can move in opposite directions. Manufacturers typically limit zero turn mower operation to slopes under 15 degrees. For hillside mowing, a traditional mower with all-wheel drive or a dedicated slope mower is safer.
Do zero turn mowers require more maintenance than traditional mowers?
Yes, typically. Hydraulic systems require regular fluid checks and occasional fluid replacement. The hydraulic pump, motors, and control valves are precision components that need professional servicing if problems occur. Traditional mower maintenance focuses on engine oil, air filters, and blade sharpening—simpler tasks. However, proper maintenance extends zero turn mower life significantly and prevents costly repairs.
How does the hydrostatic transmission compare to gear-based transmissions?
Hydrostatic transmissions offer infinite speed variation and smooth acceleration without gear shifting, while gear-based systems are mechanically simpler and generally more durable in heavy-duty use. For residential lawn mowing, hydrostatic transmission provides superior control and comfort. For commercial mowing and rough terrain, gear-based systems remain popular due to lower maintenance and higher mechanical reliability in extreme conditions.
