Quick Answer: How To Change Belt On Lawn Mower?
To change a lawn mower belt, first disconnect the spark plug wire for safety. Depending on your mower, either remove the mower deck or access the belt through guards, then release tension from the idler pulley, remove the old belt, route the new belt according to your mower’s belt diagram (found in the owner’s manual), re-tension the belt, and reassemble…
Pros
- Authentic OEM Billy Goat quality for precise model match
- Listed compatibility with key FM3300 and FM3301 series walk-behind mowers
- Clear part number 520007 simplifies ordering and identification
- Supports reliable spindle drive function for consistent mowing results
Cons
- Compatibility limited to specific Billy Goat models requiring owners manual verification
- No installation accessories or detailed dimension specs provided in the listing
- Requires careful model matching as it is not a universal belt
The Billy Goat Genuine Replacement Spindle Drive Belt is an original equipment manufacturer part identified as number 520007. It is built specifically for Billy Goat walk-behind lawn mowers and presents as a focused, high-quality replacement component intended to match factory standards for fit and durability.
In performance terms the belt restores proper spindle drive operation so that power is transmitted effectively during mowing. It is listed as compatible with Billy Goat models including FM3301EB, FM3301E, FM3300 and FM3300E, helping owners return their equipment to reliable cutting efficiency through authentic OEM construction.
Potential drawbacks center on the need to consult the original equipment owners manual for final compatibility confirmation, since the part is restricted to the listed FM series models. The absence of broader technical dimensions or included accessories means buyers must verify exact requirements before purchase.
This belt offers the greatest value to Billy Goat FM series mower owners who need a genuine replacement to maintain original performance and equipment longevity. Those seeking a universal or multi-brand option should look elsewhere, while owners matching the specified models will find it a practical and trustworthy choice.
Pros
- Aramid material provides superior durability for heavy-duty lawn and garden applications
- Exact 1/2 x 61 sizing matches common Simplicity drive belt requirements for straightforward replacement
- Covers multiple OEM part numbers to simplify searching and ordering
- Suitable for both riding mowers and other clutching equipment like tillers
Cons
- Aftermarket belt only and not an original Simplicity OEM component
- Compatibility limited to specific Landlord 50-inch and Broadmoor 44-inch deck models requiring size verification
- No installation tools or extras included so users must supply their own
The Technology Parts Store Aramid Heavy Duty Drive Belt is a purpose-built replacement V-belt measuring 1/2 inch wide by 61 inches long. Constructed with heavy-duty Aramid material, it offers a robust build quality suited for outdoor power equipment and makes an immediate impression as a practical aftermarket solution for Simplicity machines.
Performance and key features center on its A59K 4LK610 sizing and ability to replace OEM numbers such as 105115SM, 1601672SM, and 2027102SM. In real-world use it handles the clutching demands of Simplicity Landlord models with 50-inch decks and Broadmoor units with 44-inch decks, delivering reliable power transmission for lawn mowers, tillers, and similar applications without stretching or slipping under normal loads.
Drawbacks and considerations include the fact that this is explicitly not an OEM belt, so buyers must carefully verify their original part number and exact belt dimensions before ordering. Compatibility is also restricted to the listed Simplicity models and deck sizes, which may limit broader use across other brands or configurations.
Verdict: This belt provides solid value for owners of compatible Simplicity Landlord or Broadmoor riding mowers who need a durable, correctly sized drive belt for heavy-duty clutching tasks and want an affordable aftermarket option that matches critical OEM dimensions.
Pros
- Uses aramid cord reinforcement for added strength and durability.
- Compatible with specific Husqvarna zero-turn mower models and OEM part numbers.
- Offers heat, oil, and abrasion resistance for outdoor equipment use.
- Clear size listing helps buyers verify fit before purchase.
Cons
- Compatibility is limited, so buyers must confirm the exact part number and belt size first.
- It is a replacement belt only and does not include installation tools or accessories.
- As with any drive belt, fit and performance depend on correct mower model matching and proper installation.
Overview: The Nubelety 592951801 is a replacement lawn mower deck drive belt made for select Husqvarna zero-turn mowers, including Z254F and MZ54 applications. It is a straightforward aftermarket option for users who need a belt replacement with OEM-style sizing and material focus.
Performance: This belt uses synthetic rubber with aramid cord reinforcement, which is intended to improve tensile strength, toughness, and resistance to heat, oil, and abrasion. In practical use, those materials can help support smoother power transfer, better durability under repeated bending, and less slippage when the mower deck is under load.
Drawbacks: The main limitation is fitment. Buyers must confirm both the part number and the 1/2 inch by 152 inch size before purchasing, since this belt is not universal. It is also sold as a single replacement belt, so there are no included extras.
Verdict: This is a solid choice for Husqvarna owners who need a compatible deck drive belt and want a durable replacement with reinforced construction. It is best suited for users who prioritize correct fit, material durability, and a simple direct replacement.
Pros
- Direct OEM part number GX23501 compatibility for accurate replacement
- New condition ensures ready-to-install quality
- Specifically supports John Deere JS26, JS28, and JM26 walk behind models
- Includes one complete drive belt in the package
- Straightforward option for restoring mower drive systems
Cons
- Limited exclusively to JS26, JS28, and JM26 John Deere models
- No detailed dimensions or material specifications available
- Package contains only the single belt with no tools or guides included
The JZGRDN GX23501 is a replacement drive belt built for John Deere walk behind lawn mowers. It matches the original part number GX23501 and comes in new condition, providing a basic yet functional option for owners focused on restoring their equipment.
In terms of performance and key features, this belt serves as a direct compatible part for models JS26, JS28, and JM26. It supports the drive system needed for standard lawn mowing tasks, allowing users to maintain operation based strictly on the listed model compatibility and new condition status.
Drawbacks and considerations include its restriction to only the specified John Deere models and the absence of any expanded technical details such as measurements or materials. The package offers just one belt, so installation may require separate tools or expertise from the user.
This product delivers the most value to owners of John Deere JS26, JS28, or JM26 walk behind lawn mowers who need a simple new drive belt replacement matching the GX23501 part number for basic repairs.
Before You Start: Safety and Preparation
Changing the belt on a lawn mower is a manageable DIY task, but it requires working near sharp blades and moving parts. Proper preparation and safety precautions will make the job easier and keep you safe throughout the process.
Why Should I Disconnect the Spark Plug Wire Before Changing the Belt?
The spark plug wire is the electrical connection that allows the engine to start. If the engine turns over while your hands are near the pulleys or blades, you could be seriously injured. Disconnecting the spark plug wire ensures the engine cannot start, even if the key is turned or the starter is accidentally engaged. Always pull the wire off the spark plug and move it away from the terminal so it cannot reconnect while you work.
What Tools Do I Need to Change a Lawn Mower Belt?
You will need a basic set of hand tools for most belt replacements. A socket set with both standard and metric sockets is essential for removing bolts and nuts. A wrench is useful for turning the tensioner arm, and a flathead screwdriver can help pry the old belt off the pulleys. Pliers are helpful for handling spring-loaded tensioners. Wear work gloves to protect your hands from sharp metal edges and safety glasses to shield your eyes from debris.
Accessing the Belt: Deck Removal vs. Belt Guards
The first step in changing the belt is gaining access to it. The method you use depends on the design of your mower. Some mowers allow access through belt guards, while others require removing the deck.
Do I Need to Remove the Mower Deck to Change the Belt?
Not always. On many riding mowers, the belt can be accessed by removing a belt guard or by tilting the mower to reach the underside. However, on some models, the belt is routed in a way that makes it impossible to reach without removing the deck. Check your owner’s manual to see what your specific model requires. If the belt is partially hidden or you do not have enough room to work, removing the deck is the safest and most practical option.
How Do I Access the Belt Through Belt Guards?
If your mower has belt guards, they are typically held in place with a few bolts or clips. Remove these fasteners and lift the guard away to expose the belt and pulleys. Some guards may be spring-loaded and require a bit of force to release. Once the guard is off, you can see the belt routing and begin the removal process. Keep the guard and its fasteners in a safe place so you can reinstall them later.
Removing the Old Belt
With the belt exposed, you can now remove the old belt. The key is to release the tension so the belt becomes loose enough to slide off the pulleys.
How Do I Release Tension from the Idler Pulley?
The idler pulley is a spring-loaded pulley that applies tension to the belt. To release the tension, you need to move the idler pulley away from the belt. This is usually done by rotating the tensioner arm with a wrench or socket. As you move the arm, the spring compresses and the belt becomes slack. Hold the tensioner in this position while you remove the belt. Be cautious, as the spring is under strong force and can snap back if you lose your grip. To evaluate matched hardware tolerances, consult our detailed overview of marshall stanmore iii vs harman kardon onyx studio 8.
How Do I Remove the Old Belt Once Tension Is Released?
Once the tension is released, the belt should be loose enough to slide off the pulleys by hand. Begin by pulling the belt off the largest pulley, typically the engine or crankshaft pulley, and then work it off the remaining pulleys. Take note of the belt routing as you remove it, or take a photo beforehand, so you can reference it when installing the new belt. If the belt is stuck, double-check that the tensioner is fully released and that nothing else is holding the belt in place.

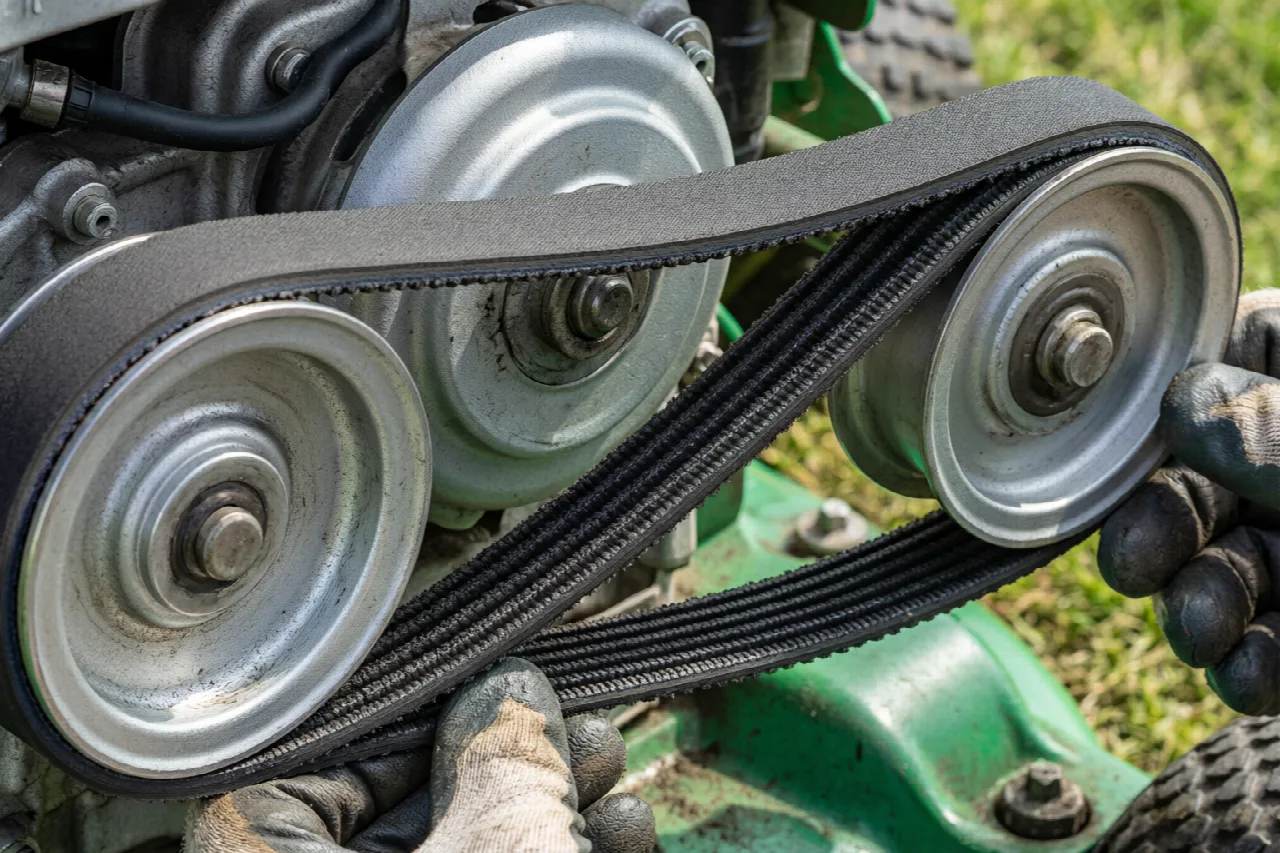

Routing and Installing the New Belt
Installing the new belt requires careful attention to the routing. The belt must follow the exact path shown in the diagram to function correctly. When planning workspace deployment, consider the engineering criteria outlined in our dyson v8 cyclone vs bissell featherweight stick guide.
How Do I Find the Correct Belt Routing Diagram for My Mower?
The belt routing diagram is typically printed on a sticker located under the deck or on the deck housing. If the sticker is missing or unreadable, consult your owner’s manual. The manual contains a detailed diagram for your specific make and model. If you do not have the manual, you can often find the diagram online by searching for your mower’s model number. The diagram shows the path the belt must follow around each pulley.
How Do I Route the New Belt Around the Pulleys?
Using the routing diagram as a guide, place the new belt around the engine or crankshaft pulley first. From there, work the belt around each idler pulley and then around the blade pulleys. Ensure the belt sits fully inside the grooves of each pulley and is not twisted. A belt that is twisted or riding on the edge of a pulley will cause poor performance and premature wear. Take your time and refer to the diagram or your photo of the old belt to confirm the path. For additional operational safety benchmarks, see our published testing notes on bissell crosswave hydrosteam vs shark stainforce.
Re-Tensioning and Reassembling
After the new belt is routed correctly, you need to apply tension and put everything back together.
How Do I Re-Tension the Belt After Installation?
To re-tension the belt, slowly release the tensioner arm so the idler pulley presses against the belt. The belt should feel snug but not overly tight. Rotate the pulleys by hand to check that the belt tracks smoothly and stays centered. If the belt is loose, you may need to adjust the tensioner. If it is too tight, it can strain the pulleys and bearings. The correct tension is usually specified in the owner’s manual.
What Should I Check After Reassembling the Mower?
Before reconnecting the spark plug wire, inspect your work. Rotate the pulleys by hand to confirm the belt moves freely. Check that all bolts, guards, and fasteners are securely tightened. Look for any tools or debris left near the pulleys or blades. Once you are confident everything is in place, reconnect the spark plug wire and start the mower. Listen for any unusual noises and observe the belt as it runs to ensure it stays on track.
Troubleshooting and Maintenance Tips
Even with careful installation, you may encounter issues with your belt. Knowing the common causes can help you address them and extend the life of your belt.
Why Does My Lawn Mower Belt Keep Coming Off?
A belt that keeps coming off is usually caused by incorrect routing, a worn pulley, or a faulty tensioner. If the belt is not routed exactly as shown in the diagram, it can walk off the pulleys during operation. Worn pulley bearings can cause wobble, which also throws the belt off. Inspect all pulleys for wear and ensure the tensioner is applying consistent pressure. Replacing a worn idler pulley or correcting the routing usually resolves the issue.
How Often Should I Inspect or Replace My Mower Belt?
It is a good practice to inspect your mower belt at the start of each mowing season. Look for signs of wear such as cracks, fraying, glazing, or a shiny appearance on the belt surface. If you notice any of these signs, replace the belt before it fails. The lifespan of a belt depends on usage, storage conditions, and the quality of the belt. For specific replacement intervals, consult your owner’s manual, as recommendations vary by manufacturer.
