Direct Answer: To change the pull string on a lawn mower, remove the recoil starter housing cover, unwind the old cord from the pulley, thread new starter rope through the housing, wind it tightly around the pulley in the correct direction, rethread through the handle, tie secure knots at both ends, and reinstall the cover. The process typically takes 30–45 minutes and requires basic tools like screwdrivers, pliers, and replacement starter rope.

When to Replace Your Lawn Mower Pull String

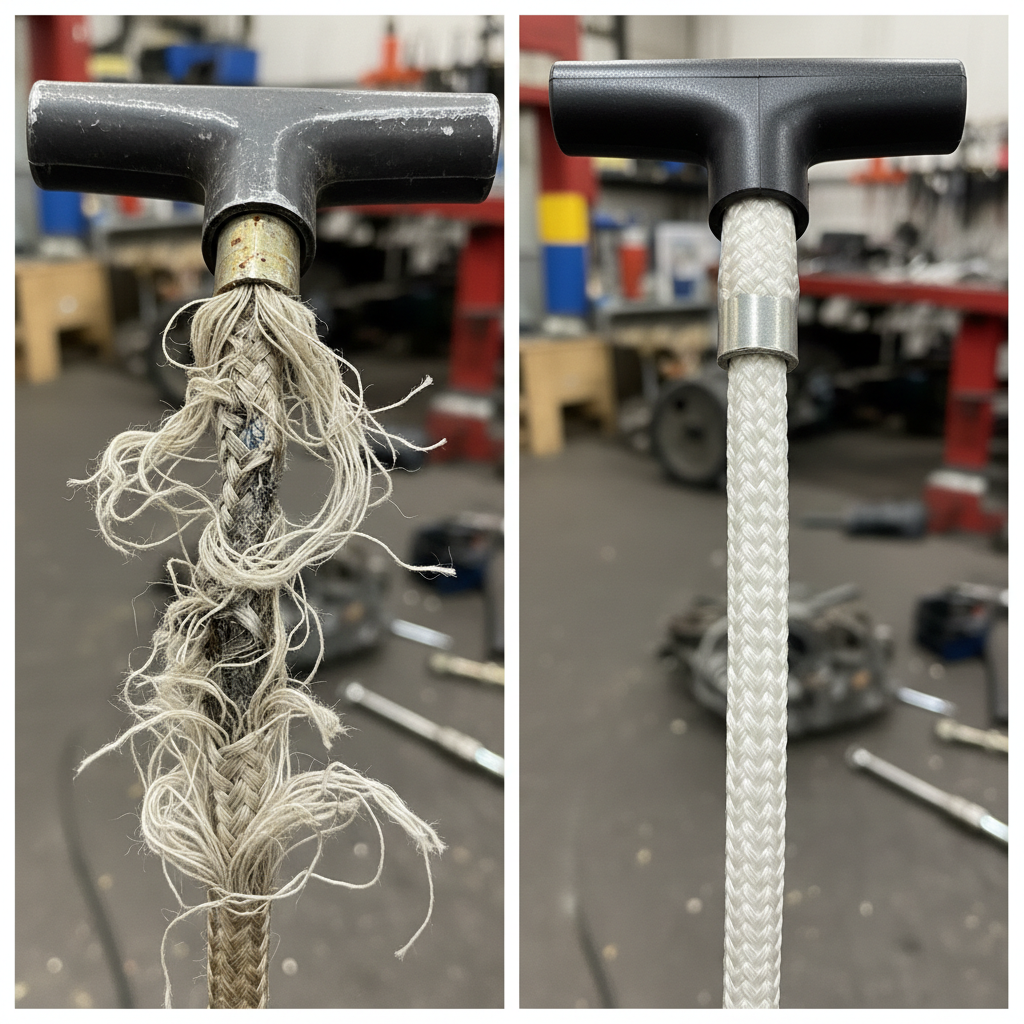

Side-by-side comparison of worn and frayed starter rope versus new intact rope

Before you begin a full replacement, identify whether your pull string actually needs replacing or if the issue is something simpler to fix. A lawn mower pull string serves a critical function—it engages the recoil starter mechanism to turn over the engine. Over time, exposure to weather, UV radiation, and regular use causes the cord to fray, weaken, or break entirely.

Signs you need a replacement include:

  • The cord is visibly frayed, torn, or has separated strands
  • The pull string snaps when you attempt to start the mower
  • The cord doesn’t retract completely after pulling
  • The handle is cracked, split, or damaged beyond use
  • You experience excessive resistance when pulling, suggesting internal damage

If the cord feels loose or slack but isn’t damaged, the issue may be spring tension rather than the rope itself. A weakened recoil spring can be adjusted or replaced without replacing the entire cord. However, if the rope itself is compromised, replacement is the safest and most cost-effective solution.

Tools and Materials You’ll Need

Gathering the right supplies before you start ensures a smooth repair process without unnecessary interruptions. Most homeowners already have the basic tools needed for this project.

Essential Tools:

  • Screwdriver set (both Phillips and flat-head)
  • Pliers or needle-nose pliers
  • Socket wrench set (if your mower uses bolts instead of screws)
  • Small container to hold screws and small parts during disassembly

Materials Required:

  • Replacement starter rope (also called recoil cord or starter cord)
  • New handle grip (optional, if the existing handle is damaged)
  • Heavy-duty knot-tying cordage or wire (for securing rope ends)

Finding the Right Replacement Rope: Starter rope comes in standard diameters (typically 3/16 inch or 1/4 inch) and various lengths depending on your mower model. Check your mower’s manual or the existing rope to determine the correct specifications. Most hardware stores, online retailers, and lawn equipment dealers stock replacement starter rope. Purchasing a pre-assembled handle kit simplifies the process—these kits include rope and handle in one package.

How to Remove the Recoil Starter Housing

The recoil starter housing is typically located on top of the engine near the air filter. Before touching any components, take these critical safety steps:

Safety Precautions:

  • Disconnect the spark plug wire to prevent accidental engine starting
  • Allow the engine to cool completely after recent use
  • Place the mower on a flat, stable work surface
  • Wear work gloves to protect against sharp edges or pinched fingers

Removal Process:

  1. Locate the recoil starter housing—typically a black or metal cylindrical or fan-shaped cover on the engine
  2. Identify all fasteners holding the cover in place (usually 2–4 screws or bolts)
  3. Use your screwdriver or wrench to remove these fasteners, placing them in a small container for safekeeping
  4. Carefully lift off the housing cover, noting the orientation and any internal spring placement
  5. Take a photograph or note the position of the recoil spring before proceeding—this helps during reassembly

Once the housing is open, you’ll see the pulley (a wheel or spool) around which the rope is wound, the recoil spring that provides tension, and the fixed anchor point where the rope connects.

Step-by-Step Process to Replace the Pull String

With the housing open, you’re ready to replace the cord. This section provides detailed instructions for each phase of the replacement.

Step 1: Remove the Old Rope

Examine how the old cord is attached to the pulley and handle. Most setups have the rope wound around the pulley several times, then threaded through the housing to the handle grip. The rope is typically secured with knots at each end.

  • Note the direction the old rope winds around the pulley (typically clockwise)
  • Carefully untie or cut the knot securing the rope to the handle
  • Gently unwind the rope from the pulley, allowing the spring to relax gradually
  • Once fully unwound, remove the rope from the housing
  • If the rope is stuck or tangled, use pliers to manipulate it free without forcing

Step 2: Prepare the New Rope

Replacement starter rope often comes in long sections. Cut a piece approximately 2–3 feet longer than the old rope to allow for wrapping and knotting. To prevent fraying, seal the cut ends by carefully passing them through a flame for a brief moment or applying a small amount of clear nail polish.

Step 3: Wind the Rope Around the Pulley

This is the most critical step. The rope must be wound tightly and in the correct direction to ensure proper retraction.

  • Thread one end of the new rope through the anchor point or hole on the pulley
  • Hold the rope end in place and begin winding the main rope around the pulley in the same direction as the old rope (typically clockwise when viewed from above)
  • Maintain consistent tension as you wind—the rope should be snug but not crushing the pulley
  • Complete 2–4 full wraps around the pulley, depending on your mower’s design
  • Ensure each wrap lies neatly against the previous one without overlapping

Step 4: Thread the Rope Through the Housing

After winding, you need to guide the rope through the starter housing to connect it to the handle.

  • Locate the rope exit hole in the housing (the opening through which the rope originally passed)
  • Thread the free end of the rope through this hole, pulling gently to ensure it passes smoothly
  • Avoid kinks or pinches in the rope as it passes through
  • Ensure the rope exits at the correct angle to connect naturally to the handle

Step 5: Attach the Rope to the Handle

The handle and rope connection must be secure and properly knotted to withstand repeated pulling forces.

  • Thread the rope end through the handle grip hole
  • Tie a secure knot on the inside of the handle to prevent the rope from slipping out—common choices include a double knot, figure-eight knot, or fisherman’s knot
  • Ensure the knot is large enough that it cannot pass back through the handle hole
  • Trim any excess rope beyond the knot, leaving only 1–2 inches
  • Test the connection by gently pulling on the handle to confirm the knot holds

Step 6: Test Rope Tension and Retraction

Before fully reassembling, verify that the rope winds and unwinds properly.

  • Manually pull the rope handle—it should extend smoothly without excessive resistance
  • Release the handle and observe the recoil spring—the rope should retract completely and smoothly into the housing
  • If the rope doesn’t retract, the spring tension may be too weak or the rope may be wrapped incorrectly
  • Repeat several practice pulls to ensure consistent operation

Reassembly and Testing

Once the new rope functions properly, reassemble the starter housing with care.

Reinstalling the Housing Cover

  • Position the housing cover over the pulley assembly, ensuring the rope sits properly in any grooves or channels
  • Align the cover with the engine body and verify that no rope is pinched between the cover and housing
  • Reinstall all fasteners (screws or bolts) in their original positions, tightening them firmly but not excessively
  • Reconnect the spark plug wire

Testing the Mower

After reassembly, perform a series of test pulls before attempting to start the engine.

  • Pull the rope handle 10–15 times to ensure smooth operation
  • Each pull should be met with appropriate resistance from the engine’s compression
  • Listen for any unusual sounds or grinding that might indicate improper installation
  • Verify that the rope retracts completely each time
  • Once satisfied with manual operation, attempt to start the mower according to its normal starting procedure

If the mower starts normally and the pull string operates smoothly during several start attempts, your replacement is successful. If problems persist—such as hard pulling, incomplete retraction, or failure to start—revisit the winding and attachment steps to identify the issue.

Brand-Specific Considerations

While the basic replacement process is consistent across most gas-powered lawn mowers, some manufacturers include design variations worth noting.

Briggs & Stratton: The most common engine manufacturer for residential mowers. Their recoil systems typically feature a spring-loaded pulley and straightforward rope design. Replacement rope diameter is usually 3/16 inch.

MTD-Powered Mowers: MTD manufactures many popular mower brands (Cub Cadet, Troy-Bilt, Yard-Man). Their recoil housings often have slight variations in cover design but follow similar rope replacement principles.

Honda and Toro: These premium manufacturers may use slightly heavier-duty rope (1/4 inch diameter) and more sophisticated spring mechanisms. Consult your specific owner’s manual for exact specifications.

Walk-Behind vs. Riding Mowers: Walk-behind push mowers use the standard recoil system described in this guide. Riding mowers may have multiple recoil starters or, increasingly, electric start systems that don’t rely on pull strings.

Always refer to your mower’s specific owner’s manual for exact rope diameter, length, and any brand-specific instructions that may differ from this general guide.

Troubleshooting Common Pull String Problems

If you’ve replaced the rope but continue experiencing problems, these solutions address common issues.

Problem: Rope doesn’t retract fully

Solution: The recoil spring may lack sufficient tension. Check that the spring is properly seated in its pocket and hasn’t become dislodged. If the spring is weak or damaged, it may require replacement in addition to the rope.

Problem: Hard pulling, excessive resistance

Solution: The rope may be wound too tightly around the pulley, causing friction. Unwrap one complete turn and rewind with less tension. Additionally, ensure the rope isn’t pinched between the cover and housing.

Problem: Rope slips out of the handle

Solution: The knot securing the rope to the handle is insufficient. Untie the current knot and use a larger, more secure knot such as a figure-eight knot. Ensure the knot cannot pass through the handle hole.

Problem: Mower won’t start despite new rope

Solution: The rope replacement may not be the issue. Check spark plug condition, fuel quality, and the air filter. If the engine turns over but won’t start, consult your mower’s troubleshooting guide or a qualified repair technician.

Frequently Asked Questions

How long does it take to replace a lawn mower pull string?

For most homeowners with basic mechanical skills, the entire process—including removal, replacement, and testing—takes 30–45 minutes. Experienced individuals may complete it in 20 minutes. The most time-consuming aspects are carefully unwinding the old rope and ensuring the new rope is wound tightly and evenly around the pulley.

Can I use any type of rope to replace my lawn mower’s pull string?

No, you should use rope specifically designed for recoil starters. Starter rope is made from durable, tightly braided materials that withstand repeated pulling and engine vibration. Standard nylon rope or household cord will fray, break, or deteriorate quickly. Check your mower’s manual for the correct rope diameter and purchase replacement rope from a lawn equipment dealer or hardware store.

What happens if I wind the rope in the wrong direction?

If you wind the rope in the opposite direction from the original design, the recoil spring will pull the wrong way, preventing proper retraction. The rope may become tangled or fail to store correctly in the housing. Always note the winding direction of the old rope before removal and match it exactly when installing the new rope.

Do I need to replace the recoil spring when replacing the pull string?

In most cases, no. The recoil spring lasts much longer than the rope and rarely requires replacement. However, if your rope doesn’t retract properly after installation, the spring may be weak or damaged. If you suspect spring failure, consult your mower’s manual or take the mower to a professional repair shop rather than attempting spring replacement yourself, as this requires additional disassembly and technical knowledge.
