Quick Answer: How to Check a Lawn Mower Spark Plug
Disconnect the ignition wire, remove the spark plug with a spark plug socket (typically 5/8 in or 13/16 in), then run three checks: visually inspect the electrode and porcelain insulator for fouling or damage, measure the electrode gap with a feeler gauge against your engine spec (commonly 0.030 in for walk-behind OHV engines), and perform a grounded spark test to confirm ignition output. Based on what you find, clean, re-gap, or replace the plug.
What Does a Lawn Mower Spark Plug Actually Do?
The spark plug is the ignition system’s final link. It receives high-voltage current from the ignition coil, generates a spark across its electrode gap, and ignites the compressed air-fuel mixture inside the combustion chamber. Without a reliable spark — correctly timed and strong enough — the engine misfires, runs rough, loses power, or refuses to start.
A degraded spark plug forces the ignition coil to work harder, increases fuel consumption, and can mask symptoms that point to deeper engine problems (rich fuel mixture, oil burning, overheating). Catching plug condition early is the cheapest diagnostic step in small engine maintenance.
Inspection interval: Briggs & Stratton and Honda both recommend inspecting the spark plug every 25 operating hours or once per season, whichever comes first, and replacing it annually under normal use.
Tools and Safety Steps Before You Start

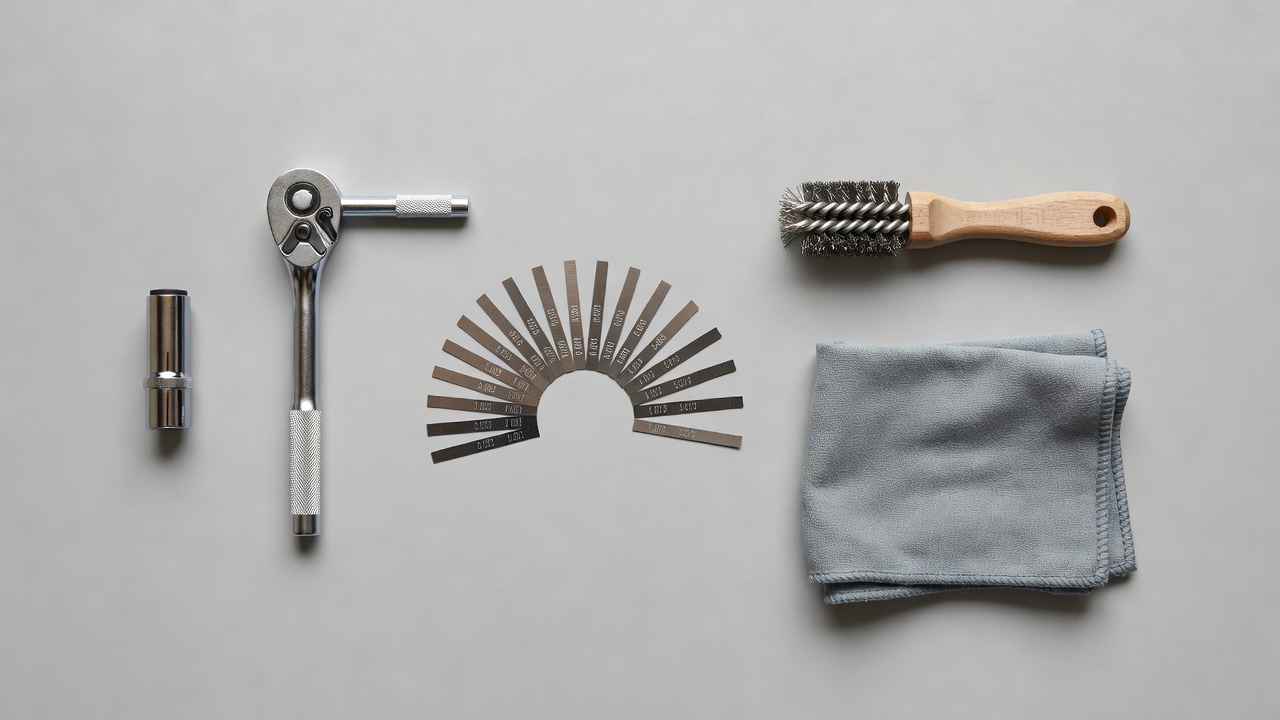

Tools you need
- Spark plug socket: 5/8 in (most walk-behind OHV engines) or 13/16 in (some older or larger displacement engines) — a standard deep socket with a rubber insert that grips the plug without cracking the porcelain insulator
- Ratchet and extension: A 3 in or 6 in extension helps on recessed plug wells
- Feeler gauge: A flat or wire feeler gauge set covering 0.020–0.040 in (0.5–1.0 mm)
- Wire brush or spark plug cleaning brush: For cleaning carbon deposits if you opt to clean rather than replace
- Compressed air or a clean rag: To clear debris from the plug well before removal
- Torque wrench (optional but recommended): Most small engine plugs torque to 15–20 ft-lb when reinstalling
Safety checklist — complete these before touching the plug
- Disconnect the ignition wire (spark plug boot). Pull it straight off the plug terminal. This prevents accidental engine cranking while your hands are near the cylinder head.
- Let the engine cool completely. A hot cylinder head can cause burns and makes thread damage more likely because metal is expanded.
- Move the mower away from fuel sources. The spark test (Phase 3) produces an open spark — keep it at least 3 feet from the fuel tank and any spilled gasoline.
- For riding mowers and zero-turns: Set the parking brake, remove the key, and disconnect the battery’s negative terminal before reaching under the deck or hood to locate the plug.
Walk-behind vs. riding mower: does the process differ?
The three diagnostic phases are identical. The differences are physical access and plug orientation. On a walk-behind OHV mower, the spark plug is typically mounted vertically or at a slight angle on the front of the engine block and is easily visible. On a riding mower or zero-turn, the plug (or plugs, on twin-cylinder engines) may be side-mounted under the hood and require an extension to reach. Consult your engine manual for plug location before starting.
How to Remove the Spark Plug Without Damaging the Engine
- Locate the plug. Follow the ignition wire from the engine housing to the plug boot. On single-cylinder walk-behind engines, there is one plug. On V-twin riding mower engines (common on Kawasaki FR/FS series and Briggs & Stratton Professional series), there are two — check both.
- Clear the plug well. Blow compressed air or wipe around the plug base. Dirt or grass debris falling into the cylinder bore during removal causes engine damage.
- Fit the spark plug socket squarely onto the plug. A cocked socket strips the hex on the plug body. Apply firm downward pressure before turning.
- Turn counter-clockwise to loosen. If the plug is seized, do not force it. Apply a small amount of penetrating oil around the base, wait 10 minutes, and try again. Forcing a seized plug strips the aluminum threads in the cylinder head — a costly repair.
- Remove the plug by hand for the final turns once it is loose, to feel for any grit that could cross-thread on reinstallation.
Phase 1 — How to Visually Inspect a Lawn Mower Spark Plug
Hold the plug in good light and examine the electrode end. The following table maps what you see to what it means:
| What you see | What it indicates | Action |
|---|---|---|
| Light tan or gray deposits, intact electrode | Normal combustion — plug is healthy | Check gap, reinstall |
| Dry black, sooty carbon coating | Rich fuel mixture or restricted air filter — incomplete combustion | Clean, re-gap; fix root cause (air filter, carburetor) |
| Wet, oily black coating | Oil entering combustion chamber — worn piston rings or valve seals | Replace plug; investigate engine oil consumption |
| White, chalky, or blistered porcelain insulator | Engine running lean or overheating — incorrect fuel mixture, cooling fins blocked | Replace plug; do not clean and reuse |
| Cracked or chipped porcelain insulator | Physical damage — voltage is leaking to ground, spark misfires | Replace plug immediately — cleaning will not fix a cracked insulator |
| Rounded, eroded, or missing center electrode | Normal wear from extended use or abnormal combustion | Replace plug — gap cannot be reliably set on a worn electrode |
| Melted or blistered electrode | Pre-ignition or detonation — serious engine condition | Replace plug; diagnose engine before restarting |
Note on cracked insulators: A hairline crack in the porcelain insulator allows high voltage to arc to the plug shell instead of jumping the electrode gap. The plug will appear to produce a spark during a bench test but will misfire under compression. A cracked insulator is always a replacement, never a cleaning candidate.
Phase 2 — How to Check the Spark Plug Gap with a Feeler Gauge
What is spark plug gap?
The spark plug gap is the measured distance between the center electrode (the straight rod in the middle) and the ground electrode (the curved arm above it). Voltage must bridge this gap to create a spark. A gap that is too narrow produces a weak, muffled spark; too wide and voltage cannot reliably jump the gap at all — especially under cylinder compression.
Typical gap specifications
- Briggs & Stratton OHV walk-behind engines: 0.030 in (0.76 mm) — specified in Briggs & Stratton operator manuals across the 450e–1150 Series range
- Honda GCV160 / GCV190 (walk-behind): 0.028–0.031 in (0.70–0.80 mm) per Honda engine service data
- Kawasaki FJ180V (walk-behind): 0.028–0.031 in (0.70–0.80 mm)
- Kawasaki FR / FS V-twin (riding mower): 0.030 in (0.76 mm)
Always verify against your specific engine model’s manual. These figures are representative, not universal. The model number is stamped on the engine block.
How to measure gap with a feeler gauge
- Select the blade (flat gauge) or wire that matches your target spec — for example, the 0.030 in blade.
- Slide the blade between the center electrode and the ground electrode. It should pass through with light resistance — you should feel slight drag, not be able to flop the blade freely, and not need to force it.
- If the 0.030 in blade passes freely (no drag), the gap is too wide. If it will not enter at all, the gap is too narrow.
- For confirmation, check with the next blade size up and down: the 0.030 in blade should fit with drag; the 0.031 in blade should not fit at all or should be very tight.
How to adjust the gap
- Gap too wide: Gently tap the ground electrode (the curved side arm) against a hard, non-abrasive surface — a wooden workbench edge works — to close it slightly. Recheck with the feeler gauge after each small adjustment.
- Gap too narrow: Use a feeler gauge with a gap tool built into its handle (most combo sets include this) or a small flat-bladed screwdriver to carefully lever the ground electrode outward. Work in small increments.
- Critical rule: Only bend the ground electrode. Never apply lateral pressure to the center electrode — it is ceramic-seated and will crack the insulator.
Phase 3 — How to Perform a Spark Test on a Lawn Mower Spark Plug
A visual inspection and gap check confirm the plug’s physical condition. A spark test confirms it actually fires under load from the ignition system. A plug can look clean and be correctly gapped but still fail to spark if the electrode material is degraded or the internal resistor has failed.
How to perform a grounded spark test
- Reattach the ignition wire boot to the spark plug terminal. Push it firmly until you feel it seat.
- Ground the plug body against bare metal on the engine block. Hold the plug so the threaded body contacts an unpainted metal surface — the engine cylinder fins, the metal frame, or a bolt head on the block. Do not hold the plug body with your bare hand; use insulated pliers or wrap the boot area in a dry rag.
- Move the assembly at least 12 inches from the fuel tank and any fuel residue.
- Have a second person crank the engine (pull cord on a walk-behind, key start on a riding mower) while you watch the plug gap. On a riding mower, keep clear of the blade area.
- Observe the spark.
How to read spark test results
| What you observe | What it means |
|---|---|
| Strong, sharp blue-white spark | Plug and ignition system are functioning correctly |
| Weak, thin orange or yellow spark | Plug is degraded or ignition coil output is low — replace the plug first; if spark remains weak, test the coil |
| Intermittent spark (fires sometimes, skips) | Cracked insulator, worn electrode, or failing coil — replace plug and retest |
| No spark at all | Plug has failed, ignition wire is broken, or coil has failed — test with a known-good plug before condemning the coil |
Spark color authority: The blue-spark vs. orange/yellow-spark standard is consistent across small engine repair literature, including Briggs & Stratton’s Engine Repair training materials and NGK’s spark plug diagnostic guides. A strong blue spark indicates sufficient voltage (typically 12,000–20,000 volts in a healthy small engine coil); orange or yellow indicates voltage drop.
Riding mower spark test note: The procedure is identical. On key-start riding mowers, have the operator seat safety switch engaged (sit in the seat) or bypass it safely per your mower’s service manual before cranking — most riding mowers will not crank with the seat unoccupied.
Clean, Re-Gap, or Replace? A Simple Decision Guide
Use the findings from all three phases together:
| Finding | Decision | Notes |
|---|---|---|
| Light tan deposits, gap slightly off, strong blue spark | Re-gap and reinstall | Plug is in good condition — adjust gap to spec |
| Dry black carbon fouling, gap within spec, strong spark | Clean with wire brush, re-gap, reinstall | Address root cause: check air filter for restriction, inspect carburetor for rich mixture |
| Dry black carbon fouling AND gap out of spec AND weak spark | Replace | Multiple failure indicators — cleaning is not cost-effective on a $4–$8 plug |
| Wet oily fouling | Replace | Oil contamination degrades electrode coating; investigate piston rings or valve seals |
| White/chalky or blistered insulator | Replace | Thermal damage is irreversible; check for lean mixture or cooling system blockage |
| Cracked porcelain insulator | Replace immediately | Will misfire under compression regardless of spark bench test result |
| Eroded or rounded center electrode | Replace | Gap cannot be reliably set; voltage requirement increases with electrode wear |
| No spark after cleaning and re-gapping | Replace plug; retest coil if new plug also produces no spark | Install a known-good plug to isolate whether the fault is the plug or the ignition coil |
How to clean a carbon-fouled spark plug
- Use a wire brush or dedicated spark plug cleaning brush to scrub carbon deposits off the electrode and insulator tip. Work carefully around the center electrode.
- Spray with brake cleaner or contact cleaner and allow to dry completely.
- Do not use sandpaper or abrasive blasting on plugs — it leaves abrasive particles that damage the cylinder bore.
- Re-gap after cleaning, since the wire brush can slightly alter electrode position.
Replacement plug compatibility
The two most common OEM-specified brands for consumer lawn mower engines are Champion and NGK. Common cross-references:
- Briggs & Stratton OHV: Champion RC12YC or NGK BPR6ES (verify via Champion or NGK cross-reference tool at their respective websites using your engine model number)
- Honda GCV160: NGK BPR6ES or equivalent (Honda part 98079-56846)
- Kawasaki FJ/FR/FS series: NGK BPR6ES or Champion RC12YC (verify in Kawasaki engine service manual)
Always confirm using the cross-reference chart on the plug manufacturer’s website and your engine’s model and spec numbers. The engine model is stamped on the engine block, not the mower deck.
For full step-by-step reinstallation and torque specs, see our separate guide on how to replace a lawn mower spark plug.
Frequently Asked Questions
How often should I check my lawn mower spark plug?
Inspect the spark plug every 25 operating hours or once per mowing season, whichever comes first — this is the standard interval published in Briggs & Stratton, Honda, and Kawasaki operator manuals. Replace it annually under typical residential use even if it passes inspection, because plug performance degrades gradually and a new plug costs less than a service call for a hard-starting mower.
Can I check a lawn mower spark plug without a feeler gauge?
A visual inspection and spark test are possible without a feeler gauge, but you cannot accurately confirm or set the electrode gap. A gap that is 0.005 in out of spec is invisible to the naked eye but measurable with a feeler gauge. Feeler gauges cost $5–$10 at any auto parts store and are a one-time purchase — skip the gauge and you are guessing at gap correctness.
My mower cranks but won’t start — is the spark plug always the cause?
The spark plug is one of three things needed to start an engine: spark, fuel, and compression. Perform the spark test first — it takes five minutes and costs nothing. If the plug produces a strong blue spark, shift your diagnosis to fuel delivery (stale fuel, clogged carburetor jet, closed fuel valve) or compression (pull the cord with the plug removed and feel for resistance). A no-start with good spark and good compression almost always points to a fuel system problem.
What happens if I reinstall the spark plug without torquing it correctly?
Under-torquing allows combustion gases to blow past the plug threads, which erodes the cylinder head threads over time and causes the plug to back out under vibration. Over-torquing stretches or strips the aluminum cylinder head threads — a repair that costs far more than the price of a torque wrench. Most small engine spark plugs specify 15–20 ft-lb when installed with a new gasket seat, or finger-tight plus 1/2 turn on a used crush-washer plug. Confirm the spec in your engine manual.
