How Do You Check a Lawn Mower Ignition Coil? (Step-by-Step Testing Guide)

Quick Answer: How to Check Your Lawn Mower Coil

To check a lawn mower ignition coil, use a digital multimeter to test for continuity across the coil terminals and measure resistance (typical range: 2–10 ohms on the primary side, depending on your mower model). If the multimeter shows no continuity, infinite resistance, or zero ohms, the coil is faulty. For additional verification, use a spark plug tester or perform a visual spark test by holding the coil wire near the engine block while cranking—a healthy coil produces a visible blue spark. If testing confirms a dead coil, replacement is your only option.

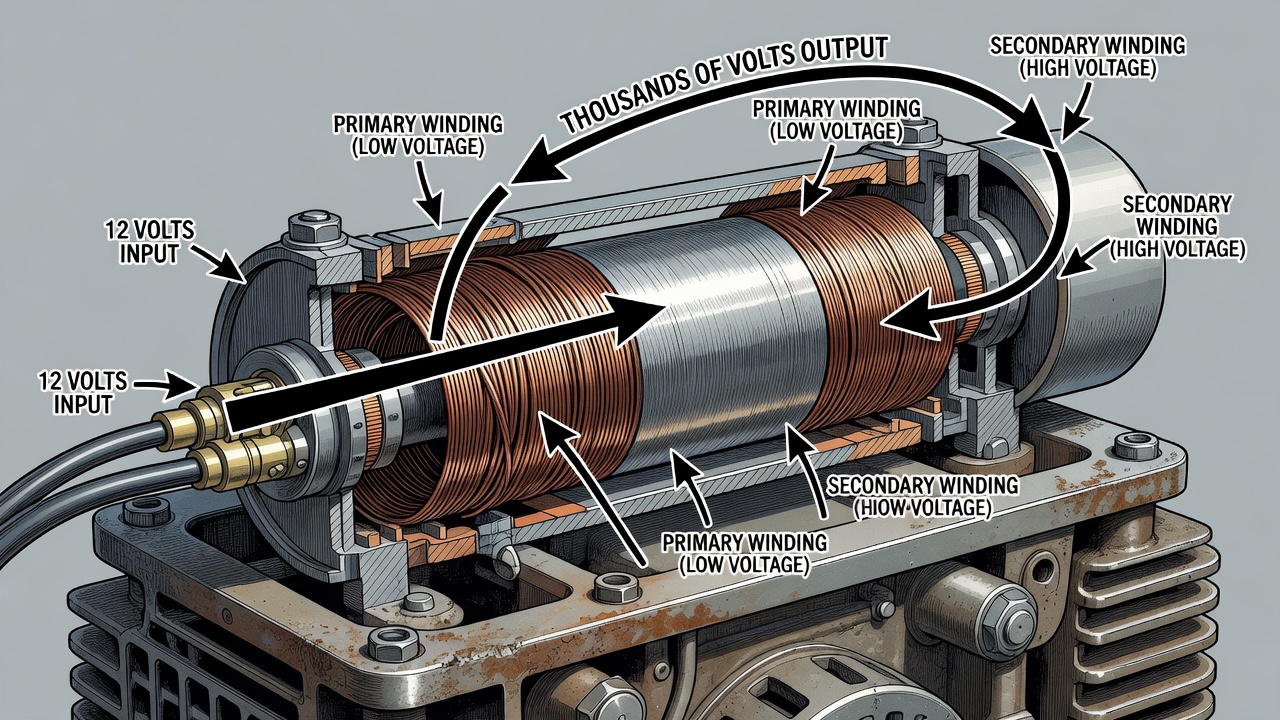

Understanding Your Lawn Mower’s Ignition Coil

The ignition coil is a critical component in your lawn mower’s engine. Its job is to take the low voltage (12 volts on many mowers) from the battery or magneto and step it up to thousands of volts needed to create a spark at the spark plug. Without a working coil, your engine won’t fire, and your mower won’t start.

Lawn mower coils fail for several reasons:

• Moisture and corrosion—Rain, condensation, or improper storage damage internal windings
• Heat damage—Prolonged engine overheating degrades the coil’s insulation
• Vibration and wear—Engine vibration loosens connections or cracks internal components over years of use
• Manufacturing defects—Less common, but a new coil can occasionally fail prematurely

Signs that your coil may be failing include difficulty starting, loss of spark under load, rough idle, or complete engine shutdown during operation. However, these symptoms can also point to spark plug issues, fuel problems, or ignition timing faults, so testing isolates the coil as the culprit.

Tools You’ll Need to Test the Coil

Testing a lawn mower coil requires minimal equipment:

• Digital multimeter (required for accurate diagnosis)—Look for one with a continuity and ohms setting; budget models ($10–25) work fine
• Spark plug tester (optional but helpful)—A dedicated tool that shows spark visually without removing the spark plug wire; costs $8–15
• Screwdrivers (varies)—Needed to disconnect coil terminals from the engine
• Safety equipment—Work gloves and eye protection for handling electrical components

If you don’t have a spark plug tester, you can perform a basic visual spark test, though it’s less precise and involves higher risk of accidental shock if not done carefully.

Step-by-Step: Continuity and Resistance Testing

This is the primary diagnostic method and works on most small gas lawn mowers.

1. Prepare the Engine

• Turn off the engine and ensure it’s completely cool
• Disconnect the spark plug wire from the spark plug (pull gently on the boot, not the wire)
• Locate the ignition coil—typically mounted near the engine with two or three terminals
• Check for visible damage: cracks, burns, oil seepage, or loose wires

2. Disconnect the Coil

• Carefully remove wire connectors from the coil terminals
• Some coils bolt to the engine; note the terminal positions or take a photo for reassembly
• On newer mowers, the coil may be sealed and require removal of a plastic housing

3. Set Your Multimeter to Test Continuity

• Switch the multimeter dial to the continuity setting (often marked with a sound-wave symbol)
• Many multimeters beep when continuity is detected

4. Test Continuity Across the Coil Terminals

• Place one multimeter probe on each coil terminal
• A healthy coil shows continuity (the multimeter beeps or displays near-zero resistance)
• If there’s no beep or the display shows “1” or “OL” (open line), the coil’s primary winding is broken

5. Measure Coil Resistance

• Switch the multimeter to the ohms (Ω) setting, typically starting at 200 or 2000 ohms
• Place probes on the coil terminals again
• Expected resistance for a primary coil is typically 2–10 ohms (varies by mower brand and model)
• Check your mower’s manual or coil specification sheet for exact values
• If readings show zero ohms, the windings are shorted (internal short circuit)
• If readings show infinite resistance (OL), the windings are open (broken)

Interpreting Resistance Results

Testing Spark Output

If resistance readings look normal, verify that the coil actually produces spark. This catches coils with internal damage that multimeter testing might miss.

Using a Spark Plug Tester

• Reconnect the spark plug wire to the coil
• Insert the spark plug tester’s connector into the spark plug wire terminal
• Ground the tester’s metal body firmly to the engine block with a clamp or by hand
• Crank the engine (use the pull cord or electric starter)
• Observe whether a blue or white spark jumps across the tester’s gap
• A healthy coil produces a bright, consistent spark; a weak or missing spark indicates a problem

Visual Spark Test (Without a Tester)

• Reconnect the spark plug wire to the coil
• Carefully remove the spark plug wire from the spark plug (leave the coil end connected)
• Hold the spark plug wire end about 0.25 inches from a metal part of the engine block (or use a clamp to hold it)
• Crank the engine and look for a spark
• Safety note: Keep your hands clear and wear insulated gloves; high voltage can deliver a painful shock

Visual Inspection and Pre-Testing Checks

Before diving into multimeter testing, perform these simpler diagnostics:

Check Coil Connections

• Examine terminals and connectors for corrosion, loose wires, or green oxidation
• Clean corroded terminals with a wire brush or electronic contact cleaner
• Gently reseat connectors to ensure a tight fit

Inspect for Physical Damage

• Look for cracks, burned spots, or oil seeping from the coil housing
• Check if the coil is mounted securely (loose vibration can cause internal failure)
• Verify that the ground wire from the coil to the engine is clean and secure

Test Engine Grounding

• Ensure the mower’s frame and engine block are grounded properly
• On battery-powered systems, verify the negative battery terminal is securely connected
• Poor grounding causes weak or no spark even if the coil is functional

Interpreting Test Results

If continuity and resistance tests pass, and spark testing shows a strong spark: Your coil is likely healthy. Engine start problems may stem from a faulty spark plug, fuel delivery issues, or ignition timing problems.

If continuity is broken or resistance is infinite: The coil’s primary winding is open (broken). Replace the coil.

If resistance reads zero ohms: The coil has an internal short circuit. Replace the coil.

If resistance looks normal but spark testing shows weak or no spark: The coil’s secondary winding (high-voltage side) may be damaged, or there’s an issue with the ignition module or kill switch. Replacement is usually the safest option for consumer-level diagnostics.

Coil Specifications by Mower Type

Resistance values vary significantly by engine type and coil design:

• Small gas engines (single-cylinder, 5–15 hp): 2–10 ohms primary resistance
• Two-cylinder or larger engines: 3–12 ohms (check your specific engine manual)
• Electronic ignition systems: May have higher primary resistance; consult the manufacturer
• Magneto-based systems: Often have different coil designs; reference the mower’s service manual

Always check your mower’s service manual or the coil’s specification label for exact resistance values before concluding the coil is faulty.

When to Replace vs. Repair

Lawn mower ignition coils are not typically repaired. If testing confirms a faulty coil, replacement is your only practical option. Coil repair requires specialized rewinding equipment and expertise, making it cost-prohibitive for consumer use.

Replacement coils typically cost $15–50 depending on your mower model. Installation usually involves disconnecting two or three wire terminals and removing a bolt or two.

If your testing results are ambiguous or you’re unsure of your mower’s coil specifications, consult the owner’s manual, contact the mower manufacturer, or take the coil to a small engine repair shop for professional diagnosis.

Frequently Asked Questions

Q: Can I test the coil while it’s still connected to the engine?

A: Technically yes, but disconnecting it first is safer and gives more accurate readings. With the coil connected, ground connections and other circuit components can affect multimeter readings. For safety and accuracy, always disconnect the coil before testing.

Q: What if my multimeter shows the correct resistance, but the mower still won’t start?

A: A passing multimeter test doesn’t guarantee the coil works under load. Perform a spark test to confirm spark production. If spark is present, the problem lies elsewhere: check the spark plug, fuel system, air filter, or engine compression. If there’s no spark despite good resistance readings, the coil’s secondary winding may be damaged internally, and replacement is warranted.

Q: How do I know the exact resistance my coil should have?

A: Check your mower’s owner’s manual or service manual for the specific ignition coil specifications. If you’ve lost the manual, search online for your mower’s model number (usually found on a metal plate attached to the engine or frame) combined with “ignition coil specifications” or “service manual PDF.” Alternatively, contact the mower’s manufacturer directly or visit an authorized dealer.

Q: Can moisture or dirt prevent a coil from working even if multimeter tests show it’s good?

A: Moisture on the exterior can interfere with spark delivery, but it typically won’t affect internal resistance. If the coil appears wet or corroded, dry it thoroughly and clean terminals with contact cleaner before testing. However, internal moisture that has already damaged the winding will show up as abnormal resistance or continuity readings. Surface moisture alone rarely causes a coil to fail if the internal windings are intact.
