To clean a lawn mower carburetor, first disconnect the spark plug wire and drain old fuel. Remove the air filter assembly to access the carburetor, then unbolt and detach the carburetor from the engine. Disassemble it by removing the float bowl and gasket, then spray carburetor cleaner through every jet, port, and passage. Clear stubborn clogs with compressed air or a thin wire, let the parts dry, and inspect the bowl gasket and fuel filter for wear. Reassemble in reverse order, add fresh fuel, and test-start the mower. Always work in a well-ventilated area and disconnect the spark plug first to prevent accidental starting.
Why Does a Lawn Mower Carburetor Get Clogged?
Before diving into the cleaning process, it helps to understand why carburetors clog in the first place. A carburetor mixes air and fuel in precise ratios for combustion. Over time, residue builds up and blocks the tiny passages responsible for this mixture.
What causes a carburetor to clog in a lawn mower?

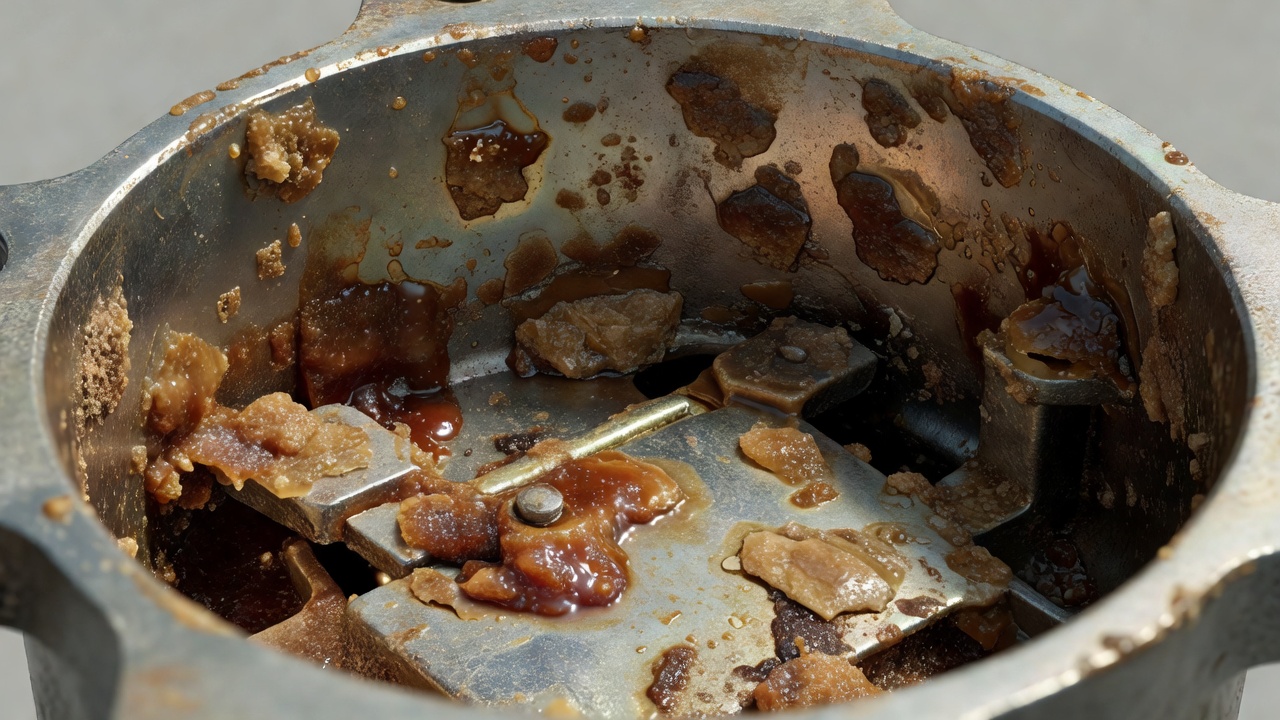

The primary culprit is stale fuel. Gasoline begins to degrade within weeks, leaving behind varnish-like deposits that coat internal components. Ethanol in modern fuel blends can accelerate this process by attracting moisture and promoting corrosion. Additionally, dirt and debris can enter the fuel tank and settle in the carburetor’s float bowl, gradually blocking the jets.
How quickly do small carburetor jets become blocked?
Depending on fuel quality and storage conditions, noticeable deposits can form within 30 to 90 days. This is why many small-engine experts recommend draining the fuel system or adding stabilizer before seasonal storage.
What are common symptoms of a clogged carburetor?
- Hard starting or failure to start
- Rough idle or engine surging
- Stalling under load
- Black smoke from the exhaust
- Reduced power and performance
Before You Clean: Is the Carburetor Really the Problem?
Not every starting issue requires a full carburetor teardown. Diagnosing the root cause first can save time and prevent unnecessary disassembly.
How do I know if the issue is stale fuel rather than a clogged carburetor?
If the mower has been sitting for months with old fuel, start by draining the tank completely and refilling with fresh gasoline. If the engine runs normally after this, the carburetor likely does not need cleaning. Persistent problems after adding fresh fuel suggest deposits have already formed inside the carburetor.
Should I clean the carburetor in place or fully remove and disassemble it?
Cleaning in place—spraying cleaner through the air intake—can address surface deposits and minor varnish buildup. However, this method cannot reach blocked internal jets or sediment trapped in the float bowl. For thorough results, full removal and disassembly is recommended, especially if the mower has been neglected for an extended period.
Does the process differ for a push mower versus a riding mower?
The fundamental cleaning steps are similar, but access and complexity vary. Push mowers typically have simpler carburetor designs with fewer components. Riding mowers may have larger carburetors, fuel pumps, or multiple cylinders, which add steps to the disassembly process. Always consult your owner’s manual for model-specific guidance.
When should I consider replacing the carburetor instead of cleaning it?
Replacement may be more practical if the carburetor has visible corrosion, cracked plastic components, or damaged gasket surfaces that cannot seal properly. In some cases, the cost of a new carburetor is comparable to the time and materials required for a thorough cleaning.
Tools and Supplies You’ll Need
Gather everything before starting to avoid mid-project interruptions. Having the right tools on hand makes the process smoother and reduces the risk of damaging delicate components.
Which carburetor cleaner works safely on a lawn mower carburetor?
A dedicated aerosol carburetor cleaner designed for small engines is the standard choice. These products dissolve varnish and gum deposits without leaving residue. Avoid using household degreasers or brake cleaner, as these may damage rubber gaskets or O-rings.
What tools are required to remove and disassemble a small-engine carburetor?
- Socket set or wrench set (typically 8mm to 14mm)
- Screwdrivers (Phillips and flathead)
- Needle-nose pliers
- Small containers for organizing hardware
- Clean rags or shop towels
- Safety glasses and nitrile gloves
Do I need compressed air or replacement gaskets?
Compressed air is highly useful for clearing jets and passages that cleaner alone cannot fully open. A small air compressor with a blow gun attachment works well. As for gaskets, inspect the float bowl gasket and any O-rings during disassembly. If they appear brittle, cracked, or deformed, replacement is advisable to prevent leaks after reassembly. Many carburetor rebuild kits include these parts at minimal cost.
Step-by-Step: How to Clean the Carburetor Safely
This section walks through the complete process from preparation to test start. Work slowly and methodically, keeping track of each component’s location for reassembly.
How do I safely disconnect the fuel line and spark plug?
Begin by disconnecting the spark plug wire and tucking it away from the plug. This prevents the engine from accidentally starting during the procedure. Next, shut off the fuel valve if your mower has one, or use a fuel line clamp to stop flow. Place a rag beneath the fuel line connection to catch drips, then carefully disconnect the line from the carburetor inlet.
How do I remove the air filter and carburetor from the engine?
Remove the air filter cover and extract the filter element. Set it aside for inspection—clean or replace it if dirty. With the filter removed, you will see the carburetor mounted to the engine via bolts or studs. Note the orientation of any linkages or springs connected to the throttle and choke levers. Disconnect these carefully, then remove the mounting bolts and pull the carburetor away from the engine.
How do I disassemble the float bowl and clean the jets and passages?
Hold the carburetor over a clean container and remove the bolt at the bottom of the float bowl. This bolt often serves as the main jet housing. Allow any remaining fuel to drain, then lift off the float bowl. Inside, you will see the float, needle valve, and various jets. Spray carburetor cleaner liberally through every visible opening, including the main jet, idle circuit, and any emulsion tubes. For stubborn clogs, use compressed air to blow through each passage. If air alone does not clear a blockage, a thin wire—such as a strand from a wire brush—can gently dislodge debris. Never use a drill bit or stiff wire that could enlarge or damage the precision-drilled orifices.
How do I reassemble the carburetor and test-start the mower?
Allow all cleaned components to dry completely. Reinstall the float, needle valve, and float bowl, ensuring the gasket seats properly. Tighten the bowl bolt snugly but avoid over-torquing. Reattach any linkages and springs in their original positions, then bolt the carburetor back to the engine. Reconnect the fuel line, reinstall the air filter, and reconnect the spark plug wire. Add fresh fuel to the tank and attempt a test start. The engine may take a few extra pulls to prime the cleaned carburetor.
What safety precautions must I follow during cleaning and fuel disposal?
- Work in a well-ventilated area away from open flames or sparks
- Wear safety glasses and nitrile gloves to protect against solvent exposure
- Dispose of old fuel and used cleaner at a designated hazardous waste facility
- Never smoke while handling gasoline or carburetor cleaner
- Keep a fire extinguisher nearby as a precaution
Common Mistakes and Troubleshooting After Cleaning
Even with careful work, issues can arise. Knowing what to check can save you from starting the process over.
What happens if I use wire that damages the jet orifice?
Enlarging a jet opening disrupts the fuel-air mixture, leading to a rich condition, black smoke, and poor performance. If you suspect a jet has been damaged, replacement jets are available through small-engine parts suppliers. Match the jet size to your specific carburetor model.
Why is my mower still running rough after a carburetor clean?
Possible causes include an improperly seated gasket causing an air leak, a sticking float or needle valve, or residual debris in a passage that was not fully cleared. Double-check that all components are reassembled correctly and that the float moves freely. Re-cleaning with fresh solvent may be necessary.
How do I know if the float bowl gasket or fuel filter needs replacement?
Inspect the gasket for cracks, flattening, or hardening. A healthy gasket should be pliable and uniform in shape. For the fuel filter, check for discoloration, debris accumulation, or restricted flow. If the filter is inline and accessible, replacing it during carburetor maintenance is good practice.
What should I check if the carburetor leaks after reassembly?
Leaks typically indicate a poorly seated gasket, a loose bowl bolt, or a worn needle valve that does not seal the float chamber. Disassemble the affected area, inspect each component, and replace any parts that show wear.
How to Prevent Future Carburetor Clogs
Preventive maintenance extends the life of your carburetor and reduces the need for future cleanings.
Does fuel stabilizer prevent carburetor clogging?
Fuel stabilizer slows the degradation process and helps prevent varnish formation. Adding it to fresh fuel before storage is a widely recommended practice for seasonal equipment. Follow the stabilizer manufacturer’s dosage instructions for best results.
How does ethanol in gasoline affect small-engine carburetors?
Ethanol can absorb moisture from the air, leading to phase separation and corrosion inside the fuel system. It also dissolves older rubber and plastic components not designed for ethanol blends. Using ethanol-free fuel when available, or treating ethanol fuel with stabilizer, helps mitigate these effects.
Should I drain the fuel tank before storing the mower for the season?
Draining the tank and running the engine until the carburetor is empty is one of the most effective ways to prevent deposits during storage. Alternatively, filling the tank with fresh fuel treated with stabilizer and running the engine for a few minutes to circulate treated fuel through the carburetor is another common approach.
How often should the fuel filter be replaced?
Most small-engine manufacturers recommend inspecting the fuel filter annually and replacing it if it appears dirty or restricted. For mowers used frequently in dusty conditions, more frequent inspection may be warranted.
