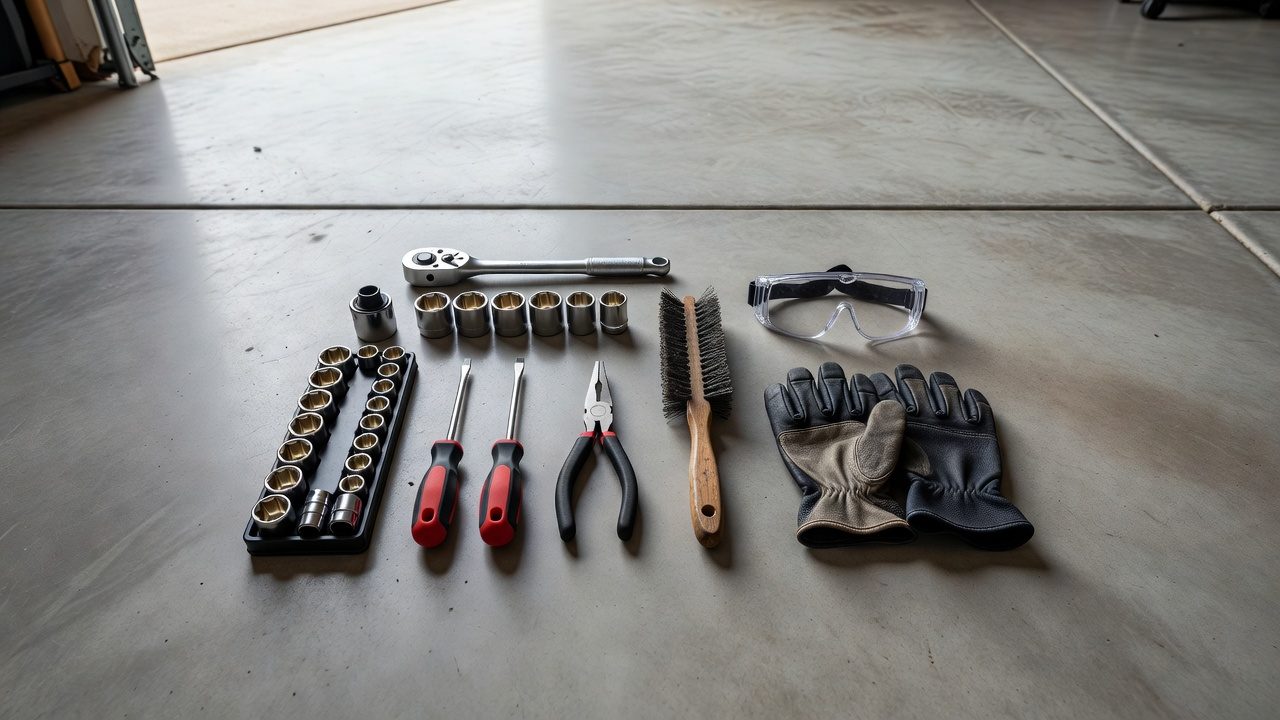

What You Need Before You Start (Tools, Safety, and Model Identification)
Before attempting any repairs, you must ensure you have the right equipment and safety gear. Additionally, identifying your specific Craftsman mower model is critical because parts differ significantly across gas walk-behind, riding/tractor, zero-turn, and battery-powered lines.
Where is the model number on a Craftsman lawn mower?
The model number is usually located on a silver or aluminum decal attached to the deck, the frame near the engine, or the back of the mower housing. For walk-behind mowers, it is often found on the rear bumper or the underside of the deck. For riding mowers, check the frame near the steering wheel or the rear of the engine.
What tools do I need to repair a Craftsman mower at home?
You will need a basic toolkit including a socket set (1/2″ and 10mm), a ratchet wrench, a spark plug socket (usually 5/8″), a flathead and Phillips screwdriver, pliers (needle-nose and channel-lock), and a funnel. For engine work, a wire brush and carburetor cleaner are essential. For safety, always wear heavy gloves, safety goggles, and sturdy boots.
Is it safe to work on a Craftsman mower myself?
Yes, most common repairs can be performed safely at home if you follow proper safety protocols. Always disconnect the spark plug wire before performing any engine work to prevent accidental starting. When handling fuel, work in a well-ventilated area away from open flames. Never mow on steep slopes or wet grass, and keep children and pets away from the work area.
What is the difference between pre-2017 and post-2017 Craftsman mowers?
Craftsman was acquired by Stanley Black & Decker in 2017. Since then, the outdoor power equipment division has been licensed to Husqvarna. This means post-2017 mowers (manufactured by Husqvarna) often feature Husqvarna engines (Briggs & Stratton is still common) and a different parts ecosystem compared to the pre-2017 models manufactured by SBD.
Quick Diagnosis Table: Match Your Symptom to the Fix
Use this table to quickly identify the root cause of your mower’s issue and the first action you should take.
| Symptom | Likely Cause | First Action |
|---|---|---|
| Mower won’t start | Fouled spark plug or stale fuel | Replace spark plug and drain old fuel |
| Starts then dies | Clogged carburetor or dirty air filter | Clean or replace air filter; inspect carburetor |
| Stalls under load | Dull blade or low oil | Sharpen blade; check oil level |
| Uneven cut | Unlevel deck or worn blade | Level the deck; sharpen or replace blade |
| Self-propel not working | Broken drive belt or worn cable | Inspect drive belt and cable tension |
| Excessive vibration | Unbalanced blade or cracked adapter | Balance blade; inspect adapter for cracks |
| Blade won’t engage | Broken bail arm spring or PTO clutch | Replace spring or test PTO clutch |
| Smoke from engine | Burning oil or rich fuel mixture | Check oil level; inspect carburetor |
| Oil leak | Crankcase gasket or loose drain plug | Tighten plug or replace gasket |
Engine Won’t Start: Causes and Step-by-Step Fixes
The most common reason a Craftsman lawn mower won’t start is a lack of fuel, a bad spark plug, or a clogged air filter. Follow this diagnostic sequence to resolve the issue.
Check the Fuel System
Old or stale fuel is the #1 killer of small engines. Ethanol in gasoline attracts moisture, which can corrode the carburetor and clog the fuel filter.
- Drain Old Gas: If the mower has been sitting for more than 30 days, drain the fuel tank. Use a siphon or remove the drain plug located on the bottom of the tank.
- Inspect the Fuel Filter: If the filter is clogged, the engine won’t get fuel. Replace the inline fuel filter if it looks discolored or blocked.
- Check the Primer Bulb: If the primer bulb does not fill with fuel or does not stay firm when pressed, the fuel line or bulb may be cracked.
Inspect the Spark Plug
A fouled spark plug is a frequent culprit for no-start conditions. For additional operational safety benchmarks, see our published testing notes on marshall stanmore iii vs harman kardon onyx studio 8.
- Remove the Plug: Use a spark plug socket to unscrew the plug from the engine.
- Check Condition: Look for black, wet soot (fouled) or a cracked insulator.
- Check Gap: Use a gap gauge to ensure the gap is within the manufacturer’s specification (typically 0.030″ to 0.035″ for Briggs & Stratton engines).
- Replace: If the plug is damaged or worn, replace it with a compatible OEM part.
Check the Air Filter
A clogged air filter restricts airflow, preventing the engine from running. Inspect the foam or paper filter. If it is dirty, clean it with soap and water (for foam) or replace it with a new paper filter.
Carburetor Blockage
If the fuel lines and filter are clear, the carburetor is likely clogged. This is the most common cause of a Craftsman gas mower failing to start after winter storage. To compare alternative configurations, check our hands-on review of dyson v8 cyclone vs bissell featherweight stick.
- Clean Jets: Use carburetor cleaner spray to spray into the carburetor throat and through the small fuel jets. Do not disassemble the carburetor unless you are experienced.
- Rebuild: If cleaning does not work, you may need to rebuild or replace the carburetor kit.
Engine Starts Then Dies or Stalls Under Load
If your mower runs for a few seconds or minutes and then dies, the issue is usually related to the fuel-air mixture or ignition system.
Carburetor Float and Needle
A stuck or dirty needle valve in the carburetor can prevent the engine from getting enough fuel after the initial start, causing it to stall. Users looking for related component recommendations can explore our bissell crosswave hydrosteam vs shark stainforce breakdown.
Air Filter Starvation
If the air filter is severely clogged, the engine will run rich (too much fuel, not enough air) and eventually choke itself out. Replace the air filter immediately.
Low Oil Shutoff Sensor
Most modern Craftsman mowers with Briggs & Stratton engines are equipped with a low-oil sensor. If the oil level is too low, the engine will automatically shut off to prevent damage. Check the dipstick and add oil if necessary.
Ignition Coil Failure
If the mower stalls when you hit thick grass or mow uphill, the ignition coil may be failing under the added load. Test the coil using a multimeter or replace it if it fails resistance tests.
Uneven or Poor Cut Quality: Blade, Deck, and Wheel Fixes
An uneven cut is often caused by a dull blade, an unlevel deck, or incorrect tire pressure.
Sharpen or Replace the Blade
A dull blade tears grass rather than cutting it, leaving ragged edges and uneven growth.
- Remove the Blade: Turn the mower on its side, place a block of wood under the blade to prevent it from spinning, and loosen the center bolt.
- Sharpen: Use a file or bench grinder to sharpen the blade. Ensure the cutting edge is even and maintains the original angle.
- Balancing: After sharpening, balance the blade on a nail or balancer. If one side is heavier, grind a small amount off the heavier side.
Level the Mower Deck
An unlevel deck causes one side of the cut to be higher than the other.
- Measure: Place a straight edge across the deck and measure the distance from the edge of the blade to the straight edge on both sides.
- Adjust: If there is a difference, loosen the deck lift links or adjusting nuts and raise the lower side until the measurements are equal.
Check Tire Pressure
Uneven tire pressure can also lead to an uneven cut. Check the sidewall of the tires for the recommended PSI and inflate to the correct level.
Self-Propel Not Working: Belt, Cable, and Wheel Drive Diagnosis
If your self-propelled Craftsman mower is not moving, the issue is likely in the drive train.
Drive Belt Inspection
The drive belt connects the engine to the drive wheels. Over time, it can stretch, crack, or break.
- Locate the Belt: Remove the belt cover to access the drive belt.
- Check for Damage: Look for cracks, fraying, or glazing on the belt.
- Replace: If the belt is damaged, replace it with the correct size and routing for your specific model (RWD vs FWD).
Drive Cable Adjustment
The drive cable connects the bail bar to the drive mechanism. If the cable is loose or disconnected, the wheels will not engage.
Wheel Drive Gear and Pawl
Internal gears or pawls can wear out over time, preventing the drive system from engaging. This repair is more complex and often requires removing the transmission housing.
Excessive Vibration: Blade, Adapter, and Spindle Checks
Vibration is not only annoying; it can damage the engine and chassis. Address vibration immediately.
Unbalanced or Damaged Blade
A bent blade will cause severe vibration. Inspect the blade for nicks or bends. Replace the blade if it cannot be straightened.
Loose Blade Bolt
A loose center bolt can cause the blade to wobble. Tighten the bolt to the manufacturer’s specification (typically 35 to 50 ft-lbs) using a torque wrench.
Cracked Blade Adapter
The blade adapter (or blade boss) connects the blade to the crankshaft. If it is cracked, the blade will wobble violently. Replace the adapter if damaged.
Engine Mount Bolts
For severe vibration, check the engine mount bolts. If they are loose or broken, the engine may be shifting during operation.
Blade Won’t Engage (Walk-Behind and Riding Mowers)
If the blade does not spin when you engage the lever, the issue is in the engagement mechanism.
Walk-Behind Mower (Bail Arm and Cable)
On walk-behind mowers, the blade brake cable connects the bail bar to the engine clutch.
- Check Cable Tension: The cable may be stretched or disconnected. Adjust the cable adjuster to increase tension.
- Inspect Spring: The bail arm spring may be broken. Replace the spring to ensure the bail bar snaps back.
Riding Mower (PTO Clutch and Switch)
Riding mowers use an electric PTO (Power Take-Off) clutch.
- Test PTO Clutch: Use a multimeter to check for continuity. If there is no continuity, the clutch coil is burned out and needs replacement.
- Check Safety Switches: Ensure the seat safety switch and brake safety switch are functioning. If the seat switch is faulty, the mower will not engage.
Oil Leaks and Smoke: What Each Color Means and How to Fix It
Smoke and leaks are warning signs of engine damage.
White or Blue Smoke
White or blue smoke indicates burning oil. This can be caused by worn piston rings, valve seals, or overfilling the crankcase. If the oil level is correct, the engine may need a rebuild.
Black Smoke
Black smoke means the engine is running rich (too much fuel). This is usually caused by a clogged air filter or a stuck carburetor float.
Oil Puddle Under Mower
An oil puddle usually indicates a leak from the crankcase gasket, the oil drain plug, or the oil fill cap. Tighten the drain plug and check the cap seal. If the gasket is leaking, it will need replacement.
Preventive Maintenance Schedule to Prevent Future Breakdowns
Regular maintenance is the best way to prevent future repairs.
Annual Pre-Season Service
Before the mowing season begins, perform the following:
- Change Oil: Use SAE 30 or 10W-30 oil. Check the oil level and change it annually.
- Replace Spark Plug: Replace the spark plug every season or after every 100 hours of use.
- Replace Air Filter: Replace the air filter if it is dirty.
- Sharpen Blade: Sharpen or replace the blade.
- Flush Fuel System: Add fuel stabilizer to the tank and run the engine for a few minutes to circulate the stabilizer.
Winterization / End-of-Season Storage
To prepare the mower for storage:
- Change Oil: Fresh oil protects the engine during storage.
- Drain Fuel: Drain the gas tank or add fuel stabilizer.
- Disconnect Battery: For electric-start models, remove the battery and store it in a cool, dry place.
When to Call a Craftsman Service Technician Instead of DIY
Some repairs are best left to professionals to ensure safety and warranty compliance.
Seized Engine
If the engine makes a clicking sound and will not turn over, the internal components may have seized. This usually requires a complete engine replacement.
Hydrostatic Transmission Failure
On riding mowers, a failing hydrostatic transmission can cause the mower to lose drive power or become stuck in gear. This is a complex repair involving the transmission housing and fluid.
Bent Crankshaft
A bent crankshaft is a catastrophic failure that usually results from striking a large object. This requires engine replacement.
Warranty-Related Issues
If your mower is still under warranty, do not attempt repairs yourself. Contact Husqvarna or the Craftsman support line to initiate a warranty claim.
Common Questions on How To Fix Craftsman Lawn Mower Answered
Why won’t my Craftsman lawn mower start?
The most common reasons are a dead battery (for electric-start models), a fouled spark plug, stale fuel, or a clogged air filter. Check these components in order to diagnose the issue.
Why does my Craftsman mower start then die?
This usually indicates a problem with the carburetor, such as a stuck float or dirty jets, or a dirty air filter that is starving the engine of air.
How do I sharpen a Craftsman lawn mower blade?
Remove the blade, balance it on a nail, and use a file or grinder to sharpen the cutting edge evenly. Ensure the blade is balanced before reinstalling it.
Why is my Craftsman lawn mower vibrating so much?
Excessive vibration is typically caused by an unbalanced blade, a loose blade bolt, or a cracked blade adapter. Inspect these parts and replace them if damaged.
Related Maintenance and Operating Guides
To keep your equipment running at peak operating efficiency, explore our related technical walkthroughs and maintenance tutorials:
- Consult our detailed breakdown on heavy-duty chainsaw buyer guide.
Technical Standards and Compliance
Mechanical safety standards, operational tolerances, and protective gear guidelines align with benchmark specifications established by the American National Standards Institute (ANSI).
