Direct Answer: How to Fix the Self-Propel on a Lawn Mower
To fix the self-propel on a lawn mower, begin by inspecting the drive cable for proper tension and engagement, as this is the most common cause of failure. If the cable is intact, check the drive belt for signs of wear, cracking, or breakage, and replace it if necessary. For persistent issues where the wheels do not turn despite a functioning belt, the problem likely lies within the transmission or gearbox, which may require professional servicing or replacement.
Pros
- Powerful 80V brushless motor delivers 32HP gas-equivalent performance with quiet fume-free operation and no engine maintenance.
- Complete kit includes four 6.0Ah batteries and 600W charger for substantial runtime up to 1.5 acres.
- SmartCut technology and 42-inch heavy-duty steel deck ensure consistent cuts without bogging in tough conditions.
- Versatile towing up to 350 lbs and optional cargo hauling plus comfort features like high-back seat and LED lights.
- Strong 4-year limited warranty and full compatibility with the Greenworks 80V tool ecosystem.
Cons
- Rear utility cargo bed for 200 lb hauling is sold separately and not included in the kit.
- Runtime of up to 1.5 acres varies with conditions and may require recharging or battery swaps on larger properties.
- As a fully cordless model continuous operation depends on battery levels unlike gas engines with unlimited runtime.
The Greenworks 80V 42" CrossoverT Cordless Riding Lawn Tractor is a ready-to-mow zero-emission tractor designed for homeowners managing medium to large lawns. It features a reinforced 42-inch stamped steel deck of 12-gauge construction along with premium comfort elements such as a high-back padded seat with foldable armrests. The overall build emphasizes durability and user convenience right out of the box with the included battery and charger set.
Performance centers on the 80V TruBrushless motor that provides 32HP gas-equivalent power with instant torque and quiet fume-free operation. SmartCut technology senses grass conditions and automatically adjusts power to maintain a consistent cut even in tall thick or wet areas. The four 6.0Ah batteries support runtime for up to 1.5 acres depending on conditions while dual LED headlights and a 7-position deck height range from 1.5" to 4.5" add practicality. Front and rear attachments further allow towing up to 350 lbs for added yard utility.
Key considerations include that the rear utility storage bin capable of hauling 200 lbs is sold separately so full cargo functionality requires an extra purchase. Runtime remains condition-dependent and may fall short for properties significantly larger than 1.5 acres without using the 600W charger or swapping batteries. The cordless design prioritizes ease and low maintenance but trades off the continuous runtime of traditional gas models.
This tractor delivers strong value for eco-conscious owners of residential properties who want gas-like power without the emissions noise or upkeep. It suits those who already use or plan to expand into the Greenworks 80V family of tools and who appreciate the 4-year limited warranty. Users with exceptionally large or commercial-scale lawns should evaluate battery logistics carefully before purchase.
Pros
- Delivers strong 21 horsepower equivalent power comparable to gas riding mowers.
- Provides up to 1.5 acres of runtime on a full charge with the six included batteries.
- Features low-maintenance dual brushless motors without belts for greater durability.
- Offers versatile 12-position cutting height adjustment from 1.5 to 4.5 inches.
- Includes digital controls for blade settings, drive speeds, and cruise control.
Cons
- Limited to 1.5 acres of cutting per charge without purchasing additional batteries for bigger lawns.
- Requires recharging time for the six 56V batteries after each use session.
- Relies solely on battery power with no hybrid or gas backup option for extended operation.
The EGO Power+ TR4204 is a cordless electric riding lawn mower built as a modern tractor alternative for residential use. It features a robust 42-inch stamped steel deck and arrives ready to go with six 56V 6.0Ah batteries plus a charger, creating an immediate impression of convenience and solid construction free from gas engine complexity.
Performance shines through its equivalent 21 horsepower output and top speed of 6 MPH, allowing efficient coverage of up to 1.5 acres on a single charge. Dual brushless cutting motors operate without belts for added durability and less upkeep, while the digital display lets users select three blade settings, three drive speeds, and cruise control. The 12 adjustable heights ranging from 1.5 to 4.5 inches combined with anti-scalp wheels deliver precise results across varied terrain.
Drawbacks center on battery dependency, as larger properties beyond 1.5 acres require extra batteries and recharging intervals can interrupt workflow. The fully electric design eliminates fuel storage needs but demands access to power sources between sessions.
This mower suits homeowners with medium to large yards who value quiet, emission-free operation and reduced maintenance. Those seeking expandable battery capacity for bigger areas will find the EGO Power+ TR4204 a strong long-term investment in cordless lawn care.
Pros
- High-efficiency brushless motors maximize power output and durability over traditional motors
- Up to 2 acres runtime with three included 10.0 Ah batteries supports substantial mowing sessions
- Zero-emission operation with gas-equivalent 20 HP power for quieter environmentally friendly use
- Six-port auto-switchover battery system provides flexible extended runtime options
- Durable 42-inch steel deck plus included mulch and towing kits add immediate functionality
Cons
- Runtime is limited to approximately 70 minutes or 2 acres which may require recharging for larger properties
- Fully battery-dependent design means performance relies on charge levels and spare battery availability
- 42-inch deck size may require more passes on expansive lawns compared to wider commercial models
The PRORUN PZT60V42 is a fully electric 60V zero-turn riding lawn mower built for residential and light commercial use. Its primary design centers on a robust 42-inch 14-gauge stamped steel twin blade deck powered by direct-drive brushless motors, giving an immediate impression of solid construction and modern battery-focused engineering. The mower arrives complete with three 10.0 Ah batteries, a charger, mulch kit, and towing kit for ready-to-work versatility.
In performance terms, four high-efficiency brushless motors deliver power equivalent to a 20 HP gas engine while producing zero emissions. The system supports up to 2.0 acres or 70 minutes of runtime, and six battery ports with auto switchover intelligently manage all PRORUN 60V battery sizes for continuous operation. A washout port on the steel deck further simplifies post-mow maintenance during real-world sessions.
Potential drawbacks include the finite 70-minute runtime window which can limit coverage on larger properties without spare batteries or recharge breaks. As a fully electric model, it also depends entirely on battery charge levels rather than continuous fuel refills, and the 42-inch deck width may demand extra passes compared with wider traditional options.
Overall the PRORUN PZT60V42 offers strong value for homeowners and small-property managers who want gas-like cutting power without emissions or noise. Those with medium-sized lawns seeking quiet efficient zero-turn performance and included accessories will benefit most from this electric mower.
Pros
- Strong 24HP FR730 engine power for demanding cutting conditions
- Wide 54-inch FAB deck reduces total mowing time
- Zero turn design delivers excellent maneuverability
- Fabricated deck supports durable everyday operation
Cons
- Sparse details beyond engine and deck leave other features unspecified
- Gas-powered FR730 engine needs regular fuel and maintenance
- Large 54-inch deck size may feel oversized on compact properties
The Husqvarna Z254F is a zero turn mower from the established Husqvarna brand in the riding lawn mowers category. It centers on a solid build that pairs a 24HP 726cc FR730 engine with a 54-inch FAB deck for straightforward residential grass care.
Performance stems directly from the listed specifications. The FR730 engine delivers the horsepower needed for steady operation across typical lawns while the wide FAB deck completes passes efficiently. Zero turn handling improves control in real yard layouts based on the model design.
Considerations arise from the limited data available. Secondary elements such as comfort features fuel capacity or extras receive no mention and the gas engine format involves routine upkeep. The large deck suits open areas better than confined spaces.
The Husqvarna Z254F provides the most value for owners of medium or large properties who want reliable engine power and a broad cutting width. Users with smaller lots or those seeking extensive accessory options should weigh the core specs carefully before purchase.

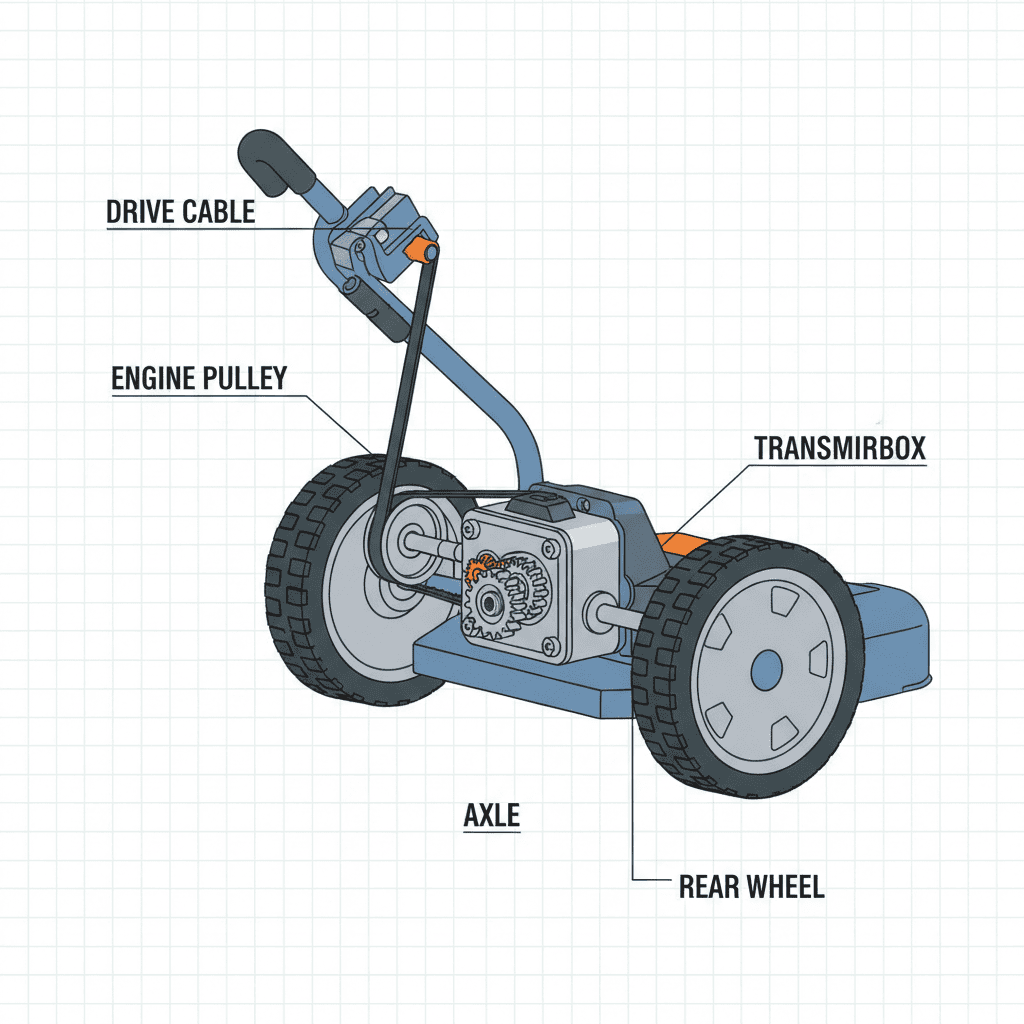

Understanding the Self-Propel System
Before diving into repairs, it is essential to understand how the self-propel mechanism functions. Unlike push mowers that rely entirely on user force, self-propelled mowers use a secondary power transfer system to drive the wheels. This system allows the engine’s power to be directed not just to the cutting blade, but also to the axle, reducing the physical effort required to mow, especially on inclines or thick grass.
Key Components of the Self-Propel Mechanism
The self-propel system consists of several interconnected parts. Understanding their roles helps in accurate diagnosis:
- Drive Control Cable: This is the link between the handlebar lever (or bail) and the transmission. When you squeeze the handle, the cable pulls a mechanism that engages the drive.
- Drive Belt: In many models, a rubber or reinforced belt transfers rotational power from the engine crankshaft to the transmission input shaft. It acts as a clutch; when disengaged, the belt may slip or move to an idle position.
- Transmission (Gearbox): This is the heart of the system. It converts the high-speed rotation of the engine into the lower-speed, high-torque rotation needed to turn the wheels. Transmissions can be single-speed or variable-speed.
- Wheels and Axles: The final output. Some mowers have independent wheel drives, while others use a solid axle.
How Power Transfer Works
When the engine is running, the crankshaft spins continuously. However, the wheels only turn when the drive control is engaged. Squeezing the handle tightens the drive cable, which either tensions the drive belt against a pulley or shifts gears inside the transmission. This engagement locks the drivetrain, causing the wheels to rotate. Releasing the handle relaxes the tension, disengaging the drive and allowing the mower to roll freely or stop.
Common Symptoms and Their Causes
Self-propel failures rarely happen without warning. Identifying the specific symptom can narrow down the culprit significantly. Here are the three most common scenarios:
1. Self-Propel Not Engaging at All
Symptom: You squeeze the drive handle, but the wheels do not turn. The engine runs fine, and the blade spins, but the mower feels like a heavy push mower. When planning workspace deployment, consider the engineering criteria outlined in our z890 vs x870e motherboard guide.
Likely Causes:
- Broken or Disconnected Drive Cable: The cable may have snapped inside its housing or popped off the attachment point at the transmission.
- Cable Adjustment Issue: The cable may be too loose. Even if intact, it might not be pulling far enough to engage the mechanism.
- Sheared Pin: Some transmissions use a shear pin to connect the axle to the gearbox. If the mower hit a hard obstacle, this pin may have broken to protect the transmission.
2. Self-Propel Slipping or Losing Power
Symptom: The mower moves initially but loses traction under load, such as when going uphill or through thick grass. You may hear the engine revving higher than usual without a corresponding increase in speed. For additional operational safety benchmarks, see our published testing notes on marshall stanmore iii vs harman kardon onyx studio 8.
Likely Causes:
- Worn Drive Belt: Over time, belts stretch, glaze over, or crack. A glazed belt cannot grip the pulleys effectively, causing slippage.
- Worn Transmission Gears: Internal gears may be stripped or worn down, preventing efficient power transfer.
- Dirty or Damaged Pulleys: Debris buildup on pulleys can prevent the belt from seating correctly.
3. Self-Propel Makes Noise but Doesn’t Move
Symptom: You engage the drive, and you hear grinding, clicking, or whirring noises from the rear of the mower, but the wheels remain stationary. To compare alternative configurations, check our hands-on review of dyson v8 cyclone vs bissell featherweight stick.
Likely Causes:
- Internal Transmission Failure: Gears inside the gearbox may be broken or missing teeth.
- Debris in the Drivetrain: Sticks, stones, or wrapped grass can jam the axle or belt area.
- Bearing Failure: Worn bearings in the wheel hubs or transmission can cause grinding noises and seize the movement.
Step-by-Step Troubleshooting and Repair
Always prioritize safety. Before performing any maintenance, disconnect the spark plug wire to prevent accidental engine starting. Allow the engine to cool completely before touching any components. Users looking for related component recommendations can explore our bissell crosswave hydrosteam vs shark stainforce breakdown.
Step 1: Check and Adjust the Drive Cable Tension
The drive cable is the most accessible component and the most frequent source of minor issues. Cables stretch over time due to heat and usage.
- Locate the Cable: Follow the cable from the handlebar down to the engine/transmission area. Look for the point where it attaches to the drive mechanism.
- Inspect for Damage: Check if the cable is frayed, kinked, or snapped. If the inner wire is broken, the cable must be replaced.
- Test Engagement: With the spark plug disconnected, squeeze the drive handle. Watch the end of the cable at the transmission. It should pull back noticeably. If it moves very little, it is too loose.
- Adjust Tension:
- Most mowers have an adjustment bracket or a threaded nut where the cable housing meets the engine frame.
- Loosen the locking nut.
- Tighten the adjustment nut to pull the cable housing closer to the anchor point, effectively increasing tension on the inner wire.
- Test the engagement again. The cable should have just enough slack to allow the handle to return fully to the ‘off’ position when released, but enough tension to engage the drive when squeezed.
- Retighten the locking nut securely.
Step 2: Inspect and Replace the Drive Belt
If the cable is functioning correctly, the next likely culprit is the drive belt. This requires removing the belt cover, which is usually located on the side or top of the mower deck near the engine.
- Remove the Belt Cover: Use a screwdriver or socket wrench to remove the bolts securing the plastic or metal belt cover. Keep track of all screws.
- Inspect the Belt:
- Visual Check: Look for cracks, fraying edges, or missing chunks of rubber.
- Tension Check: Press on the belt. It should have some give but should not be overly loose. A belt that slips off the pulleys easily is worn out.
- Glazing: If the belt looks shiny or polished, it has lost its grip and needs replacement.
- Replace the Belt:
- Note the routing of the old belt. Taking a photo with your phone before removal is highly recommended.
- Release the tensioner (if equipped) or carefully slide the belt off the pulleys.
- Install the new belt, following the exact path of the old one. Ensure it sits deeply in the pulley grooves.
- Reinstall the belt cover and secure all bolts.
Step 3: Check the Transmission and Gearbox
If the cable and belt are in good condition, the issue likely resides in the transmission. Note that many modern residential mower transmissions are sealed units and are not designed to be repaired internally. In these cases, replacement is the only option.
- Check for External Damage: Inspect the transmission housing for cracks or oil leaks. Leaking fluid indicates a seal failure, which usually means the unit needs replacement.
- Inspect the Input Shaft: Where the belt connects to the transmission, there is an input shaft. Ensure this shaft turns when the engine is running (with the belt engaged). If the belt turns but the input shaft does not, the connection between the belt pulley and the shaft may be sheared.
- Check the Output Axles: Rotate the wheels by hand. They should turn with some resistance but smoothly. If they are locked up or grind, the internal gears are damaged.
- Replacement Procedure:
- Disconnect the spark plug.
- Remove the wheels and any axle retaining clips.
- Unbolt the transmission from the mower deck.
- Disconnect the drive cable from the old transmission.
- Install the new transmission, ensuring the drive cable is properly connected and adjusted.
- Reattach wheels and test.
Step 4: Clear Debris and Clean Components
Sometimes, the problem is not mechanical failure but obstruction. Grass clippings, mud, and sticks can wrap around axles and jam the mechanism.
- Tip the mower on its side (ensure the air filter and carburetor are facing up to prevent oil flooding).
- Use a putty knife or brush to clean out packed grass from around the wheel hubs and under the belt cover.
- Check for sticks lodged in the pulley system.
When to Seek Professional Help
While many self-propel issues are DIY-friendly, there are situations where professional assistance is safer and more cost-effective.
Signs of Major Transmission Failure
If you hear loud grinding noises, see metal shavings around the transmission, or if the transmission housing is cracked, the unit is likely beyond simple repair. Sealed transmissions cannot be opened without destroying them. A professional can confirm if a replacement unit is available and install it correctly.
Safety Risks to Avoid
Working on lawn mowers involves sharp blades and heavy components. If you are uncomfortable working with mechanical systems, or if the mower is still under warranty, attempting a DIY repair might void the warranty or cause injury. Always use proper tools and wear safety glasses.
Finding Qualified Repair Services
Look for authorized service dealers for your specific mower brand (e.g., Honda, Toro, Craftsman). They have access to genuine parts and technical bulletins. Local small engine repair shops are also excellent resources for complex transmission issues.
Common Questions on How To Fix The Self Propel On A Lawn Mower Answered
Why does my self-propel work intermittently?
Intermittent operation is often caused by a drive cable that is on the verge of breaking or is poorly adjusted. As the cable stretches or frays, it may engage only partially. Another common cause is a worn drive belt that slips when it gets hot or wet. Check the cable tension first, then inspect the belt for glazing.
Can I lubricate the self-propel transmission?
Most residential lawn mower transmissions are sealed and pre-lubricated at the factory. They do not have fill ports or dipsticks. Adding external lubricant will not help and may attract dirt. If the transmission is noisy or leaking, it typically needs to be replaced rather than serviced. However, you should regularly lubricate the pivot points of the drive cable and the wheel axles with a light machine oil to ensure smooth operation.
How often should I replace the drive belt?
There is no fixed schedule for drive belt replacement, as it depends on usage frequency and conditions. However, it is good practice to inspect the belt at the start of each mowing season. Look for cracks, fraying, or looseness. On average, a drive belt may last 2 to 5 years with regular home use. If you mow large areas or hilly terrain, inspect it more frequently.
Is it better to repair or replace a mower with a broken transmission?
This depends on the age and value of the mower. A new transmission can cost between $100 and $250, plus labor. If your mower is older than 5 to 7 years or has other issues (such as a worn engine deck), it may be more economical to replace the entire mower. However, if the mower is relatively new and well-maintained otherwise, replacing the transmission is a viable option to extend its life.
