How Do You Fix a Starter Rope on a Lawn Mower? (Step-by-Step Guide)

Quick Answer

To fix a starter rope on a lawn mower, first identify whether the rope is frayed, snapped, or stuck. For minor fraying, trim the end and seal it with heat. For a completely broken rope, you’ll need to remove the recoil housing, take out the pulley, thread new rope through the handle and pulley mechanism, and reassemble everything. If the pulley or spring is damaged, or if the rope won’t retract smoothly after replacement, professional service is your best option.

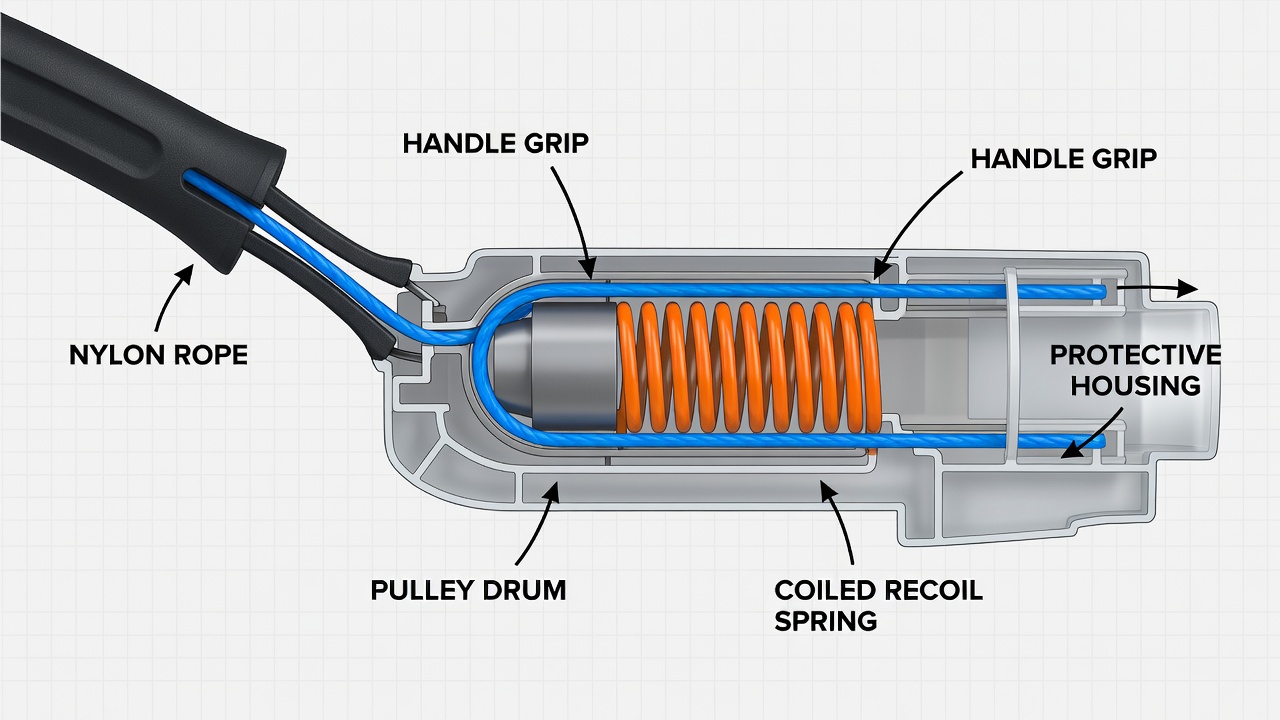

Understanding the Starter Rope System

A lawn mower’s starter rope is part of the recoil mechanism—a spring-loaded system that stores energy and helps you manually start the engine. When you pull the rope, it unwinds from a pulley, turns the engine’s crankshaft through a series of gears, and initiates combustion. Once you release the handle, the spring automatically retracts the rope back into its housing.

The system has five main components:

• Rope: Usually nylon or braided cord, typically 3-4mm in diameter
• Handle: Attached to one end of the rope for gripping
• Pulley: The drum around which the rope winds
• Recoil Spring: A tightly coiled metal spring that provides retraction force
• Housing: The outer casing that contains and protects the mechanism

Most starter ropes fail due to repeated pulling, UV exposure, fraying from contact with sharp edges inside the housing, or sudden snaps from pulling too hard or yanking when the engine is locked. The recoil spring can also weaken over time, causing slow or incomplete retraction.

Diagnosing Starter Rope Problems

Before attempting any repair, identify exactly what’s wrong. This determines whether you can DIY or need professional help.

Visual Inspection Checklist

• Pull the rope fully out: Does it come out smoothly, or does it catch or feel stuck?
• Examine the rope condition: Look for fraying at the edges, white fibers separating, visible cracks, or a clean break
• Check the handle: Is it cracked, loose, or pulling away from the rope?
• Test retraction: Does the rope snap back quickly into its housing, or does it move slowly or not at all?
• Listen for grinding: Any unusual sounds when pulling or retracting suggest pulley or spring damage

Common Problems and What They Mean

Simple Fixes for Minor Rope Damage

Fixing a Frayed Rope End

If the rope is only frayed at the tip—not broken—you can seal it yourself:

1. Trim the frayed section: Use sharp scissors or a utility knife to cut away loose fibers, leaving a clean edge about ¼ inch from where the fraying starts
2. Seal with heat: Carefully hold the cut end near (not in) a flame—a lighter or match works—for 1-2 seconds. The nylon will melt slightly and fuse the fibers together. Do this quickly to avoid burning or weakening the rope
3. Let it cool: Wait a few seconds before touching. The seal should feel hard and smooth
4. Test the rope: Pull it a few times to make sure it moves freely and retracts properly

Cleaning and Lubricating the System

If the rope doesn’t retract smoothly but isn’t damaged, the problem might be dirt or friction:

• Wipe down the visible rope: Use a dry cloth to remove dust and grass clippings
• Clean the handle connection: Remove any debris where the rope enters the handle
• Apply light lubrication (optional): A tiny amount of silicone spray or light machine oil on the rope and pulley area can reduce friction. Do not oversaturate—excess lubricant attracts dirt
• Work the rope: Pull and release the rope 10-15 times slowly to distribute any lubricant and free up movement

If cleaning and lubrication don’t improve retraction, the spring or pulley likely needs attention, which requires disassembly.

How to Replace a Broken Starter Rope

If the rope is snapped or severely damaged, replacement is necessary. This is a moderate DIY task if you’re comfortable with basic mechanical work and have the right parts and tools.

What You’ll Need

• Replacement rope (usually sold as a kit with a new handle, or individually—check your mower model)
• Socket set or adjustable wrench
• Screwdrivers (flathead and Phillips)
• Pliers or locking pliers
• Small container (to hold small parts like bolts or springs)
• Work gloves and safety glasses
• Lighter or matches (to seal rope ends)

Step-by-Step Replacement Process

Step 1: Disconnect the Spark Plug Wire

Always disconnect the spark plug before working on the mower to prevent accidental starting. This is a critical safety step.

Step 2: Remove the Recoil Housing

Locate the recoil starter housing on top of the engine (varies by mower type). Using your screwdriver or wrench, remove all bolts securing the housing to the engine. Take photos or videos of the assembly as you go—you’ll need to remember how it fits back together. Carefully lift off the housing.

Step 3: Note the Spring Position

Inside, you’ll see a tightly coiled recoil spring. Do not disturb it unless it’s broken or tangled. If the spring is loose or has popped out, you may need to re-tension it—this is tricky and a common reason to call a professional.

Step 4: Remove the Old Rope

Depending on your mower, the rope is either wound around the pulley or attached to it with a knot. Unwind the old rope from the pulley. If there’s a handle attached to your end of the rope, remove it by untying the knot or cutting it free. Keep the handle if it’s still in good condition; otherwise, use the new handle from your replacement kit.

Step 5: Prepare the New Rope

Cut the new rope to the same length as the old one (typically 8-12 feet depending on mower size). Seal both ends with heat from a lighter to prevent fraying. Let the ends cool completely.

Step 6: Thread the New Rope

This is the critical step. Starting from the hole in the housing where the rope exits, thread the new rope through the pulley groove. Wind it around the pulley in the same direction as the old rope (usually clockwise, but check your specific model). Make sure the rope sits evenly in the groove without overlapping itself—this prevents catching and premature wear.

Step 7: Attach the Handle

Once the rope is threaded, tie the handle (or the new handle from your kit) to one end using a secure knot. A figure-eight knot or triple knot works well. The handle should be about 4-6 inches from the end of the rope. Pull on the handle firmly to ensure the knot doesn’t slip.

Step 8: Test Before Reassembling

Before putting the housing back on, pull the rope slowly and smoothly. It should pull out 20-30 inches without catching, and retract quickly when released. If it catches or doesn’t retract, unwind and re-thread it—misalignment is the most common mistake.

Step 9: Reassemble the Housing

Once satisfied with rope movement, carefully replace the recoil housing, making sure the rope feeds through the exit hole correctly. Reinstall all bolts and tighten them firmly but not overly tight—you can crack the plastic housing. Work your way around evenly, similar to tightening wheel lug nuts.

Step 10: Reconnect and Test

Reconnect the spark plug wire. Pull the starter rope several times to ensure the engine cranks normally. The rope should pull smoothly and return quickly every time.

When to Seek Professional Repair

Some starter rope issues are beyond safe DIY repair. Call a professional lawn mower repair technician if:

• The recoil spring is broken, loose, or has popped out: Re-tensioning a recoil spring requires specific knowledge and tools. Improper tension can make the rope dangerously difficult to pull or cause it to fail suddenly
• The pulley is cracked, stripped, or not spinning freely: A damaged pulley cannot be safely repaired and must be replaced as part of the entire recoil assembly
• The rope won’t retract after you’ve replaced it and re-threaded it: This usually indicates internal spring or pulley damage
• The housing is cracked or broken: A compromised housing cannot safely contain the spring tension
• You hear grinding or metal-on-metal sounds: This suggests internal damage beyond rope wear
• You’re uncomfortable working with small mechanical systems: There’s no shame in delegating this work—improper reassembly can create safety hazards

Professional repair typically costs $50–$150, depending on your region and the mower’s complexity. It’s a reasonable investment for peace of mind and proper operation.

Preventing Future Starter Rope Problems

Routine Maintenance

• Inspect the rope monthly during mowing season: Look for early signs of fraying or wear
• Pull the rope smoothly, not aggressively: Sudden, hard yanks accelerate wear and can cause snaps
• Clean the recoil housing: Remove grass clippings and dirt that accumulate around the rope and housing—these contribute to friction and wear
• Store the mower indoors if possible: UV exposure and temperature swings degrade nylon rope over time
• Pull the rope fully to retract each time: Never let the rope hang partially extended; it can weaken or crack where it bends

Off-Season Storage Tips

• Leave the starter rope fully retracted in its housing
• Cover the mower to protect it from dust and UV rays
• If storing for more than a month, consider draining the fuel tank to prevent varnish buildup (which can affect engine starting and make the starter rope work harder)

Frequently Asked Questions

How long does a starter rope typically last?

Under normal use—starting the mower 2-3 times per week during mowing season—a quality starter rope lasts 3–5 years. Heavy use, direct sunlight exposure, or aggressive pulling reduces this to 1–2 years. Regular maintenance and smooth pulling extend the lifespan significantly.

Can I use any rope for replacement, or does it have to be specific?

You should use rope that matches your mower’s specifications, typically 3–4mm diameter nylon or braided cord. Check your mower’s manual or contact the manufacturer for the exact type. Using the wrong rope diameter or material can affect grip, pulley alignment, and durability. Replacement kits are inexpensive ($10–$25) and include the correct rope and handle.

What’s the difference between a rope that won’t pull and one that won’t retract?

A rope that won’t pull (is stuck) usually indicates dirt, ice, or mechanical binding inside the housing or pulley. A rope that won’t retract suggests a weak or broken spring. Both require opening the recoil housing to diagnose properly. The retraction issue is more likely to need professional service if the spring is involved.

Is it dangerous to operate a mower with a damaged starter rope?

A damaged rope itself isn’t usually dangerous, but it’s a sign that the recoil mechanism is wearing. A snapped rope leaves you unable to start the mower. A rope with internal damage can break suddenly while pulling, which is startling and may cause you to lose grip. It’s best to repair it promptly rather than risk being stranded mid-season or injury from sudden rope failure.

Summary

A faulty starter rope is one of the most common lawn mower repairs and often fixable with basic tools and a replacement rope kit. Start by diagnosing whether the rope is frayed (simple fix), stuck (may need cleaning), or completely broken (requires replacement). For minor wear, trimming and heat-sealing the end can extend its life. For full replacement, remove the recoil housing, thread the new rope around the pulley, reattach the handle, and reassemble—a task that takes 30 minutes to an hour for someone comfortable with mechanical work. If the pulley, spring, or housing is damaged, or if you’re unsure about the repair, professional service is worth the cost for safety and reliability. Regular maintenance and smooth pulling habits keep your starter rope in good condition year after year.
