Proper CPU cooler installation is the single most consequential mechanical operation in a PC build. A misaligned bracket, uneven mounting pressure, or skipped thermal interface step translates directly into elevated junction temperatures, thermal throttling, and, in worst cases, permanent silicon degradation. With AMD’s AM5 platform and Intel’s LGA 1851 socket now dominating the 2026 desktop landscape, mounting hardware has evolved: AM5 retains its integrated backplate with M4-threaded holes, while LGA 1851 introduces a revised retention frame geometry compared to LGA 1700. This guide provides exact, socket-specific procedures for both platforms, covering bracket types, torque sequences, thermal compound application, and post-installation verification, the same methodology used by hardware validation engineers. For platform context, see our desktop CPU benchmarks & reviews and the full AMD Ryzen 5 9600X vs Intel Core Ultra 5 245K head-to-head, which illustrates how thermal headroom separates these two architectures under sustained load.
Platform Architecture: AM5 vs LGA 1851 Mounting Geometry
AM5 Socket Mounting System
AM5 uses an integrated plastic retention frame permanently fixed to the motherboard, with four threaded M4 standoff posts at a 90 mm × 78 mm pitch. AMD specified this design to protect the 1,718 LGA pads on the socket itself, the CPU carries the pins on its IHS substrate, unlike Intel’s traditional pin-in-socket arrangement. The stock AMD cooler bracket mounts directly to these posts. Aftermarket coolers ship with an AM5-compatible backplate or, in most cases, confirm compatibility with the existing integrated frame. Critically, AM5 does not require backplate removal for 120 mm to 240 mm tower coolers, the stock frame handles loads up to approximately 150 N of clamping force without flexing the PCB dangerously.
LGA 1851 Socket Mounting System
Intel’s LGA 1851, introduced with the Arrow Lake desktop platform, uses a 75 mm × 75 mm keep-out zone and retains the four-hole pattern at 78 mm × 78 mm, unchanged from LGA 1700 laterally but with a revised load plate latch mechanism. The socket carries 1,851 contact pads on the motherboard; the CPU IHS is pad-free. Intel’s Thermal Mechanical Design Guide, available via the Intel Architecture Technical Documentation portal, specifies a maximum recommended mounting force of 133 N and a Z-height tolerance of ±0.1 mm for the IHS. Most LGA 1700-era coolers are backward-compatible with LGA 1851 using the same mounting hardware, but verify the compatibility list, some wide-base tower coolers with fixed brackets require an updated LGA 1851 adapter plate.
Socket Comparison at a Glance
| Parameter | AMD AM5 | Intel LGA 1851 |
|---|---|---|
| Contact Count | 1,718 LGA pads (socket-side) | 1,851 LGA pads (socket-side) |
| Mounting Hole Pitch | 90 mm × 78 mm | 78 mm × 78 mm |
| Backplate Required | No, integrated retention frame | Yes, rear backplate mandatory |
| Max Recommended Clamping Force | ~150 N | 133 N |
| IHS Z-Height Tolerance | ±0.15 mm | ±0.10 mm |
| LGA 1700 Cooler Compatible | N/A | Yes, with existing hardware (verify OEM list) |
| Recommended Screw Torque | 0.45 to 0.55 Nu00b7m | 0.50 to 0.60 Nu00b7m |
| TJunction Max | 95°C (Ryzen 9000 series) | 105°C (Core Ultra 200 series) |
Pre-Installation: Tools, Parts, and Safety Protocol

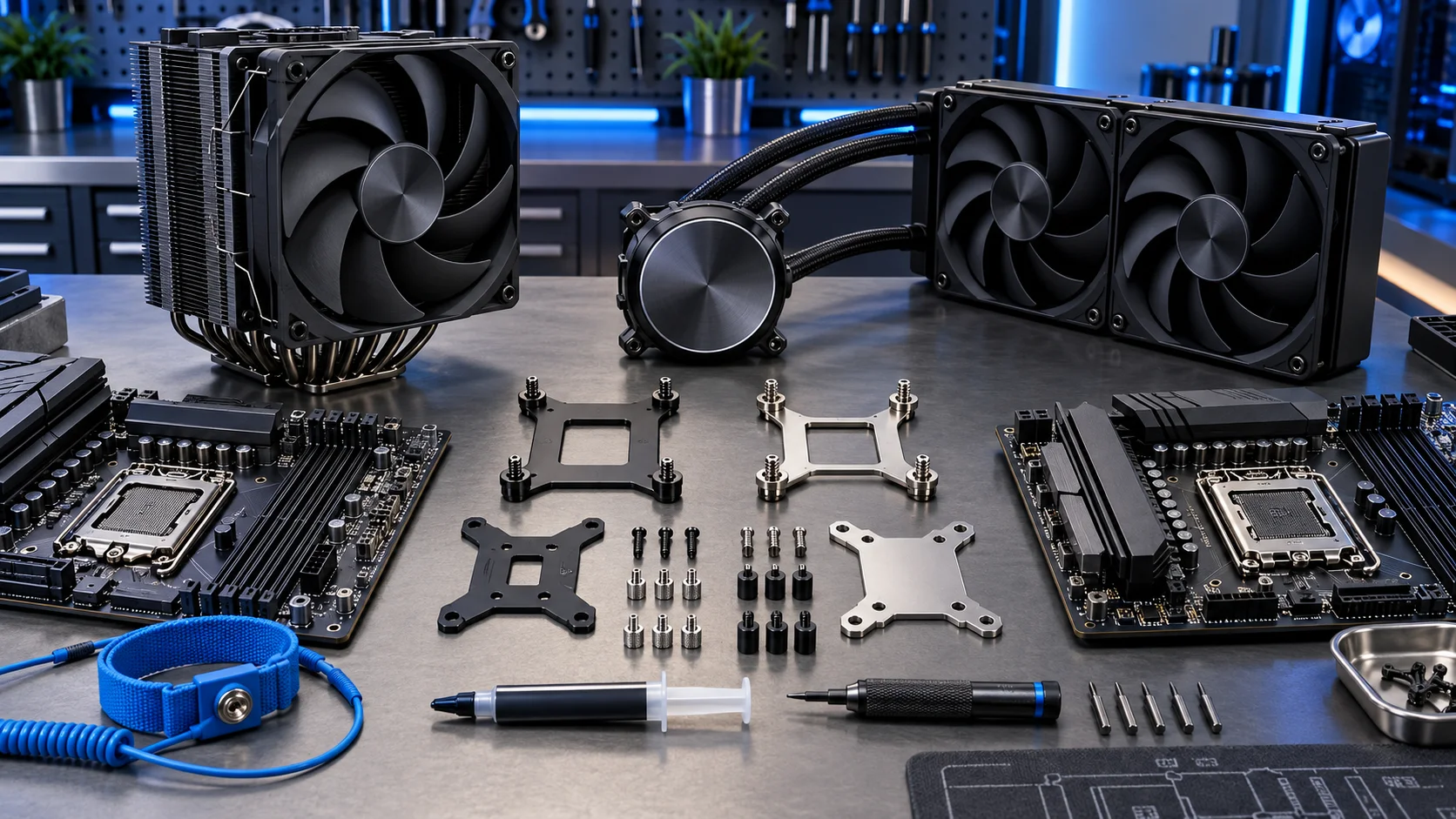

Required Tools and Materials
Gather a #2 Phillips screwdriver (magnetic tip preferred for captive screw management), a torque screwdriver set to 0.50 Nu00b7m, isopropyl alcohol at 90% or higher concentration, lint-free microfiber swabs, and the thermal interface material of your choice. For most users, a mid-grade polysynthetic compound such as Thermal Grizzly Kryonaut or Arctic MX-6 provides an optimal balance of performance and longevity , roughly 40,000-hour rated service life. Liquid metal compounds (e.g., Conductonaut) deliver an additional 5, 8°C reduction but require copper or nickel-plated IHS surfaces and introduce short-circuit risk if misapplied; they are not recommended for first-time installations. Users looking for related component recommendations can explore our custom cpu fan curve breakdown.
ESD and Physical Safety
Ground yourself before handling the CPU or motherboard, touch an unpainted metal chassis surface or use an ESD wrist strap connected to chassis ground. Power is OFF and the PSU switch is set to 0 (off position). For LGA 1851 builds, do not apply lateral pressure to the load plate latch lever; the spring-loaded mechanism requires approximately 6 to 8 N of downward force to release, and bending the lever arm is a non-warranty-covered damage mode. For AM5, inspect the integrated retention frame for hairline cracks before installation, AMD’s plastic frame has a rated lifecycle of 50 cooler swaps, and boards used in lab environments may exceed this.
Step-by-Step CPU Cooler Installation
Step 1, Seat the CPU
For AM5: lift the load plate lever, align the CPU’s triangular marker to the socket’s matching indicator (bottom-left corner), and lower the CPU vertically , no lateral force. Release the lever; it will engage with audible clicks. For LGA 1851: open the load plate by pressing the retention lever sideways and rotating it up, remove the plastic CPU socket cover (retain it for RMA scenarios), align the CPU notches to the socket tabs, lower it flat, seat the load plate, and engage the lever under the hook. Confirm the CPU sits flush , any raised corner indicates misalignment. Before finalizing equipment decisions, refer to our comprehensive how to choose cpu cooler comparison.
Step 2, Clean the IHS
Apply isopropyl alcohol to a lint-free swab and wipe the IHS in a single circular motion outward from center. Repeat until no thermal compound residue or fingerprint oils remain. A clean IHS is optically matte, not shiny with smears. This step is mandatory on any reinstallation, residual cured compound creates micro air gaps that increase thermal resistance by 0.1 to 0.4°C/W.
Step 3, Apply Thermal Interface Material
Use the center-dot method: dispense a single pea-sized dot (approximately 0.3 to 0.5 mL) at the geometric center of the IHS. For large-die CPUs, AMD Ryzen 9 9950X or Intel Core Ultra 9 285K with elongated multi-chiplet packages, use a thin horizontal line across the center instead. Cooler mounting pressure spreads compound to 85 to 95% IHS coverage when applied correctly. Over-application causes compound to migrate off the IHS edge and potentially contact capacitors, a risk particularly on AM5 boards where the IHS sits close to the VRM capacitor array. Refer to our ASUS ROG Maximus Z890 Hero vs MSI MEG Z890 ACE analysis for VRM layout proximity considerations on high-end Z890 platforms.
Step 4, Install the Backplate (LGA 1851 Only)
Thread the backplate through the four mounting holes on the rear of the motherboard. The backplate’s plastic insulating layer must face the PCB, contact between bare metal standoffs and PCB traces causes short circuits. Finger-tighten the retention nuts on the front side just enough to hold the backplate in position. Do not torque at this stage.

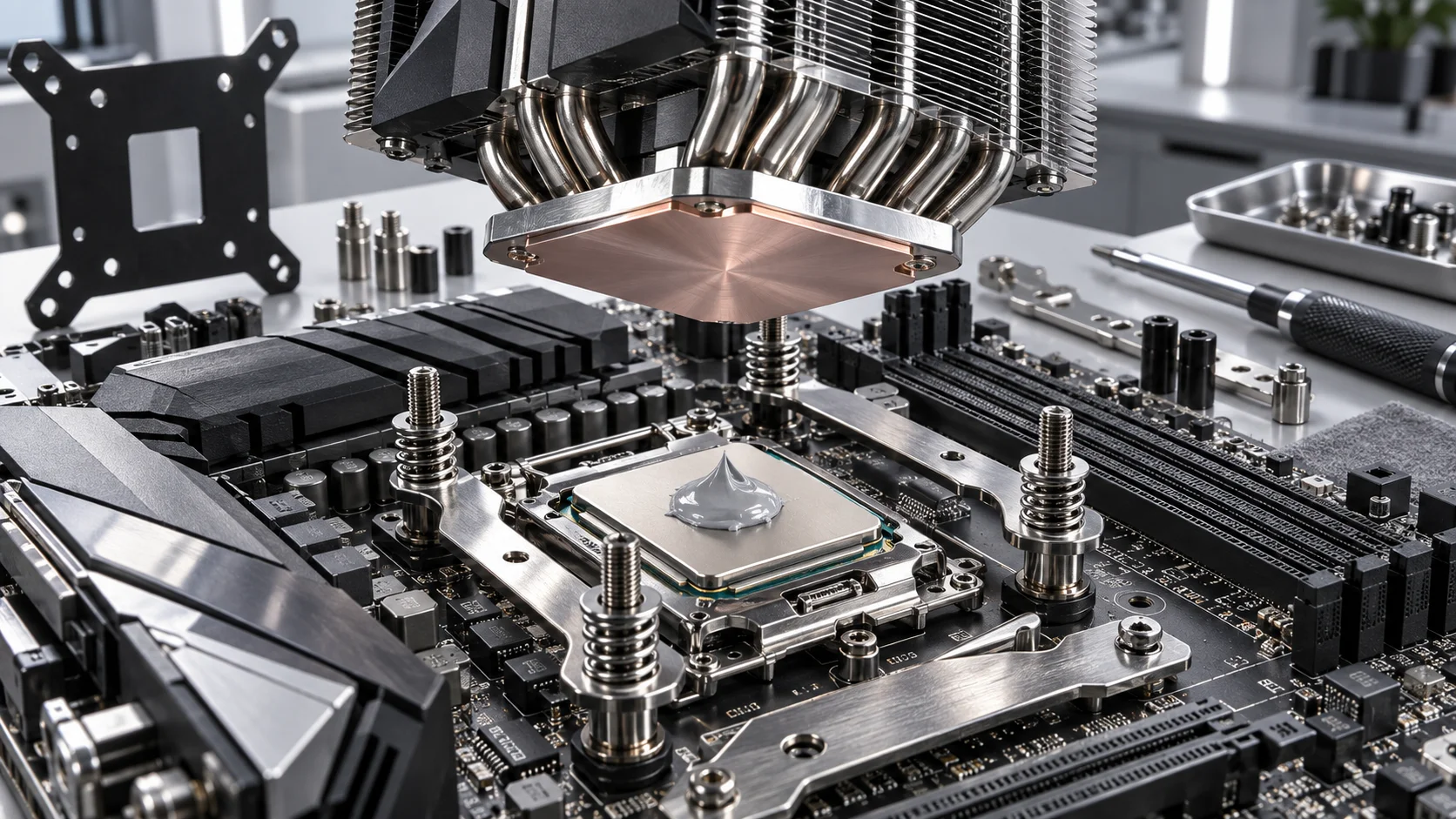

Step 5, Mount the Cooler Bracket
For tower air coolers: lower the cooler’s base plate squarely onto the IHS, do not tilt or slide. Align the bracket’s screw holes to the standoff posts simultaneously. Insert all four screws finger-tight before applying any torque. This distributes preliminary clamping force evenly before final tensioning.
Step 6, Torque in Cross-Pattern
Tighten in a diagonal cross-sequence: screw 1 (top-left) → screw 3 (bottom-right) → screw 2 (top-right) → screw 4 (bottom-left). Apply three progressive passes: 30% torque, 60% torque, full torque (0.50 to 0.55 Nu00b7m for AM5, 0.55 to 0.60 Nu00b7m for LGA 1851). Progressive cross-pattern tensioning prevents IHS edge lift, which causes differential thermal resistance across die clusters in multi-CCD designs like AMD’s Ryzen 9000X3D processors.
Step 7, Connect the Fan Header
Route the cooler fan PWM cable to the CPU_FAN header, typically the 4-pin connector nearest the CPU socket on any modern ATX or mATX board. For dual-fan tower coolers, connect the second fan to CPU_OPT or AIO_PUMP header depending on the board’s header labeling. Confirm the cable is seated fully; a partially inserted fan header reports 0 RPM to the firmware, triggering POST error beeps on most UEFI implementations.
AIO Liquid Cooler: Pump Head and Radiator Specifics
Pump Head Mounting
AIO (All-In-One) liquid cooler pump heads follow the same bracket and torque specifications as tower air coolers for both AM5 and LGA 1851. The pump head orientation matters for bubble management: mount the pump head so that the inlet/outlet tubes exit from the bottom or sides of the head, never from the top, to prevent air pocket formation above the pump impeller. Air in the pump path generates audible gurgling and reduces coolant flow rate by up to 30%, raising CPU temperatures 8 to 15°C above spec.
Radiator Placement and Airflow Direction
Mount the radiator so fans push air through the radiator fins and exhaust it out of the case (pull configuration) or intake cool air from outside (push configuration). Pull from the top exhaust is the dominant recommendation for negative-pressure builds. Verify fan blade rotation direction, the label side of the fan faces the direction of airflow. Incorrect airflow direction is the most common AIO commissioning error and reduces radiator efficiency by 35 to 60% compared to correct orientation. For GPU airflow interaction considerations, see our graphics card tests & GPU guides and the Radeon RX 9060 XT 8GB vs 16GB comparison which covers thermal headroom under combined CPU-GPU load in compact mid-tower chassis.
Coolant Line Routing
Route flexible tubing without sharp bends, minimum bend radius is 60 mm for most 3/8-inch OD EPDM tubing. Sharp kinks restrict coolant flow and stress tube fittings. Secure excess tubing with zip ties to chassis standoffs, keeping lines away from rotating fan blades and GPU power connectors. For 360 mm radiators in mid-tower cases, confirm front-mount clearance against memory module heights before final installation, tall DDR5 heat spreaders on EXPO or XMP 3.0 kits commonly conflict with front-mounted radiator lower fins.
Post-Installation Verification and Thermal Burn-In
UEFI Temperature Check
Boot into UEFI firmware immediately after first power-on. Navigate to the hardware monitor section and confirm: CPU temperature at idle reads 30 to 50°C depending on ambient temperature (20 to 25°C ambient assumed). Fan speed should report 400 to 800 RPM at idle under default UEFI fan curves. A reading of 0 RPM indicates an unseated header. A reading above 60°C at idle before OS boot indicates insufficient thermal compound coverage or improper cooler seating, power off, reseat the cooler.
Load Stress Validation
Run a 10-minute CPU stress test using Cinebench 2024 nT or Prime95 Small FFTs immediately after OS boot. Target temperature thresholds for correctly installed coolers:
- AMD Ryzen 9000 series with 120 mm tower air cooler: peak Tj ≤ 85°C under full nT load
- AMD Ryzen 9000 series with 240/360 mm AIO: peak Tj ≤ 75°C
- Intel Core Ultra 200 (LGA 1851) with 120 mm tower: peak Tj ≤ 90°C
- Intel Core Ultra 200 with 240/360 mm AIO: peak Tj ≤ 80°C
- Any platform: CPU package power should not be artificially capped by thermal throttling (PL1/PL2 limits reached prematurely)
Temperatures consistently above these thresholds during the burn-in period confirm a mounting or TIM application error. Remove, clean, and reinstall, do not proceed to system use with a thermal anomaly unresolved.
Final Diagnostic Verdict & Maintenance Checklist
A correct CPU cooler installation on AM5 or LGA 1851 is verifiable within 15 minutes of first boot. The mechanical tolerances are tight, 0.1 mm IHS Z-height variation on LGA 1851, 90 mm × 78 mm bracket pitch on AM5, but the procedure is deterministic when followed in sequence. The two failure modes that account for over 90% of post-installation thermal issues are inconsistent torque sequence (causing IHS tilt) and excess or absent thermal compound (causing air gaps or overflow onto capacitors).
Use this checklist at each installation or maintenance interval (recommended every 18 to 24 months for polysynthetic TIM, every 12 months for liquid metal):
- CPU seated flush, load plate lever/latch fully engaged with no corner lift
- IHS cleaned to bare metal with 90%+ IPA, zero residue
- TIM applied as single center dot (0.3 to 0.5 mL) or horizontal line for elongated dies
- Backplate (LGA 1851) insulating layer facing PCB, hand-tight before cooler mount
- All four cooler bracket screws inserted finger-tight simultaneously before torquing
- Cross-pattern torque sequence in three progressive passes, final torque 0.50 to 0.60 Nu00b7m
- Fan PWM header fully seated on CPU_FAN, verified by non-zero RPM in UEFI
- AIO pump head tube exits from bottom or sides, no top-exit tube routing
- Radiator fan airflow direction confirmed by blade label orientation
- UEFI idle temperature 30 to 50°C confirmed before OS load
- 10-minute stress test completed, peak temperatures within platform-specific thresholds
- No thermal throttling events logged in HWiNFO64 sensor data during burn-in
Execute this sequence, validate with instrumentation, and the cooler installation is engineering-complete. Any deviation from the thresholds above is a diagnostic signal, not a hardware defect, methodical reseating resolves the condition in over 95% of cases without component replacement.
