Lining a Weed Wacker: The Basic Process at a Glance
Replacing the line on a string trimmer, often called “lining a weed wacker,” is a straightforward maintenance task that follows a consistent sequence across most residential models. The core process involves removing the trimmer head or spool, clearing away any old or broken line remnants, measuring and cutting a fresh length of trimmer line to the correct diameter, threading the new line through the spool’s anchor point, winding it evenly in the direction indicated by arrows on the spool, feeding the loose ends through the head’s exit eyelets, and reassembling everything.
This entire job typically takes only a few minutes once you are familiar with your specific spool type. You will generally need only your hands, though some trimmer heads require a screwdriver or hex key for disassembly. The most important preparation is ensuring you have the correct line diameter for your trimmer, which is usually printed on the spool or head itself or listed in the owner’s manual.
Before You Start: Tools, Line Size, and Safety
Before opening the trimmer head, gather the right materials and take basic safety precautions. The two most common problems people encounter when re-lining a weed wacker are using the wrong line diameter and injuring themselves during disassembly.

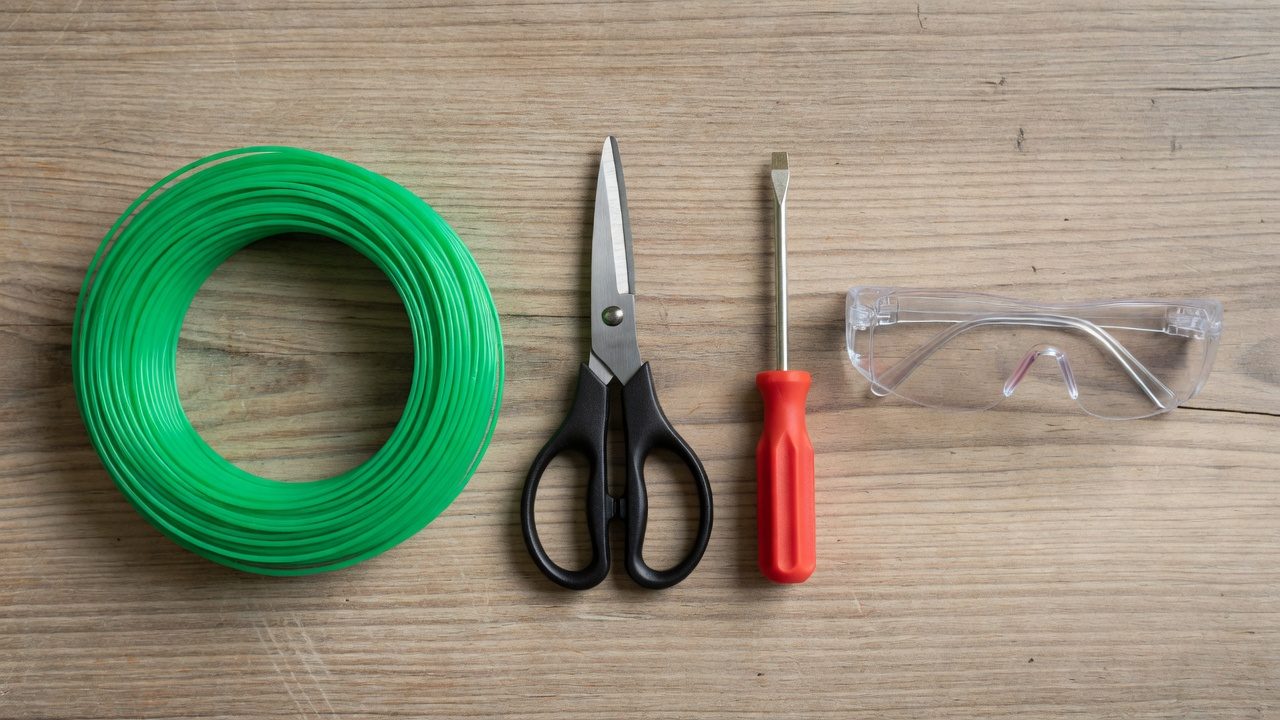

What Tools and Materials Do You Need?
For most residential string trimmers, the tools required are minimal:
- Trimmer line of the correct diameter and type for your specific trimmer model
- Sharp scissors or line cutters for a clean cut on the new line
- A screwdriver or hex key (if your trimmer head uses a bolt or screw to secure the spool)
- Eye protection recommended when working on or operating any string trimmer
How to Find the Correct Line Diameter
The correct line diameter for your trimmer is usually printed directly on the spool, the trimmer head, or listed in the owner’s manual. If you cannot find this information, matching the diameter of the existing line already on the spool is a reliable approach. Trimmer line comes in various thicknesses, and using a diameter that is too large for your trimmer can cause feeding problems, excessive vibration, or damage to the trimmer head. Using a line that is too thin may result in poor cutting performance.
Common line diameters for residential trimmers include 0.065 inch, 0.080 inch, and 0.095 inch, but you should always verify the correct size for your specific model rather than assuming a universal standard.
Safety Precautions
Before working on the trimmer head, disconnect the spark plug wire on gas-powered trimmers or remove the battery from cordless electric models. This prevents accidental starts while your hands are near the cutting head. Wearing eye protection is also recommended, as small pieces of old line or debris can become dislodged during disassembly.
Step 1: Remove the Trimmer Head and Old Line
Accessing the spool and clearing it of old line is the first mechanical step in the process. The exact method depends on your trimmer head design, but most residential models use one of several common mechanisms.
How to Remove the Spool from the Trimmer Head
Many trimmer heads use a push-tab or button system where you press one or two tabs on the side of the head to release the spool. Others use a screw or bolt in the center that requires a screwdriver or hex key to remove. Some heads twist off with a counterclockwise turn. Consult your trimmer’s manual if you are unsure which mechanism your head uses.
Once the spool is accessible, simply pull it out of the head. In some designs, the entire head detaches from the trimmer shaft, while in others, only the spool cover or cap comes off to expose the spool inside.
Clearing Old Line Remnants
With the spool removed, unwind or pull out any remaining old line. Broken pieces of line may be tangled around the spool hub or caught in the head’s internal components. Remove all remnants to ensure the spool is clean and ready for fresh line. If old line is stubbornly wrapped around the hub, unwinding it in the opposite direction of the winding arrows often helps loosen it.
Step 2: Measure and Cut the New Line
Cutting the right amount of new line ensures the spool is neither overfilled nor underfilled, both of which can cause feeding problems.
How Much Line Do You Need?
A common method for estimating the correct length is to measure a length of line that will wrap around the spool a reasonable number of times without overfilling it. Some spools have a maximum fill line or a printed length recommendation. If no specific measurement is shown, a general guideline is to cut enough line to fill the spool’s winding area without the line stacking above the spool’s rim.
For a dual-line spool, you will fold the line in half, so the total length you cut will be doubled when threaded through the anchor point. Keep this in mind when measuring.
Making a Clean Cut
Use sharp scissors or dedicated line cutters to trim the line cleanly. A clean, square cut makes it easier to thread the line through the anchor hole and reduces the chance of the line catching or fraying during winding.
Step 3: Thread and Wind a Standard Bump-Feed Spool (Dual-Line)
The bump-feed spool with a dual-line configuration is the most common type found on residential string trimmers. This section walks through the core threading and winding process for this standard design.
Threading the Line Through the Anchor Hole
Fold your cut length of line in half to find the midpoint. Look for the anchor hole or notch in the center of the spool hub. Insert the folded loop of the line through this anchor hole, then hook it onto the notch or catch designed to hold it in place. The line should be securely anchored at the center of the spool with two equal-length strands extending outward.
Winding the Line in the Correct Direction
Most spools have arrows printed on them indicating the correct winding direction. Wind both strands of line together around the spool hub in the direction shown by these arrows. Maintaining even tension as you wind is important — the line should be snug against the hub without being so tight that it deforms the spool or so loose that the coils are sloppy.
Winding in the direction opposite the arrows is one of the most common causes of line feeding problems after re-lining. If the line does not feed properly after you reassemble the head, incorrect winding direction is the first thing to check.
Knowing When the Spool Is Full
Stop winding before the line reaches the outer rim of the spool. Overfilling the spool makes it difficult or impossible for the line to feed through the head properly. The line should sit below the spool’s edge, leaving room for the head components to fit back together without pinching the line.
Securing the Line Ends
Once wound, the loose ends of the line (often called tails) need to be temporarily secured so they do not unwind while you reinstall the spool. Most dual-line spools have small slots or notches on the outer rim where you can tuck the tails to hold them in place. These slots align with the exit eyelets on the trimmer head, so the tails will be released as you reassemble everything.
Step 4: Winding a Single-Line Spool and Other Head Types
Not all trimmer heads use the dual-line bump-feed design. Understanding the main variations helps you adapt the process to your specific trimmer.
Single-Line Spools
A single-line spool anchors one end of the line at the center of the hub and winds the remaining length around it, rather than folding the line in half. The threading process is similar, but you insert only one end of the line into the anchor hole instead of a folded loop. The rest of the winding and securing process follows the same principles as the dual-line method.
Fixed-Line Heads
Fixed-line heads, sometimes called speed-feed or easy-load heads, use short, precut pieces of line that are inserted directly into the head rather than wound onto a removable spool. To re-line this type of head, you typically thread a precut piece of line through the head’s channel until equal lengths extend from both sides. No winding is required, making this a simpler process, though you do need to use the correct line length and diameter for your specific head.
Auto-Feed Heads
Auto-feed or automatic-advance heads advance line without requiring you to tap the head on the ground. These heads often use a pre-wound spool cartridge that you insert into the head, or they have a mechanism that feeds line as the trimmer spins. Re-lining these heads may involve replacing the entire cartridge rather than winding line manually. Check your trimmer’s manual for the specific procedure, as auto-feed designs vary more between manufacturers than bump-feed designs do.
Step 5: Reassemble the Head and Test the Feed
With fresh line wound and secured on the spool, the final step is putting everything back together and confirming that the line feeds correctly.
Feeding the Line Ends Through the Head
Remove the tails from their temporary holding slots on the spool and thread each end through the corresponding exit eyelet on the trimmer head. The eyelets are the small openings on opposite sides of the head through which the line extends for cutting. Pull a few inches of line through each eyelet so the tails are free and clear.
Reinstalling the Spool and Head
Align the spool with the head, ensuring the line tails pass through the eyelets without pinching or crossing. Press the spool into place or reattach the head cover, depending on your trimmer’s design. If your head uses a bolt or screw, tighten it securely but do not over-tighten, as this can damage the plastic components.
Testing the Line Feed
Before returning to full-speed trimming, test the line feed at low speed. Hold the trimmer away from your body, start it at a low throttle setting, and gently tap the bump-feed head on the ground. The line should advance slightly with each tap. If the line does not advance, or if you hear unusual noises or feel excessive vibration, stop and check that the line is wound in the correct direction, the spool is not overfilled, and the tails are properly seated in the eyelets.
Common Mistakes and Troubleshooting Line-Feed Problems
Even with careful work, line-feeding issues can occur after re-lining a weed wacker. Most problems trace back to a few common causes that are straightforward to diagnose and fix.
Why Won’t My Line Feed After Rewinding?
If the line does not advance when you tap the head, the most likely causes are winding the line in the wrong direction, overfilling the spool, or failing to seat the tails properly in the head’s eyelets. Remove the spool, verify the winding direction matches the arrows, and check that the line is not packed too tightly or too loosely.
Why Does the Line Tangle or Jam Inside the Head?
Tangles and jams usually result from crossed or loose coils on the spool. When winding, keep the line strands side by side rather than letting them overlap randomly. Even, tensioned winding prevents the coils from catching on each other during operation.
Why Does Line Break or Fly Out?
Line that breaks prematurely or flies out of the head during use may be the wrong diameter for your trimmer, or the spool may be underfilled, leaving too little line anchored in the head. Verify the line diameter matches your trimmer’s specifications and ensure the spool is wound with an adequate amount of line.
How to Fix an Overfilled or Cross-Wound Spool
If you suspect the spool is overfilled or the line has crossed during winding, remove the spool, unwind all the line, and start fresh. Taking a few extra seconds to wind the line evenly and stop before the spool is full will save time compared to troubleshooting feeding problems later.
Key Terms to Remember
Understanding a few key terms helps when shopping for replacement line or consulting your trimmer’s manual:
- Spool — the removable hub inside the trimmer head that holds the wound line
- Bump-feed (tap) head — a trimmer head that advances line when tapped on the ground
- Fixed-line head — a head that uses precut line segments inserted directly rather than wound onto a spool
- Auto-feed head — a head that advances line automatically without tapping
- Eyelet or anchor hole — the opening through which line passes to exit the head or anchor to the spool
- Line diameter or gauge — the thickness of the trimmer line, which must match your trimmer’s specifications
- Dual-line vs. single-line spool — dual-line spools use two strands cut from one piece of line folded in half; single-line spools anchor one end and wind the rest
Frequently Asked Questions
Can I use any trimmer line on my weed wacker?
No, you should use the line diameter specified for your trimmer model. Using line that is too thick can cause feeding problems and may damage the trimmer head, while line that is too thin may not cut effectively. The correct diameter is usually printed on the spool or head or listed in the owner’s manual.
How often should I replace the trimmer line?
Line replacement is needed whenever the existing line wears down, breaks, or becomes too short to feed properly. How often this happens depends on how frequently you trim and the type of vegetation you are cutting. Checking the line before each use is a good habit.
What if my trimmer head is different from the ones described here?
Trimmer head designs vary between manufacturers and models. If your head does not match the bump-feed, single-line, or fixed-line types described above, consult your trimmer’s owner’s manual for model-specific instructions. Many manufacturers also provide video guides for their specific trimmer heads.
Is it safe to re-line a weed wacker myself?
Replacing trimmer line is a routine maintenance task that most homeowners can safely perform. The key safety steps are disconnecting the power source (spark plug or battery) before working on the head and wearing eye protection. If you are uncomfortable with any part of the process, a qualified small-engine repair technician can handle it quickly.
