Quick Answer: How to Load a Line Trimmer
To load a line trimmer, first disconnect the power (unplug electric models or remove the battery from cordless units). Locate and remove the spool cover by twisting or pressing release buttons. For manual-feed spools, thread new trimmer line through the eyelets and wind it tightly around the spool following the directional arrows. For automatic or bump-feed spools, insert the line into the designated slot and wind by hand or activate the rewind mechanism. Reinstall the spool cover securely and test the line feed before restarting.

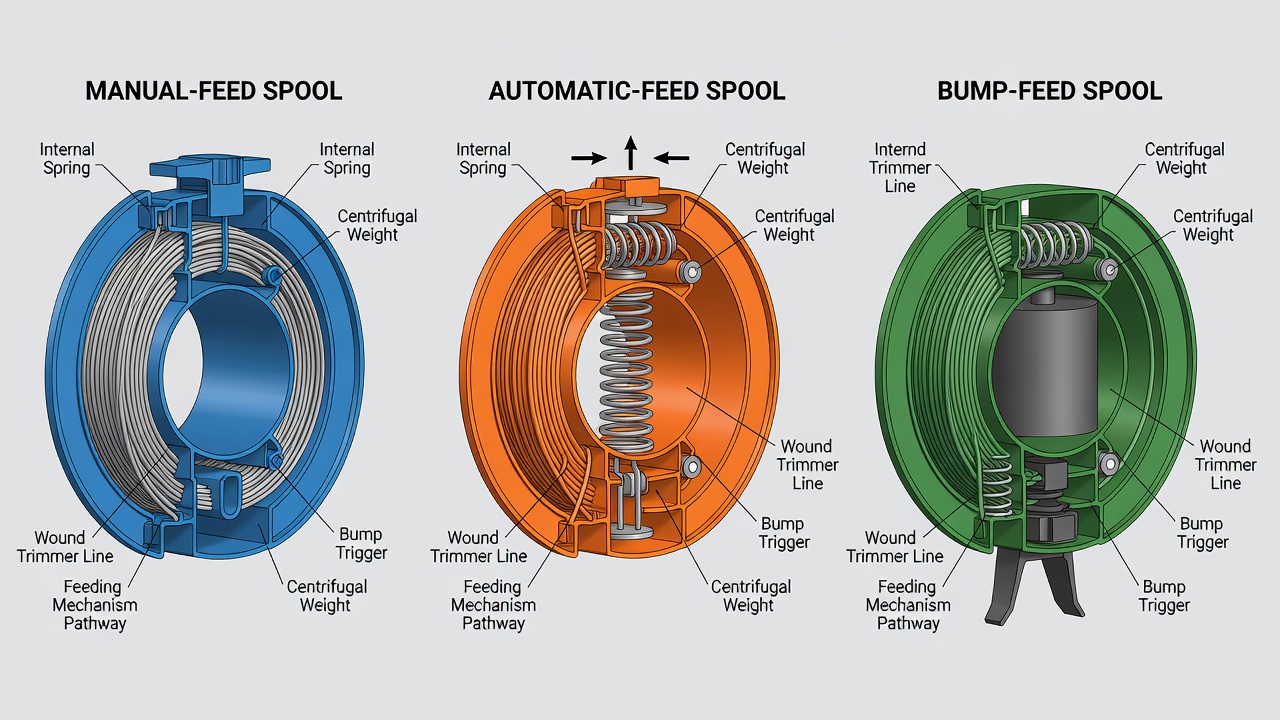

Understanding Your Trimmer Head Type
Before attempting to load your trimmer, identify which type of trimmer head you have. The mechanism varies significantly, and using the wrong loading method can result in the line not feeding properly or damage to the spool.
Manual-Feed Spool (Fixed Spool)
Manual-feed spools require you to wind the trimmer line by hand. These are the most common type found on residential electric and gas-powered trimmers. The line stays on the spool until it breaks or wears down, then you manually reload it. You’ll typically find directional arrows on the spool indicating which way to wind.
Automatic Feed Spool
Automatic feed spools use a spring-loaded mechanism that advances the line automatically as it wears. When the line gets short, you simply tap the trimmer head on the ground, and the spool automatically feeds more line. These are popular on cordless and modern electric trimmers because they require less maintenance.
Bump-Feed Spool
Bump-feed spools are similar to automatic feed but require you to manually bump the trimmer head against the ground to release new line. Some models combine bump-feed with semi-automatic advancement. These are often found on mid-range cordless trimmers.
Safety Precautions Before Loading
Safety is critical when working with any trimmer. Always follow these precautions before opening the trimmer head:
- Disconnect all power sources: Unplug electric trimmers from the outlet, or remove the battery from cordless models. For gas-powered trimmers, ensure the engine is completely cool and disconnect the spark plug wire.
- Wear protective gear: Use work gloves to protect your hands from sharp line ends and potential cuts.
- Position the trimmer safely: Place it on a flat, stable surface with the trimmer head facing away from your body.
- Allow cooling time: If the trimmer was recently in use, wait at least 5-10 minutes for the trimmer head to cool.
Step-by-Step: Accessing the Trimmer Head
The process for accessing the trimmer head is similar across most models, though specific steps may vary slightly.
Locate the Spool Cover
The spool cover is a protective cap that covers the trimmer head. It’s usually located at the bottom of the trimmer unit. Look for a round or oval plastic cover with either a twist-lock mechanism or release buttons on the sides.
Remove the Spool Cover
Depending on your model, remove the cover using one of these methods:
- Twist-lock: Grasp the cover firmly and rotate it counterclockwise until it comes free. You may need to apply steady pressure—don’t force it suddenly as it may contain spring tension.
- Release buttons: Press the release buttons (typically two on opposite sides) inward while pulling the cover away from the trimmer head.
- Screw-on cover: Some models use a single screw or bolt. Use the appropriate tool (usually a hex wrench or screwdriver) to loosen and remove it.
Examine the Spool
Once the cover is removed, you’ll see the spool mechanism. Note any arrows or directional markings on the spool—these indicate the correct winding direction. Also check the line gauge slot or eyelets to understand how the line threads through.
Loading Line on a Manual-Feed Spool
Manual-feed spools require careful winding to ensure the line feeds smoothly and doesn’t tangle.
Determine the Correct Line Size
Trimmer line comes in several standard gauges. The most common residential sizes are:
- 0.065 inches: Lightweight, for light grass and weeds
- 0.080 inches: Mid-weight, general-purpose use (most common)
- 0.095 inches: Heavy-duty, for thicker weeds and tougher vegetation
Check your trimmer’s manual or the spool cover to identify the correct gauge for your model. Using the wrong size can cause feeding problems.
Cut and Prepare the Line
Cut a length of trimmer line from the spool. For most residential trimmers, prepare 15-20 feet of line, though your manual may specify a different length. Ensure the ends are cleanly cut at right angles.
Thread the Line
Locate the eyelets or line guide on the spool. These are small holes or slots where the line feeds through. Insert one end of the trimmer line through the first eyelet, following the path marked on the spool. Thread the line through all designated eyelets to ensure it’s properly seated.
Wind the Line Around the Spool
Look for directional arrows on the spool indicating the correct winding direction. Typically, you’ll wind clockwise or counterclockwise—follow the marked direction exactly. Wind the line tightly and evenly around the spool:
- Keep tension on the line as you wind to prevent loose coils
- Ensure each wrap lies flat against the previous one without overlapping
- Wind the line until you reach the notches or stop points on the spool rim—do not overfill
Secure the Line
Once wound, the line should have two ends extending from the spool, one on each side. These extended ends (typically 4-6 inches) feed through the eyelets in the trimmer head and trim your grass. Some spools have small notches or slots on the rim where you secure the line ends to prevent unwinding. Insert the line ends into these slots if present.
Loading Line on an Automatic or Bump-Feed Spool
Automatic and bump-feed spools simplify the loading process significantly.
How Automatic Feed Works
Automatic feed spools use an internal spring and weight mechanism. As the line wears and gets shorter, the weighted mechanism triggers the spool to advance automatically, feeding new line. This happens when the line length drops below a certain point—usually when you’re actively trimming.
Loading Process for Automatic Spools
- Remove the spool cover and locate the line insertion slot—a small opening on the spool labeled with an arrow or marking
- Cut a length of trimmer line (typically 15-20 feet) and insert one end into the slot until it seats firmly
- Hold the spool steady and use your other hand to wind the exposed line around the spool by hand, following the directional arrows on the spool
- Wind until you’ve used most of the line, leaving about 4-6 inches extending outward
- Ensure the line is wound evenly and doesn’t overlap itself
- The line should be taut but not stretched—avoid over-tightening, which can strain the mechanism
Bump-Feed Spool Loading
Bump-feed spools work similarly but may have a slightly different insertion method:
- Some bump-feed spools allow you to insert the line into a slot and the spool winds automatically using a rewind mechanism
- Rotate the rewind knob or button (usually on top of the spool cover) to advance the line onto the spool
- Stop when you have approximately 4-6 inches of line extending from each side of the spool head
- Do not over-wind, as this reduces the spool’s feeding efficiency
Reassembling and Testing
Proper reassembly ensures the line feeds correctly and the trimmer operates safely.
Reinstall the Spool Cover
- Align the spool cover with the trimmer head, ensuring the line ends pass through the feed eyelets in the trimmer head
- For twist-lock covers: rotate clockwise until tight. You should feel resistance but do not over-tighten
- For release-button covers: press inward and push the cover onto the trimmer head until you hear or feel it click into place
- For screw-on covers: hand-tighten the screw or bolt, then use a tool to snug it firmly (do not over-tighten, which can crack plastic)
Check Line Extension
Inspect the trimmer head to confirm the line extends properly from both sides. Ideally, the line should extend 2-3 inches beyond the spool housing. If the line is too short, the trimmer won’t cut effectively; if too long, it will drag and wear prematurely.
Reconnect Power
Plug in electric trimmers or reinsert the battery into cordless models. Reconnect the spark plug wire on gas-powered trimmers.
Test the Trimmer
Before using the trimmer on your lawn, run a brief test:
- Start the trimmer (follow your manual’s startup procedure)
- Run it at a low speed for 10-15 seconds in an open area
- Listen for unusual noises or vibrations that might indicate improper loading
- Check that the line is feeding smoothly and extending evenly from both sides
- If the line doesn’t feed or retracts, stop immediately and reload
Troubleshooting Common Loading Issues
Line Won’t Feed or Advances Slowly
Possible causes: The line may be wound too tightly, the spool may be damaged, or debris may be blocking the feed mechanism.
Solution: Remove the spool cover and inspect the spool for cracks or warping. If damaged, replace it. If undamaged, slightly loosen the wound line (don’t completely unwind) to reduce tension. Clean the feed eyelets with a small brush to remove grass clippings or dirt.
Line Tangles or Won’t Unwind
Possible causes: The line was wound in the wrong direction, wound too loosely, or overlapped itself.
Solution: Completely unwind the line and rewind it carefully, following the directional arrows on the spool precisely. Ensure each wrap lies flat and tight against the previous one without gaps or overlaps. If using an automatic spool, ensure you’re winding in the correct direction for that specific model.
Spool Won’t Turn or Is Stuck
Possible causes: Debris inside the trimmer head, a bent spool arbor, or the spool cover installed too tightly.
Solution: Remove the spool cover and inspect the arbor (the rod the spool rotates on) for debris or damage. Clean gently with a brush. Ensure the cover isn’t over-tightened by loosening it slightly. If the arbor is bent, the spool assembly may need replacement.
Line Breaks Frequently or Wears Too Fast
Possible causes: Line gauge too light for the application, debris striking the line, or the trimmer head housing has sharp edges.
Solution: Check that you’re using the correct line gauge for your trimmer and vegetation type. Heavier gauge (0.095″) works better for thick weeds. Inspect the trimmer head housing for sharp edges or cracks that could catch the line; smooth or replace as needed. Clear your cutting area of rocks and debris that can damage the line.
Frequently Asked Questions
How often should I load or replace trimmer line?
The frequency depends on how often you trim and the thickness of vegetation. For regular weekly use on typical lawn grass, you may need to reload every 4-8 weeks. Heavy use or thick weeds can require reloading every 2-3 weeks. Automatic feed spools require less frequent reloading because they advance line as it wears, but you’ll still need to load a fresh spool periodically.
Can I use any brand of trimmer line on my trimmer?
Yes, as long as the line gauge matches your trimmer’s specifications. Check your manual or the spool cover for the correct gauge (0.065″, 0.080″, or 0.095″). Different brands may vary slightly in quality and durability, but standard sizing is universal across most residential trimmers. Avoid using damaged or old line, which can break easily.
What’s the difference between 0.080″ and 0.095″ trimmer line?
The numbers represent the line diameter in inches. Thicker line (0.095″) is more durable and handles heavy vegetation better, but it requires more power from the trimmer motor and wears the spool faster. Thinner line (0.065″) is lighter and uses less power but breaks more easily on thick weeds. The 0.080″ middle ground works well for most residential lawns with typical grass and light weeds.
Why does my trimmer line keep retracting into the spool after I load it?
This typically happens with automatic feed spools. The internal spring mechanism may be too tight or the line may not be seated properly in the insertion slot. Try loosening the wound line slightly (reduce tension without unwinding completely) or ensure the line is fully inserted into the slot with a firm click. If the problem persists, the automatic feed mechanism may need cleaning or adjustment per your manual’s instructions.
