To measure a lawn mower belt, first remove the old belt and lay it flat on a clean surface. Use a flexible cloth tape measure to measure the outside circumference of the belt (not the inside), keeping the tape snug but not stretched. If the old belt is missing or broken, wrap a piece of string around the pulley path exactly as the belt would route, mark the overlap, then lay the string flat and measure its length. Convert the measurement to inches or decimal fractions, as most manufacturers size belts by outside circumference in inches. Note that old belts may be stretched, so if the belt is worn, compare the measurement to the manufacturer’s part number or consult the owner’s manual for the exact size.
Why Accurate Belt Measurement Matters
Getting the right size for your lawn mower belt is not just a matter of convenience; it directly affects how well your mower performs and how long its components last. A belt that is too long will slip on the pulleys, reducing the power transferred from the engine to the blades or the transmission. This slippage can cause the blades to spin unevenly, resulting in a poor, uneven cut. It also generates excess heat and friction, which can glaze the belt surface and cause it to fail prematurely.
On the other hand, a belt that is too short is often worse. Installing an undersized belt requires significant force to stretch it over the pulleys, which can damage the belt itself, strain the pulley bearings, and put unnecessary stress on the mower deck or drive system. In some cases, a too-short belt may not even fit, or it may cause the pulleys to bind, leading to a seized spindle or a damaged transmission. Beyond performance, an incorrect belt size is a safety concern. A slipping or failing belt can snap while the mower is running, potentially causing debris to fly or leaving the blades engaged unexpectedly.
Accurate measurement also saves you time and money. Returning a wrong-sized belt to the store or waiting for a replacement to ship is frustrating. By taking a few careful measurements before you order, you ensure a correct fit the first time, keeping your mower running safely and efficiently. Whether you are replacing a worn deck drive belt or a transmission drive belt, the fundamental goal is the same: match the new belt’s dimensions to the routing and pulley system of your specific machine.
Tools You Need to Measure a Lawn Mower Belt
Measuring a lawn mower belt does not require a specialized toolkit. In most cases, you can complete the job with items you likely already have around the house. The most important tool is a flexible cloth tape measure, the kind used for sewing or tailoring. Unlike a rigid metal tape measure, a cloth tape can easily conform to the curved shape of a belt, allowing you to get an accurate reading of its circumference without kinking or bending the belt itself.
If you do not have a cloth tape measure, a piece of non-stretchy string or twine is an excellent alternative. The string method is particularly useful when the old belt is missing or broken into pieces, as it allows you to trace the actual pulley path. A ruler or a metal tape measure is also useful for measuring the length of the string once you have marked it. For measuring the width of the belt, a standard ruler or a pair of calipers can be helpful, though this is less critical than the length for most replacements.
You should avoid using a metal tape measure directly on the belt for the circumference measurement. A metal tape is rigid and will not bend easily around the belt’s curve, leading to an inaccurate reading. Similarly, a regular ruler is too short to measure the full circumference in one go and would require multiple measurements that are prone to error. Finally, it is wise to have a piece of chalk or a marker on hand to mark the string at the overlap point. With these simple tools, you can accurately determine the size of almost any lawn mower belt.
Method 1: Measuring the Old Belt (Laid Flat)

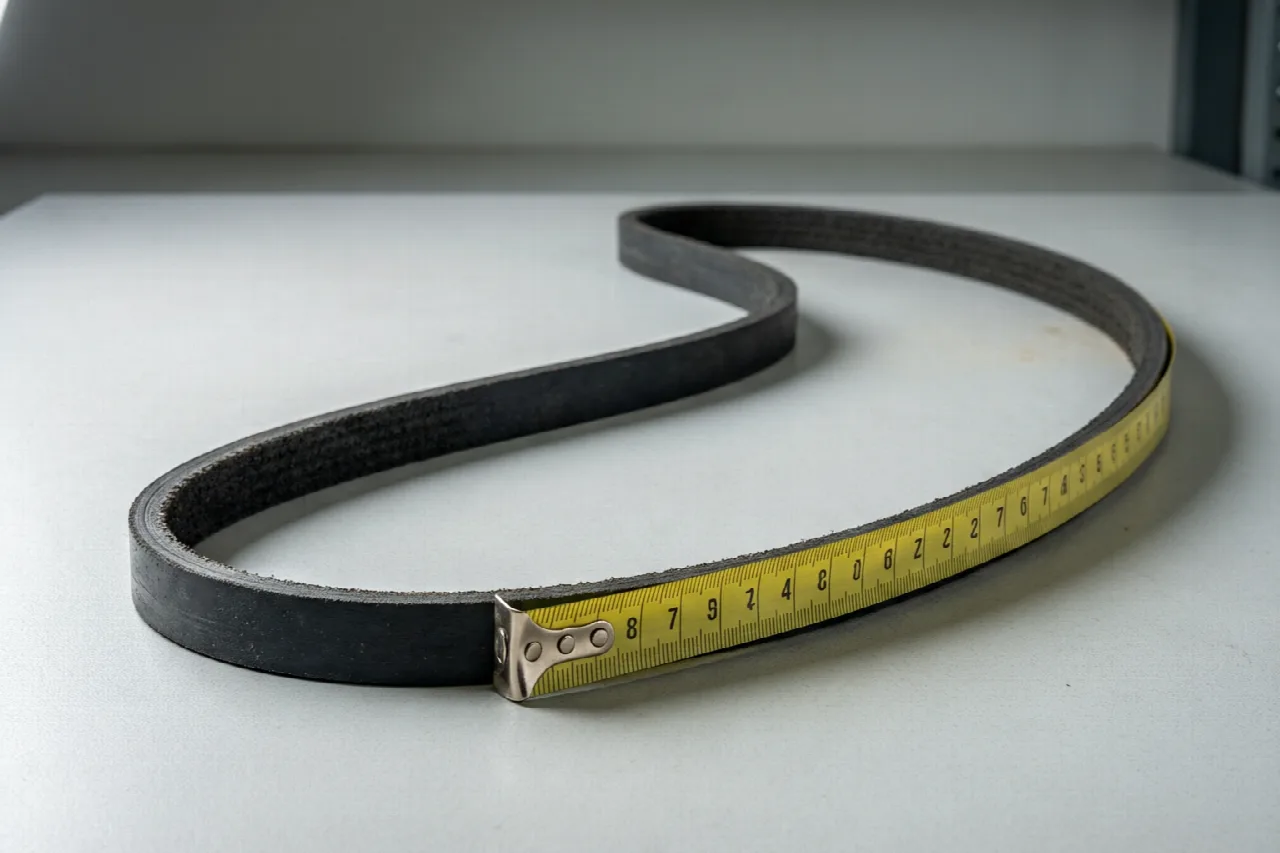

If your old belt is still intact, measuring it directly is the simplest and most reliable method. The first step is to remove the belt from the mower. Consult your owner’s manual for the correct procedure, as this often involves releasing tension from an idler pulley or removing a belt guard. Once removed, lay the belt flat on a clean, level surface such as a workbench or the garage floor. Ensure the belt is not twisted or folded over itself; it should lie in a natural, relaxed loop.
For a V-belt, which is the most common type used in lawn mowers, you need to measure the outside circumference. This is the measurement around the outer edge of the belt, not the inner edge that sits in the pulley groove. To do this, take your cloth tape measure and place the zero mark at any point on the outside of the belt. Run the tape along the outer edge, following the belt’s curve, until you return to the starting point. Keep the tape snug against the belt but do not stretch it. Read the measurement where the tape meets the zero mark. This number is the outside circumference in inches.
It is critical to measure the outside, not the inside, because manufacturers typically size V-belts by their outside circumference. Measuring the inside will give you a smaller number, which could lead you to order a belt that is too short. If your belt is old and shows signs of wear, such as cracks, glazing, or a shiny surface, it may have stretched over time. A stretched belt will give a slightly larger measurement than a new one. To account for this, compare your measurement to the part number printed on the belt itself, if it is still legible, or cross-reference it with the mower’s model number in the owner’s manual. If the measurement seems unusually long, it is safer to trust the part number or manual over the physical measurement of a worn belt.
Method 2: Using String to Measure the Pulley Path
When the old belt is missing, broken beyond repair, or too stretched to be reliable, the string method is the best way to determine the correct length. This technique involves tracing the exact path the belt takes around the pulleys, giving you a measurement that accounts for the specific routing of your mower’s deck or drive system. Start by ensuring the mower is turned off, the spark plug is disconnected, and the engine is cool. You may need to remove any belt guards or covers to access the pulleys.
Take a long piece of non-stretchy string and route it around the pulleys exactly as the belt would sit. This means the string should be placed in the grooves of the pulleys, following the same path the belt takes. For a deck drive belt, this typically involves routing the string around the engine pulley, the two spindle pulleys, and any idler pulleys. For a transmission drive belt, the path will be different, so refer to a diagram in your owner’s manual if you are unsure of the routing. It is crucial to get the routing correct, as an incorrect path will result in a wrong measurement.
Once the string is routed correctly, pull it tight enough to mimic the tension of a properly installed belt, but do not stretch it. Mark the string with a piece of chalk or a marker at the point where it overlaps itself. Carefully remove the string from the pulleys, keeping the marked point intact. Lay the string flat on a table or the floor and measure the distance from the end of the string to the mark using a ruler or metal tape measure. This length is the outside circumference of the belt you need. If the routing is complex with multiple pulleys, take your time and double-check that the string follows every pulley correctly before marking it. This method is highly accurate and is the standard approach used by many mechanics when the original belt is unavailable.
Understanding Belt Sizing and Measurement Units
Lawn mower belts are almost universally sized in inches, though some international or specialty belts may use millimeters. The vast majority of residential and commercial mowers sold in North America use fractional-inch sizing. When you measure the outside circumference of a belt, you will typically get a measurement like 42.5 inches or 84.25 inches. These numbers are then translated into the standard sizing format used by manufacturers, such as a 1/2-inch by 84-inch belt, where the first number is the width and the second is the length.
The fractional-inch sizing refers to the width of the belt, not the length. For example, a common lawn mower belt might be described as a 1/2-inch by 92-inch belt. The 1/2-inch is the width of the belt’s top surface, and the 92-inch is the outside circumference. Some belts are also described using a letter-and-number code, such as a 5L belt, where the letter indicates the cross-section profile and the number indicates the length in inches. Understanding this format is important because it helps you decode the part numbers and ensure you are ordering the correct replacement.
To convert your measurement to the standard format, simply round your measured circumference to the nearest whole or half inch, as most belts are manufactured in these increments. For instance, if you measure 83.7 inches, you would likely order an 84-inch belt. If you measure the width of the belt with a ruler, you can match that to the fractional-inch designation. Most lawn mower belts are either 1/2-inch or 5/8-inch wide, though other sizes exist. By combining the width and the outside circumference, you can confidently order a belt that matches the manufacturer’s specifications.
Common Mistakes to Avoid When Measuring
Several common errors can lead to ordering the wrong belt, wasting time and money. The most frequent mistake is measuring the inside circumference instead of the outside. For V-belts, the inside edge is narrower and shorter than the outside edge. If you measure the inside, you will get a length that is too short, and the new belt will not fit properly around the pulleys. Always measure the outer edge of the belt, even if it means carefully flipping the belt over to access it.
Another common mistake is stretching the tape measure or the string too tightly. While you want the tape or string to be snug, applying excessive tension will artificially lengthen the measurement. This is especially problematic with a cloth tape measure, which can stretch slightly under pressure. The goal is to mimic the natural tension of a belt installed on the mower, not to pull it as tight as possible. Similarly, when using the string method, be careful not to let the string sag or droop between pulleys, as this will give you a measurement that is too long.
Finally, a significant error is attempting to measure a belt that is still installed on the mower. A belt under tension on the pulleys will have a different effective length than when it is laid flat and relaxed. Always remove the belt before measuring it. Additionally, do not rely on a single measurement. Take the measurement two or three times to confirm you are getting a consistent result. If you get different numbers, re-check your technique and the placement of the tape or string. Taking a few extra minutes to verify your measurement will save you from the hassle of a return or a second trip to the store.
When to Consult the Owner’s Manual or Manufacturer
While measuring the belt is a reliable method, there are times when consulting the owner’s manual or the manufacturer is the safer and more accurate approach. The owner’s manual for your specific mower model will list the correct belt part number and often the dimensions. This is especially valuable if your old belt is worn and stretched, as the manual will give you the factory specification for a new, un-stretched belt. Look in the parts list or the maintenance section of the manual for the belt part number and its size.
If you do not have the manual, you can use the mower’s model number to look up the correct belt online. Most manufacturers have parts diagrams available on their websites, where you can enter your model number and see a detailed breakdown of all the parts, including the correct belt. This is often the most reliable method, as it eliminates any guesswork from manual measurement. The part number is a unique identifier that corresponds to a specific belt size and type, and ordering by part number ensures you get the exact belt designed for your machine.
In general, it is safer to order a belt by part number than by measurement alone. This is because there can be slight variations in belt manufacturing, and the part number guarantees a match to the manufacturer’s design. If your measurement differs from the part number specification, trust the part number. This is particularly important for complex systems with multiple pulleys, where a small error in measurement can lead to a belt that is significantly off. When in doubt, contact the manufacturer’s customer service or a local dealer with your mower’s model number. They can confirm the correct belt size and help you avoid the frustration of an incorrect purchase.
