How Do You Put On Weed Eater Wire? A Step-by-Step Installation Guide

How to Put On Weed Eater Wire: Direct Answer

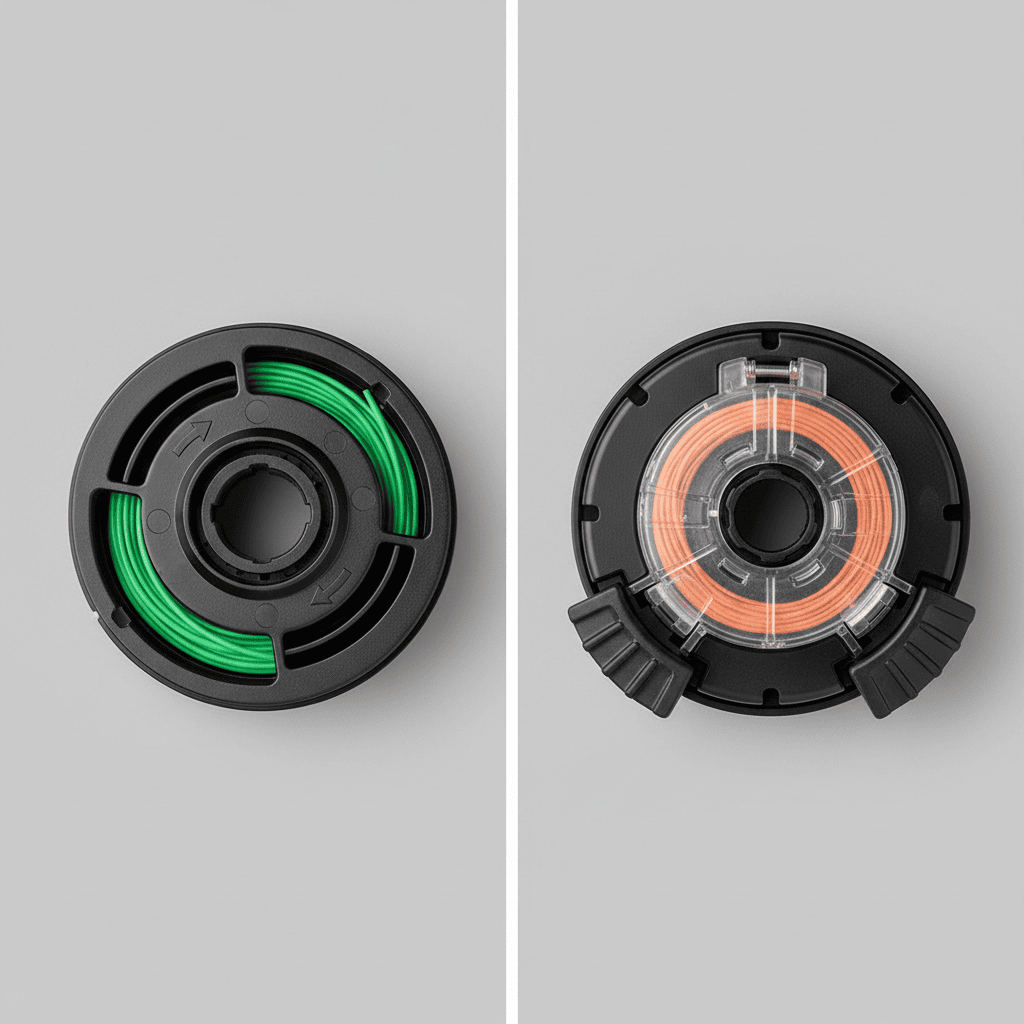

Understanding Your Trimmer’s Wire System

Before you attempt to install trimmer line, you need to identify which type of wire-loading system your weed eater uses. This determines your installation approach and the tools or materials you’ll need.

Manual-Wind Spools

Most residential and many commercial weed eaters use manual-wind spools. These feature a plastic or metal spool with grooves or channels where you wind the trimmer line by hand. The spool typically has:

• A center post where the spool attaches to the trimmer head
• A guide eyelet or hole where you thread the wire before winding
• Directional arrows printed on the spool face showing which way to wind
• A retaining slot or notch to hold the free end of wire in place

Manual-wind spools give you control over wire tension and are easy to replace when wire breaks or runs out during use.

Automatic-Feed Cartridges

Higher-end or commercial-grade trimmers often feature automatic-feed systems with pre-wound cartridges. These cartridges come loaded with trimmer line and lock directly into the trimmer head. When you bump the trimmer head on the ground, an automatic mechanism feeds out new wire. You simply replace the entire cartridge rather than rewinding wire manually.

Identifying Your Trimmer Type

Check your trimmer’s manual or examine the trimmer head closely. If you see a removable spool with grooved channels, you have a manual-wind system. If the trimmer head contains a sealed cartridge or cassette that twists out as one unit, you have an automatic-feed system.

Measuring and Preparing Your Trimmer Wire

Using the correct wire length and diameter prevents installation problems and ensures proper trimmer performance.

Determining Wire Length

Wire length depends on your spool size and model specifications. Most residential weed eaters require:

• Small spools: 20–25 feet of trimmer line
• Medium spools: 25–30 feet of trimmer line
• Large or commercial spools: 30–50 feet of trimmer line

Check your trimmer’s user manual for the exact specification. A simple rule of thumb: if you wind the wire snugly and fill the spool grooves completely with two or three passes, you’ve used approximately the right length.

Selecting the Correct Wire Gauge

Trimmer line thickness, measured in inches, affects cutting power and durability. Common gauges include:

• .065 inch: Light-duty, residential use on thin grass and weeds
• .080 inch: Medium-duty, standard for most residential trimmers
• .095 inch and larger: Heavy-duty commercial use or thick brush

Using wire that’s too thin will break frequently. Wire that’s too thick may cause excessive load on your trimmer’s motor. Always match the gauge to your trimmer model’s specifications.

Choosing Pre-Wound vs. Manual Spooling

You have two options for obtaining loaded wire:

• Pre-wound cartridges: Come factory-loaded with the correct length and gauge, ready to install. Best for convenience and consistency.
• Bulk trimmer line: Sold in spools by the foot, allowing you to cut and measure manually. More economical for frequent users.

If you’re a first-time user, pre-wound cartridges reduce frustration. If you trim regularly and go through wire quickly, bulk line is more cost-effective.

Manual Winding: Threading and Securing Wire

If your weed eater uses a manual-wind spool, follow these detailed steps for proper installation.

Step 1: Remove the Spool

First, disconnect your trimmer from any power source (unplug electric models, remove the battery from cordless models, or ensure the engine is completely cool on gas models). Locate the spool assembly on the trimmer head, usually at the bottom. Most spools attach via:

• Retaining tabs: Press the tabs inward while pulling the spool downward
• A center screw or bolt: Use the appropriate wrench or screwdriver to unscrew
• A twist-lock collar: Rotate counterclockwise to release

Set the spool on a clean, flat surface. Inspect it for cracks or damage. If damaged, replace the spool before proceeding.

Step 2: Thread the Wire Through the Guide Eyelet

Locate the small hole or eyelet on the spool face—this is your guide point. Cut a piece of trimmer line to your measured length. Insert one end of the wire through the guide eyelet, leaving about 4–6 inches extending beyond the eyelet. This free section will eventually lock into the retaining slot.

Make sure the wire sits flush in the eyelet; any twisting or bunching here will cause problems during winding.

Step 3: Wind the Wire Around the Spool

Check the spool face for directional arrows indicating the correct winding direction. This is critical—winding in the wrong direction can cause the wire to unravel when you try to use it.

Hold the 4–6 inch free end firmly in one hand to maintain tension. With your other hand, rotate the spool in the direction indicated by the arrows. Wind the wire in neat, parallel passes across the spool’s grooves:

• Keep tension even to prevent loose or bunched coils
• Wind tightly but not so tight that you strain the spool or risk the wire snapping
• Maintain alignment so each pass sits snugly against the previous one
• Fill the spool grooves completely without overfilling or leaving gaps

As you wind, the free end you’re holding will naturally feed into the wound section. Stop winding when you have approximately 4–6 inches of free wire remaining.

Step 4: Secure the Wire in the Retaining Slot

Most spools have a small notch or slot cut into the outer edge or face. Once you’ve finished winding, press the free end of the wire firmly into this slot to lock it in place. The slot prevents the wound wire from unraveling when you reinstall the spool on the trimmer.

Double-check that the wire is securely seated in the slot and won’t slip out when you handle or shake the spool.

Step 5: Reinstall the Spool

Carefully align the spool’s center post with the shaft on the trimmer head. Push or screw the spool back into place, reversing the removal steps. Ensure it’s fully seated and locked before proceeding. If your trimmer has a guard or protective cover over the spool, reinstall that as well.

Installing Pre-Wound or Automatic-Feed Cartridges

If your weed eater uses automatic-feed cartridges, the installation is simpler and faster.

Removing the Old Cartridge

Disconnect your trimmer from power. Locate the cartridge in the trimmer head. Depending on your model, you may need to:

• Press release tabs on the sides of the cartridge while pulling it out
• Rotate the cartridge counterclockwise until it twists free
• Unscrew a retaining collar that holds the cartridge in place

Check your trimmer’s manual for the exact method. Once removed, dispose of the empty cartridge according to local waste guidelines.

Installing the New Cartridge

Remove the new pre-wound cartridge from its packaging. Align the cartridge’s center post with the shaft in the trimmer head. Slide or twist it into place until you hear or feel it click or lock. Some cartridges require a quarter-turn twist to fully secure; others slide straight in and catch automatically.

Verify that the cartridge is fully seated and won’t wobble or rotate freely. If it does, it’s not properly locked and may come loose during operation.

Checking Wire Availability

Most pre-wound cartridges come with two lengths of trimmer wire extending from the cartridge head, usually 4–6 inches each. These free ends are what actually cut the grass. When one side wears down, bump the trimmer head on the ground—the automatic feed mechanism will advance new wire from the wound spool inside the cartridge.

Reinstalling the Spool and Testing

After installing either a manually-wound spool or a pre-wound cartridge, complete these final steps before using your trimmer.

Final Assembly

Ensure the spool or cartridge is fully locked into the trimmer head. Reattach any guards, covers, or protective shields. For models with a fixed guard, make sure the wire positions align with the guard’s cutting window.

Safety Checks Before Operation

Before starting your trimmer, perform these checks:

• Visual inspection: Confirm the wire extends evenly from both sides of the trimmer head (if your model has two cutting lines)
• Wiggle test: Gently try to move the spool or cartridge—it should not move, twist, or rattle
• Wire alignment: Verify the wire passes cleanly through the guard and won’t hit the trimmer body
• Free-spin check: If your trimmer is cordless or electric, briefly activate it at low speed without touching the ground to confirm smooth operation

Initial Use

Start your trimmer at low speed in an open area away from obstacles, people, and pets. The wire should spin smoothly without vibration or wobbling. Let the trimmer run for 30 seconds, then increase speed gradually. If you notice any unusual vibration, sound, or if the wire breaks immediately, stop and inspect the spool or cartridge installation.

Troubleshooting Common Installation Problems

Wire Breaks Immediately After Installation

Possible causes: Wire wound too tightly, incorrect wire gauge, or wire not fully seated in the retaining slot.

Solution: Remove the spool and rewind more loosely. Ensure you’re using the correct gauge wire for your model. Check that the free end is properly locked in the retaining slot.

Wire Unravels During Operation

Possible causes: Winding direction was wrong, free end wasn’t secured in the retaining slot, or the spool wasn’t fully seated on the trimmer head.

Solution: Remove and reinstall the spool, carefully checking the directional arrows. Ensure the free end is firmly locked in the slot. Confirm the spool is fully seated and locked on the trimmer head.

Excessive Vibration or Wobbling

Possible causes: Uneven wire winding, spool not fully seated, or debris on the spool or trimmer head.

Solution: Remove the spool and rewind more carefully, maintaining even tension throughout. Check that the spool mounting point is clean. Reinstall and ensure it’s fully locked.

Wire Doesn’t Feed Automatically (Automatic-Feed Trimmers)

Possible causes: Cartridge not fully locked, automatic feed mechanism jammed, or insufficient wire loaded in the cartridge.

Solution: Remove the cartridge and reinstall, twisting or pushing firmly until fully seated. Check that the cartridge moves freely and isn’t bent or cracked. If the mechanism is jammed, contact the trimmer manufacturer for service.

Frequently Asked Questions

How often should I replace weed eater wire?

Wire breaks or wears down during normal use, typically after several hours of trimming. Many users replace wire weekly or as needed during the growing season. If you’re frequently breaking wire, you may be using wire that’s too thin for your trimming conditions, winding it too tightly, or hitting obstacles like rocks or hard ground.

Can I use any trimmer line, or does it need to match my specific trimmer model?

While most trimmer line comes in universal gauges (.065, .080, .095 inch), you must match the gauge to your trimmer’s specifications. Using the wrong gauge can strain your trimmer’s motor or cause premature breakage. Check your user manual for the correct gauge. The diameter where the wire feeds into the trimmer head usually provides a visual guide—the wire should fit snugly without forcing or excessive looseness.

What’s the difference between manual-wind and automatic-feed trimmers?

Manual-wind trimmers require you to rewind trimmer line onto a spool each time it runs out or breaks. Automatic-feed trimmers automatically advance new wire from a pre-loaded cartridge when you bump the trimmer head on the ground. Automatic-feed systems are faster and more convenient but generally cost more upfront. Manual-wind systems are more economical but require more user attention.

Is it normal for trimmer wire to smoke when I first use a newly installed spool?

A small amount of smoke or smell the first time you use a newly installed spool is common, especially if the wire is brand-new or if you wound it very tightly. This typically dissipates within a few minutes as the wire heats up and settles. However, if smoke persists or smells chemical, stop using the trimmer and inspect the installation. Excessive heat can indicate the wire is wound too tightly, wound in the wrong direction, or the spool isn’t seated properly.
