Direct Answer: How to Put Trimmer Line on a String Trimmer
To put trimmer line on a string trimmer, first identify your trimmer head type (bump-feed, manual-feed, or cartridge), then access the head by removing the cover or cartridge. Feed the new line through the designated slot or guide, wind it onto the spool if required, and secure it by closing the head or locking the line in the retention slot. Most modern trimmers follow this basic sequence, though the specific mechanics vary by design.

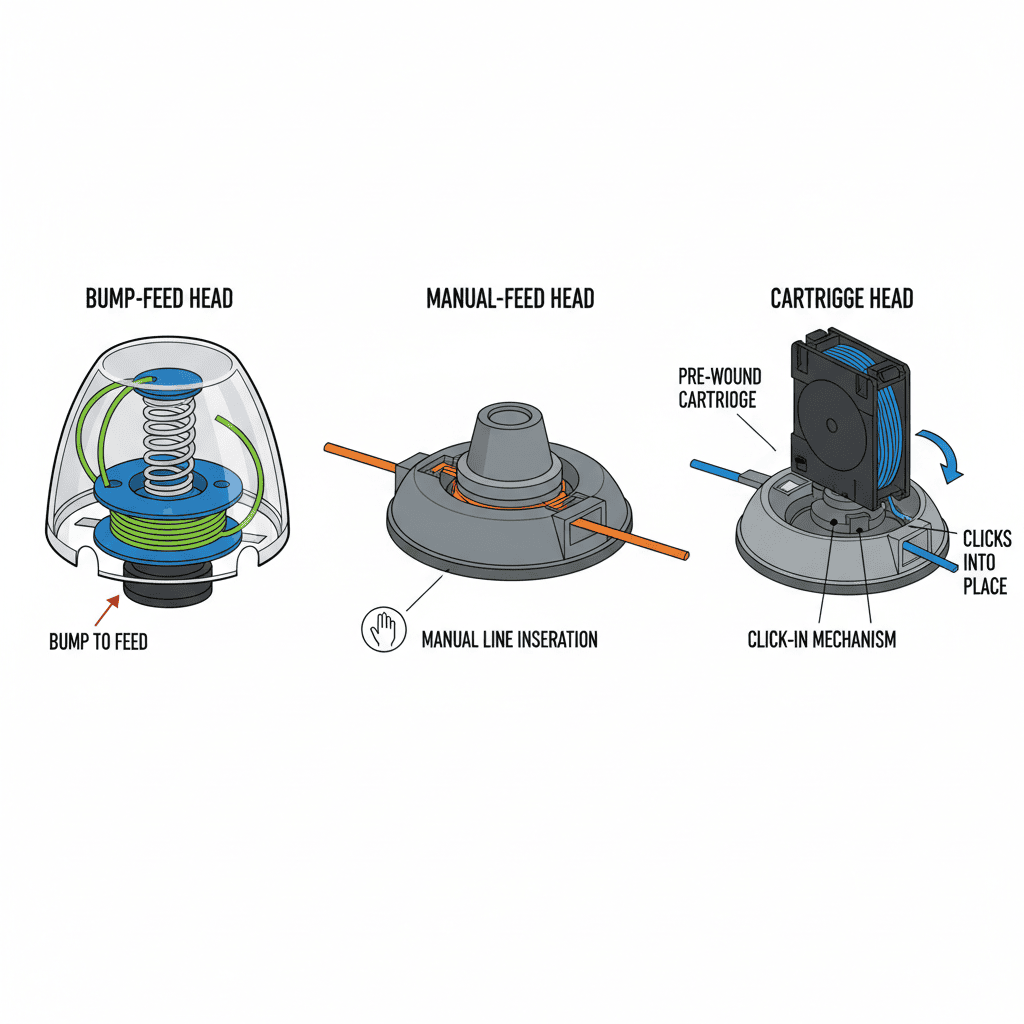

Understanding Your Trimmer Head Type
Before attempting to load trimmer line, you need to identify which system your trimmer uses. This determines the exact procedure you’ll follow.
Bump-Feed Trimmers
Bump-feed systems are the most common type found on consumer string trimmers. These trimmers have a spring-loaded spool inside the head. When you tap or “bump” the trimmer head on the ground while it’s running, the spring automatically advances fresh line. The line is wound onto a spool in figure-eight or spiral patterns, and the system feeds it out as needed.
Manual-Feed Trimmers
Manual-feed trimmers require you to manually advance the line rather than relying on automatic systems. These typically have a single or dual line slot, and you push fresh line through the slot manually. They’re common on professional-grade equipment and some budget models.
Cartridge Trimmers
Cartridge systems use pre-wound line cartridges that simply pop into the trimmer head. These are the easiest to use and require no winding—you simply remove the old cartridge and snap in a new one. They’re increasingly popular on higher-end trimmers.
What You Need Before Starting
Gather these items before you begin:
- Replacement trimmer line: Check your trimmer’s manual for the correct gauge (typically 0.065 to 0.130 inches) and type (nylon, spiral, or twisted). Most trimmers use standard nylon line.
- Trimmer manual: Keep the manufacturer’s instructions handy, as specific models may have unique steps.
- Safety precautions: Turn off the trimmer and unplug it (or remove the battery for cordless models) before handling the head.
- Wire cutters or scissors: You may need to cut the line to length.
- Optional: small screwdriver: Some trimmer heads require a screwdriver to open the cover.
How to Load Trimmer Line: Universal Steps
Follow these general steps that apply to most standard string trimmers:
- Prepare the trimmer: Ensure the trimmer is off and unplugged. Allow it to cool for a few minutes if you’ve just been using it.
- Access the head: Locate the trimmer head at the bottom of the shaft. Most bump-feed heads have a cover you can either unscrew or pry open with a flat-head screwdriver. Cartridge systems typically have a release button or tab on the side.
- Remove old line: Pull out or unwind any remaining line from the spool or head.
- Clean the head: Wipe away grass, dirt, and old line fragments with a dry cloth.
- Measure the new line: Cut a length of new line appropriate for your head type. Most bump-feed heads require 20-30 feet of line per spool.
- Insert the line: Feed the new line through the designated slot or guide on the head. The exact method depends on your trimmer type (see sections below).
- Close the head: Secure the cover, cartridge, or retention mechanism. Ensure everything is tight before operating the trimmer.
Step-by-Step Guide for Bump-Feed Trimmers
Bump-feed systems are most common, and here’s how to load them:
Opening the Head
Most bump-feed heads have a central cover that unscrews counterclockwise or has tabs you can pry gently to pop off. You’ll see a spool inside with two slots or guides where the line feeds out.
Winding the Line
For single-line spools: Tie a knot at one end of your line and insert it into the knot slot on the spool. Wind the line tightly and evenly around the spool in a clockwise direction (check your manual for the correct direction—some go counterclockwise). Wind until about 6-12 inches of line remains, then feed this end through the exit slot on the head.
For dual-line spools: The spool has two grooves or channels. Take two separate lengths of line and tie each into the respective knot slots. Wind both lines simultaneously in the same direction, keeping tension even. Wind until both lines have about 6-12 inches remaining, then feed each through its respective exit slot.
Securing the Line
Once wound, ensure the lines are properly seated in the exit slots so they don’t slip back into the spool. Replace the cover by pressing down firmly or screwing it clockwise until snug. The line is now ready to trim.
Testing
Before using the trimmer, hold it horizontally and gently tug on each line. It should hold firm without backing up into the head. If the line retracts, the spool may not be wound tightly enough.
Step-by-Step Guide for Manual-Feed Trimmers
Manual-feed systems are simpler to load but require regular attention during use:
Locating the Feed Slot
Manual-feed trimmers have a small slot or opening on the side of the head. This is where you feed new line.
Threading the Line
Cut a length of line (typically 12-24 inches per side, depending on the model). Insert one end of the line into the feed slot until it extends slightly out the opposite side. Some models have a small guide or channel—align the line with it.
Securing the Line
Most manual-feed systems have a small retention button, clip, or screw near the feed slot. Push the line firmly against this retention point, then secure it in place according to your trimmer’s design. Some models require you to wrap the line partially around a post or guide before locking it.
Replacing Line During Use
As manual-feed line breaks or wears down, you’ll need to manually push fresh line through the slot. Always turn off the trimmer first, feed the new line through, and ensure it’s secure before resuming work.
Step-by-Step Guide for Cartridge Trimmers
Cartridge systems are the most straightforward:
Removing the Old Cartridge
Locate the release button or tab on the side of the trimmer head (usually near the bottom). Press or pull it to eject the old cartridge. Some models require a quarter-turn counterclockwise.
Installing the New Cartridge
Insert the new pre-wound cartridge into the opening, aligning any guides or slots. Push firmly until it clicks into place or twist it clockwise until it seats. The line should protrude slightly from the cartridge—if not, check that it’s fully inserted.
Verifying Installation
Gently tug the line to ensure it doesn’t retract. The cartridge should be snug with no movement when you shake the head.
Troubleshooting Common Installation Problems
Line Won’t Feed or Advances Too Slowly
Possible causes: The line is wound too tightly, the spool is misaligned, or debris is blocking the feed slot. Solution: Reopen the head, unwind slightly, and ensure the spool sits flat and centered. Clean any grass or dirt from the feed slots.
Line Retracts Back Into the Head
Possible causes: The line isn’t seated properly in the exit slot, or the spool tension is too loose. Solution: Reopen the head and check that the line sits firmly in the exit slot. If it’s loose, rewind the spool with more tension.
Line Breaks Immediately After Installation
Possible causes: The line is caught or pinched by the head cover, or the gauge is too thin for your trimmer. Solution: Reopen the head and ensure the line exits cleanly without any twists or pinches. Verify you’re using the correct gauge for your model.
Head Cover Won’t Close Properly
Possible causes: Too much line is wound on the spool, or line is blocking the cover from seating. Solution: Unwind slightly to reduce bulk, and ensure all line is neatly arranged inside the head before closing the cover.
Bump-Feed System Isn’t Advancing Line
Possible causes: The spring mechanism is broken, or the line hasn’t been wound correctly. Solution: Rewind the line following the exact pattern shown in your manual. If the issue persists after rewinding, the spring may need replacement (consult the manufacturer or a repair technician).
Tips for Preventing Future Line Problems
- Use the correct gauge: Always match the line gauge to your trimmer model. Using line that’s too thin will break frequently; too thick can strain the motor.
- Store line properly: Keep unused line in a cool, dry place. Sunlight and heat can degrade nylon, making it brittle.
- Don’t wind too tightly: Excessive tension can warp the spool or strain the motor. Wind firmly but not to the point of strain.
- Inspect for debris regularly: After each use, check the head for grass clippings and debris that might interfere with line feeding.
- Replace proactively: When line starts breaking frequently, replace it entirely rather than trying to extend the current line’s life.
- Bump gently: If your trimmer has a bump-feed system, tap the head lightly on the ground. Hard impacts can misalign the spool or break the spring mechanism.
- Avoid wet grass: Thick, wet grass tangles more easily and increases line breakage. Trim when the grass is dry if possible.
Frequently Asked Questions
How Much Trimmer Line Do I Need?
Most bump-feed heads require 20-30 feet of line total (10-15 feet per spool for dual-line systems). Manual-feed trimmers typically need 12-24 inches per side. Cartridge systems come pre-loaded with a fixed amount. Check your trimmer’s manual for the exact specification, as head sizes vary.
Can I Use Any Type of Trimmer Line?
No. Different trimmers require specific line gauges and materials. Standard nylon line is most common, but some models use spiral, twisted, or reinforced line. Using the wrong type can damage the trimmer head or motor. Always verify the correct type in your manual before purchasing replacement line.
How Often Should I Replace Trimmer Line?
Frequency depends on usage. Light residential use may require replacement every 1-2 months, while heavy use might require monthly replacement. Replace line when it breaks frequently, wears unevenly, or no longer cuts effectively. Some users replace it seasonally as a maintenance practice.
Why Does My Trimmer Line Keep Breaking?
Common causes include: using incorrect gauge line, winding too tightly, hitting hard objects (rocks, concrete, mulch), storing line improperly, or old, brittle line. Check that you’re using the correct gauge, replace very old line, and be mindful of your surroundings while trimming. If breakage continues after correcting these factors, the trimmer head itself may have an issue.
