Refilling a weed wacker (string trimmer) means one of three tasks: adding fuel to a gas model, checking engine oil on a 4-stroke model, or reloading trimmer line in the cutting head. Start by identifying which one your tool needs. For fuel, use the gas-oil mix specified in the owner’s manual (2-stroke engines) or straight gasoline (4-stroke engines), fill a cool engine to the correct level without overfilling, wipe any spills, and tighten the fuel cap fully. For line, remove the spool, load the correct gauge line, wind it in the direction shown on the spool, and thread the ends through the eyelets. After refilling, prime the bulb if equipped, set the choke, and start the trimmer on the ground away from your body and bystanders.

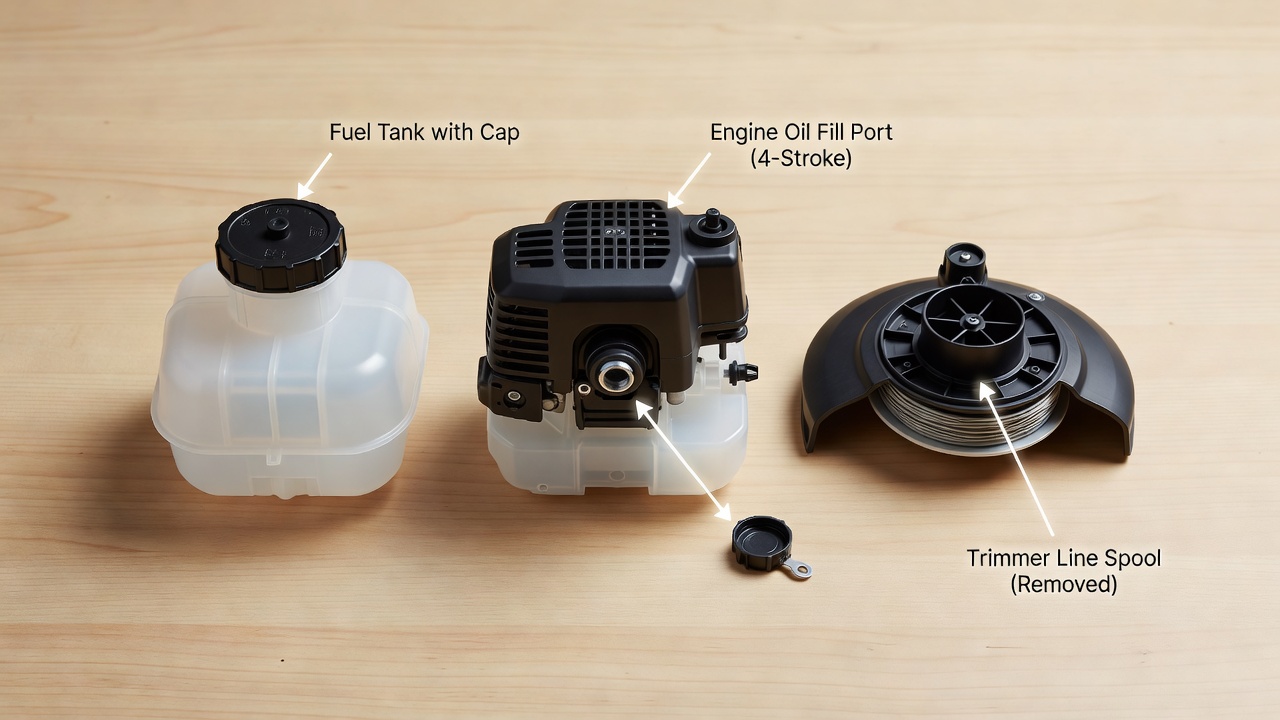

Check What Actually Needs Refilling
Before you grab a fuel can or a new spool of line, take a moment to diagnose what your trimmer actually needs. The term “refill” is broad, and performing the wrong procedure wastes time and can cause problems. A weed wacker typically has three consumable components: fuel, engine oil (on some models), and trimmer line.
Fuel tank: Most gas-powered string trimmers have a visible fuel tank, often with a translucent window or a cap located near the engine. If the tank is empty or very low, the trimmer will not start or will stall immediately. The fuel cap is usually clearly marked.
Engine oil: Only 4-stroke trimmer engines have a separate oil reservoir. If your trimmer is a 4-stroke model (which is less common for handheld trimmers), it will have a dedicated oil fill cap, often labeled “oil” or with an oil can symbol. Check the oil level with the dipstick if provided. 2-stroke engines do not have a separate oil fill because oil is mixed directly into the fuel.
Trimmer line spool: The cutting head at the bottom of the trimmer holds the spool of nylon line. If the line is worn down to short stubs, has broken off, or the spool is empty, you need to reload it. The spool housing is located under the cutting guard.
To identify your engine type, check the owner’s manual or look for labels on the engine housing. 2-stroke engines require a fuel-oil mixture, while 4-stroke engines use straight gasoline and have a separate oil fill. If you are unsure, consult the manual before proceeding.
Choose the Right Fuel for Your Trimmer
Using the correct fuel is critical for engine health and performance. The fuel requirements depend entirely on whether your trimmer has a 2-stroke or 4-stroke engine.
2-Stroke vs. 4-Stroke Engines
A 2-stroke engine fires on every revolution of the crankshaft and requires oil to be mixed with the gasoline for lubrication. This mixture is referred to as a “gas-oil mix” or “pre-mix.” The ratio of gas to oil (for example, 50:1 or 40:1) is specified by the manufacturer and must be followed precisely. Using straight gasoline in a 2-stroke engine will cause severe damage due to lack of lubrication.
A 4-stroke engine has a separate oil reservoir and runs on straight gasoline. It does not require oil to be mixed into the fuel. Adding oil to the fuel tank of a 4-stroke engine is incorrect and can cause poor performance and emissions issues.
Understanding the Gas-Oil Mix Ratio
The mix ratio indicates how many parts of gasoline are combined with one part of oil. For example, a 50:1 ratio means 50 parts gasoline to 1 part oil. This ratio is not universal; it varies by engine design and manufacturer. The correct ratio for your specific trimmer is always listed in the owner’s manual and is often printed on the fuel cap or near the fuel tank.
When mixing fuel yourself, use a clean, approved fuel container. Add the correct amount of 2-stroke oil first, then add the gasoline, and mix thoroughly. Alternatively, you can purchase pre-mixed fuel, which is gasoline already blended with oil at the correct ratio. Pre-mixed fuel is convenient and eliminates measuring errors, though it typically costs more per ounce than mixing your own.
Finding the Correct Fuel Specification
Always refer to the owner’s manual for the exact fuel type and mix ratio. If you do not have the manual, check the fuel cap or the area around the fuel tank for printed specifications. Many manufacturers also provide this information on their websites. Using the wrong fuel type or mix ratio can lead to engine failure, hard starting, or excessive smoke.
How to Refuel a Weed Wacker Safely
Refueling a gas-powered trimmer involves handling flammable liquid, so safety precautions are essential. Follow these steps to refuel correctly and minimize risk.
Prepare for Refueling
Engine must be cool: Never refuel a trimmer with a hot engine. Allow the engine to cool completely before opening the fuel cap. Fuel vapors near a hot engine or exhaust can ignite.
Work in a ventilated area: Refuel outdoors or in a well-ventilated space, away from open flames, sparks, or ignition sources.
Turn the trimmer off: Ensure the engine is completely stopped before refueling.
Mix the Fuel (If Required)
If your trimmer requires a gas-oil mix, prepare the fuel in an approved container before bringing it to the trimmer. Add the specified amount of 2-stroke oil to the container first, then add gasoline. Seal the container and shake or swirl to mix thoroughly. Never mix fuel directly in the trimmer’s tank.
Fill the Tank
Open the fuel cap carefully. Place a funnel in the tank opening to prevent spills. Slowly pour the fuel into the tank, stopping before it reaches the very top. Leave a small amount of space at the top of the tank to allow for fuel expansion due to temperature changes. Overfilling can cause fuel to leak out, creating a fire hazard and environmental contamination.
Clean Up Spills Immediately
If fuel spills on the trimmer or the ground, wipe it up immediately with an absorbent cloth or paper towel. Do not start the trimmer until any spilled fuel has completely evaporated or been cleaned up. Spilled fuel on a hot engine is a serious fire risk.
Secure the Fuel Cap
After filling, replace the fuel cap and tighten it securely. A loose cap can allow fuel to leak out during operation or allow debris to enter the tank.
Store Leftover Fuel Properly
Store any leftover mixed fuel in an approved, sealed container away from heat, direct sunlight, and ignition sources. Mixed fuel can degrade over time, so it is best to use it within a few months or add a fuel stabilizer if storing it longer. Dispose of old or contaminated fuel according to local regulations.
How to Refill Trimmer Line: Bump-Feed and Manual-Feed Spools
Reloading trimmer line is a common maintenance task. The procedure varies slightly depending on whether your trimmer has a bump-feed or manual-feed spool head.
Identify Your Spool Type
Bump-feed spool: This type allows you to release more line while the engine is running by tapping the bottom of the trimmer head on the ground. The line feeds out automatically from the spool.
Manual-feed spool: This type requires you to stop the engine and manually pull out more line from the spool when it becomes too short. Some manual-feed heads have a knob or dial to release line.
Choose the Correct Line Gauge
Trimmer line comes in various diameters (gauges), measured in inches or millimeters. Using the wrong gauge can cause the line to jam in the spool, feed improperly, or break too easily. The correct line gauge for your trimmer is printed on the spool housing, in the owner’s manual, or on the trimmer itself. Do not assume all trimmers use the same line thickness.
Remove the Spool
Turn off the engine and disconnect the spark plug wire for safety. Depending on the design, you may need to press tabs, unscrew a cap, or simply pull the spool housing off the trimmer head. Consult your manual for the specific removal method for your model.
Load the Line
Cut a length of new trimmer line. The maximum length that can be wound onto the spool is usually indicated on the spool or in the manual. Do not overfill the spool, as this can cause the line to bind.
Find the starting anchor point on the spool (often a small notch or hook). Secure one end of the line, then wind the line tightly and evenly in the direction indicated by the arrow on the spool. Winding in the wrong direction will prevent the line from feeding correctly.
Thread the Line Through the Eyelets
Once the line is wound, thread each end through the corresponding eyelet (opening) in the spool housing. Leave a few inches of line extending from each eyelet. Reassemble the spool onto the trimmer head, ensuring it clicks or locks into place securely.
Test the Line Feed
For bump-feed models, start the trimmer and tap the head on the ground to confirm the line feeds out properly. For manual-feed models, pull on the line to ensure it moves freely. If the line does not feed, recheck the winding direction and ensure the spool is seated correctly.
After Refilling: Prime, Choke, and Start Safely
Whether you have refueled or reloaded the line, you need to start the trimmer correctly. Following the proper starting sequence ensures the engine starts smoothly and operates safely.
Prime the Engine
Many gas trimmers have a primer bulb—a small, flexible dome that you press to draw fuel into the carburetor. If your trimmer has a primer bulb, press it several times until you see fuel flowing through the clear fuel line or until the bulb feels firm. The exact number of presses varies by model; consult your manual for guidance.
Set the Choke
The choke restricts air flow to the carburetor, creating a richer fuel mixture for cold starts. For a cold engine, set the choke to the “full” or “start” position. Once the engine fires or starts to run, move the choke to the “half” or “run” position. If the engine is warm, you may not need the choke at all or may use only the half position.
Start the Trimmer
Place the trimmer on the ground with the cutting head clear of your body, feet, and any bystanders. Hold the trimmer firmly with one hand on the handle. Pull the starter cord briskly with the other hand. If the engine does not start after a few pulls, wait a moment and try again. Avoid pulling the cord too slowly or too aggressively.
Warm Up the Engine
Once the engine starts, let it run for a minute or two to warm up. This allows the oil to circulate (in 2-stroke engines) and ensures smooth operation. If the engine stalls immediately after starting, check the choke setting, fuel level, and primer bulb.
Dealing with a Flooded Engine
If the engine has been over-primed or the choke was left on too long, it may flood with fuel. Symptoms include a strong gas smell and the engine refusing to start. To clear a flood, turn off the choke, hold the throttle open, and pull the starter cord several times. This helps clear excess fuel from the combustion chamber. If flooding persists, wait 10–15 minutes before trying again.
Common Refilling Mistakes to Avoid
Avoiding these common errors will save you time, prevent damage, and keep you safe.
- Wrong fuel mix: Using straight gasoline in a 2-stroke engine causes immediate and severe engine damage due to lack of lubrication. Always use the correct gas-oil mix as specified in the manual.
- Overfilling the fuel tank: Filling the tank to the brim leaves no room for fuel expansion, which can cause leaks. Fill to the recommended level, usually just below the top of the tank.
- Refueling a hot engine: Fuel vapors near a hot engine or exhaust can ignite. Always allow the engine to cool completely before refueling.
- Ignoring spills: Fuel spills on the trimmer or ground are a fire hazard. Clean up spills immediately and ensure the area is dry before starting the engine.
- Using the wrong line gauge: Trimmer line that is too thick may not fit in the spool or feed properly, while line that is too thin may break too easily or provide poor cutting performance. Always use the gauge specified for your model.
- Overfilling the spool: Winding too much line onto the spool can cause binding and prevent the line from feeding. Follow the maximum line length indicated on the spool or in the manual.
- Winding line in the wrong direction: The spool has an arrow indicating the correct winding direction. Winding backwards will prevent the line from feeding when you bump or pull it.
- Storing old mixed fuel: Fuel-oil mixtures degrade over time, especially if left in the trimmer tank. Use fresh fuel or add a stabilizer if storing fuel for more than a few weeks.
Troubleshooting: When the Trimmer Still Won’t Run
If your trimmer refuses to start or runs poorly after refilling, a few simple checks can often resolve the issue.
Engine Won’t Start
Check the fuel level and ensure you are using the correct fuel type. Verify that the primer bulb has been pressed and the choke is set correctly for a cold start. Ensure the spark plug wire is connected securely. If the fuel is old or contaminated, drain the tank and refill with fresh fuel.
Engine Starts Then Dies
This often indicates a fuel delivery issue. The choke may still be on too far, or there may be air in the fuel line. Try moving the choke to the run position. If the problem persists, the carburetor may need cleaning or adjustment, which is best left to a qualified technician.
Trimmer Head Not Feeding Line
If the line does not feed when you bump the head (bump-feed) or pull it (manual-feed), check that the spool is wound correctly and seated properly. Ensure the line is not tangled or bound. Verify that you are using the correct line gauge and that the spool is not overfilled.
When to Seek Professional Help
If basic troubleshooting does not resolve the issue, or if you suspect a problem with the carburetor, ignition system, or internal engine components, take the trimmer to a qualified repair technician. Attempting complex repairs without proper knowledge can cause further damage or create safety hazards.
