Quick Answer: How to Remove a Lawn Mower Spark Plug Without a Socket
Disconnect the ignition wire first. Then fit an adjustable wrench or box-end wrench onto the spark plug’s hex flats — most lawn mower plugs measure 5/8 inch (16 mm) or 13/16 inch (21 mm) across the hex. Turn counterclockwise with steady pressure until the plug breaks free, then spin it out by hand. A spark plug socket with a built-in rubber insert is the purpose-built tool for this job and should be used whenever one is available — improvised tools risk cracking the ceramic insulator or rounding the hex flats.
Why You Need the Right Tool — and What Can Go Wrong Without One

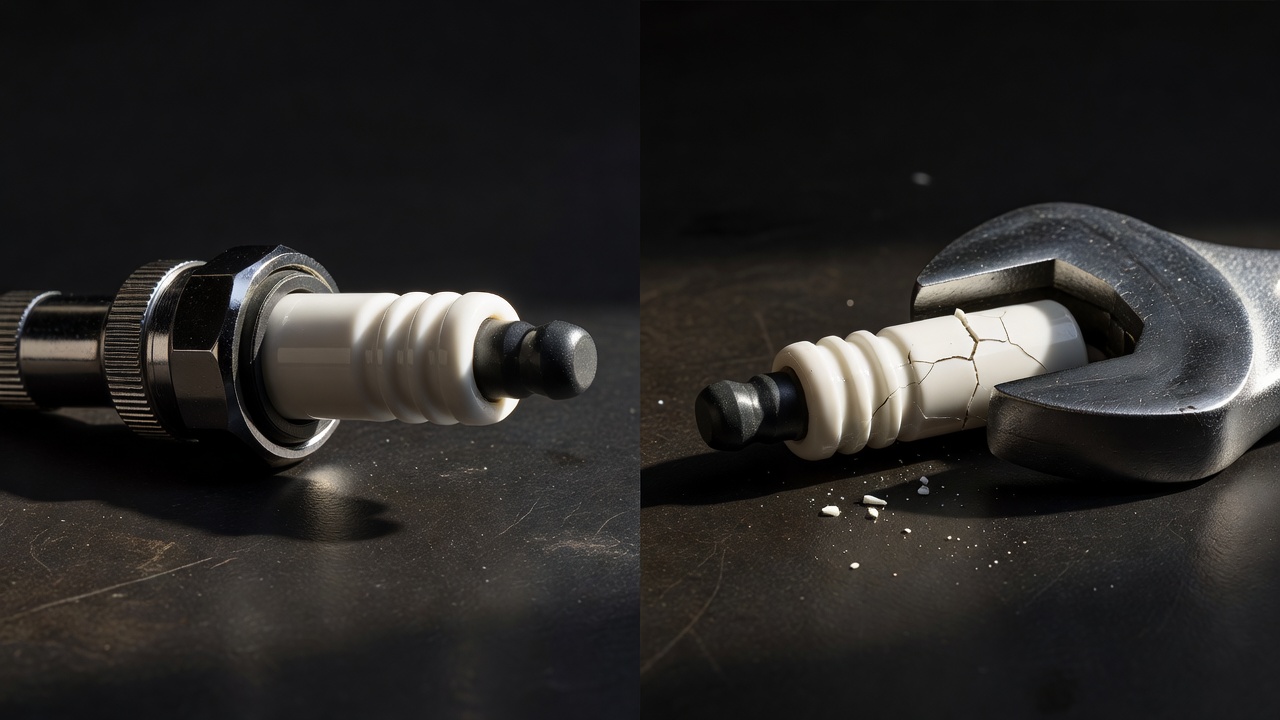

A dedicated spark plug socket differs from a standard socket in one critical way: it contains a rubber insert or neoprene sleeve that grips the ceramic insulator. This insert does two things — it holds the plug securely so it does not fall and crack, and it cushions the ceramic against the lateral stress a wrench applies when breaking the plug loose. Without that insert, direct metal-on-ceramic contact can crack the insulator, sending ceramic fragments into the combustion chamber and creating a far more expensive repair.
Before going further, distinguish two separate actions that readers sometimes conflate:
- Removing the plug wire (ignition wire): Pull the rubber boot straight off the plug terminal. This must happen first and is done entirely by hand.
- Removing the spark plug itself: Unthreading the plug body from the engine block with a wrench or socket. This is the step this article addresses.
Using improvised tools introduces two main failure modes:
- Cracked ceramic insulator — results from side-loading the plug body instead of applying pure rotational torque through a snug-fitting tool.
- Rounded hex flats — an adjustable wrench that shifts during the turn, or an open-end wrench contacting only two flats instead of six, can deform the hex and make the plug nearly impossible to remove without an extractor.
Both risks are manageable with the correct technique described below.
Tools That Can Substitute for a Spark Plug Socket
Most small-engine spark plugs on push mowers, riding mowers, and zero-turn mowers use one of two hex sizes: 5/8 inch (common on Briggs & Stratton, Honda GCV series, and many Kawasaki engines) or 13/16 inch (common on older Briggs & Stratton flatheads and some Kohler engines). Confirm your plug’s hex size before selecting a substitute tool.
| Tool | Best Access Scenario | Plug Hex Coverage | Insulator Damage Risk | Verdict |
|---|---|---|---|---|
| Adjustable wrench | Open, unobstructed plug location (most push mowers) | Adjusts to any hex size | Medium — jaws can shift and side-load the plug | Best improvised option if set snugly and checked before turning |
| Box-end wrench (combination wrench, box side) | Open plug location with enough vertical clearance for the wrench handle | Fixed — must match hex exactly (5/8 in or 13/16 in) | Low — six-point contact distributes force evenly | Best improvised option overall when you own the right size |
| Deep box-end wrench | Slightly recessed plugs; more reach than standard box-end | Fixed — must match hex exactly | Low | Excellent substitute; preferred over adjustable wrench |
| Open-end wrench | Open plug location only | Fixed — contacts only two hex flats | High — two-flat contact greatly increases rounding risk | Last resort; use only if no box-end is available |
| Needle-nose pliers | Emergency use on fully accessible plug only | Grips two flats at most | Very High — easily rounds the hex and can crack the insulator | Avoid; viable only to spin out a fully broken-loose plug by hand |
Riding mowers and zero-turn mowers often position the plug deeper in the engine bay, especially on Kohler Command and Kawasaki V-twin engines. In those cases, even a box-end wrench may lack the reach and swing clearance to engage the plug. Without a spark plug socket and extension bar, access can be impractical — in that scenario, acquiring a spark plug socket before attempting removal is the safer path.
How to Remove a Lawn Mower Spark Plug Without a Socket: Step-by-Step
Follow this sequence in order. Skipping steps — particularly the cooling and ignition wire steps — creates real injury risk.
- Let the engine cool completely. A hot engine block can cause burns, and a thermally expanded plug is harder to remove without stripping the threads. Wait at least 30 minutes after the last run, or work on a cold engine.
- Disconnect the ignition wire. Grip the rubber boot (not the wire itself) and pull it straight off the spark plug terminal. Tuck the wire away from the plug so it cannot accidentally contact the terminal during the job. This eliminates any possibility of accidental starting.
- Clear debris around the plug base. Use a small brush, compressed air, or a dry cloth to remove grass clippings, dirt, and oil residue from around the plug and the well it sits in. Debris that falls into the combustion chamber when the plug is removed causes engine damage.
- Apply penetrating oil if the plug appears seized. Spray a penetrating lubricant (such as PB Blaster or equivalent) around the base of the plug where it meets the engine block. Allow it to soak for a minimum of 10–15 minutes before attempting removal. On a plug that has not been serviced in several seasons, a longer soak of 30–60 minutes improves results. Wipe away any excess before turning — penetrating oil on a hot engine surface is a fire hazard, so confirm the engine is cold.
- Fit your chosen wrench squarely onto the hex flats. For an adjustable wrench, close the jaws completely onto the hex before applying force and verify there is no play — any gap between jaw and flat increases rounding risk. For a box-end wrench, seat it fully so all six points contact the hex. The wrench must be perpendicular to the plug axis; a canted wrench side-loads the ceramic insulator.
- Turn counterclockwise with firm, steady pressure. Apply gradual increasing force — do not jerk or strike the wrench. If the plug does not move within the first 15–20 degrees of rotation, stop. Forcing a seized plug with an improvised tool is where hex-rounding and thread damage occur. Re-apply penetrating oil and wait longer before retrying.
- Thread the plug out by hand once it breaks free. After the plug loosens, remove the wrench and spin the plug out by hand. This gives you tactile feedback — if you feel any gritty resistance or binding, stop and check that the plug is threading out straight, not cross-threading back in.
- Inspect the plug before setting it down. Check the ceramic insulator for cracks, the electrode for wear or fouling, and the threads on both the plug and the engine block for damage. Damaged threads in the engine block require a thread repair insert (Heli-Coil) — a job best left to a small-engine technician.
Edge Cases: Seized Plugs, Rounded Hex Flats, and Deep-Recessed Plugs
Seized Spark Plug
A plug that has not been replaced in three or more seasons, or one installed without anti-seize compound, can bond to the aluminum threads of the engine block through galvanic corrosion. Forcing it risks pulling the threads out of the head — a catastrophic and costly failure.
The correct approach for a genuinely seized plug:
- Apply penetrating oil and allow a full soak of at least one hour, or overnight if practical.
- Alternate between tightening (clockwise, 1/8 turn) and loosening (counterclockwise) to crack the corrosion bond incrementally rather than forcing it in one direction.
- On a cast-iron block (less common on modern small engines), careful application of heat from a propane torch around the plug boss — not the plug itself — expands the metal and can free the threads. Do not apply heat to aluminum heads; the alloy softens too quickly and thread damage is likely. Confirm no fuel or oil residue is present before using heat.
Rounded Hex Flats
If a previous removal attempt has rounded the plug’s hex, a standard wrench will not grip. Options in order of preference:
- Bolt extractor socket (e.g., Irwin or Craftsman bolt extractor set) — these reverse-spiral sockets bite into rounded fasteners and are the most reliable solution.
- Rubber grip strip or jar-lid gripper — placed between the wrench jaw and the rounded hex, it increases friction and can provide enough grip to break the plug free on a lightly rounded hex.
- Locking pliers (Vise-Grips) — set tight directly on the hex body as a last resort. Risk of further rounding is high, but if the plug is being discarded anyway, this is acceptable.
Note: How to remove a stripped spark plug without a socket is a distinct problem with its own solution path (extractor tools, thread repair) and should not be conflated with the standard no-socket removal covered on this page.
Deep-Recessed Plugs on Riding Mowers and Zero-Turn Mowers
Kohler Command Pro and Kawasaki FX/FR series V-twin engines used on riding and zero-turn mowers frequently recess the spark plug deep within a well in the valve cover or engine shroud. A standard wrench handle physically cannot swing through enough arc to turn the plug. On these engines, a spark plug socket paired with a 3-inch or 6-inch extension bar and a ratchet is effectively mandatory. Attempting removal with an improvised tool on a deep-recessed plug is likely to damage the plug, the wrench, or both — purchase or borrow the correct socket before proceeding.
After Removal: Inspection, Gap Check, and Reinstallation Torque
Reading Plug Condition
The removed plug’s appearance tells you about engine health:
- Light tan or gray deposit on the electrode: Normal combustion. The plug may be reusable if within service interval.
- Black, sooty deposit (carbon fouling): Rich fuel mixture, clogged air filter, or extended low-load running.
- Black, wet, oily deposit (oil fouling): Oil entering the combustion chamber — worn rings or valve seals.
- White or blistered insulator tip: Overheating — incorrect plug heat range, lean mixture, or cooling obstruction.
- Worn, eroded, or rounded center electrode: Replace the plug regardless of other observations.
Checking and Setting Spark Plug Gap
A new replacement plug may not be pre-gapped to your engine’s specification. Use a spark plug gap gauge (wire-type gauges are more accurate than blade-type for small electrodes) to measure the distance between the center and ground electrode. Typical small-engine gap is 0.030 inch (0.76 mm), but confirm this against your engine manufacturer’s specification — Briggs & Stratton, Honda, Kohler, and Kawasaki each publish this value in their engine owner’s manual and service documentation. Bend the ground electrode carefully to adjust; never lever against the center electrode or the ceramic insulator.
Reinstallation Torque
Thread the plug in by hand first. It should thread in smoothly with no resistance for the full engagement — resistance during hand-threading indicates cross-threading, which damages the engine block’s threads. Stop immediately if you feel it.
Once hand-tight, use a wrench to snug the plug. Typical torque for small four-cycle engines is in the range of 15–20 ft-lb (20–27 N·m) for cast-iron threaded holes and somewhat less for aluminum. However, this is not a universal figure — always confirm the torque specification in your specific engine’s service manual. Briggs & Stratton, Honda, Kohler, and Kawasaki all publish model-specific torque values.
As a practical field guide when no torque wrench is available: hand-tighten until snug, then turn an additional 1/4 to 1/2 turn for a new plug with a crush washer, or 1/16 to 1/8 turn for a used plug being reinstalled into a previously seated crush washer. This approximation is widely cited in small-engine service references as a workable field method, but a torque wrench and the correct specification remain the accurate standard.
Reinstallation is the step where acquiring a proper spark plug socket matters most. The rubber insert grips the plug during hand-threading, preventing cross-threading, and the socket’s geometry ensures you are applying torque squarely. An improvised wrench that worked for removal — where you were breaking corrosion — carries more risk during installation, where over-torquing or side-loading can crack the new plug’s insulator before the engine is even started.
Frequently Asked Questions
Can I use any wrench to remove a lawn mower spark plug?
A box-end wrench (the closed, ring-shaped end of a combination wrench) in the correct size — 5/8 inch or 13/16 inch for most small engines — is the safest improvised substitute. It contacts all six hex flats and distributes torque evenly. An adjustable wrench works but must be set snugly before turning; jaw slip can round the hex. Open-end wrenches and pliers contact too few flats and risk hex damage — use them only as a genuine last resort.
Which direction do I turn a spark plug to remove it?
Counterclockwise, when viewed from above (looking down at the top of the plug). The standard mnemonic applies: righty-tighty, lefty-loosey. Confirm the wrench is positioned so your pull or push moves the plug in the counterclockwise direction before applying force.
What do I do if the spark plug will not budge?
Stop applying force immediately — forcing a seized plug with an improvised tool is the fastest way to strip the threads in the engine block. Apply a penetrating oil such as PB Blaster around the plug base, wait at least 15–30 minutes (longer for neglected plugs), then try alternating between a slight clockwise nudge and a counterclockwise turn to break the corrosion bond incrementally. If the plug still does not move, take the mower to a small-engine repair shop — thread repair on an aluminum head is expensive and the risk of making it worse with improvised tools is real.
How do I know what spark plug size my lawn mower uses?
Check the engine owner’s manual — this is the definitive source. The manual specifies the plug part number, hex size, and gap. If the manual is unavailable, look up the engine model and serial number (stamped on the engine block or a label near the oil fill cap) on the manufacturer’s website. Briggs & Stratton, Honda, Kohler, and Kawasaki all maintain online parts and specification look-up tools. Most walk-behind push mower engines use a 5/8-inch hex plug; many older or larger displacement engines use 13/16 inch.
