How Do You Remove a Stihl Weed Eater Head? (Step-by-Step Guide by Head Type)

Direct Answer: How to Remove a Stihl Weed Eater Head

Stihl weed eater heads use a left-hand (reverse) thread — turn the center bolt CLOCKWISE to loosen it. Disconnect the spark plug (gas models) or remove the battery pack (FSA cordless models) before touching the head. Lock the drive shaft using the shaft lock button or a hex wrench inserted through the shaft hole, then rotate the head clockwise by hand or with a wrench until it threads off the drive shaft.

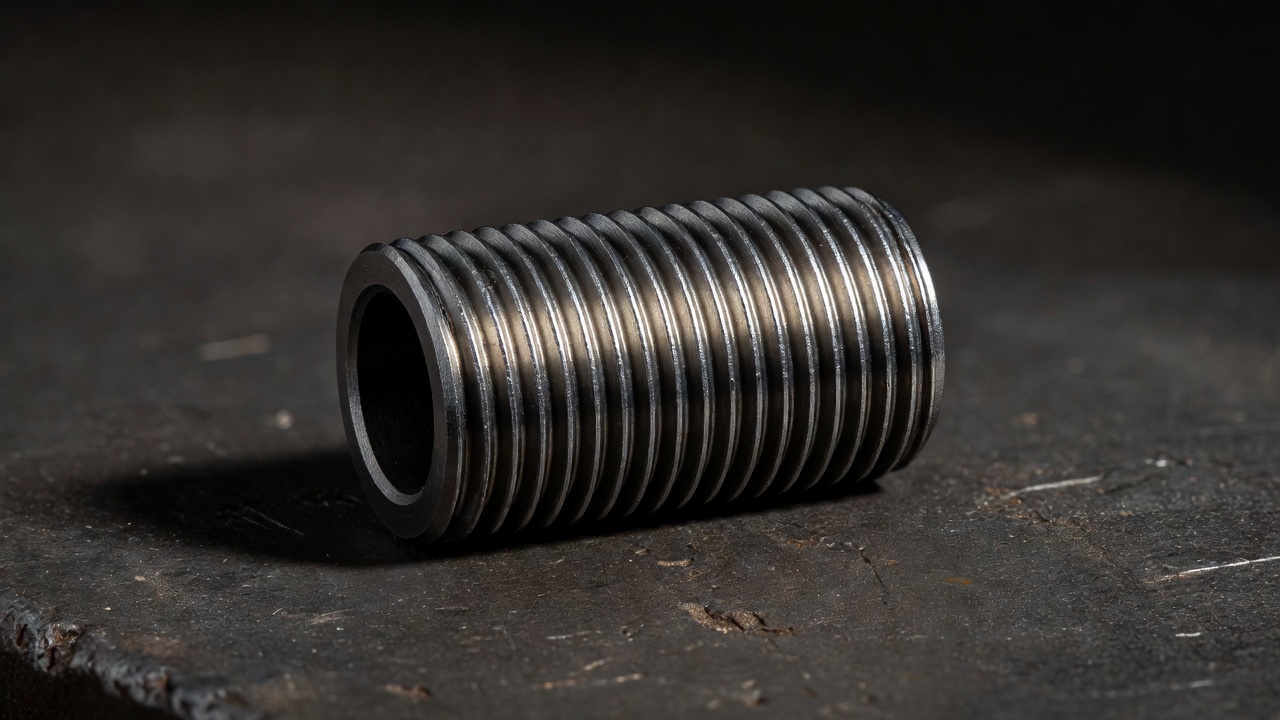

Why Stihl Trimmer Head Removal Confuses Most Users (Reverse-Thread Warning)

The single most common reason a Stihl trimmer head will not come off — or gets damaged during removal — is turning it the wrong direction. Stihl engineers the head with a left-hand thread (reverse thread) deliberately: the normal spinning direction of the drive shaft (counterclockwise when viewed from below) would unscrew a standard right-hand bolt over time. The reverse thread keeps the head tight during operation.

The rule: Turn clockwise to loosen. Turn counterclockwise to tighten. This is the opposite of every standard bolt you have ever used.

• Turning counterclockwise will tighten the head further, not loosen it.
• Forcing counterclockwise rotation with a wrench risks stripping the threads on the drive shaft adapter — a costly repair.
• The same clockwise-to-loosen rule applies to AutoCut, PolyCut, Fix-Cut, and most threaded Stihl heads across the FS and FSA series.

Safety Steps Before You Touch the Head

Complete all applicable steps for your power source before beginning removal.

Gas Models (FS 38, FS 56, FS 70, FS 90, FS 130, and similar)

1. Turn the engine off and let it cool for at least 5 minutes.
2. Disconnect the spark plug wire and tuck it away from the plug to prevent accidental starts.
3. Place the trimmer on a flat, stable surface with the head accessible.
4. Engage the throttle lockout or set the on/off switch to 0 (Stop).

Battery Models (FSA 57, FSA 67, FSA 90, FSA 130, and similar)

1. Power the unit off using the on/off switch.
2. Remove the battery pack from the housing before any mechanical work.
3. Wait 30 seconds after battery removal before contacting rotating parts.

All Models

• Wear cut-resistant gloves — trimmer line and blade edges remain sharp after use.
• Safety glasses protect against debris dislodged from the head during removal.

Tools You Need to Remove a Stihl Trimmer Head

• Hex wrench / Allen key: Most Stihl AutoCut heads require a 5 mm or 6 mm hex wrench inserted through the hole in the drive shaft to lock the spindle. Check your operator manual for the exact size — it varies by model.
• Combination wrench (optional): A 10 mm or 13 mm open-end wrench helps grip and turn a seized or very tight center bolt.
• Penetrating oil (optional): Needed only for seized or corroded heads; allow 10–15 minutes of soak time before attempting removal.
• Soft-jaw vise or rubber mat (optional): Stabilizes the trimmer shaft during removal without scratching it.

Stihl includes a hex wrench in the tool kit shipped with most mid-range and professional trimmers. Entry-level models (FS 38, FS 40) may ship without one — a standard metric hex set covers all sizes needed.

How to Identify Your Stihl Head Type Before Removal

Removal steps differ by head type. Identify your head before proceeding using the table below or by examining the head physically.

Visual identification:

• AutoCut head: Round plastic bump-feed head with a center bump knob. Has a visible center bolt or threaded cap on the underside.
• PolyCut head: Plastic hub with short polymer blades (not string). Flat profile, no bump knob.
• Fix-Cut head: Metal or reinforced plastic hub; uses pre-cut lengths of line inserted into eyelets, no spool.
• EasySpit head: Round bump-feed head with a tab or push-button on the side; no center bolt — the entire head unscrews by hand.

How to Remove a Stihl AutoCut Head (AutoCut C 5-2, AutoCut 25-2, AutoCut 46-2)

AutoCut heads are the most common type across the Stihl FS and FSA lineup. Two sub-variants exist based on how you lock the shaft.

Method A: Hex Wrench Shaft Lock (AutoCut C 5-2 — FS 38, FS 55, FS 56, FS 70, FSA 57)

1. Complete all safety steps above (spark plug disconnected or battery removed).
2. Flip the trimmer so the head faces up and you can access the underside of the drive shaft housing.
3. Locate the small hole through the gear housing or drive tube near the head — this is the shaft lock hole.
4. Insert the correct hex wrench (typically 5 mm) into the hole until it engages the flat on the drive shaft, preventing the shaft from rotating.
5. Grip the trimmer head with your other hand.
6. Turn the head clockwise (when viewed from below, looking up at the head). Apply firm, steady pressure — initial resistance is normal.
7. Once the thread releases, continue rotating clockwise by hand until the head is fully removed from the drive shaft.
8. Set the head and any internal spool/spring aside on a clean surface.

Method B: Shaft Lock Button (AutoCut 25-2, AutoCut 46-2 — FS 90, FS 100, FS 130, FSA 90)

1. Complete all safety steps.
2. Stand the trimmer upright or lay it flat with the head accessible.
3. Locate the shaft lock button on the gear housing — a spring-loaded button, usually orange or black, on the side of the gearbox.
4. Press and hold the shaft lock button firmly. Rotate the head slowly by hand until you feel the button engage (drop into the locking groove on the shaft). Keep it pressed throughout removal.
5. With the button engaged, turn the head clockwise to loosen the retaining bolt or threaded cap.
6. On the AutoCut 25-2: the entire head assembly threads off once the bolt is loose — continue clockwise rotation until the head is free.
7. On the AutoCut 46-2: a separate center bolt may need to be fully backed out with a wrench before lifting the head off the splined shaft. Note the order of any washers or spacers for reinstallation.

How to Remove a Stihl PolyCut or Fix-Cut Head

PolyCut and Fix-Cut heads are fitted to higher-power brush-cutting models (FS 100, FS 130, FS 131, FR 131) and have no bump-feed spool. Removal uses the shaft lock button, but the retention mechanism differs.

PolyCut Head Removal

1. Complete all safety steps.
2. Press and hold the shaft lock button on the gearbox.
3. Locate the center retaining nut on the top face of the PolyCut hub (not the underside).
4. Using an appropriately sized wrench (consult your operator manual — typically 13 mm or 19 mm), turn the retaining nut clockwise to loosen (reverse thread applies here too).
5. Remove the nut completely, then lift the PolyCut hub straight off the drive shaft splines. It is not threaded — it slides on and off once the nut is removed.
6. Note the position of any blade-retaining washers and replace them in the same order on reinstallation.

Fix-Cut Head Removal

1. Complete all safety steps. Wear cut-resistant gloves — Fix-Cut uses segments of harder line that can cut skin.
2. Press the shaft lock button.
3. Unscrew the center retaining bolt or cap clockwise using the appropriate hex wrench.
4. Lift the head assembly off the shaft once the bolt is fully removed.

How to Remove a Stihl EasySpit Head

The EasySpit head is found on select entry-level Stihl trimmers and requires a different approach because there is no center bolt.

1. Complete all safety steps.
2. Locate the lock tab or release button on the side of the EasySpit head housing.
3. Press and hold the lock tab to disengage the internal catch.
4. While holding the tab, rotate the entire head assembly clockwise by hand. The head will unscrew from the drive shaft thread without any tools.
5. If the head feels stuck, press the lock tab more firmly to ensure full disengagement before applying rotational force.

Do not look for a bolt on an EasySpit head — attempting to pry or force one will crack the housing. The hand-unscrew design is intentional for tool-free line replacement.

Head Is Stuck or Seized: Troubleshooting Tips

A Stihl head that will not turn despite correct clockwise direction is usually caused by one of three things: compacted grass and debris around the threads, corrosion from moisture, or a previously cross-threaded installation.

Step-by-Step for a Stuck Head

1. Confirm direction first. Before applying force, double-check you are turning clockwise (viewed from below the head). More than half of stuck-head calls at service centers are counterclockwise attempts.
2. Clear debris. Use a stiff brush or compressed air to remove all packed grass and dirt from the area where the head meets the gear housing. Debris physically blocks thread travel.
3. Apply penetrating oil. Spray penetrating oil (e.g., WD-40, PB Blaster) into the thread gap at the base of the head. Allow 10–15 minutes to penetrate before attempting removal. Repeat once if needed.
4. Apply heat cautiously (metal heads only). A heat gun applied briefly to the metal housing around the thread can expand the material and break corrosion bonds. Do not apply heat to plastic AutoCut housings.
5. Use a strap wrench. A rubber strap wrench grips the plastic head housing without cracking it and gives significantly more torque than hand grip alone. Turn clockwise.
6. Avoid impact wrenches on the head directly. An impact wrench on the center bolt can strip the reverse-threaded adapter on the drive shaft. If impact is necessary, use the lowest setting with the shaft fully locked.
7. Service center threshold: If the head has not moved after penetrating oil, heat, and a strap wrench, take it to a Stihl dealer — the drive shaft adapter thread may already be damaged and attempting further force risks writing off the gearbox.

What to Do After the Head Is Off: Inspection and Reinstallation

Inspect Before Installing Anything New

• Drive shaft adapter thread: Examine the external thread on the adapter stub for dings, flattened thread crests, or cross-thread damage. A damaged adapter must be replaced before fitting a new head — a new head on a damaged thread will seize immediately.
• Drive shaft end play: Grip the exposed shaft stub and check for side-to-side wobble. Excessive play indicates worn gearbox bearings — address this before the new head goes on or vibration will destroy the replacement head prematurely.
• Debris inside the gearbox recess: Blow out any grass or line debris from the gear housing opening while the head is off.

Reinstallation

1. Thread the new or reinstalled head onto the drive shaft adapter by hand, rotating counterclockwise (reverse of removal — standard tightening for a left-hand thread).
2. Hand-tighten until snug. Lock the shaft (button or hex wrench) and give the head a firm counterclockwise turn — approximately one quarter to one half additional turn past hand-tight.
3. Do not over-torque. Stihl does not publish a specific torque figure for head installation in consumer operator manuals; hand-tight plus a firm wrench turn is the standard guidance. Over-torquing plastic AutoCut heads cracks the internal thread insert.
4. The head will self-tighten further during normal operation due to the left-hand thread design — starting slightly less than maximum tight is correct.
5. Run the trimmer briefly at low throttle, stop, and verify the head has not loosened before returning to full operation.

Frequently Asked Questions

Which direction do you unscrew a Stihl weed eater head?

Turn the head or center bolt clockwise to loosen and remove it. Stihl uses a left-hand (reverse) thread on trimmer heads. Counterclockwise tightens the head further and risks stripping the drive shaft adapter.

Why won’t my Stihl trimmer head come off even when I turn it clockwise?

The most likely causes are compacted grass debris blocking the thread, corrosion bonding the thread surfaces, or a previously cross-threaded installation. Clear debris, apply penetrating oil and wait 15 minutes, then use a rubber strap wrench for additional torque. If the head still does not move, have it inspected at a Stihl dealer to avoid damaging the gearbox.

Do all Stihl trimmer heads use the same removal method?

No. AutoCut heads (the most common) use a shaft lock plus clockwise rotation. PolyCut and Fix-Cut heads use a top-mounted retaining nut on splined shafts. The EasySpit head has no bolt at all — it unscrews by hand after pressing a lock tab. Identify your head type using the model lookup table in this guide before starting.

Can I replace my Stihl AutoCut head with a PolyCut or different head type?

Stihl heads use standardized drive shaft thread sizes within product families, so cross-fitting is often mechanically possible. The limiting factor is engine or motor power — PolyCut and Fix-Cut blade heads require sufficient torque to operate safely and are not recommended for entry-level models (FS 38, FS 40, FSA 57). Confirm compatibility using the Stihl parts catalog or consult a dealer before purchasing an alternative head.
