Removing the spool from a weed eater is a straightforward maintenance task that most owners can complete with basic tools and safety precautions. Whether you need to replace the cutting line, clean the head, or repair internal components, knowing how to safely detach the spool is essential. The process varies slightly depending on your trimmer head type, but the fundamental steps remain consistent across most models.
Identifying Your Trimmer Head Type
Weed eaters use several different trimmer head designs, and each has a slightly different removal method. The most common types are bump-feed heads, auto-feed heads, and fixed-line heads. Bump-feed heads require you to tap the head on the ground to release more line as needed, and typically use tabs or buttons to release the cap. Auto-feed heads automatically extend line as it wears, and also use a cap release system but may have a different locking mechanism. Fixed-line heads hold a set length of line and are often found on commercial-grade trimmers.
To identify your trimmer head type, examine the top of the head where the cap is located. Look for tabs on the sides—if you see two or three small buttons or clips, you likely have a bump-feed or auto-feed head. If the cap appears to be threaded or has a hex socket on top, you have a fixed-line head that unscrews. Check your owner’s manual if you’re uncertain; the manual will specify your exact head type and provide model-specific removal guidance.
Safety Preparations Before Removal
Before attempting to remove the spool, always turn off the weed eater and allow the engine to cool for several minutes. This prevents accidental starting while your hands are near moving parts. Next, disconnect the spark plug wire from the spark plug by gently twisting and pulling the wire boot away from the plug. This is a critical safety step that grounds the ignition system and makes accidental starting impossible.
Wear work gloves to protect your hands from cuts on the metal edges of the trimmer head and any existing line fragments. Place the weed eater on a flat, stable work surface where it won’t tip or roll. If possible, secure it in a vice or have someone hold it steady. Never work on a weed eater while it rests on an uneven surface or in your lap, as this increases the risk of injury if the head rotates unexpectedly.
Removing the Cap and Spool

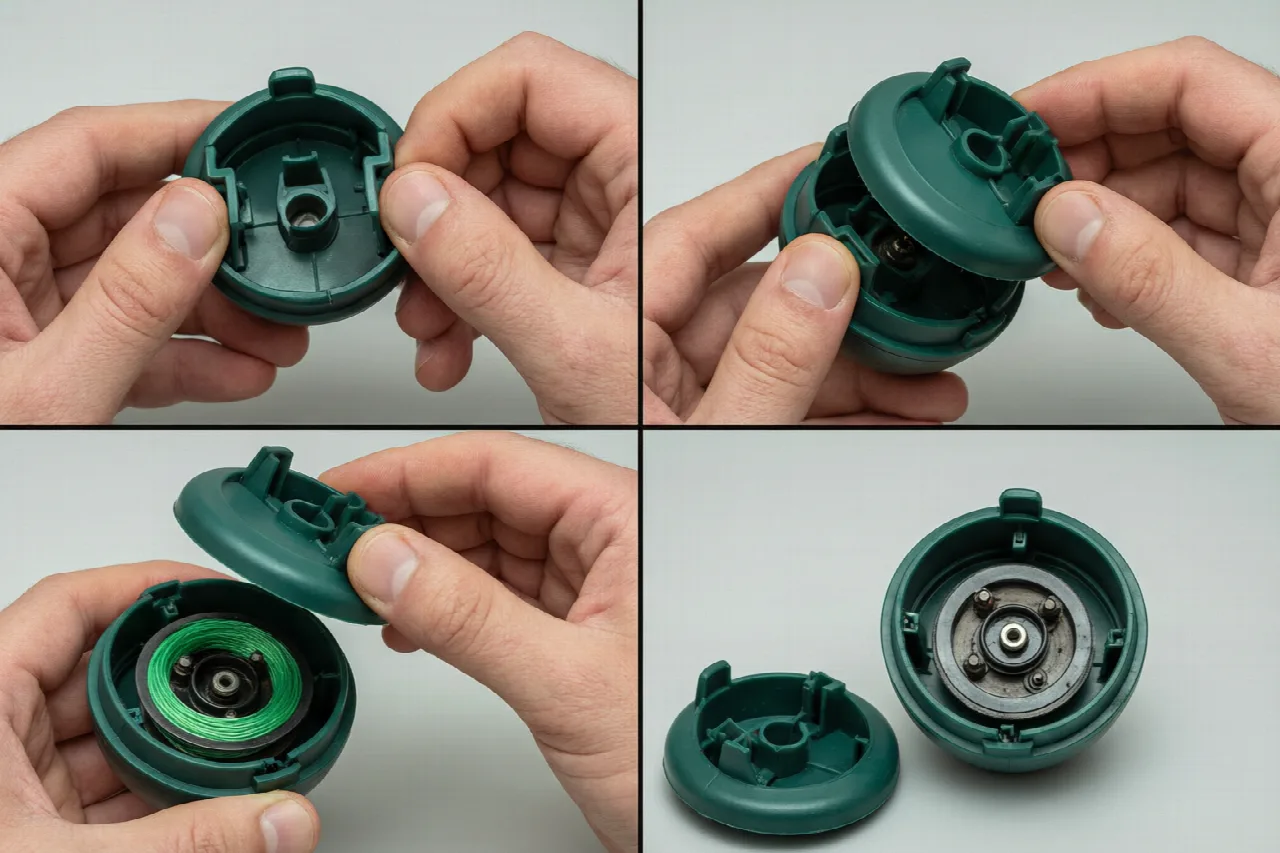

For bump-feed and auto-feed heads with side tabs, locate the two or three small clips or buttons on the sides of the trimmer head cap. Press these tabs inward firmly and lift the cap straight up and away from the head. Some designs require you to press only one tab while lifting; others require simultaneous pressure on both sides. The cap should come free with moderate upward pressure—if you feel significant resistance, verify that all tabs are fully depressed before pulling harder.
Once the cap is removed, you’ll see the spool sitting in the center of the head. Grasp the spool near its center hub and pull it straight upward. The spool should slide out easily. If it resists, stop and check that the cap has been fully released; sometimes one tab remains partially engaged and prevents removal.
For fixed-line heads with threaded caps, look for a hex socket or flat slot on top of the cap. Using the appropriate wrench or screwdriver, turn the cap counterclockwise to unscrew it. Apply steady, even pressure to avoid stripping the threads. Once the cap is loose, unscrew it by hand and lift it away. The spool or fixed line assembly will then be accessible underneath.
Dealing with a Stuck Spool
If the spool won’t come out after the cap is properly released, it may be stuck due to dried line residue, corrosion, or debris inside the head cavity. First, try gently wiggling the spool side to side while pulling upward; this can free it if it’s just slightly bound. If that doesn’t work, set the weed eater on its side and carefully tap the side of the trimmer head with a rubber mallet or wooden block. This gentle percussion can dislodge material that’s holding the spool in place. Never strike the head with a metal hammer or apply excessive force, as this can crack the plastic housing.
If tapping doesn’t help, apply a penetrating oil like WD-40 around the spool shaft where it enters the head. Allow the oil to soak for 10 to 15 minutes, then try removal again. For particularly stubborn spools, some manufacturers offer spool removal tools that provide leverage without risk of damage—check whether your trimmer manufacturer sells one for your model.
Inspecting the Spool and Head After Removal
With the spool removed, examine it for cracks, warping, or broken tabs that would prevent proper reinstallation. Small cracks may still allow the spool to function, but warped or severely damaged spools should be replaced. Check the inside of the trimmer head for debris, hardened line fragments, or corrosion. Use a brush or compressed air to clean out any loose material. If you notice metal shavings inside the head, this may indicate internal damage to the spindle or gears, and the head may need replacement.
Inspect the cap for cracks and verify that all tabs and locking mechanisms move freely. A damaged cap can prevent the spool from seating properly after reinstallation. If the head interior shows heavy corrosion or rust, clean it with a wire brush and consider applying a light coat of rust preventative oil before reassembly.
Reinstalling the Spool (Brief Overview)
When you’re ready to reinstall the spool, first ensure the head is clean and dry. Align the spool shaft with the center spindle inside the head cavity and slide the spool straight down until it sits fully in the head. For bump-feed and auto-feed heads, place the cap back on and press the side tabs until you hear a click or feel them lock into place. For fixed-line heads, thread the cap back on by hand first, then tighten it firmly with the appropriate wrench or screwdriver, turning clockwise. Reconnect the spark plug wire and test the trimmer head manually by hand to verify it spins freely.
